Plan 62791DJ
Coastal House Plan with Waterfront Views From Every Room
Heated S.F.
1,064
Beds
2
Baths
1
Stories
2
Cars
2
Plan Details
  • Waterfront views can be enjoyed from any room in this captivating Coastal-style, beach house plan.  On the outside, you will find a grand staircase at ground level leading up to the raised main level, and two separate stairways leading up to the covered lanai on the backside of the house.
  • On the main living level, the great room and kitchen can open up to the covered lanai with three sliding glass doors.
  • The great room includes a fireplace that is flanked by built-in bookshelves. The kitchen is well equipped with an island and a pantry.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Coastal House Plan with Waterfront Views From Every Room

  • 1,064

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

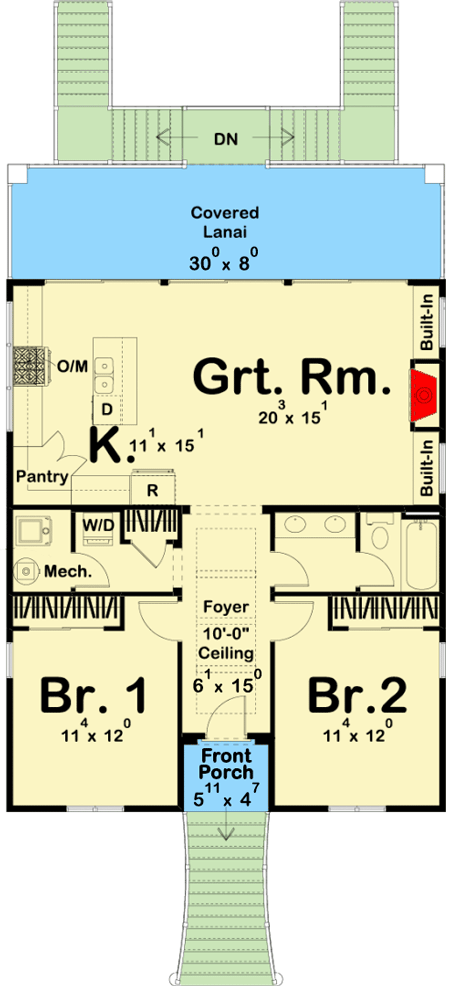

  • Main Floor

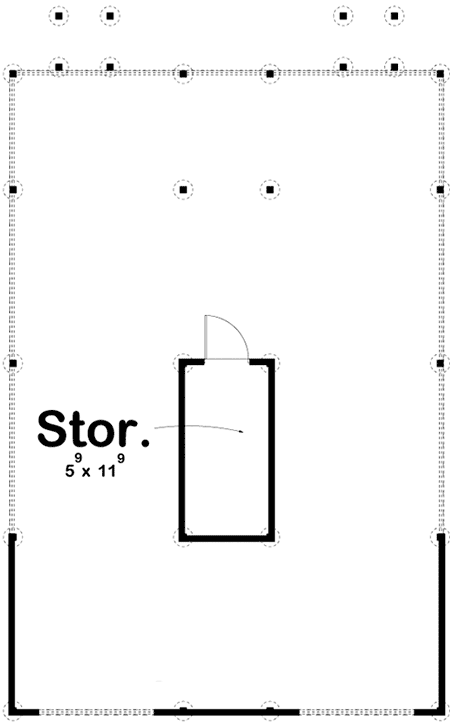

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total: 1,064 sq. ft.
  • 1st Floor: 1,064 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 45' 0"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Drive Under
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Post/Pier

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
