Plan 280151JWD
Modern Ranch for Sloped Lot with Wraparound Deck - 3986 Sq Ft
Heated S.F.
3,986
Beds
4
Baths
2.5
Stories
1
Cars
3
Plan Details
  • This Modern Ranch home plan features a main-level master bedroom, walk-out basement, and a 3-car garage.

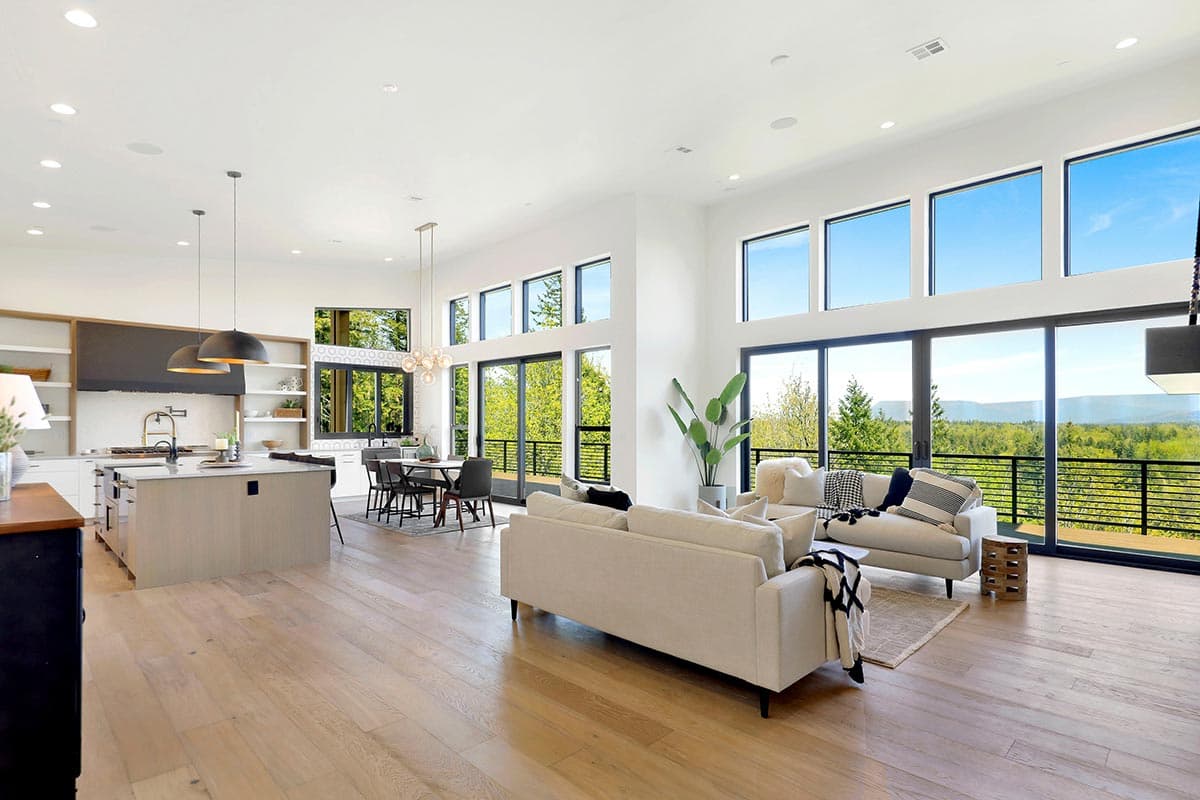

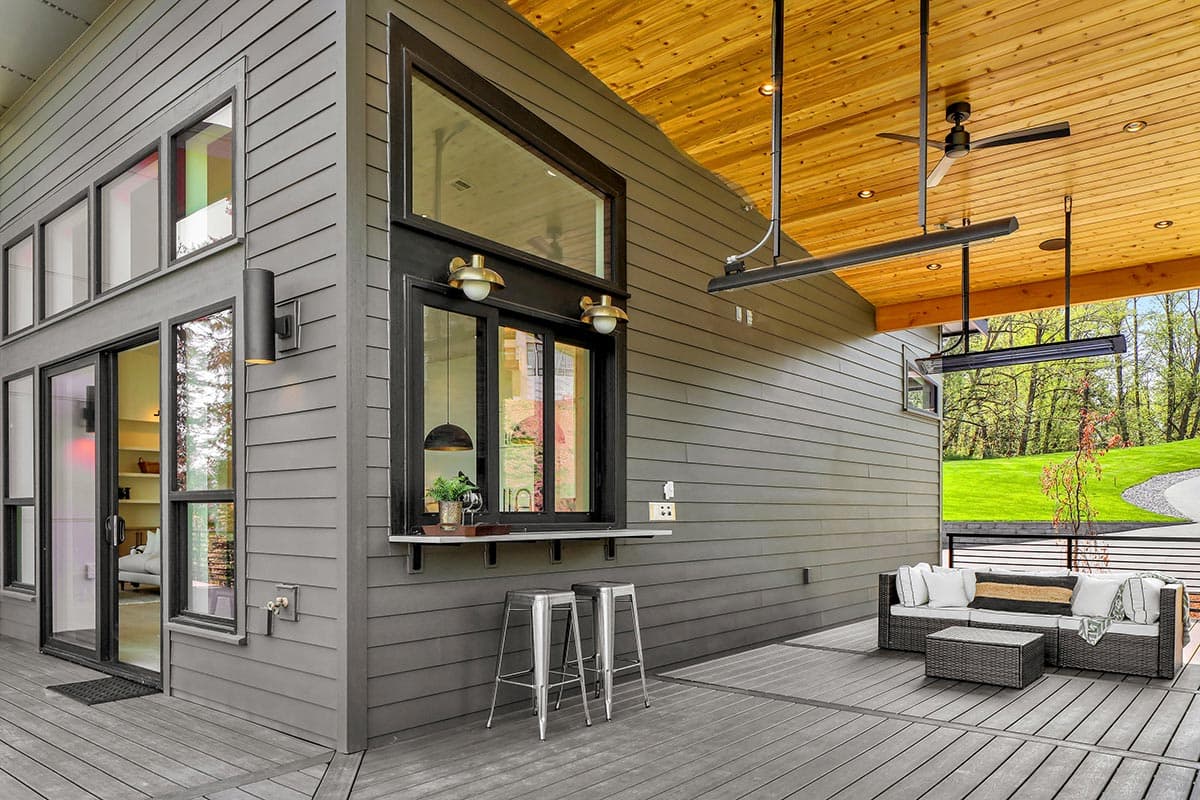

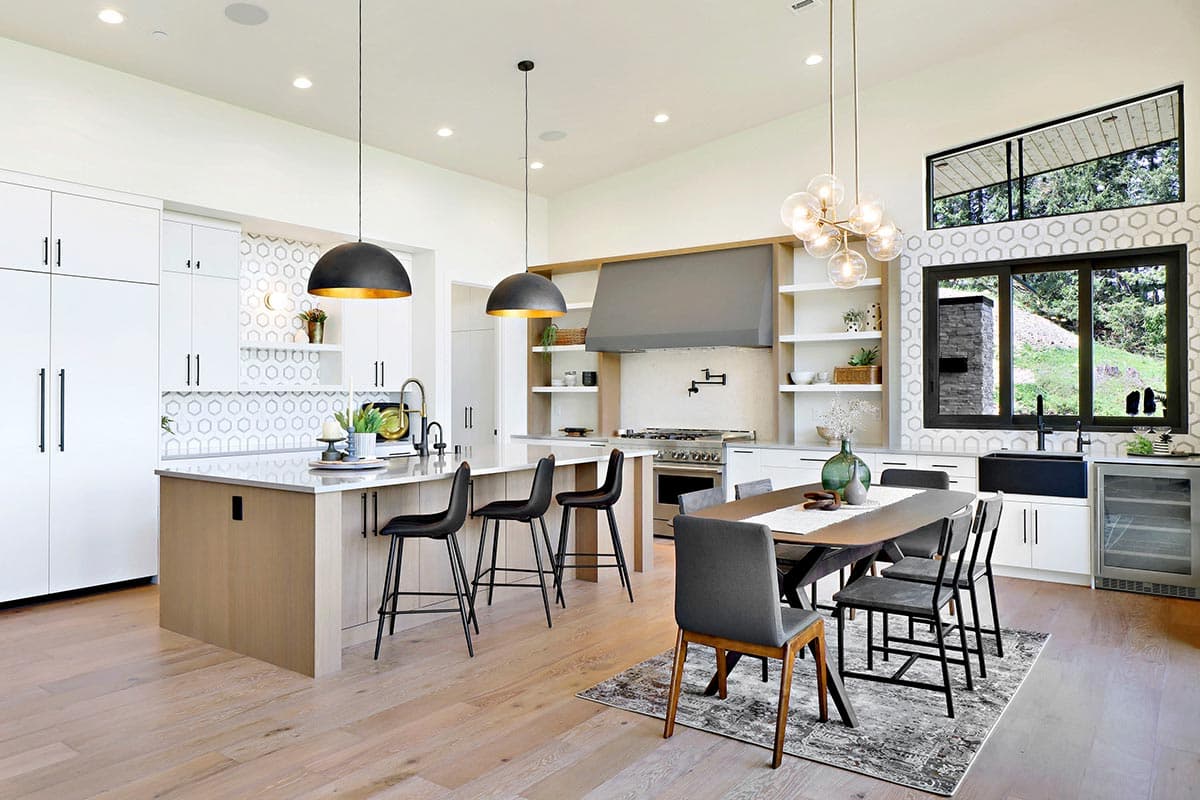

  • The spacious living room and adjoining eat-in kitchen flow onto the partially-covered deck through sliding doors, perfect when entertaining family and friends.

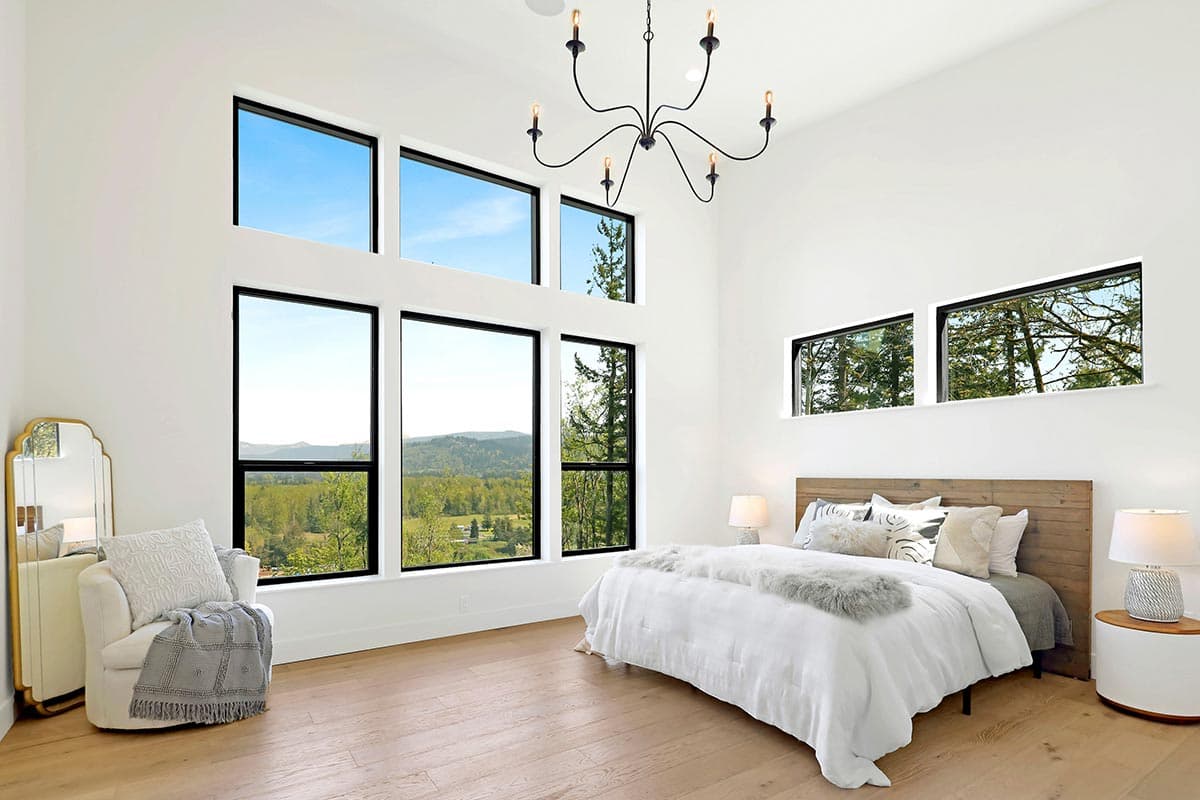

  • Natural lighting fills the main-level master bedroom that includes a 5-fixture bathroom and walk-in closet. A quiet den completes the first floor and can double as a home office.

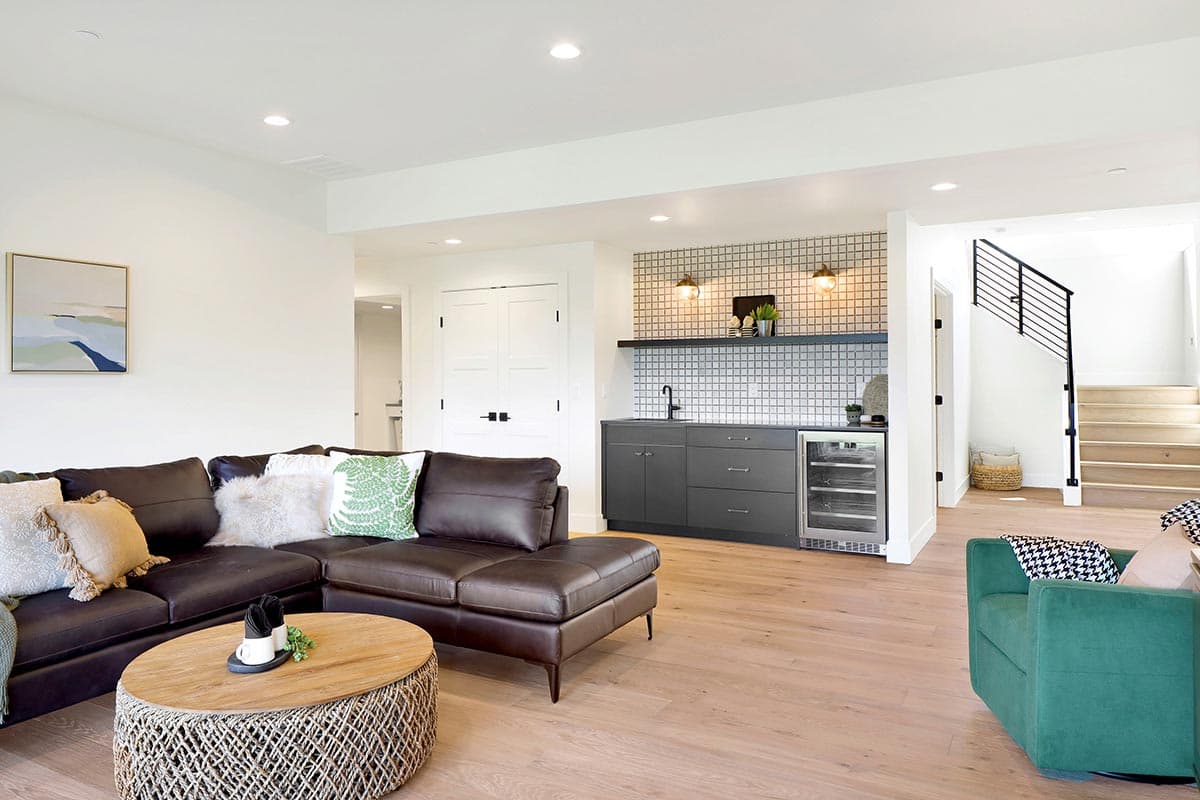

  • Downstairs, a sizable family room opens to the lower patio and is surrounded by three family bedrooms, while a flex room evolves as your needs change.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Ranch for Sloped Lot with Wraparound Deck - 3986 Sq Ft

  • 3,986

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

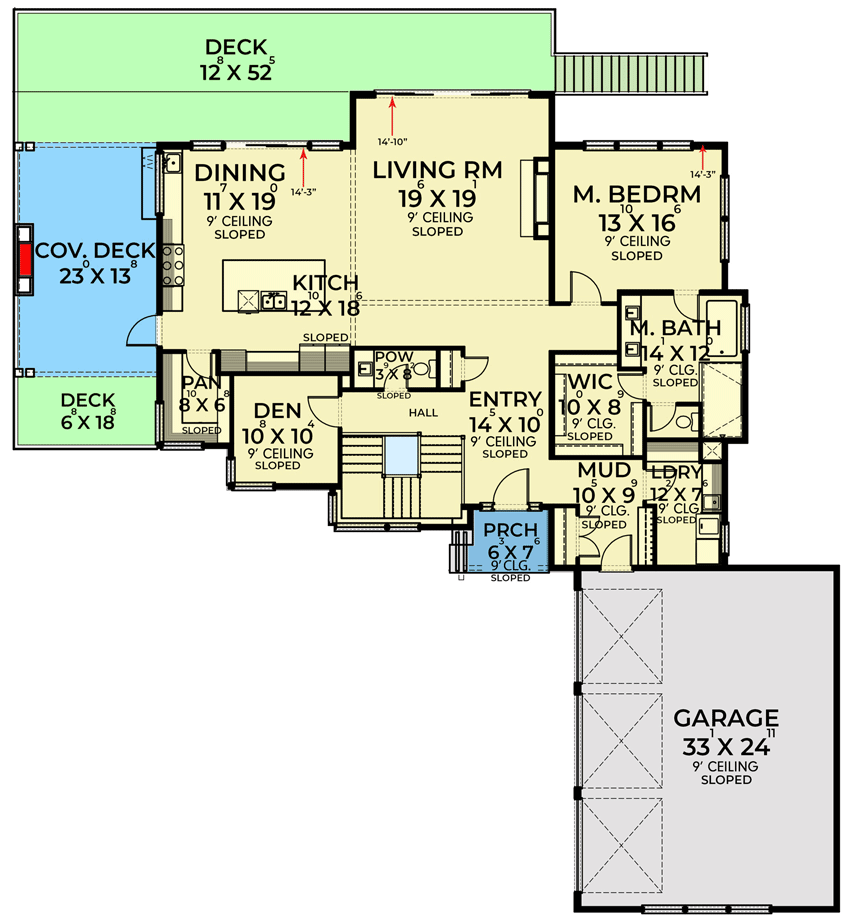

  • Main Level

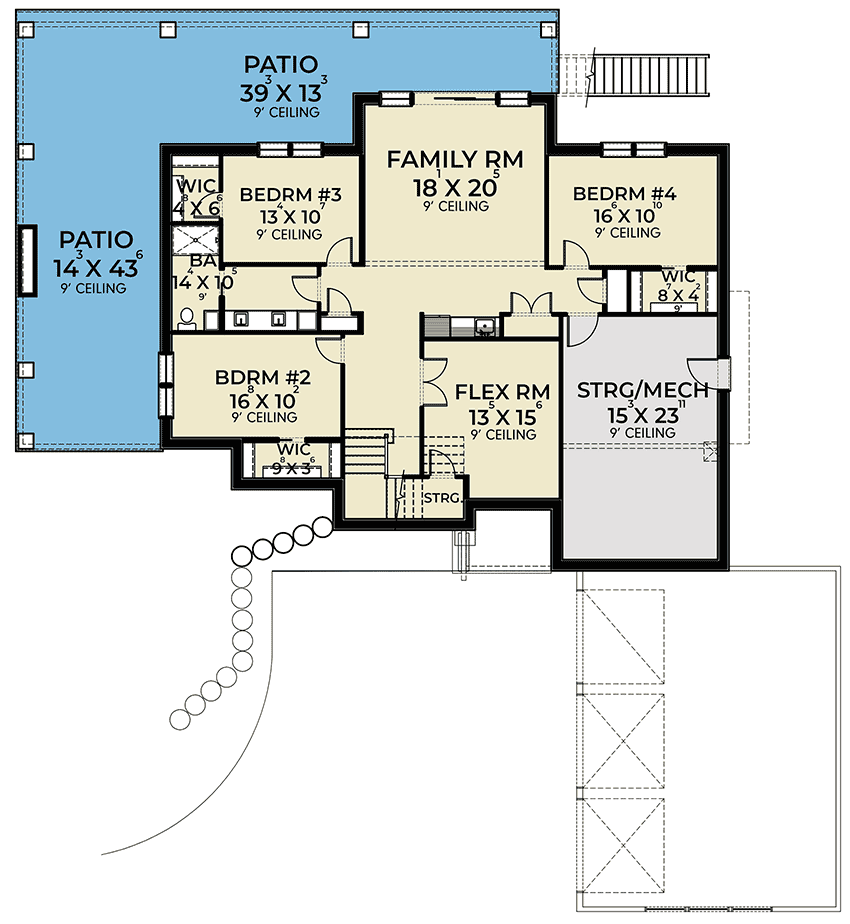

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,986 sq. ft.
  • Lower Level: 1,769 sq. ft.
  • 1st Floor: 2,217 sq. ft.

Dimensions

  • Width: 80' 6"
  • Depth: 67' 0"
  • Max ridge height: 28' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 1.5 on 12
  • Framing Type: Truss
