Plan 40893DB
One-Story 3-Bed Ranch Home Plan with Two-Island Kitchen
Heated S.F.
2,449
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan
Optional Layout
Reverse Floor Plan
One-Story 3-Bed Ranch Home Plan with Two-Island Kitchen - 40893DB floor plan - Optional Layout
Plan Details
  • Ironing is a major household chore; simplifying the steps to ironing saves time and energy. That's why this plan features a master suite walk-in closet with room for a built-in ironing board. Finish ironing and hang the clothes directly into the closet. You won't have to carry it upstairs or worry about dropping something.

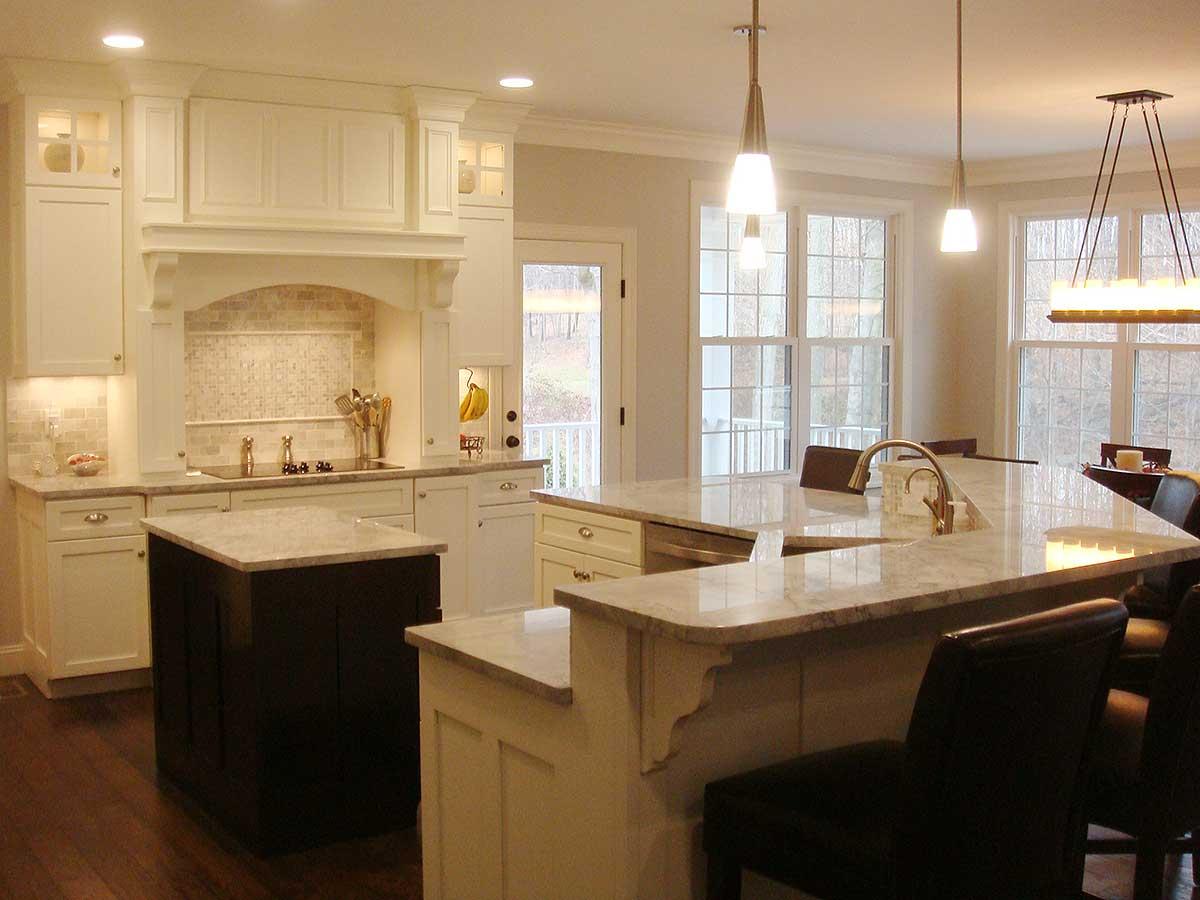

  • Two islands in the kitchen simplify cooking. Space for slicing, dicing and cleaning food on the central island leaves counter space for dishes and snack food. Invite the kids in for a snack while you're preparing dinner and enjoy their company. A pantry is convenient for your storage needs.
  • Two bedrooms each have walk-in closets and share a bath.
  • Three covered porches provide plenty of opportunities for enjoying the outdoors.

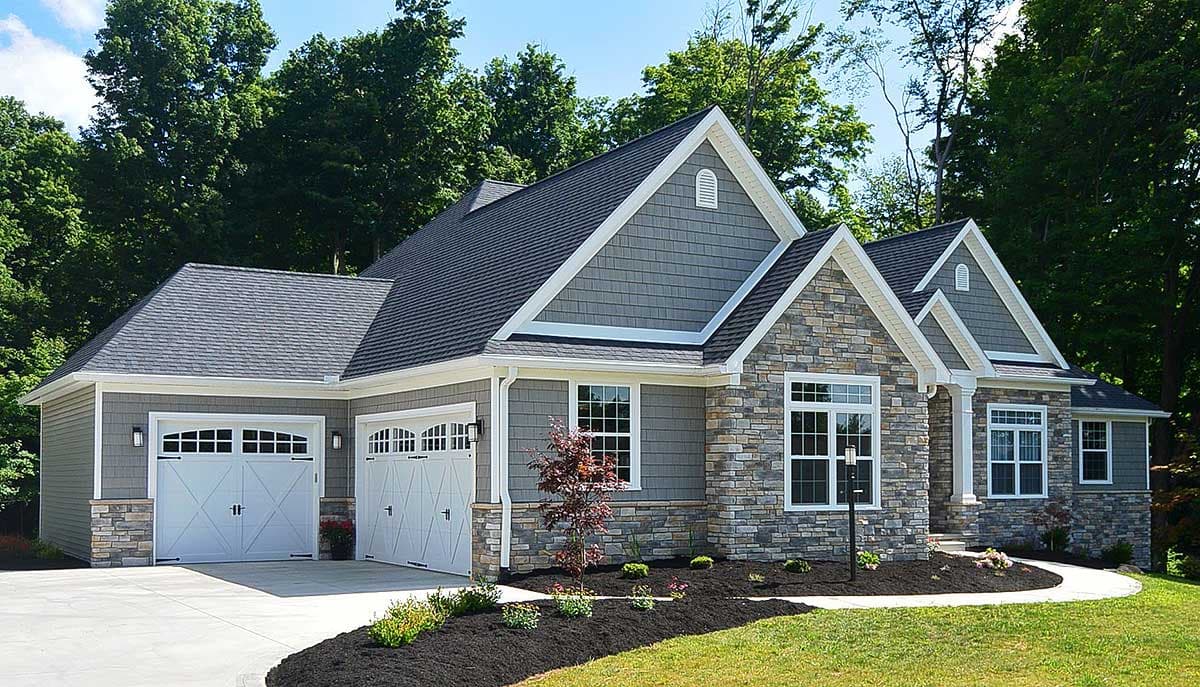

  • The width including the optional third garage is 81'. The optional garage is 12' x 22'.
What's Included
  • General Notes

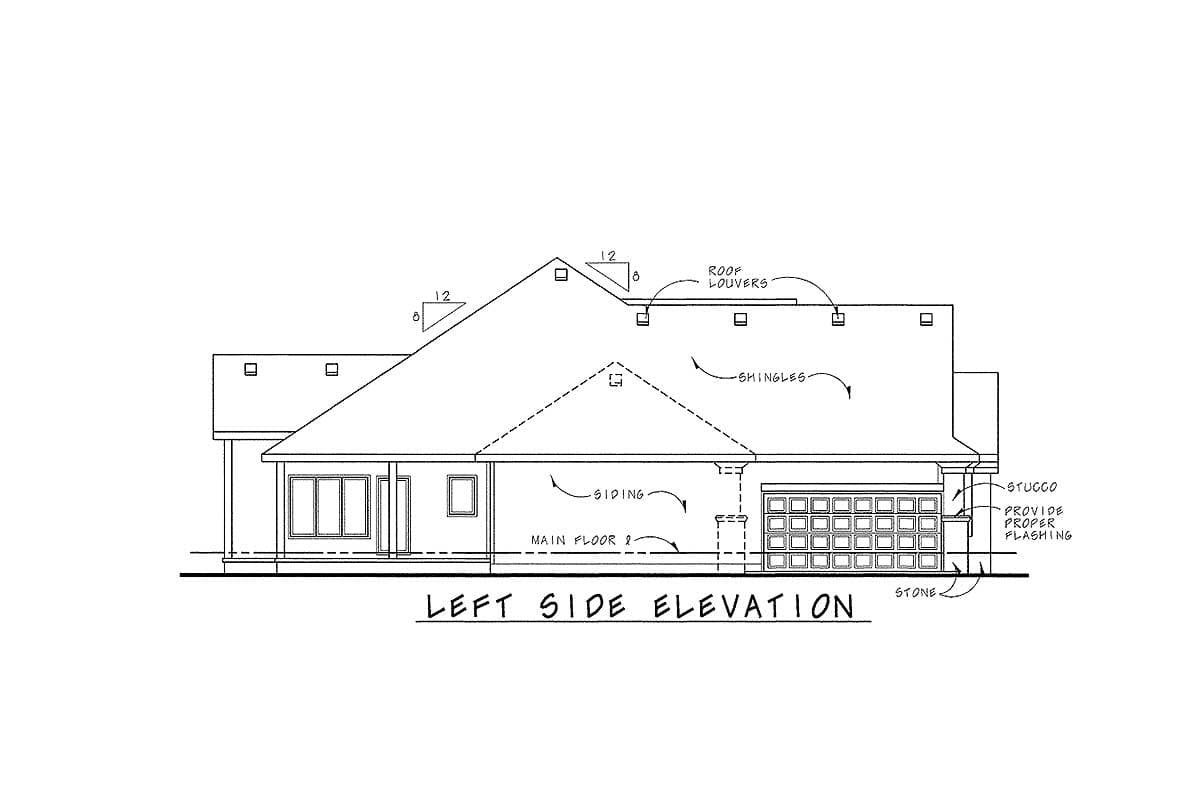

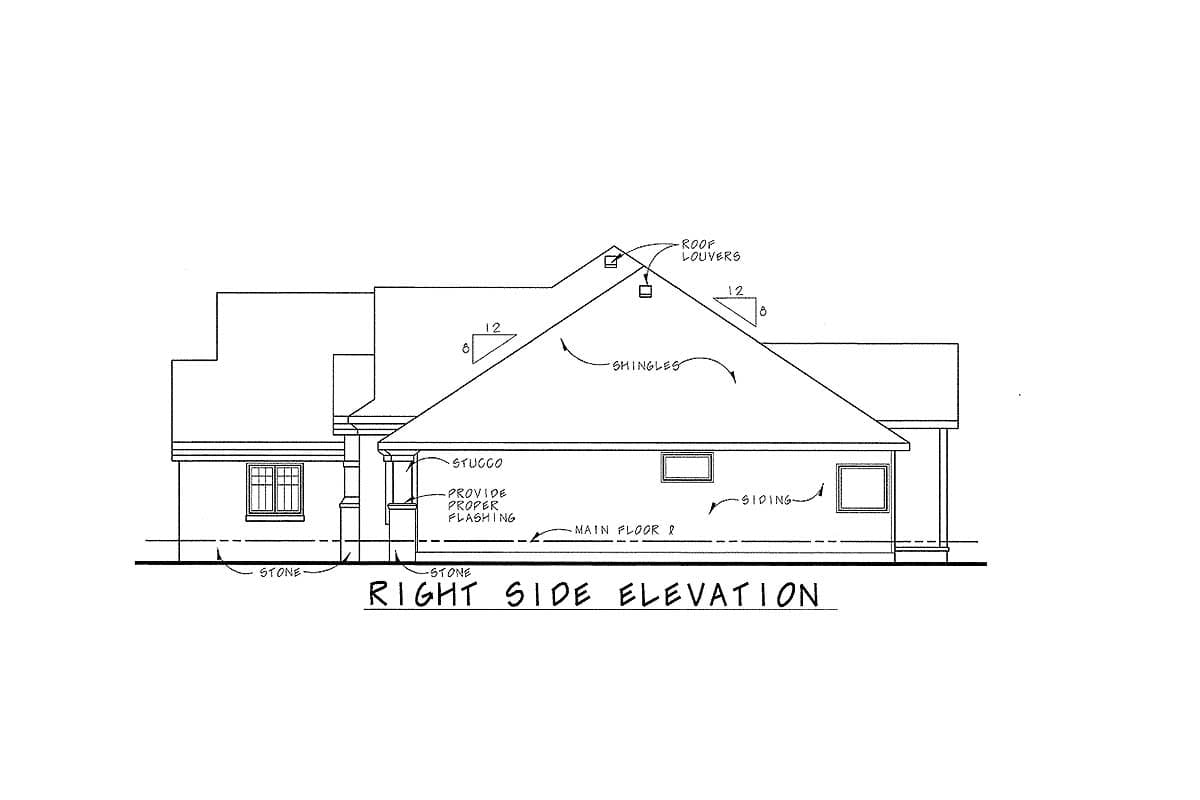

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section

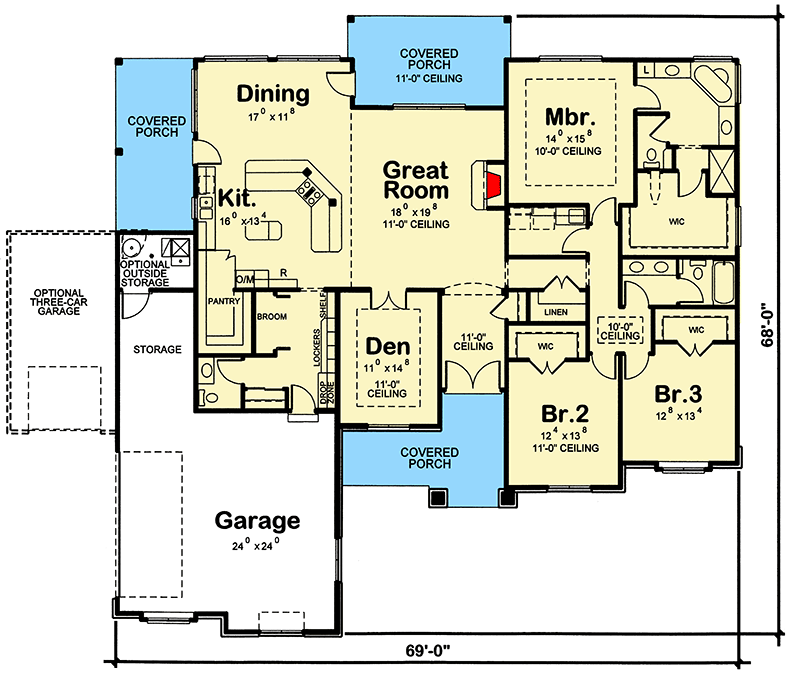

  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story 3-Bed Ranch Home Plan with Two-Island Kitchen

  • 2,449

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total: 2,449 sq. ft.
  • 1st Floor: 2,449 sq. ft.

Dimensions

  • Width: 69' 0"
  • Depth: 68' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 748 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
