Plan 72674DA

Townhome Plan with Guest Apartment

Heated S.F.
2,250
Beds
3 - 4
Baths
3 - 4
Stories
2
Cars
2

Floor Plan

Plan 72674DA

Main Level
Main Level
2nd Floor
2nd Floor
Optional
Optional

Plan 72674DA

M-F 9am-5pm EST |

1-203-761-8500

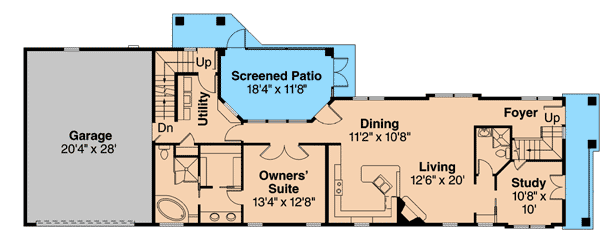

Main Level

Plan 72674DA: Townhome Plan with Guest Apartment - Floor Plan - Main Level - Traditional

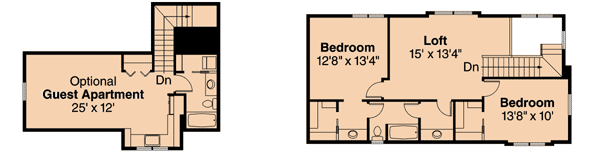

2nd Floor

Plan 72674DA: Townhome Plan with Guest Apartment - Floor Plan - 2nd Floor - Traditional

Optional

Plan 72674DA: Townhome Plan with Guest Apartment - Floor Plan - Optional - Traditional

Plan Details

  • This mid-size town home plan has a wealth of options making it a flexible home plan to work with. A front porch spanning the entire front facade can easily accommodate a porch swing or a suite of outdoor furniture. Two sets of front-facing doors - the entry door leading into the foyer and atrium doors leading into the flex room - is a nice feature of the home.
  • Isolated and on the ground floor, the owners' suite allows single-floor living for the primary owners. While somewhat compact, the bathroom there has both a tub and a separate shower, and the walk-in closet is roomy.
  • Upstairs you'll find the additional bedrooms plus a loft.
  • Long-term guests will love the optional guest apartment that extends over the garage.
  • The great room is designed with two possible layouts. In both, the kitchen is open to the great room. One provides a little more separation and the other has a truer great room feel.
  • Utilities are near the kitchen, and a door in the dining area opens out onto a large screened patio.
  • The primary roof pitch is 8:12.
  • Related Plan: Eliminate the guest apartment with house plans 72694DA (2,062 sq. ft.) and 72693DA (2,062 sq. ft.).

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,250 sq. ft.

1st Floor

1,453 sq. ft.

2nd Floor

797 sq. ft.

Bonus

436 sq. ft.

Screened Porch

200 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 4"

Depth

93' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

604 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Traditional

Special Features

Flex Room

In-Law Suite

Jack & Jill Bath

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,250 sq. ft.

1st Floor

1,453 sq. ft.

2nd Floor

797 sq. ft.

Bonus

436 sq. ft.

Screened Porch

200 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 4"

Depth

93' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

604 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Traditional

Special Features

Flex Room

In-Law Suite

Jack & Jill Bath

Loft

Master Suite - 1st Floor
