Narrow Lot Home Plan with Options

Plan 72693DA

  • 2,062

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A welcoming porch spans the front of this contemporary townhome designed for a narrow lot.
  • One window-bright room comprises the dining room, living room and kitchen.
  • An alternate kitchen layout features a center island instead of a peninsula bar.
  • A partially covered rear patio is accessible from this gathering space.
  • The owners' suite is on the ground floor; two bedrooms, a bathroom, and a loft are upstairs.
  • Related Plans: Get a slightly alternate exterior and floor plan with house plan 72694DA. See house plan 72674DA for a version with a guest apartment (2,686 sq. ft.).

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

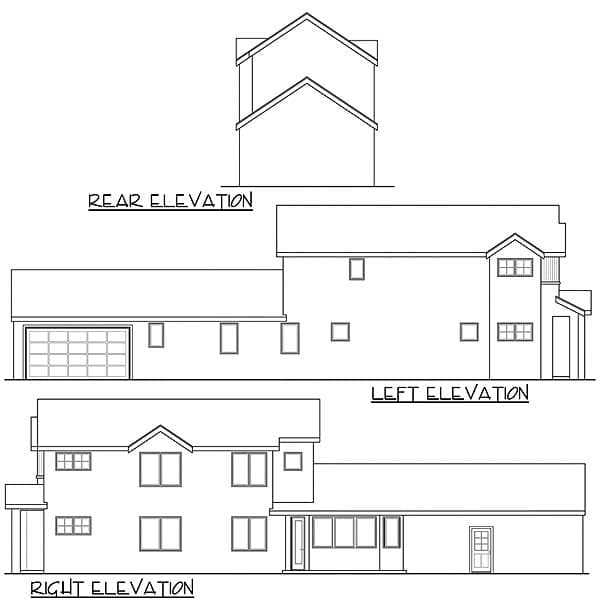

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

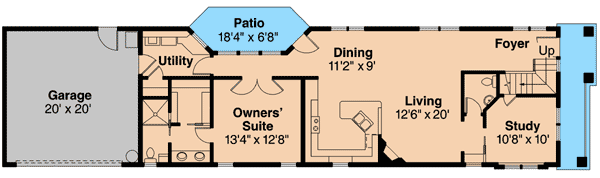

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Narrow Lot Home Plan with Options - 72693DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Narrow Lot Home Plan with Options - 72693DA floor plan - 2nd Floor

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Narrow Lot Home Plan with Options - 72693DA floor plan - Optional

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,062 sq. ft.
  • 1st Floor: 1,282 sq. ft.
  • 2nd Floor: 780 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 21' 4"
  • Depth: 89' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 431 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features



Narrow Lot Home Plan with Options

  • 2,062

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $745
  • PDF Light $975
  • 5 Sets + PDF $1,085
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • A welcoming porch spans the front of this contemporary townhome designed for a narrow lot.
  • One window-bright room comprises the dining room, living room and kitchen.
  • An alternate kitchen layout features a center island instead of a peninsula bar.
  • A partially covered rear patio is accessible from this gathering space.
  • The owners' suite is on the ground floor; two bedrooms, a bathroom, and a loft are upstairs.
  • Related Plans: Get a slightly alternate exterior and floor plan with house plan 72694DA. See house plan 72674DA for a version with a guest apartment (2,686 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,062 sq. ft.
  • 1st Floor: 1,282 sq. ft.
  • 2nd Floor: 780 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 21' 4"
  • Depth: 89' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 431 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12

Plan 72693DA
