Plan 86147BW

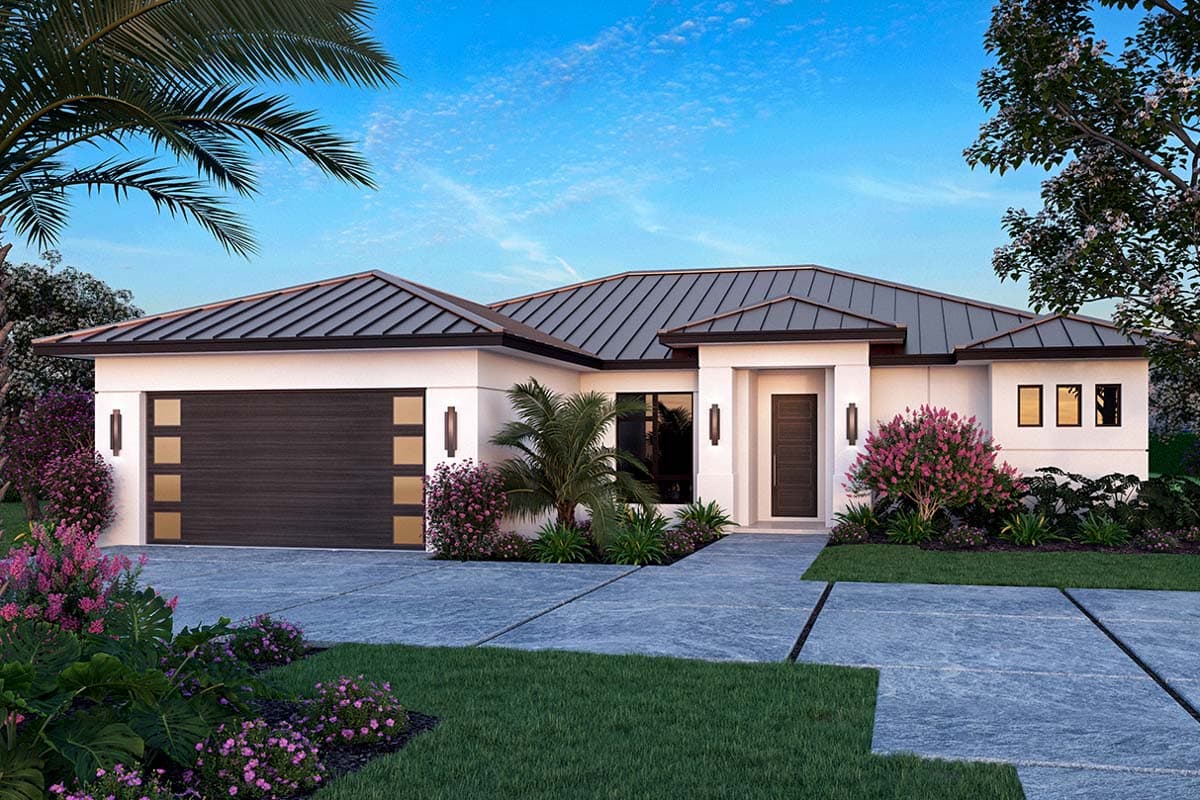

1-Story Coastal Contemporary Home Plan with Private Study - 1960 Sq Ft
Heated S.F.
1,960
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 86147BW

Main Level
slide image 0

Plan 86147BW

1-800-854-7852

1-262-521-4596

Main Level

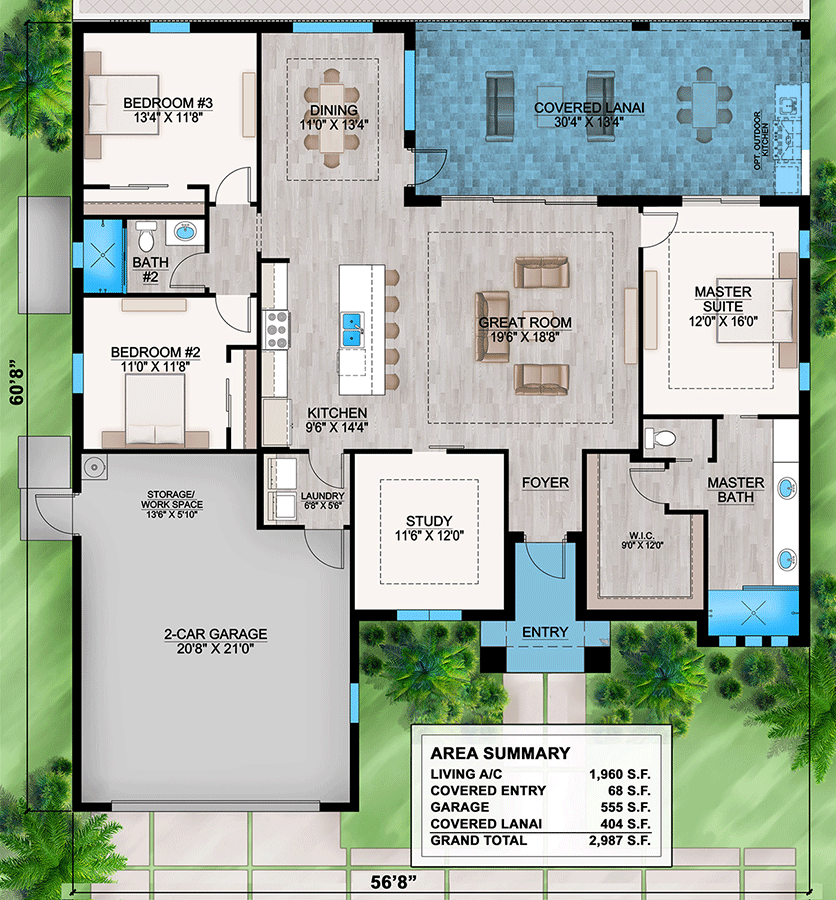

floor plan image Main Level
Plan Details
  • This 1-story Coastal Contemporary home plan features 3 bedrooms, 2 baths, and 1,960 square feet of heated living plus a 2-car 555 square foot front-entry garage.
  • This open-concept design combines the great room, island kitchen, and dining area with oversized glass doors that open onto a covered lanai. A barn door opens to reveal a private study with tray ceiling.
  • Enjoy casual meals and conversation at the kitchen island's eating bar, with easy access to the garage through the laundry room.
  • The master bedroom suite features a walk-in closet, dual sinks, and a separate tub and shower.
  • Other amenities include 2 secondary bedrooms, a full bath, and extra space in the garage for storage.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate layout with house plans 86111BW (1,549 sq. ft.), 86148BW (2,044 sq. ft.) and house plan 86149BW (2,174 sq. ft.).
What's Included

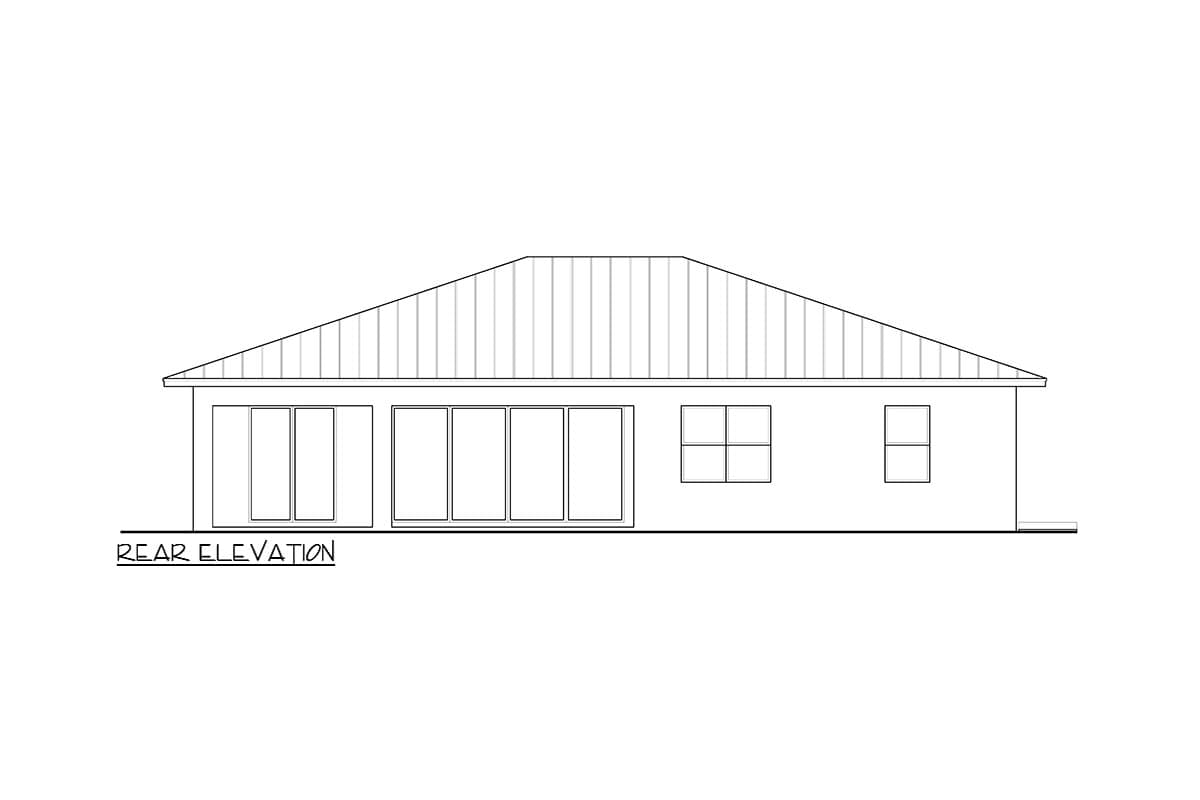

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,960 sq. ft.

1st Floor

1,960 sq. ft.

Entry

68 sq. ft.

Lanai

404 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

56' 8"

Depth

60' 8"

Max Ridge Height

18' 3"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Square Footage Breakdown

Total Heated Area

1,960 sq. ft.

1st Floor

1,960 sq. ft.

Entry

68 sq. ft.

Lanai

404 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

56' 8"

Depth

60' 8"

Max Ridge Height

18' 3"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss
