1300 Square Foot Detached RV Garage with 555 Square Foot Loft

Plan 680022VR

  • 0

    Heated s.f.

  • 2

    Stories

  • 2

    Cars

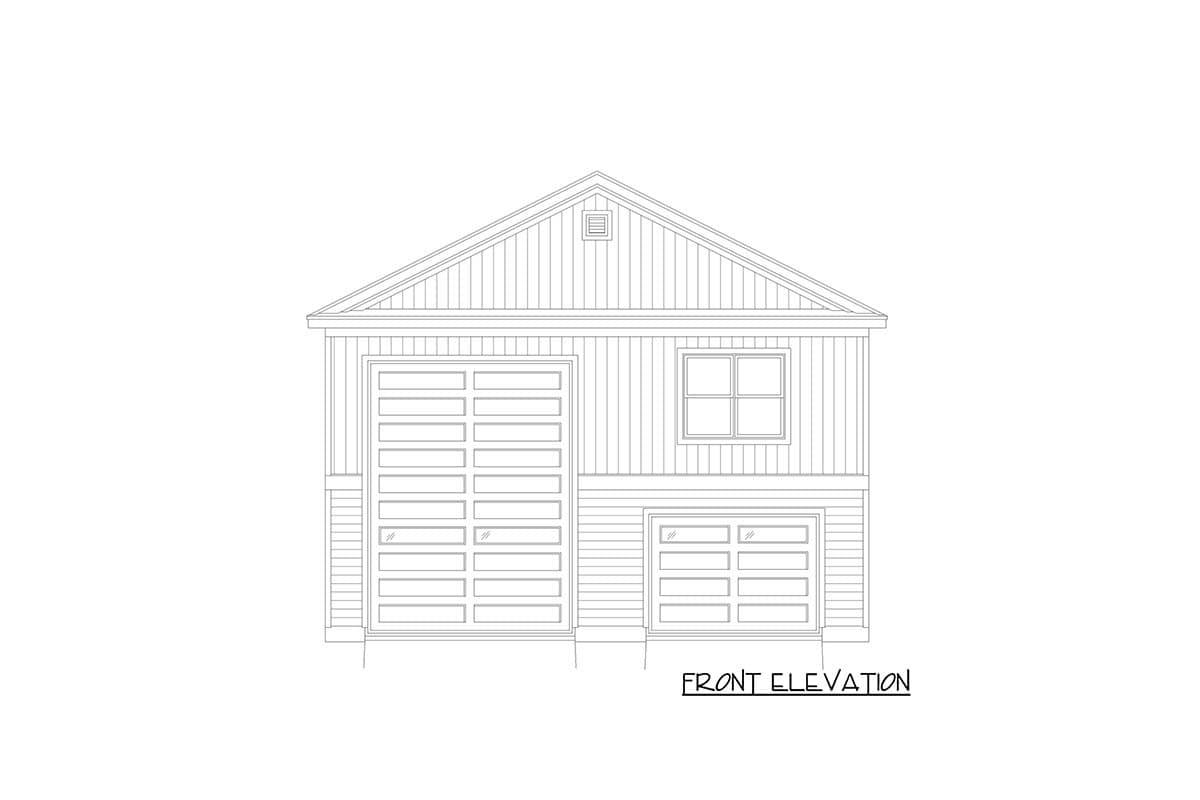

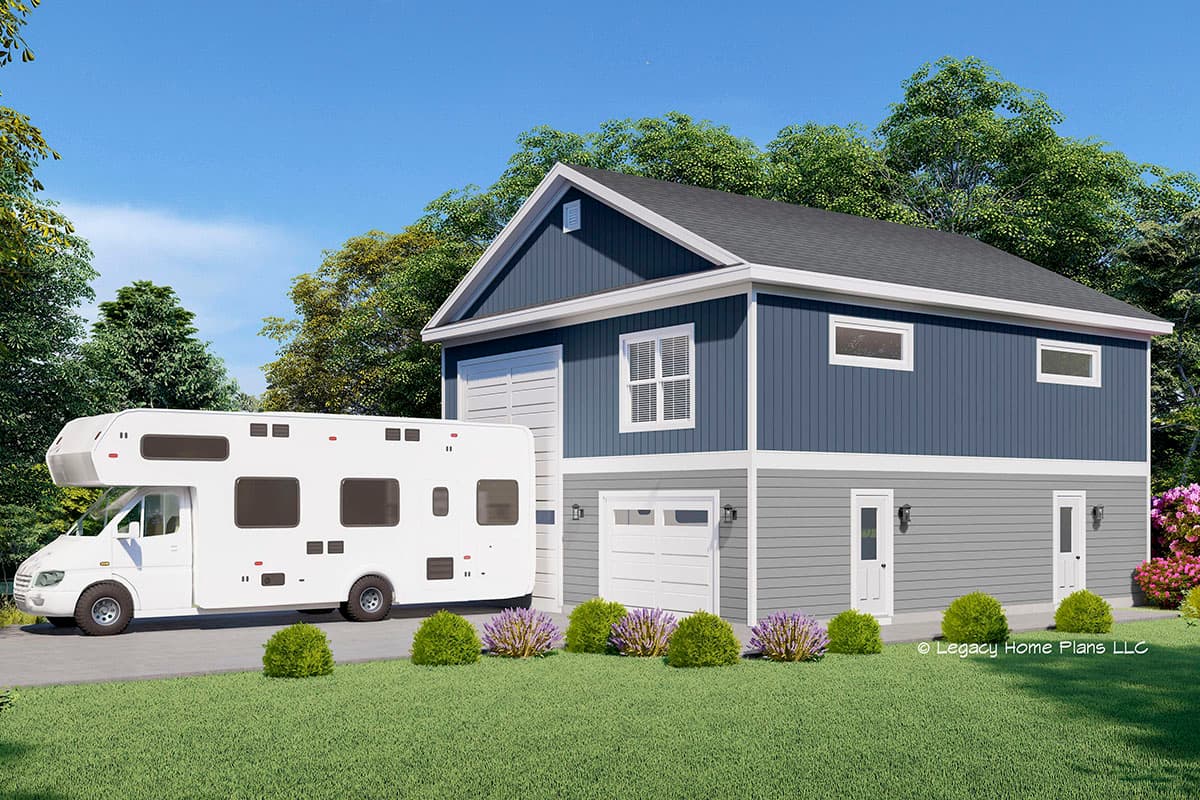

  • A blend of vertical and horizontal siding in moody tones adds a modern touch to this detached 2-car garage.
  • A lift-friendly, RV garage occupies the left side, while a single garage bay is to the right.
  • The staircase lines the rear wall and leads to a sizable loft that totals 555 square feet.
  • Related Plan: Get a version with the garage doors flush to each other with plan 68674VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

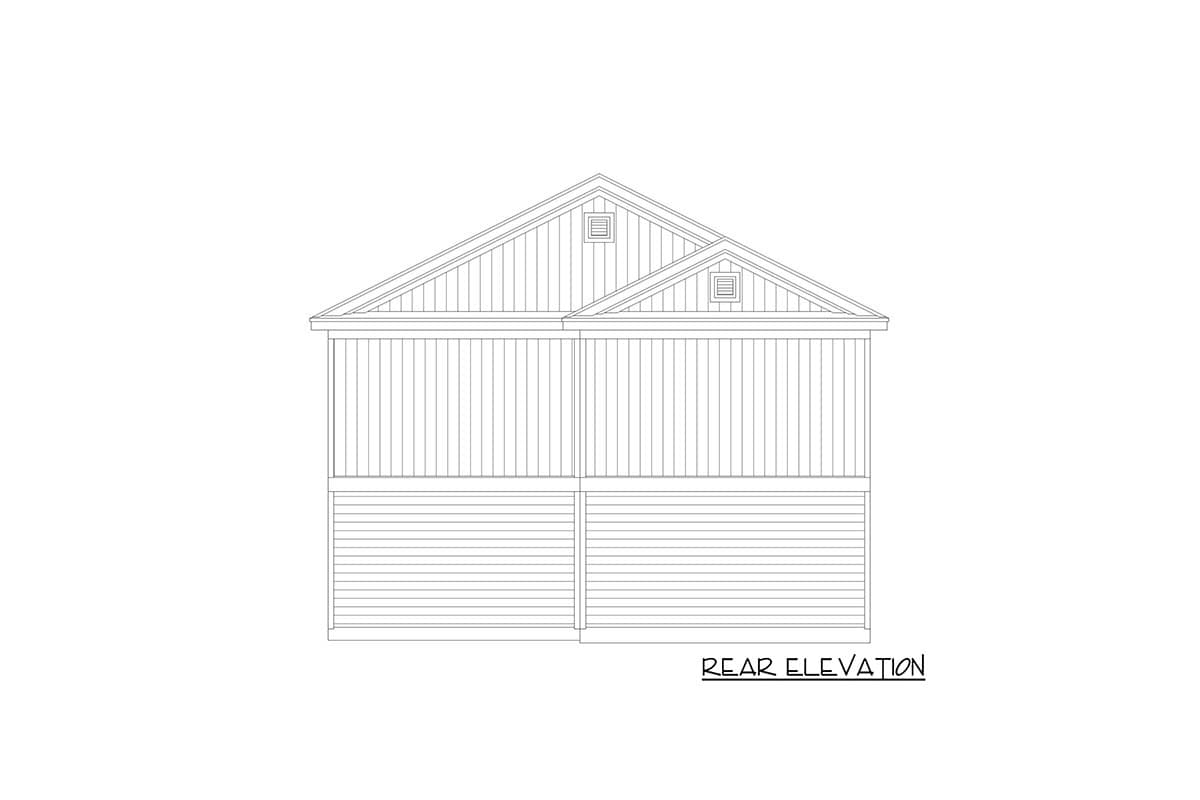

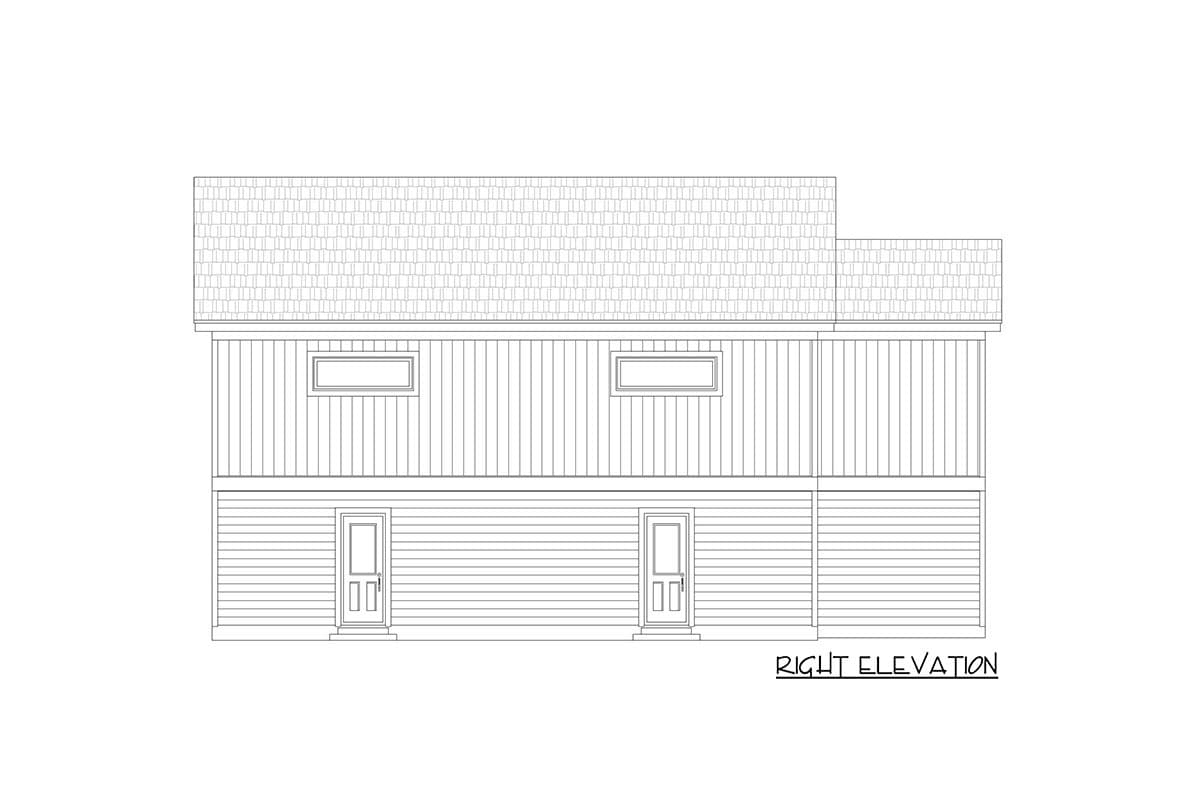

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

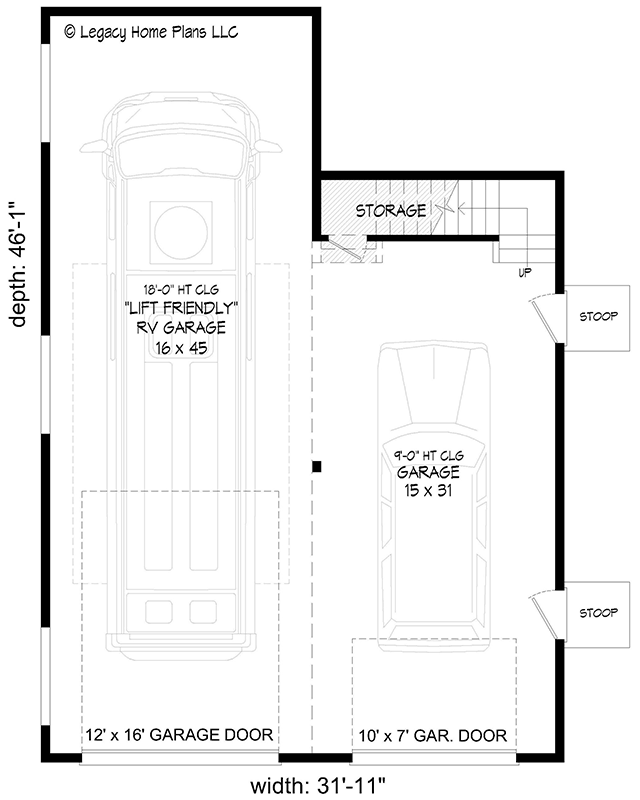

1300 Square Foot Detached RV Garage with 555 Square Foot Loft - 680022VR floor plan - Main Level

Loft

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

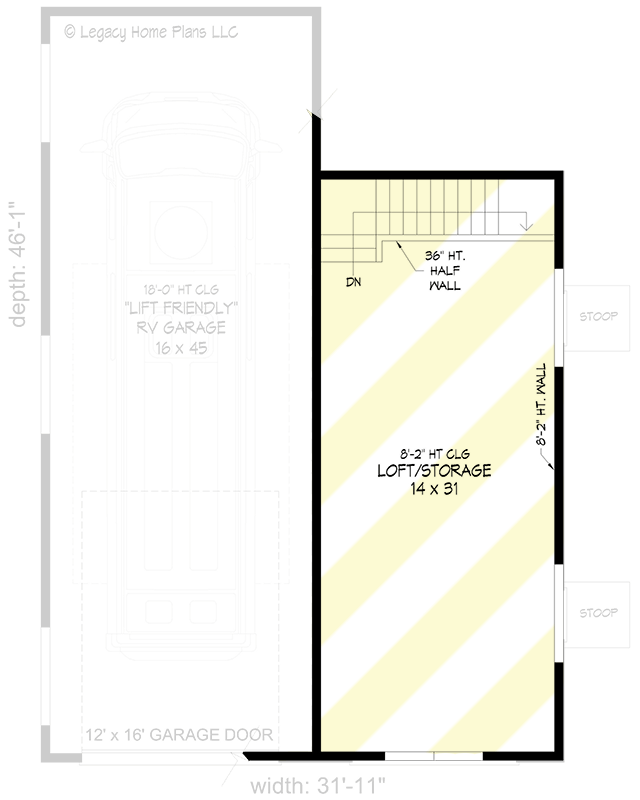

1300 Square Foot Detached RV Garage with 555 Square Foot Loft - 680022VR floor plan - Loft

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Loft: 555 sq. ft.
  • Loft: 555 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 31' 11"
  • Depth: 46' 1"
  • Max ridge height: 26' 9"

Garage

  • Type: RV Garage, Detached
  • Area: 1322 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 2"

Roof Details

  • Primary Pitch: 6 on 12

1300 Square Foot Detached RV Garage with 555 Square Foot Loft

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,175
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • A blend of vertical and horizontal siding in moody tones adds a modern touch to this detached 2-car garage.
  • A lift-friendly, RV garage occupies the left side, while a single garage bay is to the right.
  • The staircase lines the rear wall and leads to a sizable loft that totals 555 square feet.
  • Related Plan: Get a version with the garage doors flush to each other with plan 68674VR.

Floor Plans

  • Main Level

  • Loft

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Loft: 555 sq. ft.
  • Loft: 555 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 31' 11"
  • Depth: 46' 1"
  • Max ridge height: 26' 9"

Garage

  • Type: RV Garage, Detached
  • Area: 1322 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 2"

Roof

  • Primary Pitch: 6 on 12
