15-Foot-Wide Contemporary Home Plan with Rooftop Deck

Plan 680155VR

1,281
Heated s.f.
3
Beds
3
Baths
2
Stories

This rectangular, 2-bedroom home plan is ideal for narrow plot lines with it 15'-wide footprint.
The main floor has one bedroom and the kitchen and living room. Laundry is tucked away in a hall closet.
On the second level, three bedrooms and two bathrooms await. Balconies on the front and back bedrooms are accessible through a pair of French doors.
The entire top floor is reserved as a sun deck.
Related Plan: Get parking on the ground level with house plan 68651VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

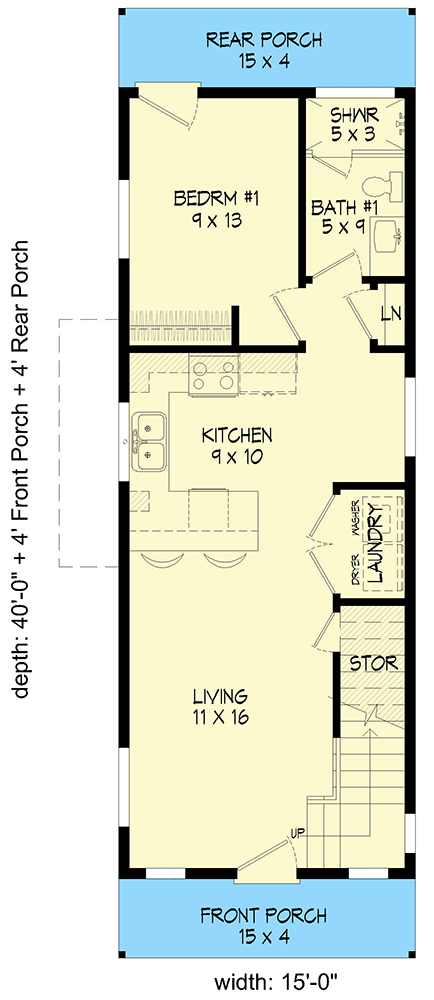

15-Foot-Wide Contemporary Home Plan with Rooftop Deck - 680155VR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

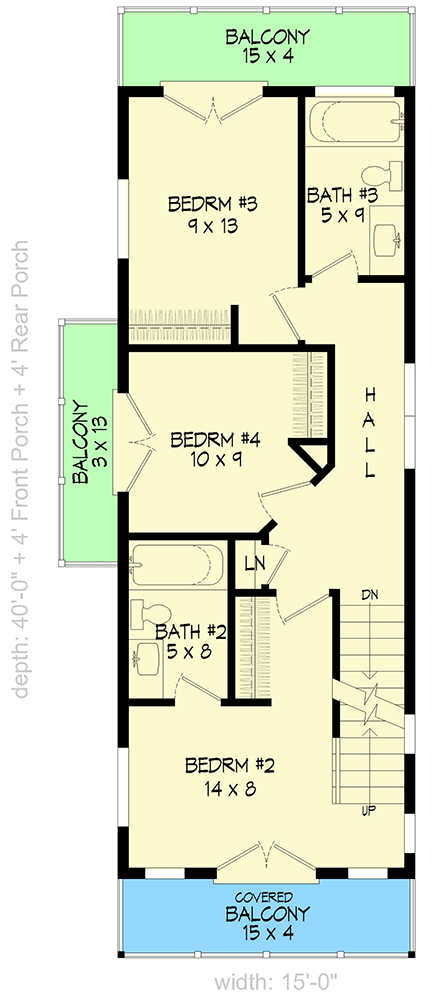

15-Foot-Wide Contemporary Home Plan with Rooftop Deck - 680155VR floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

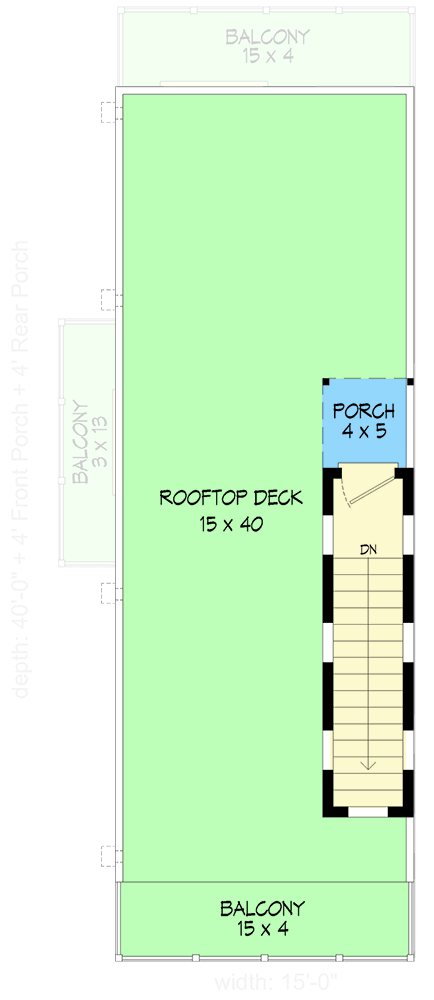

15-Foot-Wide Contemporary Home Plan with Rooftop Deck - 680155VR floor plan - 3rd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,281 sq. ft.
1st Floor: 600 sq. ft.
2nd Floor: 600 sq. ft.
3rd Floor: 81 sq. ft.

Balcony / Veranda: 158 sq. ft.
Porch, Combined: 180 sq. ft.
Roof Deck: 559 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 3

Foundation Type

Standard Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 15' 0"
Depth: 48' 0"
Max ridge height: 26' 0"

Ceiling Heights
