2-Bed Contemporary Home Plan with 4-Car Heated Garage

Plan 68809VR

  • 3,169

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 4

    Cars

  • This 2-bedroom Contemporary home plan presents a shed-style roof with four overhead garage doors lining the front elevation.
  • The left side of the home is where you'll find the 4-car - heated - tandem garage with access into the laundry room that leads to the master bedroom.
  • The two overhead garage doors on the right side of the design provide the living space with loads of natural lighting and an indoor outdoor living experience.
  • A massive kitchen island anchors the space and provides seating for six, while a charming wood stove can be enjoyed from all of the shared living spaces.
  • Retreat the master bedroom to relax and discover a deluxe ensuite with a wet area combining the tub and shower, as well as a walk-in closet.
  • Related Plan: Replace the left side with living space with house plan 68951VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

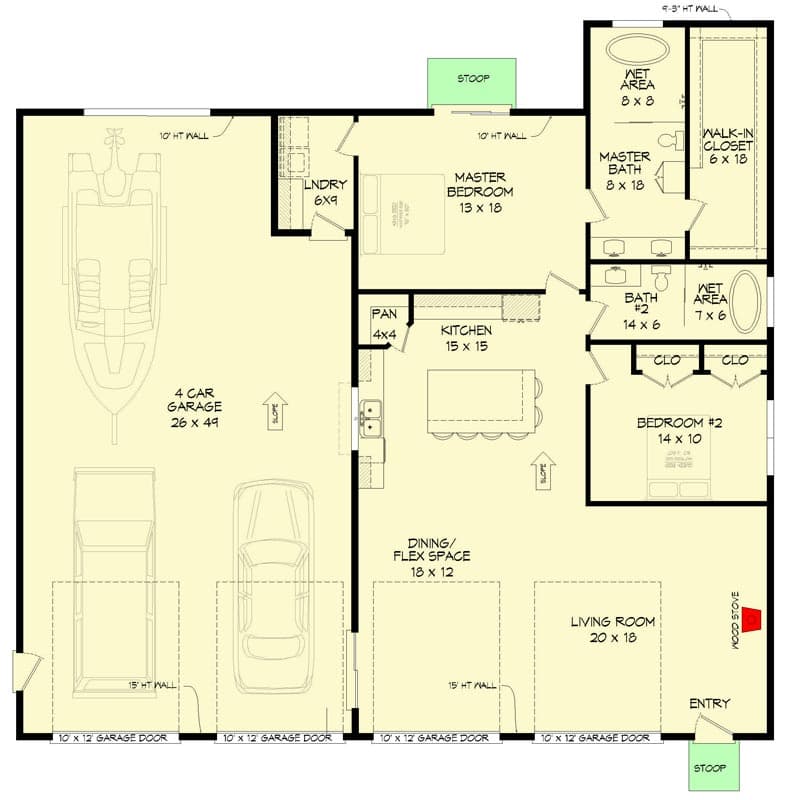

2-Bed Contemporary Home Plan with 4-Car Heated Garage - 68809VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,169 sq. ft.
  • 1st Floor: 1,842 sq. ft.
  • Heated Garage1: 1,327 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 57' 0"
  • Max ridge height: 16' 9"

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Living Room Vaulted 10' 0" to 15' 0"

Roof Details

  • Primary Pitch: 1 on 12
  • Framing Type: Stick

Architectural Style

Special features

2-Bed Contemporary Home Plan with 4-Car Heated Garage

  • 3,169

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,175
  • 5 Sets $1,260
  • 5 Sets + PDF $1,390
  • CAD + PDF - Single-Build $1,725
  • View all purchase option online

About This Plan

  • This 2-bedroom Contemporary home plan presents a shed-style roof with four overhead garage doors lining the front elevation.
  • The left side of the home is where you'll find the 4-car - heated - tandem garage with access into the laundry room that leads to the master bedroom.
  • The two overhead garage doors on the right side of the design provide the living space with loads of natural lighting and an indoor outdoor living experience.
  • A massive kitchen island anchors the space and provides seating for six, while a charming wood stove can be enjoyed from all of the shared living spaces.
  • Retreat the master bedroom to relax and discover a deluxe ensuite with a wet area combining the tub and shower, as well as a walk-in closet.
  • Related Plan: Replace the left side with living space with house plan 68951VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,169 sq. ft.
  • 1st Floor: 1,842 sq. ft.
  • Heated Garage1: 1,327 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 57' 0"
  • Max ridge height: 16' 9"

Garage

  • Type: Attached
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: Stick
