Plan 623150DJ 2 Bed Cottage with Dogtrot Attached to Poolhouse

1,788 2 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2 Bed Cottage with Dogtrot Attached to Poolhouse

Plan 623150DJ

  • 1,788

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This cottage style home combines a beautifully unique exterior with an impressively modern interior. The exterior is a mix of traditional lap siding with wood accents and garage doors.
  • Walk up to the dogtrot to be welcomed by a beautiful covered greeting area with a fireplace and choose to walk into the pool house inclusion or main living space.
  • The main living space offers a mudroom with built-in benches, a large kitchen with a breakfast bar and walk-in pantry, and a large great room, full of windows for natural light to peer in.
  • Continue down the hallway to find the laundry room, master bedroom, complete with a large walk-in closet and double vanity bathroom, as well as the second bedroom with a personal bathroom.
  • Head back out to the dogtrot to find the optionally finished pool house, including another bathroom, small kitchen area, as well as a storage closet for any pool essentials.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

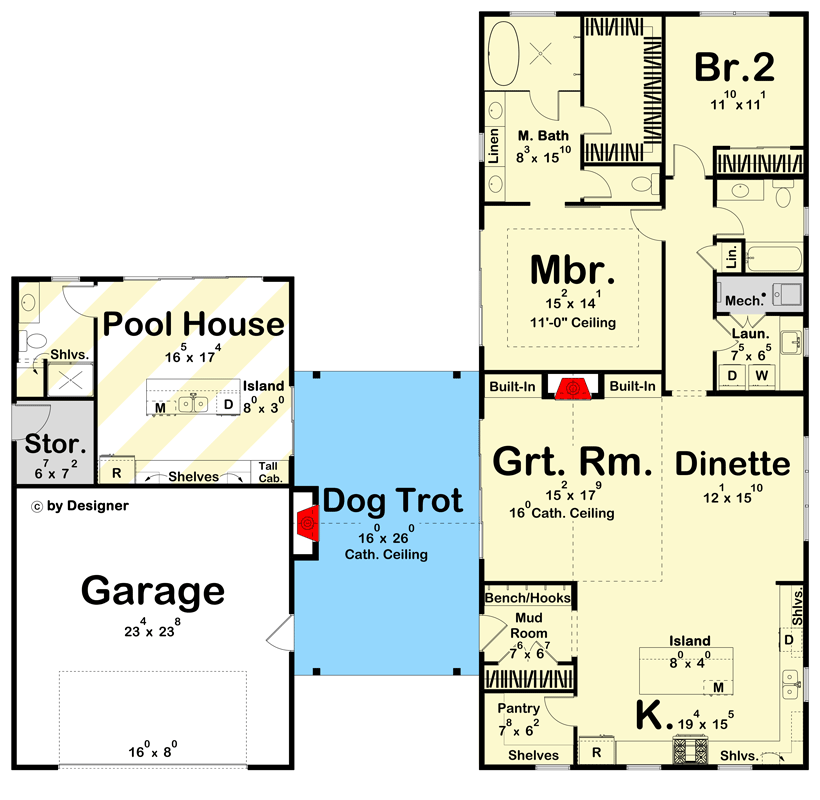

2 Bed Cottage with Dogtrot Attached to Poolhouse - 623150DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,788 sq. ft.
  • 1st Floor: 1,788 sq. ft.
  • Storage: 52 sq. ft.
  • Porch, Combined: 416 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 64' 8"
  • Max ridge height: 17' 10"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

2 Bed Cottage with Dogtrot Attached to Poolhouse

  • 1,788

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,800
  • CAD + PDF - Single-Build $1,800
  • CAD - Unlimited Build $2,300
  • View all purchase option online

About This Plan

  • This cottage style home combines a beautifully unique exterior with an impressively modern interior. The exterior is a mix of traditional lap siding with wood accents and garage doors.
  • Walk up to the dogtrot to be welcomed by a beautiful covered greeting area with a fireplace and choose to walk into the pool house inclusion or main living space.
  • The main living space offers a mudroom with built-in benches, a large kitchen with a breakfast bar and walk-in pantry, and a large great room, full of windows for natural light to peer in.
  • Continue down the hallway to find the laundry room, master bedroom, complete with a large walk-in closet and double vanity bathroom, as well as the second bedroom with a personal bathroom.
  • Head back out to the dogtrot to find the optionally finished pool house, including another bathroom, small kitchen area, as well as a storage closet for any pool essentials.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,788 sq. ft.
  • 1st Floor: 1,788 sq. ft.
  • Storage: 52 sq. ft.
  • Porch, Combined: 416 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 64' 8"
  • Max ridge height: 17' 10"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
Plan 623150DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623150DJ
|
Need Help? 800-854-7852
|
Plan 623150DJ
