Plan 67704MG
2-Bed Getaway Vacation Cabin with Two Story Great Room - 849 Sq Ft
Heated S.F.
849
Beds
2
Baths
1
Stories
2
What's Included
Plan Details
  • Angled transom windows bring extra light into this Vacation cabin.
  • A peninsula eating bar in the kitchen lets you see right into the great room.
  • The main bedroom is in back and is close by the full bathroom and rear door.
  • The second floor has an open rail balcony that lets you look into the great room below.
  • The loft bedroom has sloped ceilings and has attic storage on either side.
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Bed Getaway Vacation Cabin with Two Story Great Room - 849 Sq Ft

  • 849

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

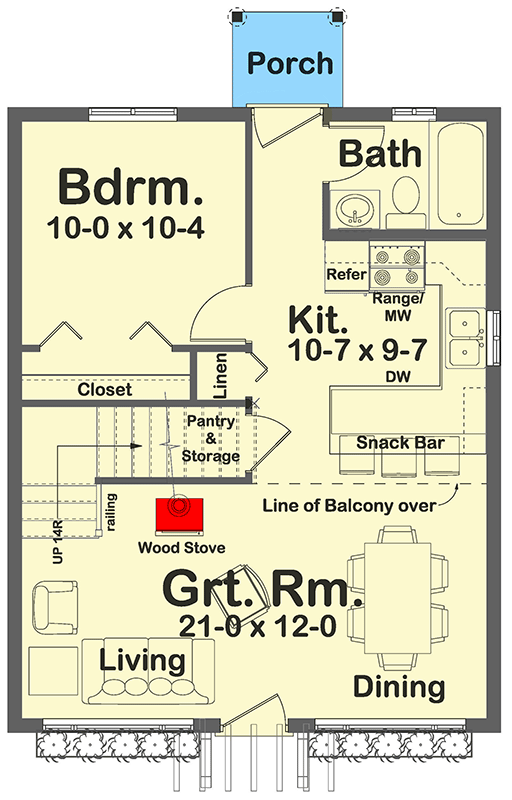

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 849 sq. ft.
  • 1st Floor: 629 sq. ft.
  • 2nd Floor: 220 sq. ft.

Dimensions

  • Width: 22' 0"
  • Depth: 32' 6"
  • Max ridge height: 20' 11"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl
    • Optional Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 7' 6"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
