Plan 81805AB
2-Bed Modern Garage Apartment with Dog Wash Area
Heated S.F.
1,025
Beds
2
Baths
1.5
Stories
2
Cars
4
What's Included
Plan Details
  • This 2-bed modern garage apartment gives you 1,025 square feet of living space set above a 4-car 1,080 square foot garage.
  • Each bay has a 12' by 7' overhead door and the right bay is extra deep, creating space for a dog wash or storage area in back.
  • Stairs run along the outside and take you to a balcony off the kitchen and sitting area, extending your living area to the outdoors.
  • Two bedrooms line the right side of the plan - each with walk-in closets - and share a bath opposite the laundry room.
What's Included

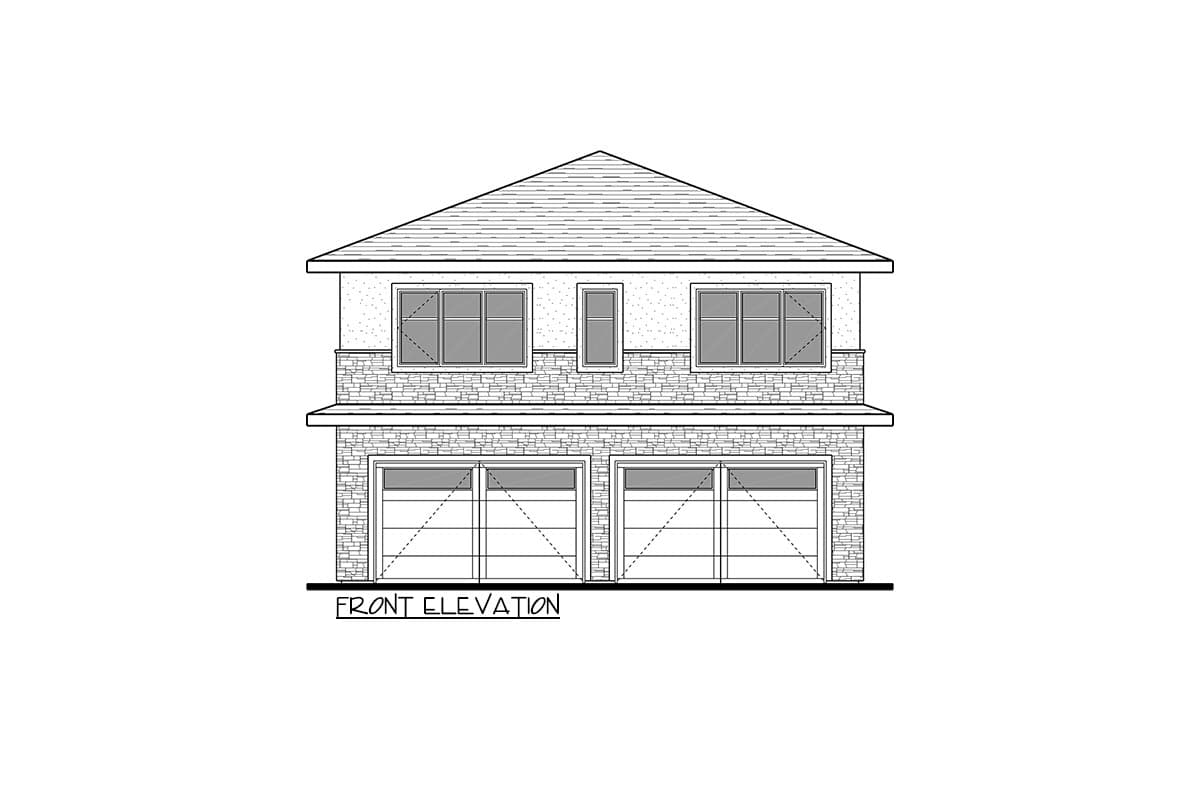

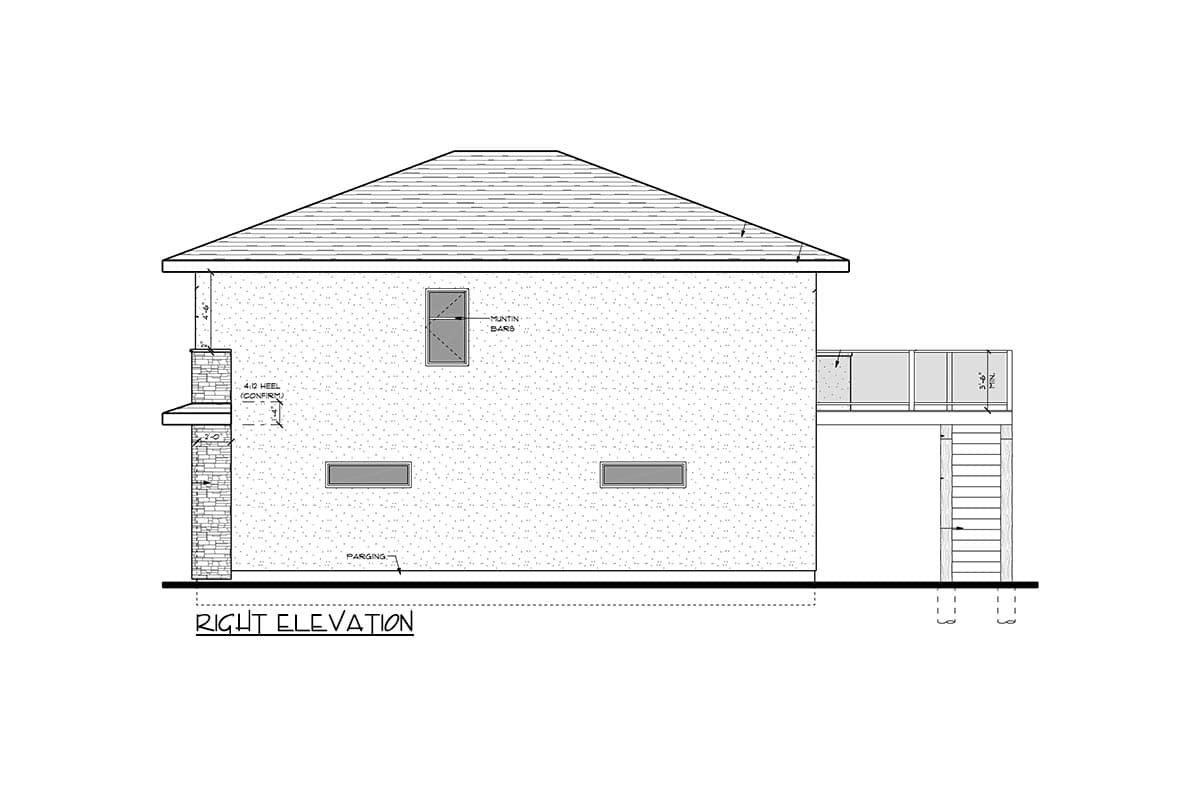

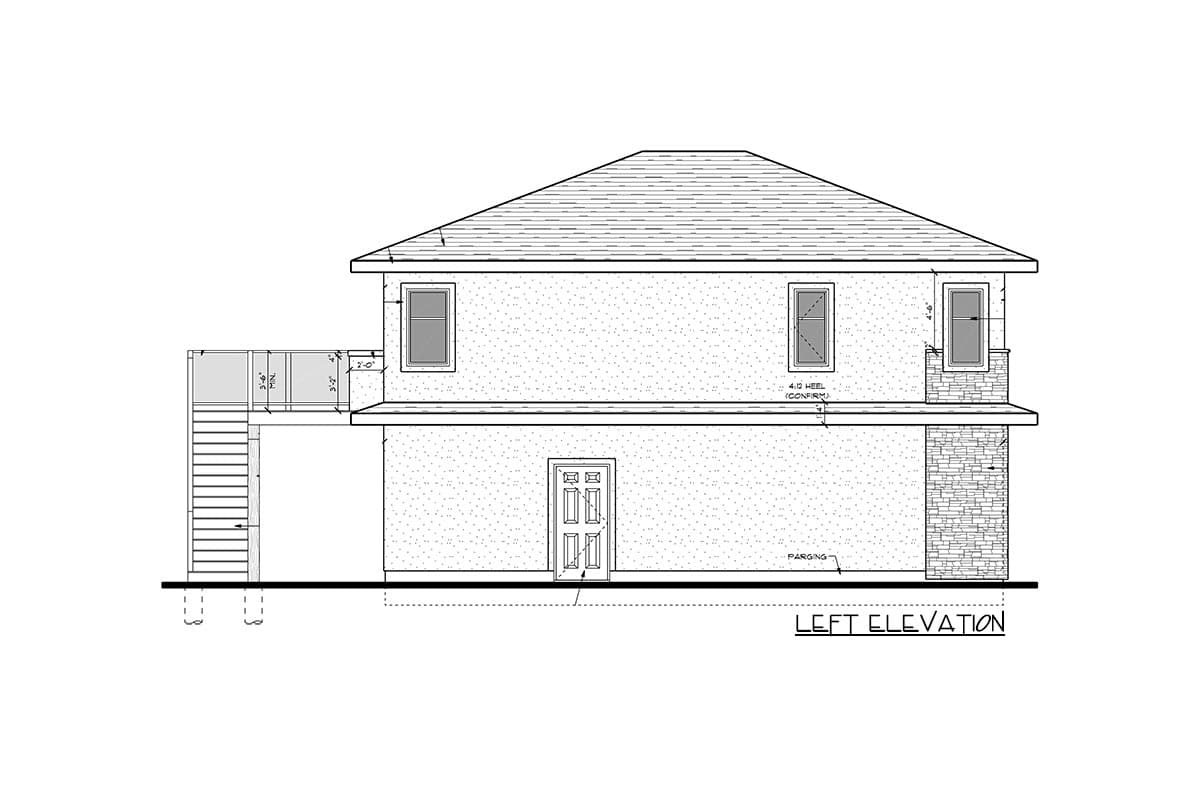

  • Elevations (Front, Rear, Left and Right)

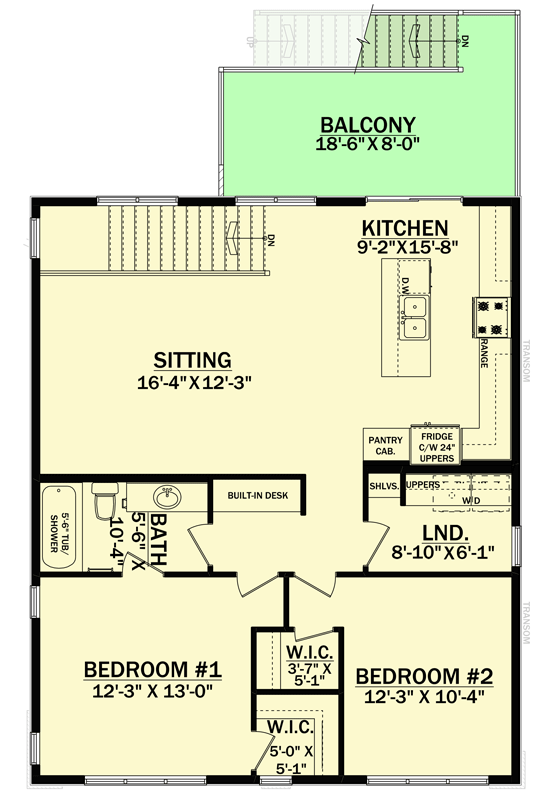

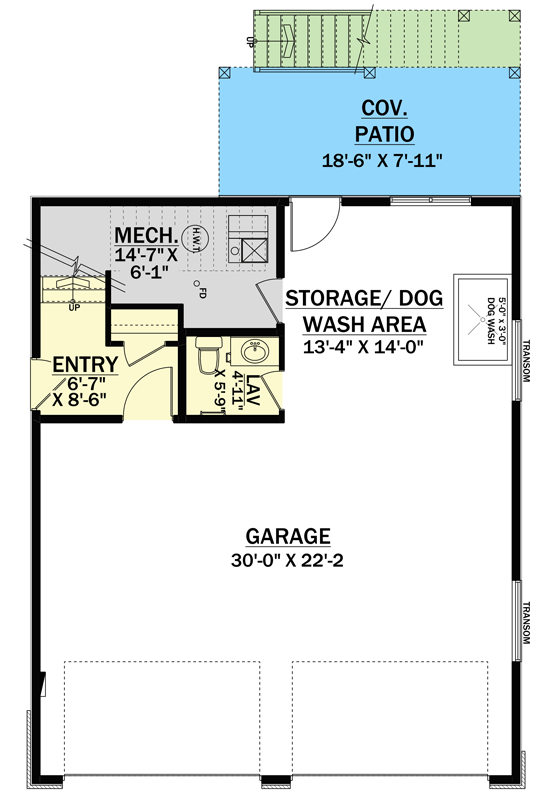

  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Bed Modern Garage Apartment with Dog Wash Area

  • 1,025

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,025 sq. ft.
  • 2nd Floor: 1,025 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 36' 0"
  • Max ridge height: 21' 11"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1080 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 2" Second Floor / 8' 1"

Roof

  • Primary Pitch: 4.5 on 12
  • Framing Type: Truss
