Plan 680341VR

2-Beds Contemporary Garage Apartment with 3-Car Drive Under - 1329 Sq Ft

Heated S.F.
1,474
Beds
2
Baths
1.5
Stories
2
Cars
3

Floor Plan

Plan 680341VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680341VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 680341VR: 2-Beds Contemporary Garage Apartment with 3-Car Drive Under - 1329 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Mountain

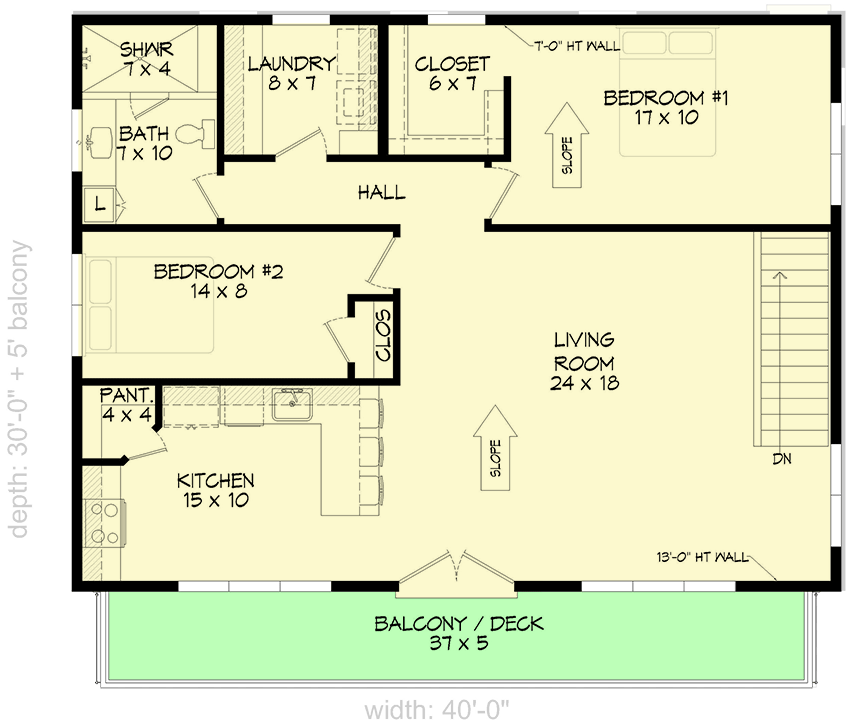

2nd Floor

Plan 680341VR: 2-Beds Contemporary Garage Apartment with 3-Car Drive Under - 1329 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Mountain

Plan Details

  • This modern house plan is great for a mountain home or a lake house.
  • On the main level, a 10' by 8' single bay and a 16' by 8' 2-car bay get your vehicles inside. A person door on the back-right wall gets you in on foot.
  • Lining the back of the garage are two separate spaces. A third space has mechanicals.
  • Stairs run along the side and take you to the living room with a sloped ceiling (the heights goes from 7' along the back to 13' along the front).
  • A peninsula gives you seating for 3 and helps provide separation from the living room.
  • Two bedrooms share the bath and a laundry room is conveniently located to each of them.
  • Related Plan: Get an alternate home plan with 68779VR (1,329 sq. ft.)

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,474 sq. ft.

1st Floor

274 sq. ft.

2nd Floor

1,200 sq. ft.

Porch, Combined

185 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

35' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached, Drive Under

Area

926 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

7'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Mountain

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,474 sq. ft.

1st Floor

274 sq. ft.

2nd Floor

1,200 sq. ft.

Porch, Combined

185 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

35' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached, Drive Under

Area

926 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

7'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Mountain

Special Features

Laundry - Upstairs

Master Suite - Upstairs
