Plan 81804AB 2-Car Detached Garage Shop with 14 by 14 Garage Doors and Rec Room with Wet Bar

1,040 0.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Car Detached Garage Shop with 14 by 14 Garage Doors and Rec Room with Wet Bar

Plan 81804AB

  • 1,040

    Heated s.f.

  • 0.5

    Baths

  • 1

    Stories

  • 2

    Cars

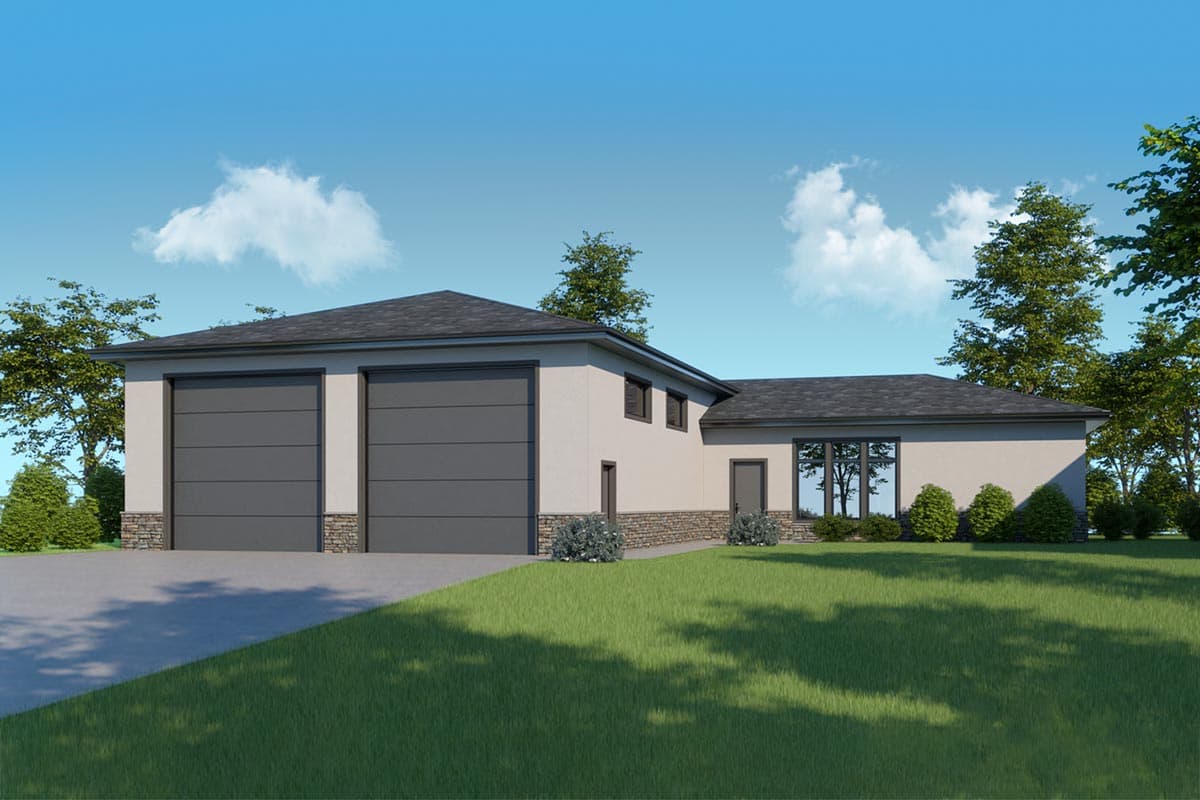

  • This 2-car garage shop has matching 14' by 14' overhead doors getting your vehicles access to the 3,840 square feet of parking space inside. That's plenty of space for an RV, a boat, cars (you can park 4 tandem-style) and room to work on projects as well.
  • On the right, there's a fun space that includes a wet bar open to a combined game and rec room space.
  • Two doors - one in front and a covered one on the right - add to your convenience.

Plans include the following:

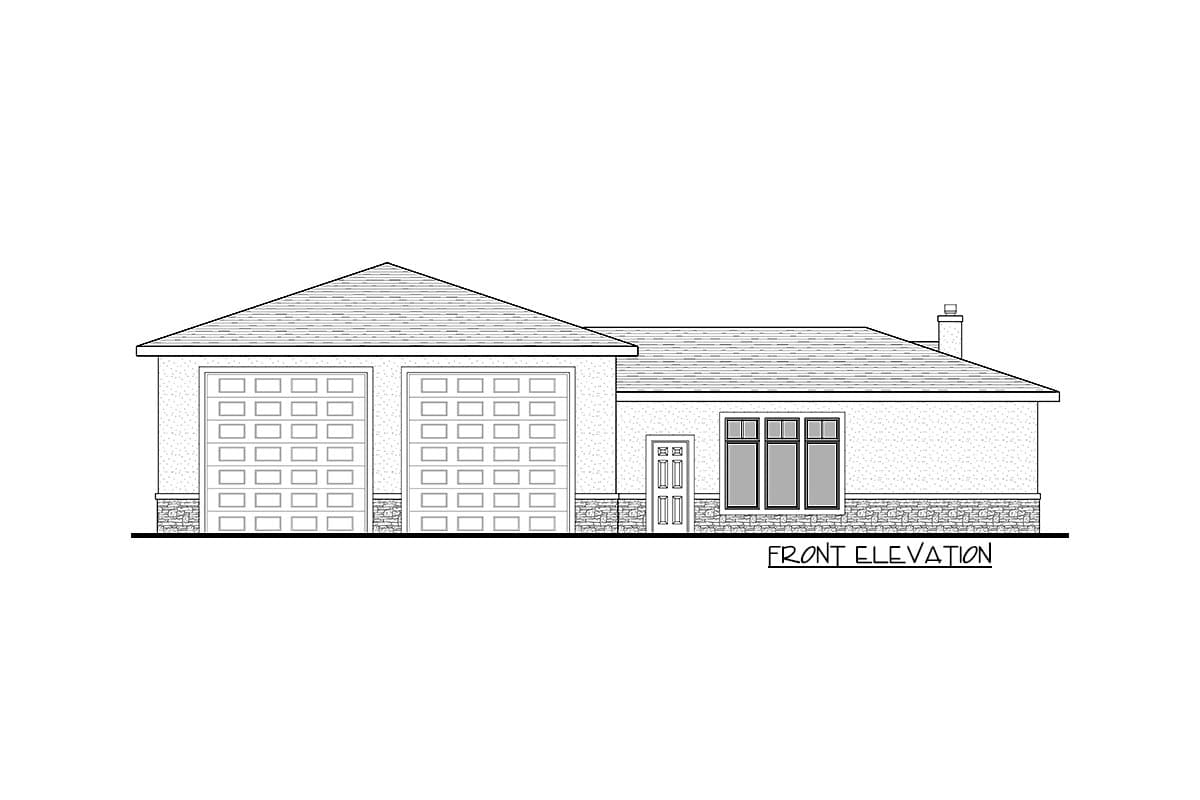

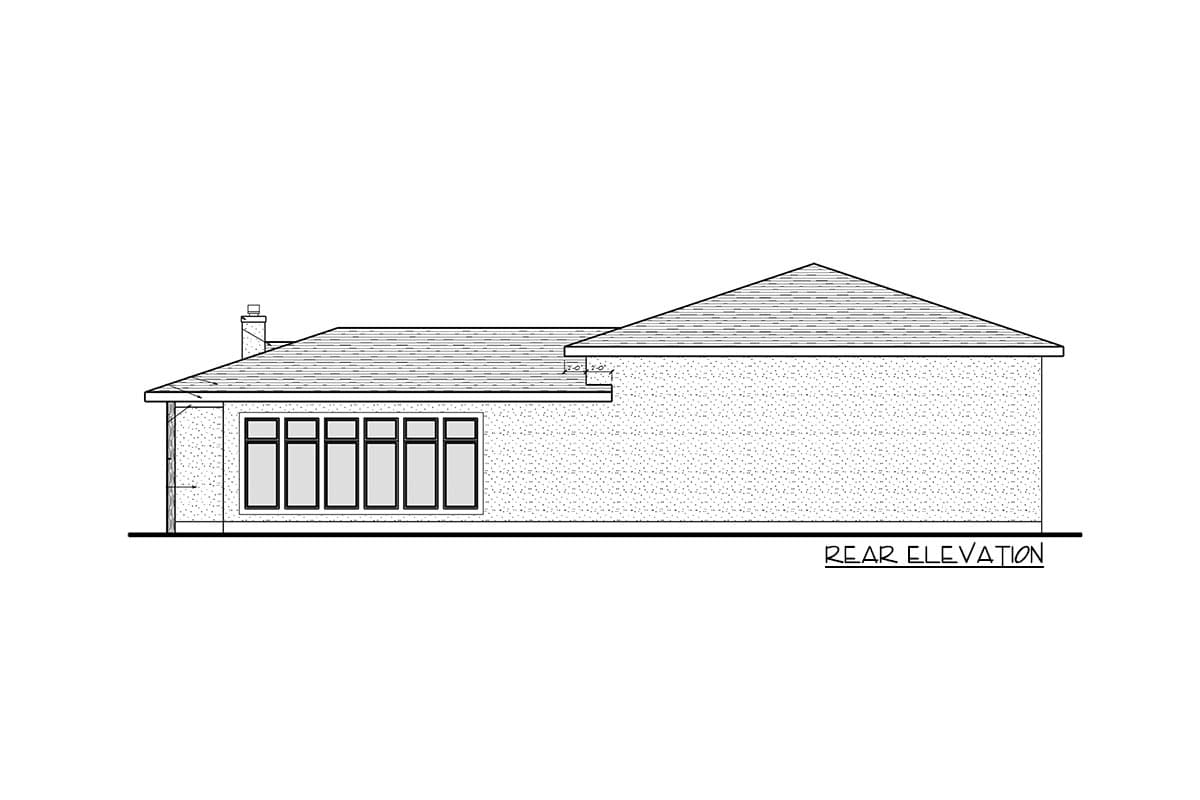

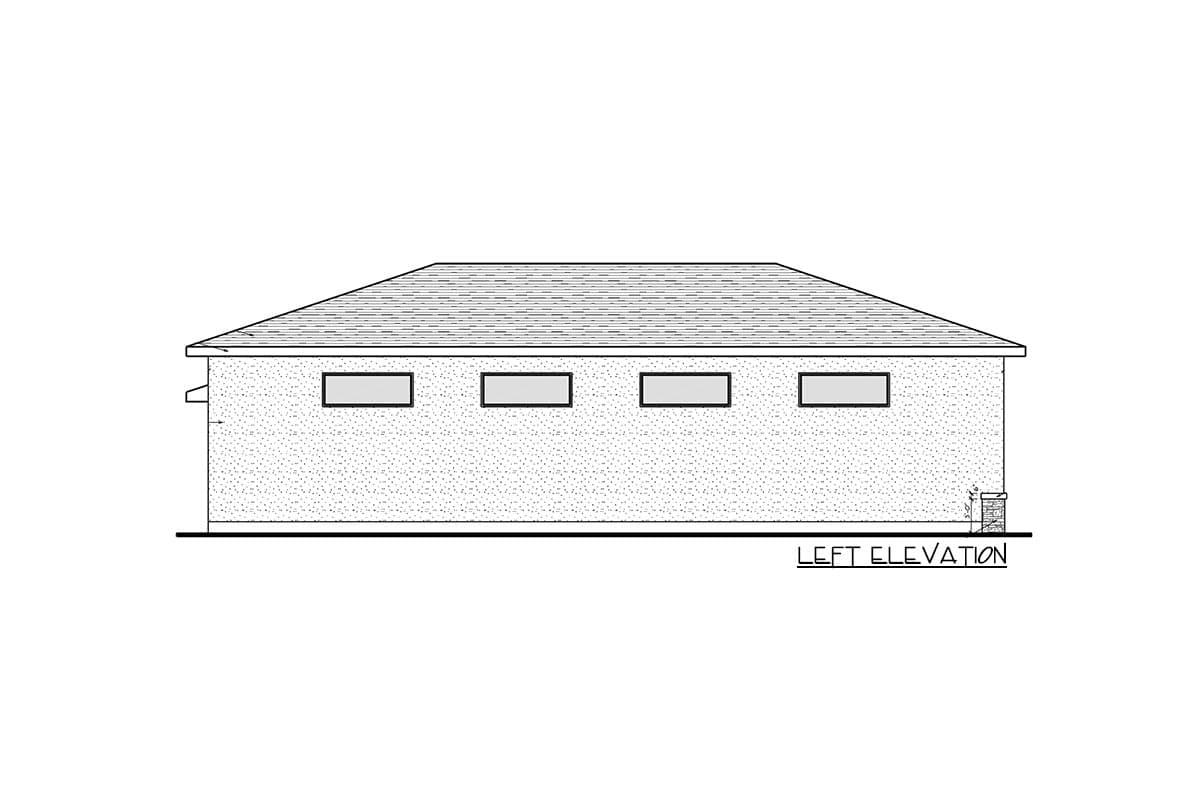

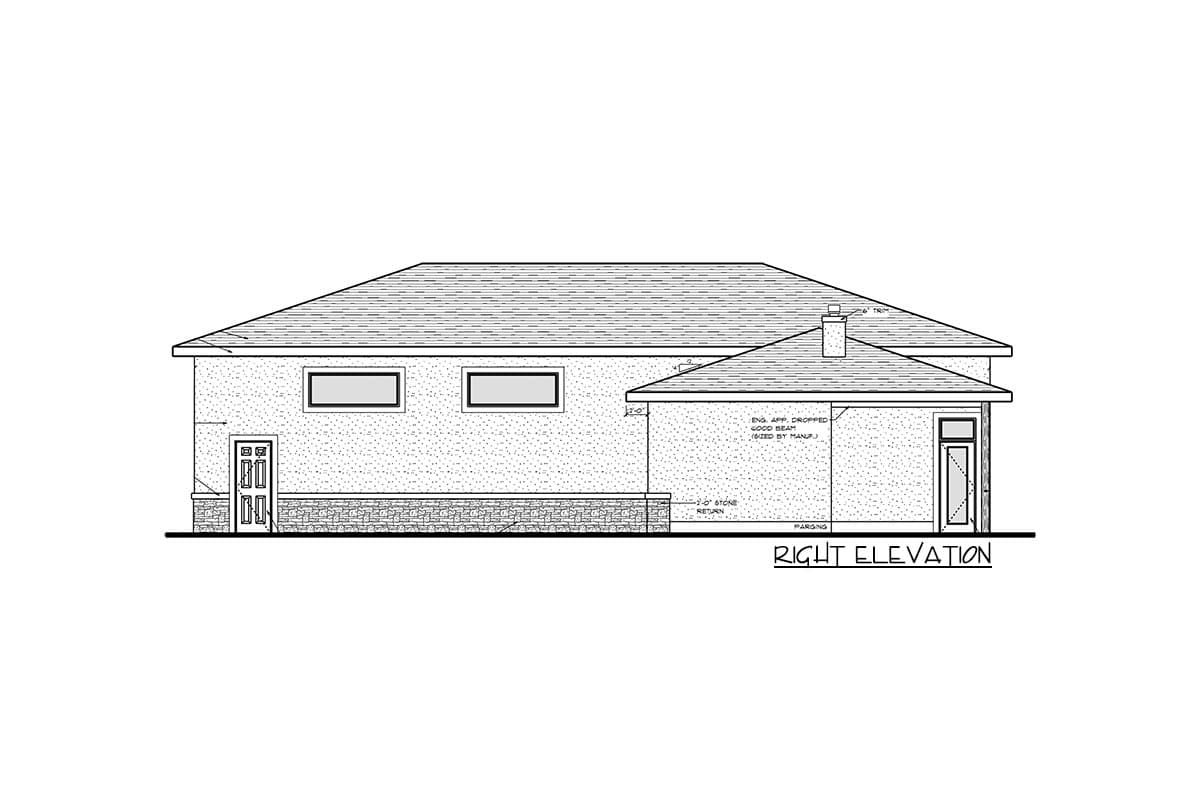

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

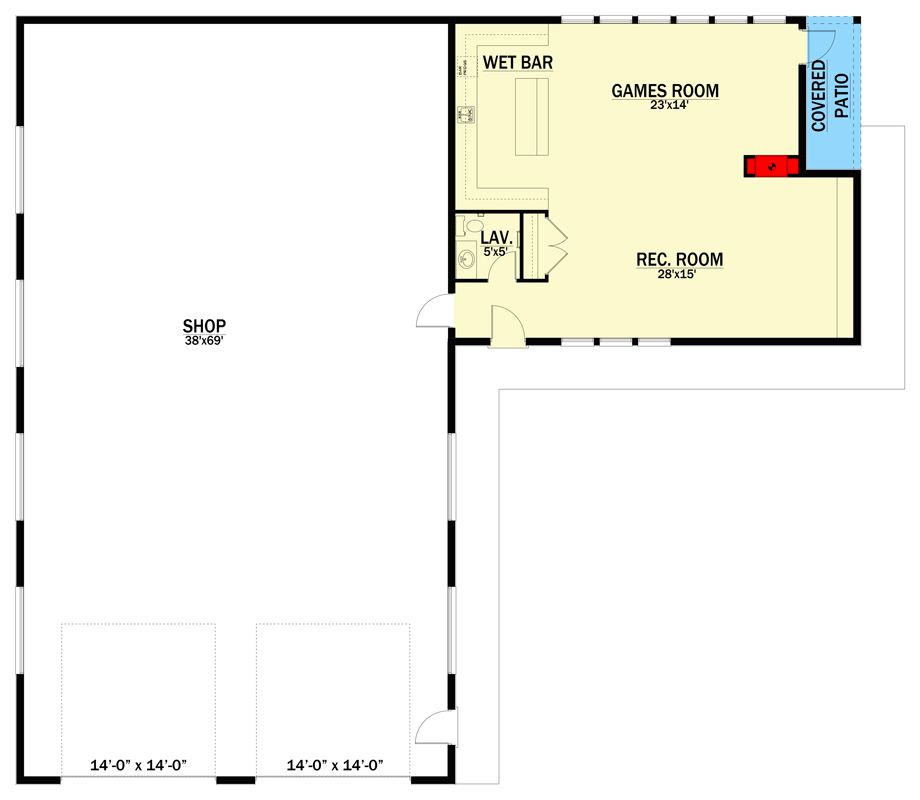

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Car Detached Garage Shop with 14 by 14 Garage Doors and Rec Room with Wet Bar - 81804AB floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,040 sq. ft.
  • 1st Floor: 1,040 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 70' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: RV Garage, Detached
  • Area: 2800 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 1" Garage 16' 1"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2-Car Detached Garage Shop with 14 by 14 Garage Doors and Rec Room with Wet Bar

  • 1,040

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • CAD + PDF - Single Build $1,800
  • CAD Unlimited + PDF $2,300
  • View all purchase option online

About This Plan

  • This 2-car garage shop has matching 14' by 14' overhead doors getting your vehicles access to the 3,840 square feet of parking space inside. That's plenty of space for an RV, a boat, cars (you can park 4 tandem-style) and room to work on projects as well.
  • On the right, there's a fun space that includes a wet bar open to a combined game and rec room space.
  • Two doors - one in front and a covered one on the right - add to your convenience.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,040 sq. ft.
  • 1st Floor: 1,040 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 70' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: RV Garage, Detached
  • Area: 2800 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 1" Garage 16' 1"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
