Plan 666219RAF
2-Story Contemporary House Plan with 4 Upstairs Bedrooms and a Main Floor Guest Suite
Heated S.F.
3,037
Beds
5
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • This 5-bed contemporary house plan gives you 3,037 square feet of heated living and five bedrooms with four of them upstairs - along with the laundry - and a main floor guest suite. A den sits behind French doors and makes a great work-from-home space.
  • French doors open to the foyer which opens to the two-story family room. Windows look out across the back and a fireplace on the right wall is visible all the way from the kitchen across the home.
  • The kitchen has a large island and a true walk-in pantry.
  • The 3-car garage is extra deep on the left, giving you storage space. The garage accesses the home by the dining room which has sliding door access to the back.

What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Contemporary House Plan with 4 Upstairs Bedrooms and a Main Floor Guest Suite

  • 3,037

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

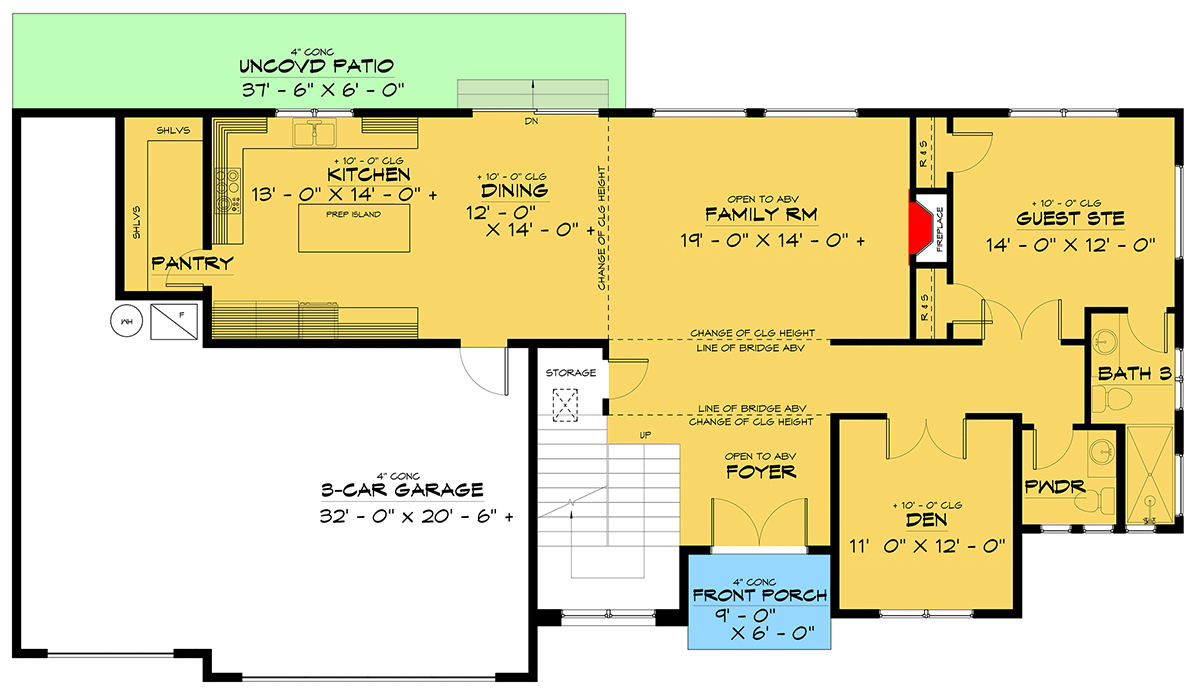

  • Main Level

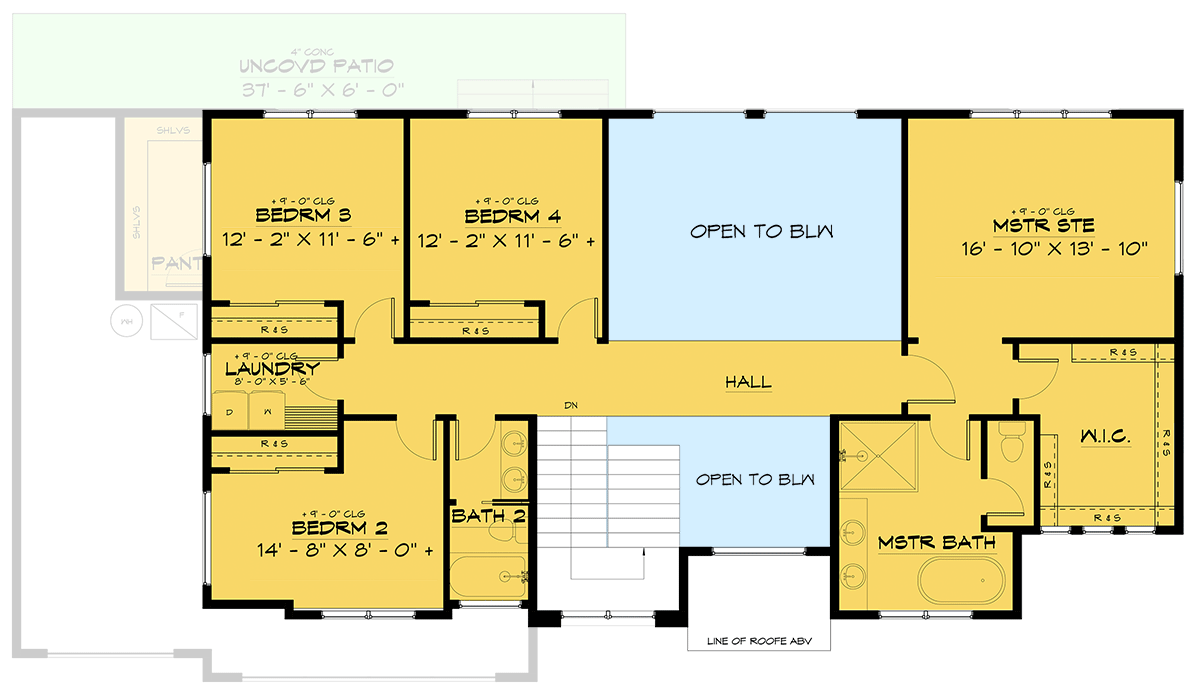

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,037 sq. ft.
  • 1st Floor: 1,636 sq. ft.
  • 2nd Floor: 1,401 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 35' 9"
  • Max ridge height: 32' 1"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 716 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
