Plan 666167RAF
2-Story Contemporary Northwest Home Plan with Second-level Living Space
Heated S.F.
3,254
Beds
3-4
Baths
4
Stories
2
Cars
3
What's Included
Plan Details
  • Oversized concrete panels and large windows adorn the facade of this 2-story Contemporary Northwest home plan. Inside, the functional floor plan allows the shared living spaces to enjoy the second-level views.
  • Three family bedrooms occupy the main level, next to the 3-car tandem garage with entry through the laundry / mudroom combo.
  • Upstairs, natural light floods the combined great room, kitchen, and dining area, and a 22' by 11' covered deck encourages outdoor living.
  • An eating bar wraps around the island to invite family and friends to keep the cook company.
  • The master bedroom can also be found on the second level and is joined by a 5-fixture bathroom with a water closet.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

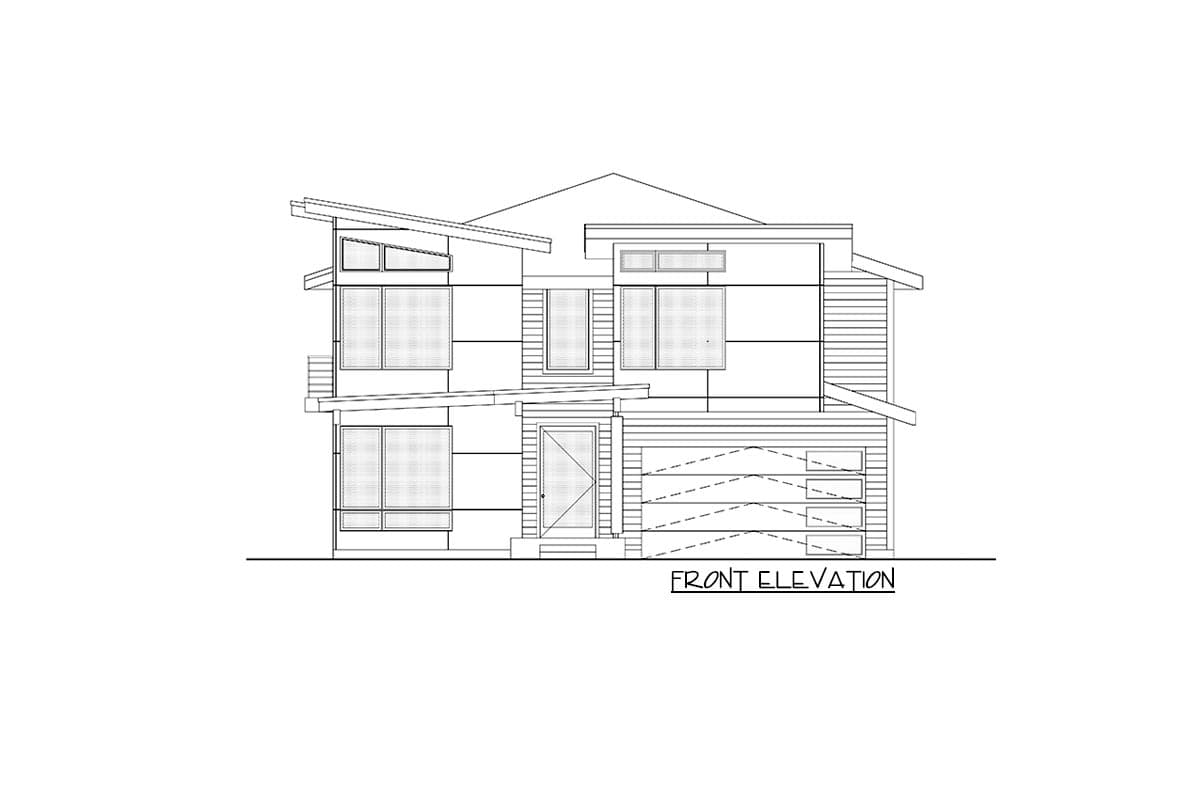

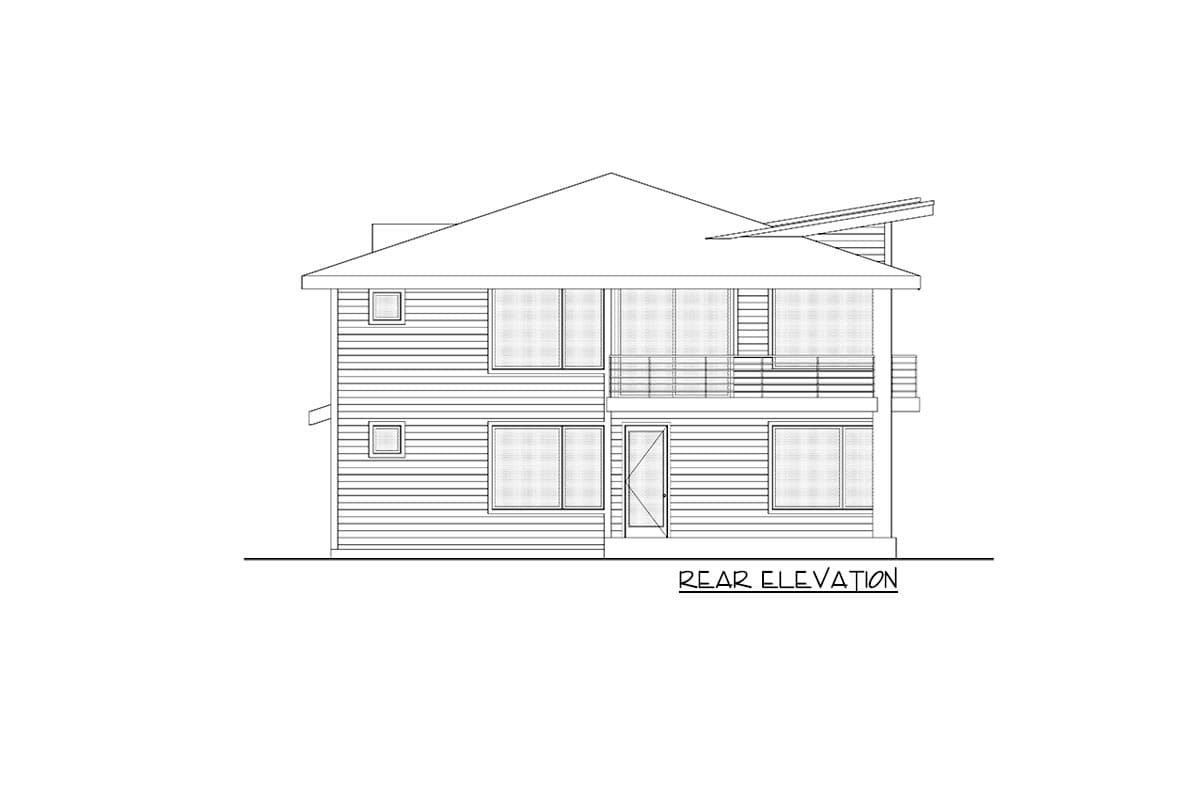

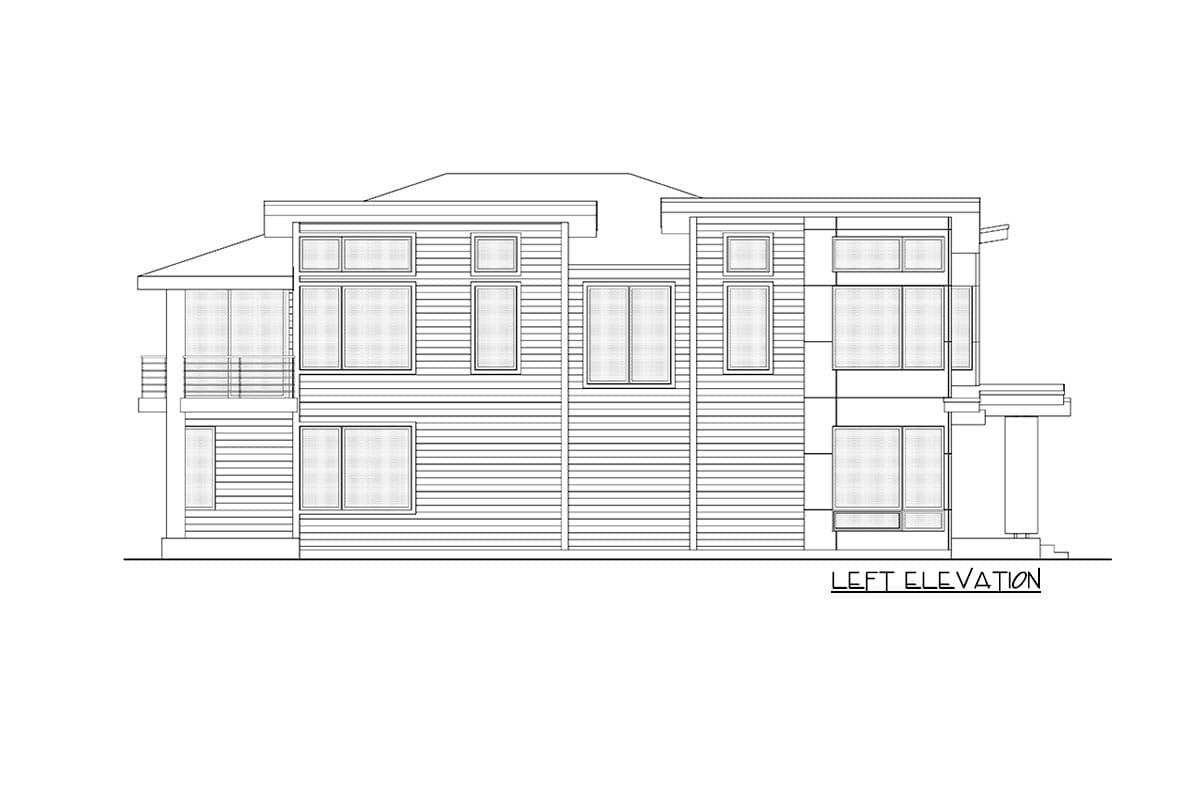

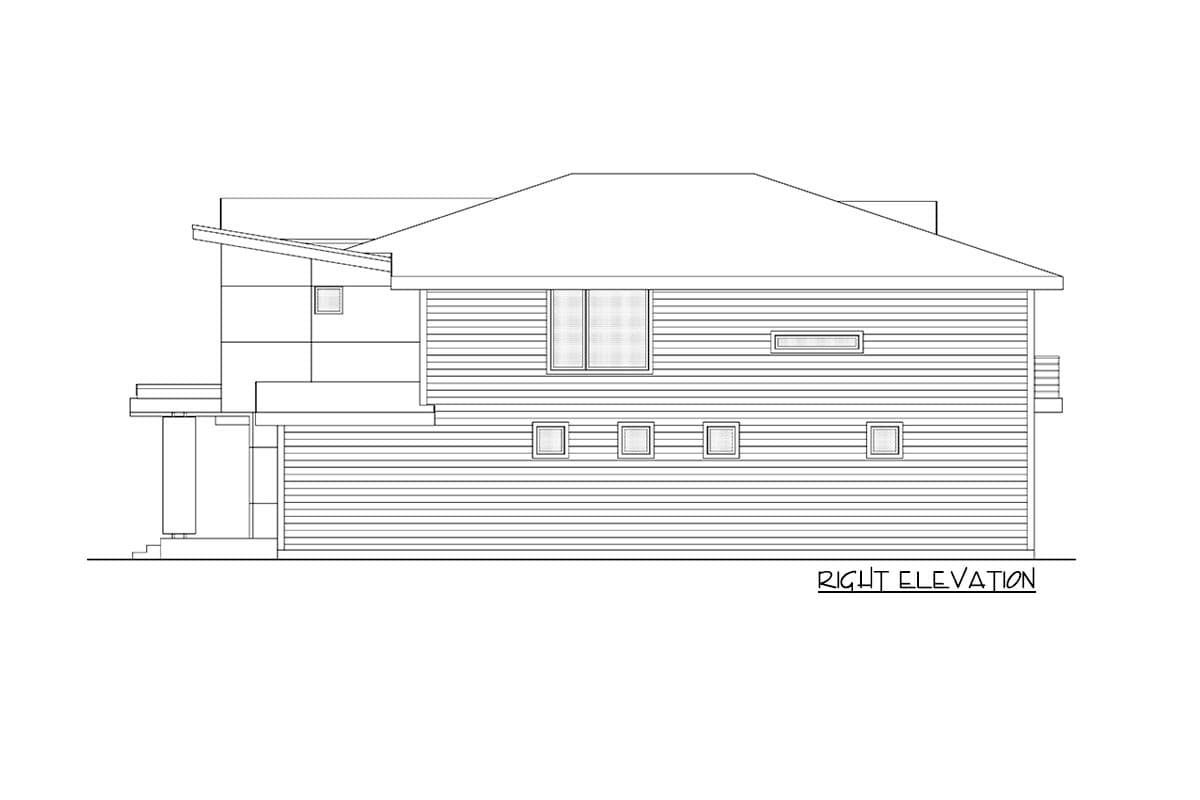

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Contemporary Northwest Home Plan with Second-level Living Space

  • 3,254

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

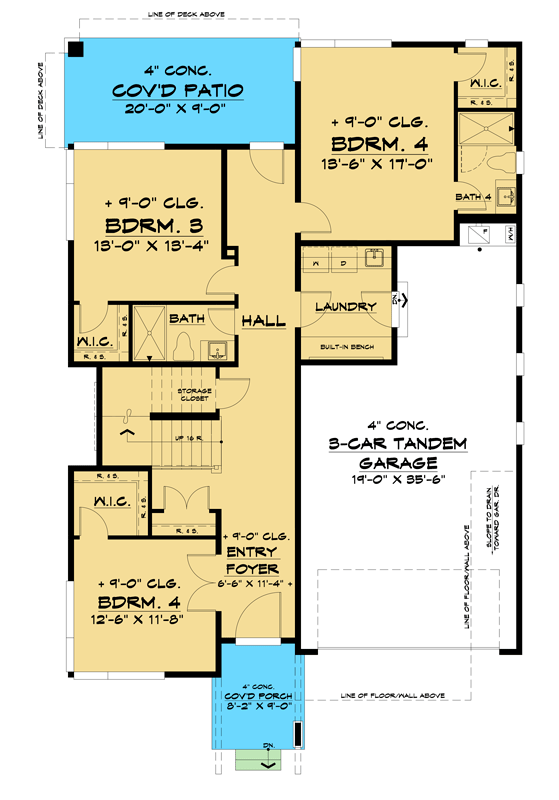

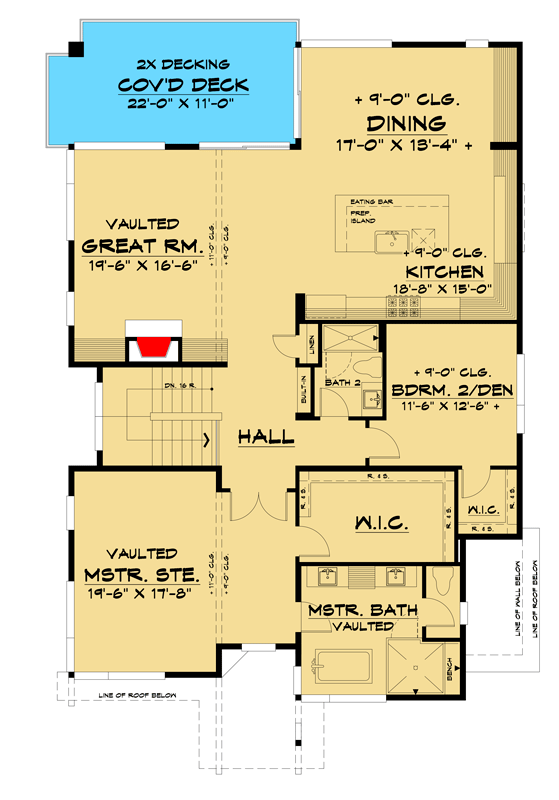

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,254 sq. ft.
  • 1st Floor: 1,352 sq. ft.
  • 2nd Floor: 1,902 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 62' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 595 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
