2-Story Cottage with 3-Season Screened Porch

Plan 80817PM

  • 1,444

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • A 2-story great room gets flooded with light from tall windows in this 2-story cottage with 3-season screened porch.
  • The air lock entry foyer gets a nice big walk-in coat closet.
  • In the kitchen, a long expanse of counter space is enhanced by an island with even more storage and counter space.
  • Take the sliding glass doors out to the screened porch or soak up the sun on the spacious deck in back.
  • One bedroom suite is on the main floor and also has a walk-in closet. Upstairs, loft space has an open rail so you can see into the living room below and the master suite has a walk-in closet.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

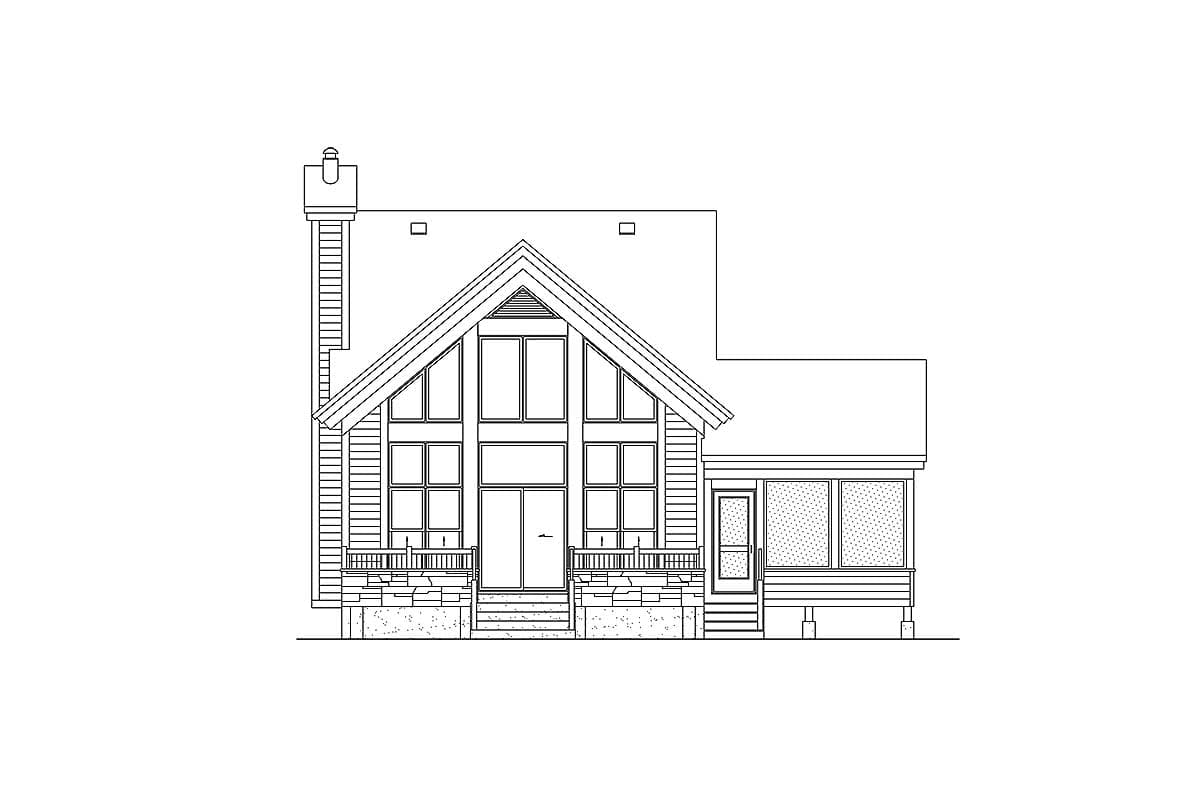

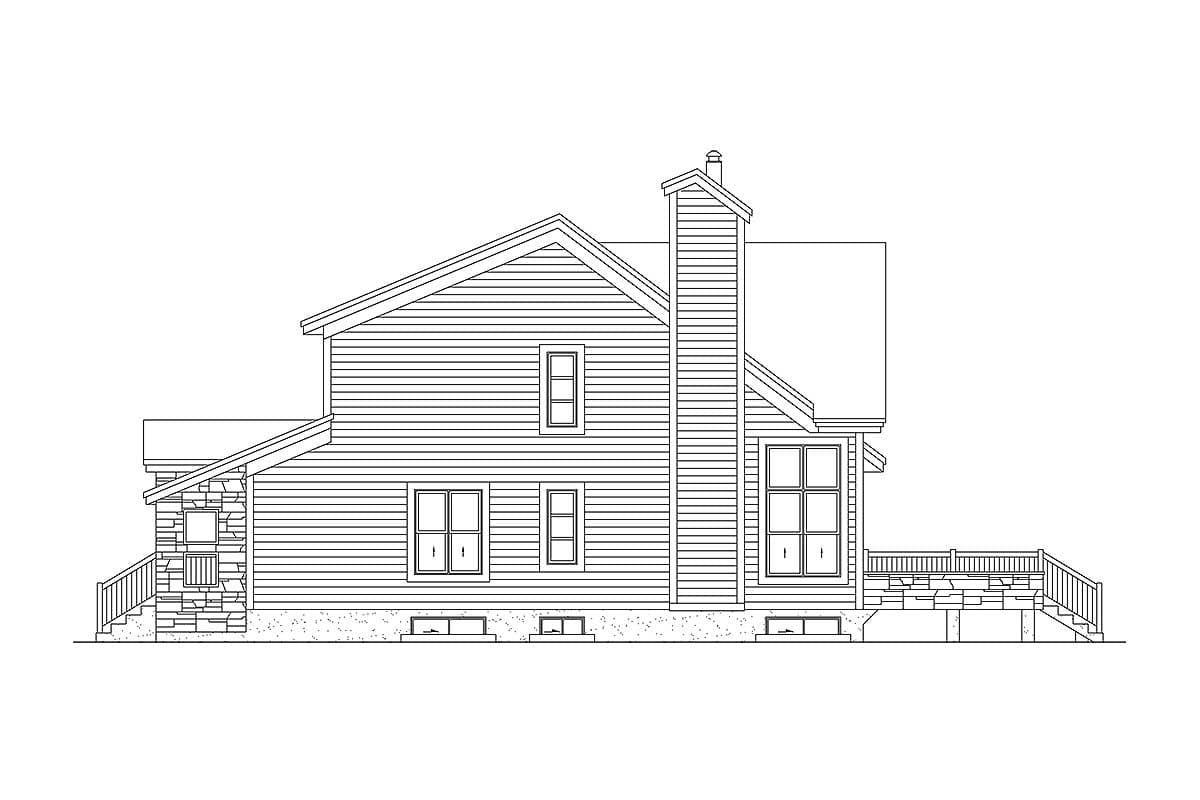

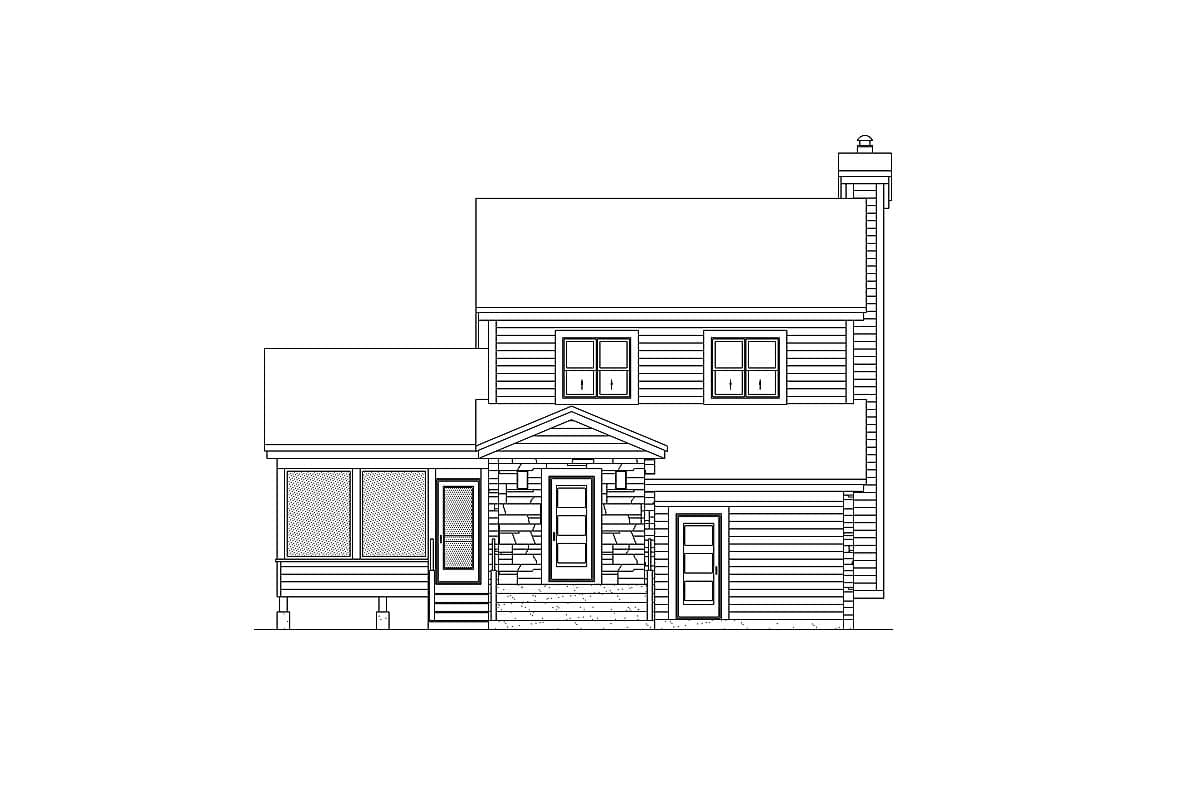

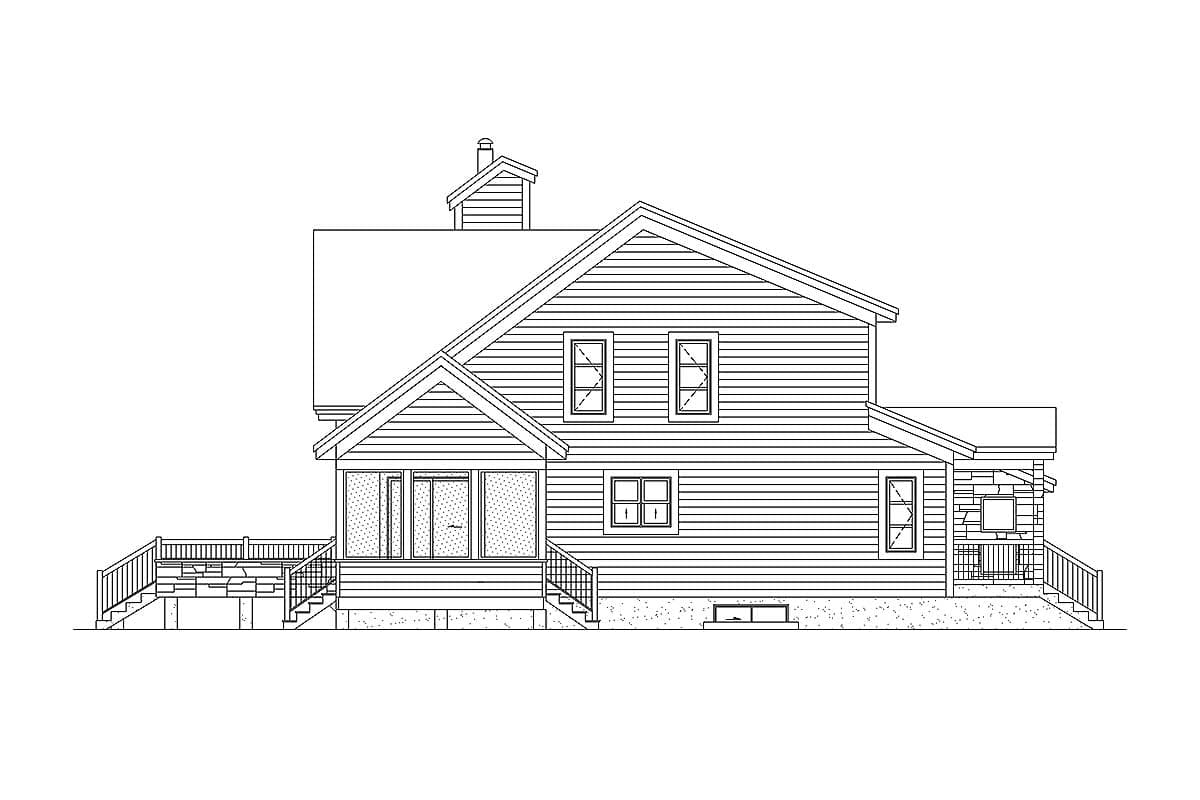

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

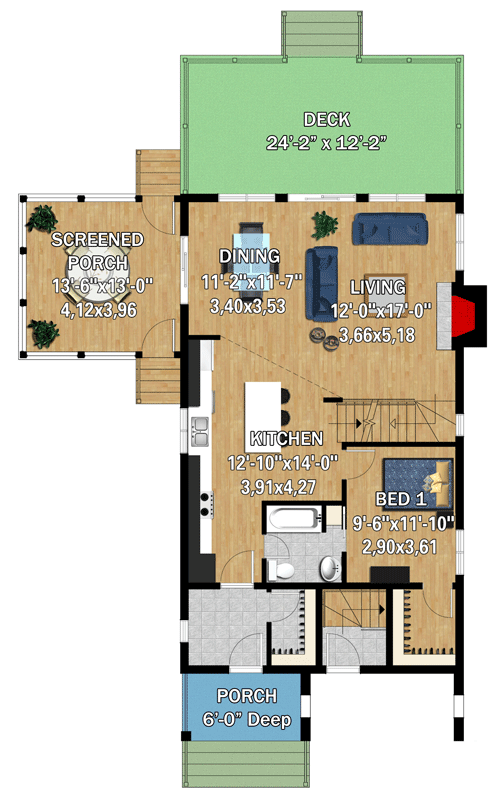

2-Story Cottage with 3-Season Screened Porch - 80817PM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

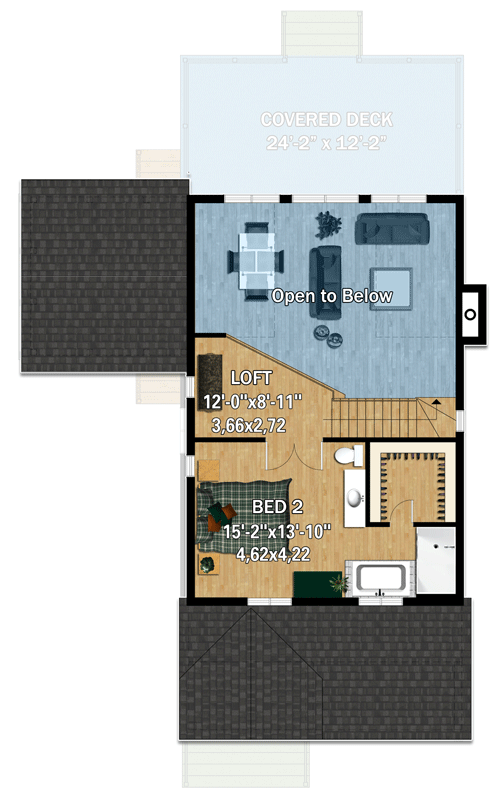

2-Story Cottage with 3-Season Screened Porch - 80817PM floor plan - 2nd Floor

2-Story Cottage with 3-Season Screened Porch

  • 1,444

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,444 sq. ft.
  • 1st Floor: 995 sq. ft.
  • 2nd Floor: 449 sq. ft.

Dimensions

  • Width: 24' 2"
  • Depth: 41' 2"
  • Max ridge height: 28' 7"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
