Plan 680093VR 2-Story Lake House Plan Under 1800 Square Feet for a Side-Sloping Lot

1,773 3-4 2.5 - 3.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Story Lake House Plan Under 1800 Square Feet for a Side-Sloping Lot

Plan 680093VR

  • 1,773

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • A timber-frame truss lends character to the covered entry porch on this two-story lake house plan designed for a side-sloping lot with a deck and patio on the left.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck from the dining area.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom, a large walk-in closet. Laundry conveniently located neary by.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a fourth bedroom and an open family room plus a bonus room. Mechanicals and storage complete the home.
  • Related Plans: Extend the deck around to the dining room with house plans 68747VR (1,770 sq. ft.), 680066VR (2,090 sq. ft.) and  68966VR (1,952 sq. ft.). Extend the roof and get a covered deck with house plan 68856VR and 680065VR. Wrap the deck from the front to the back with house plan 68901VR. Get a smaller version with house plan 68816VR. Put the master on the second floor and the other bedrooms on the main floor with house plan 68622VR as well as with house plans 68623VR and 68798VR, both with parking in the lower level.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

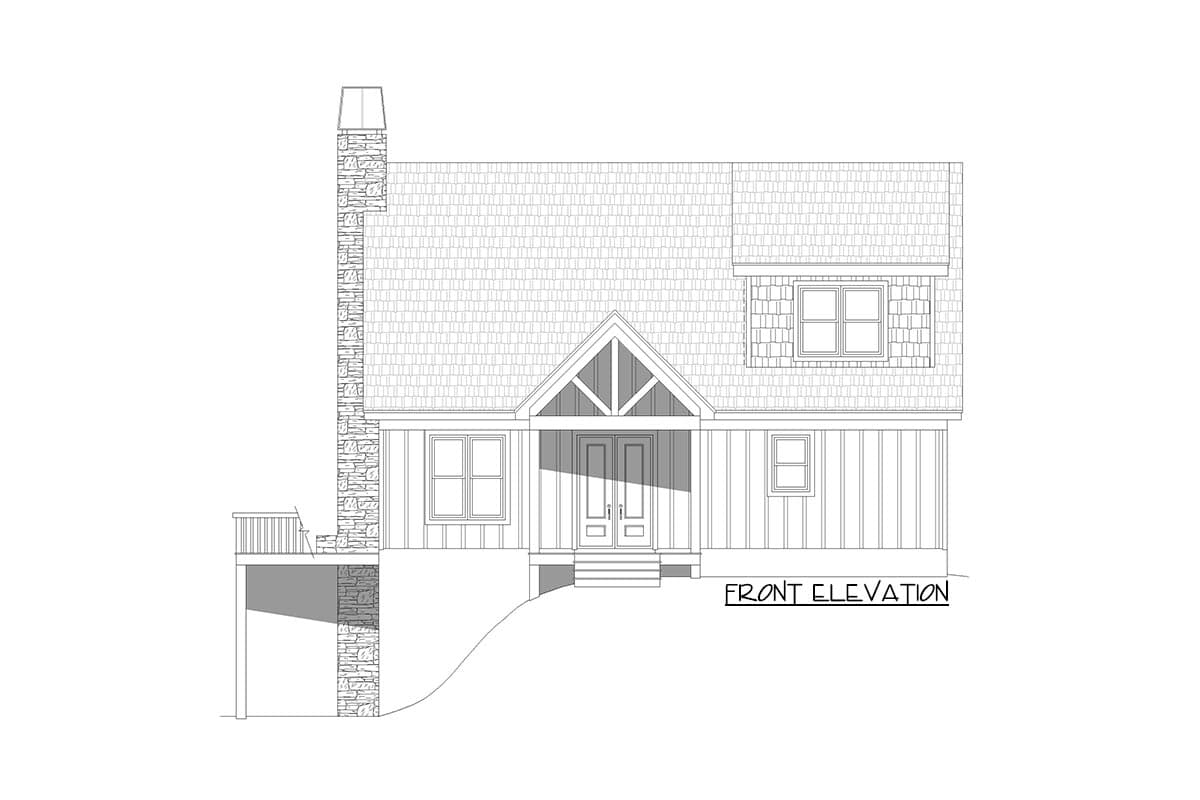

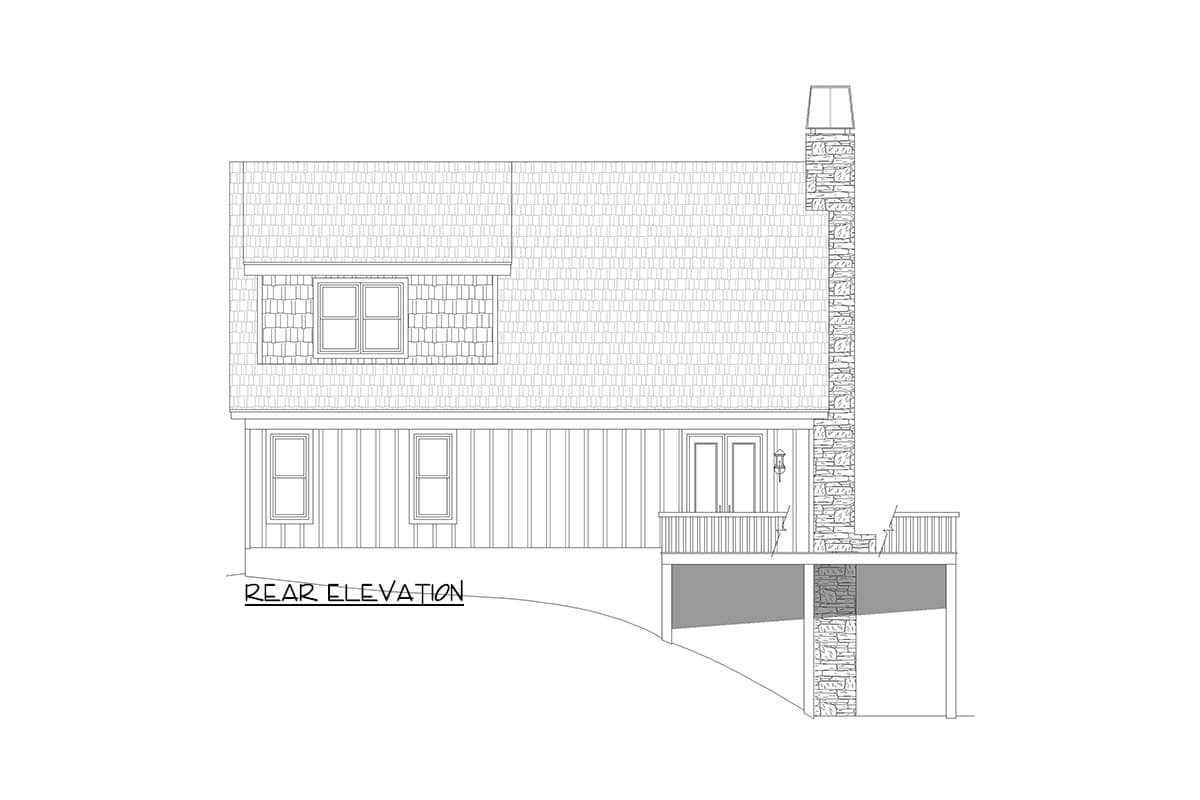

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

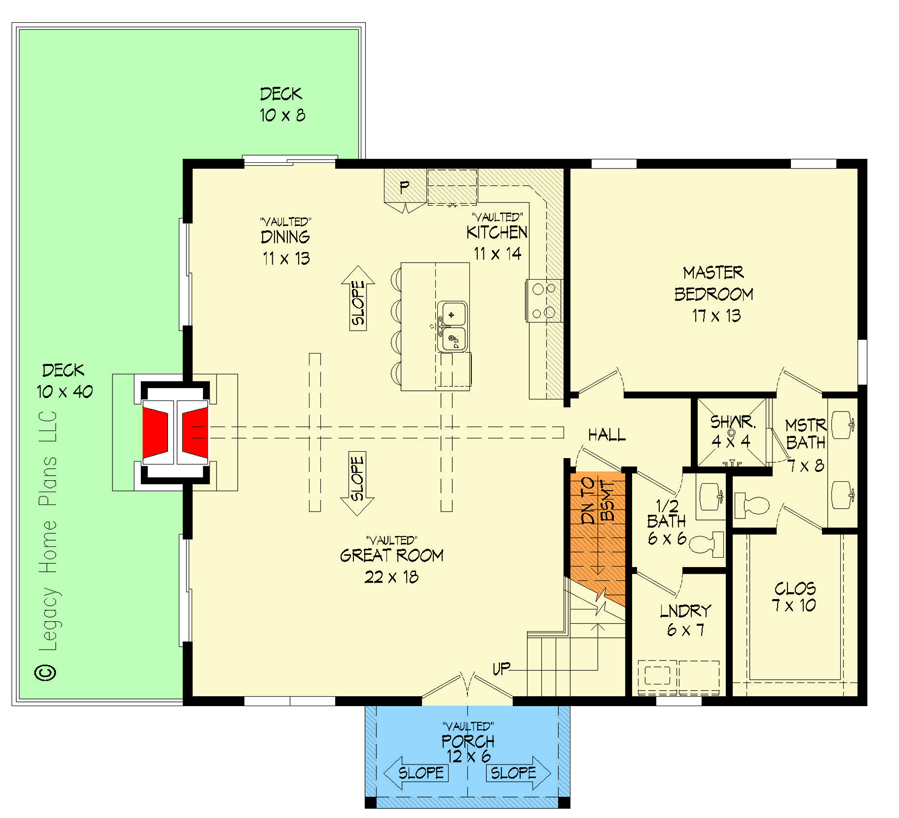

2-Story Lake House Plan Under 1800 Square Feet for a Side-Sloping Lot - 680093VR floor plan - Main Level

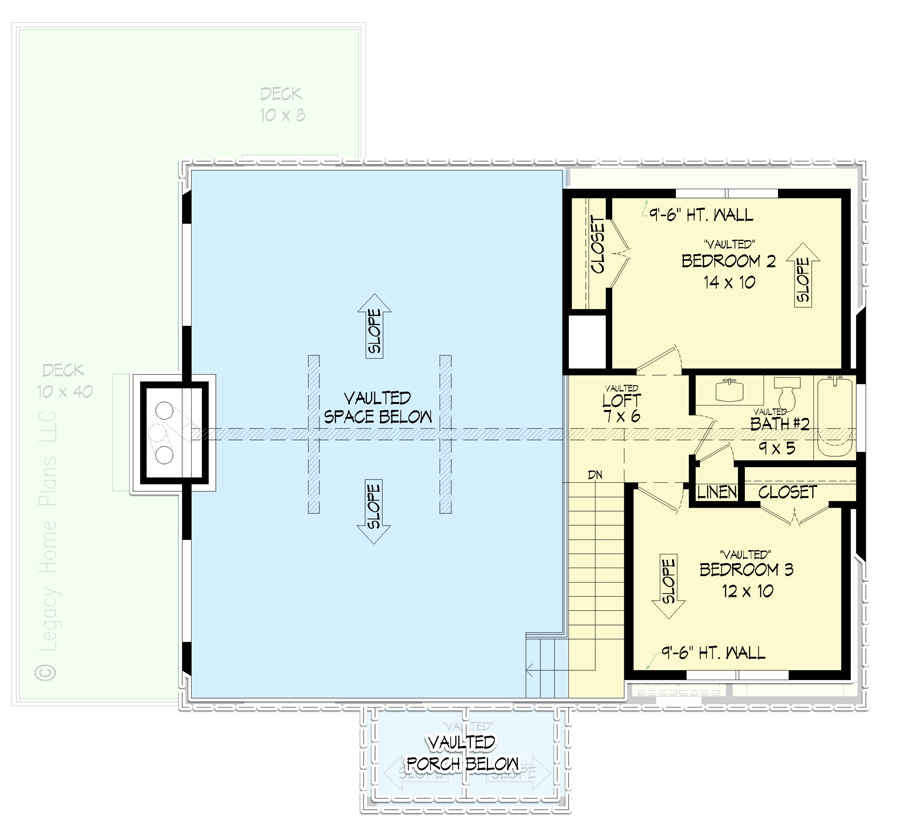

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story Lake House Plan Under 1800 Square Feet for a Side-Sloping Lot - 680093VR floor plan - 2nd Floor

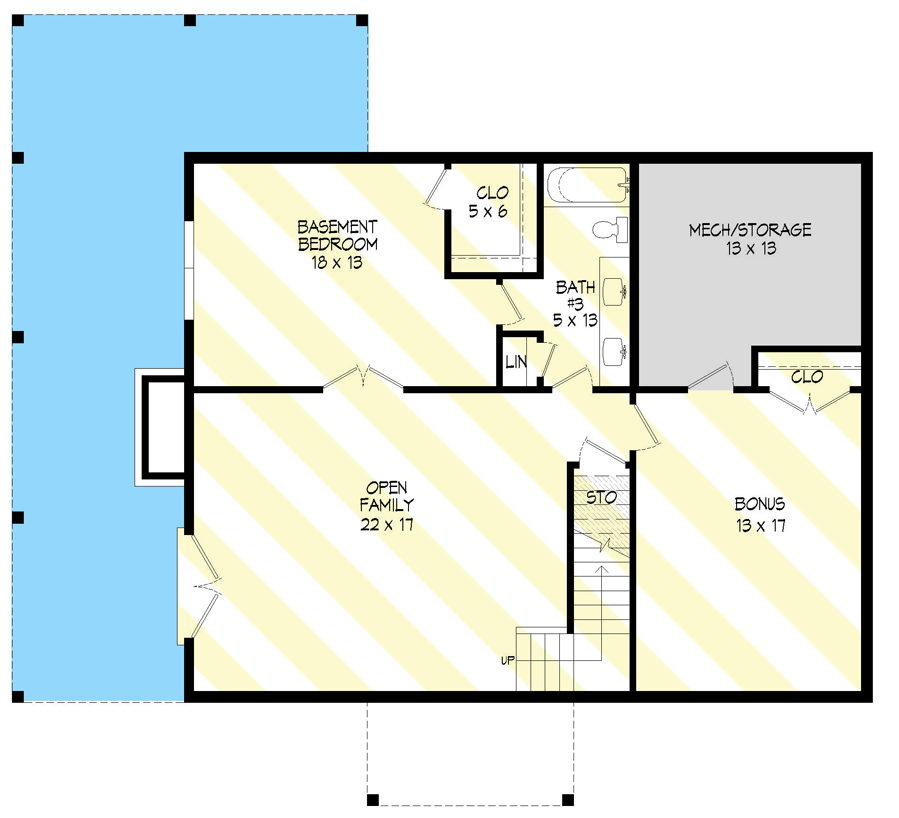

Optionally Finished Basement Foundation

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story Lake House Plan Under 1800 Square Feet for a Side-Sloping Lot - 680093VR floor plan - Optionally Finished Basement Foundation

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,773 sq. ft.
  • 1st Floor: 1,283 sq. ft.
  • 2nd Floor: 490 sq. ft.
  • Porch, Combined: 539 sq. ft.
  • Optional Lower Level: 1,112 sq. ft.
  • Basement Unfinished: 168 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 10"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 6"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

2-Story Lake House Plan Under 1800 Square Feet for a Side-Sloping Lot

  • 1,773

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,575
  • 5 Sets $1,660
  • 5 Sets + PDF $1,805
  • CAD + PDF - Single-Build $2,125
  • View all purchase option online

About This Plan

  • A timber-frame truss lends character to the covered entry porch on this two-story lake house plan designed for a side-sloping lot with a deck and patio on the left.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck from the dining area.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom, a large walk-in closet. Laundry conveniently located neary by.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a fourth bedroom and an open family room plus a bonus room. Mechanicals and storage complete the home.
  • Related Plans: Extend the deck around to the dining room with house plans 68747VR (1,770 sq. ft.), 680066VR (2,090 sq. ft.) and  68966VR (1,952 sq. ft.). Extend the roof and get a covered deck with house plan 68856VR and 680065VR. Wrap the deck from the front to the back with house plan 68901VR. Get a smaller version with house plan 68816VR. Put the master on the second floor and the other bedrooms on the main floor with house plan 68622VR as well as with house plans 68623VR and 68798VR, both with parking in the lower level.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Basement Foundation

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,773 sq. ft.
  • 1st Floor: 1,283 sq. ft.
  • 2nd Floor: 490 sq. ft.
  • Porch, Combined: 539 sq. ft.
  • Optional Lower Level: 1,112 sq. ft.
  • Basement Unfinished: 168 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 10"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 6"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 680093VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680093VR
|
Need Help? 800-854-7852
|
Plan 680093VR
