2-Story Modern Fourplex House Plan with 4-Bed Units Under 2500 Square Feet

Plan 42435DB

  • 9,728

    Heated s.f.

  • 4

    Units

  • 136'

    Width

  • 53'

    Depth

  • This 2-story fourplex house plan has a modern exterior with steel columns, numerous windows and attractive masonry finishes.
  • Each unit gives you 4 beds, 3.5 baths and 2,432 square feet of heated living (1,005 sq. ft. on the main floor and 1,427 square feet on the second floor) and a 481 square foot garage with carport in front.
  • The second-floor balcony serves as a carport, while the garage’s extra depth offers storage.
  • First and second-floor suites make this an ideal layout for multi-generational households, particularly with the large upstairs loft for reading, play or study.
  • Related Plans: Get a duplex version with house plan 42433DB and a single family version with house plan 42712DB.

This house plan set has the following details:

  • General Notes

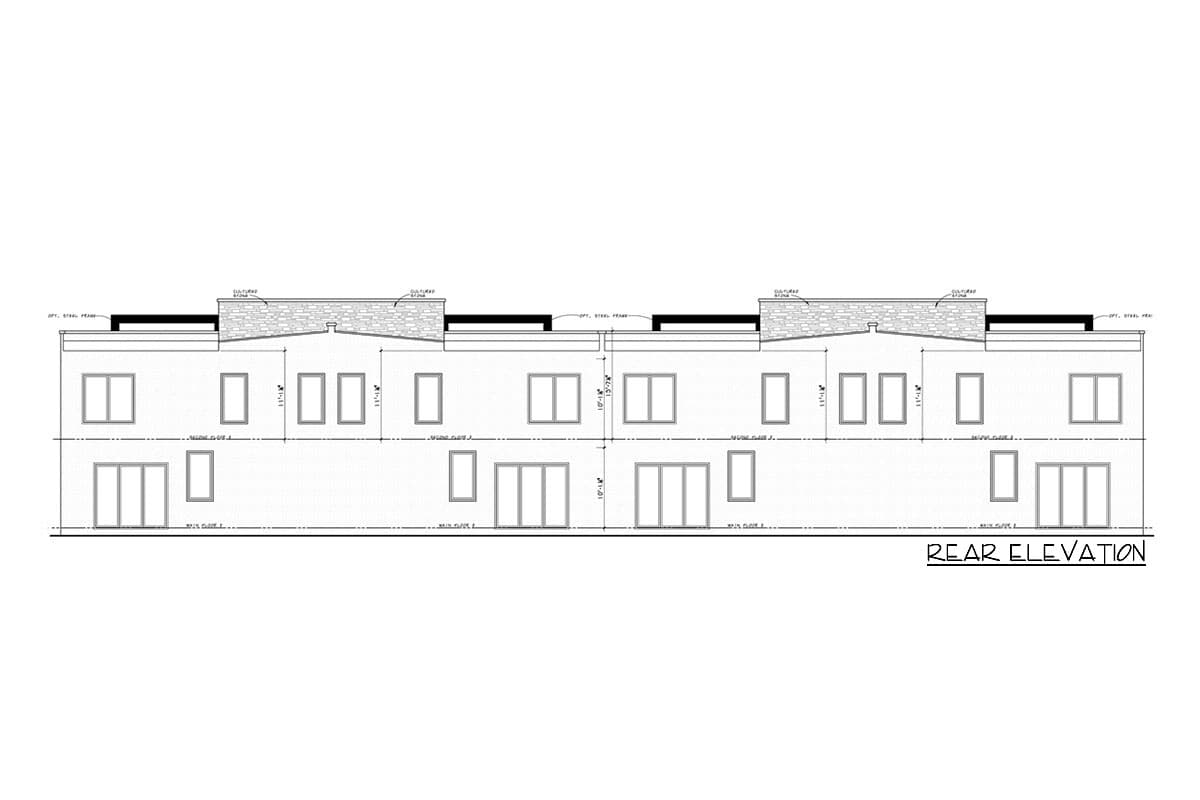

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

C
2,432 sqft
1005 sqft 1st Floor
1427 sqft 2nd Floor
4 beds
3 full baths
1 half bath
1 vehicle
Attached
481 sqft
34' w 53' d 29' h
A
2,432 sqft
1005 sqft 1st Floor
1427 sqft 2nd Floor
4 beds
3 full baths
1 half bath
1 vehicle
Attached
481 sqft
34' w 53' d 29' h
B
2,432 sqft
1005 sqft 1st Floor
1427 sqft 2nd Floor
4 beds
3 full baths
1 half bath
1 vehicle
Attached
481 sqft
34' w 53' d 29' h
D
2,432 sqft
4020 sqft 1st Floor
5708 sqft 2nd Floor
4 beds
3 full baths
1 half bath
1 vehicle
Attached
481 sqft
34' w 53' d 29' h

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

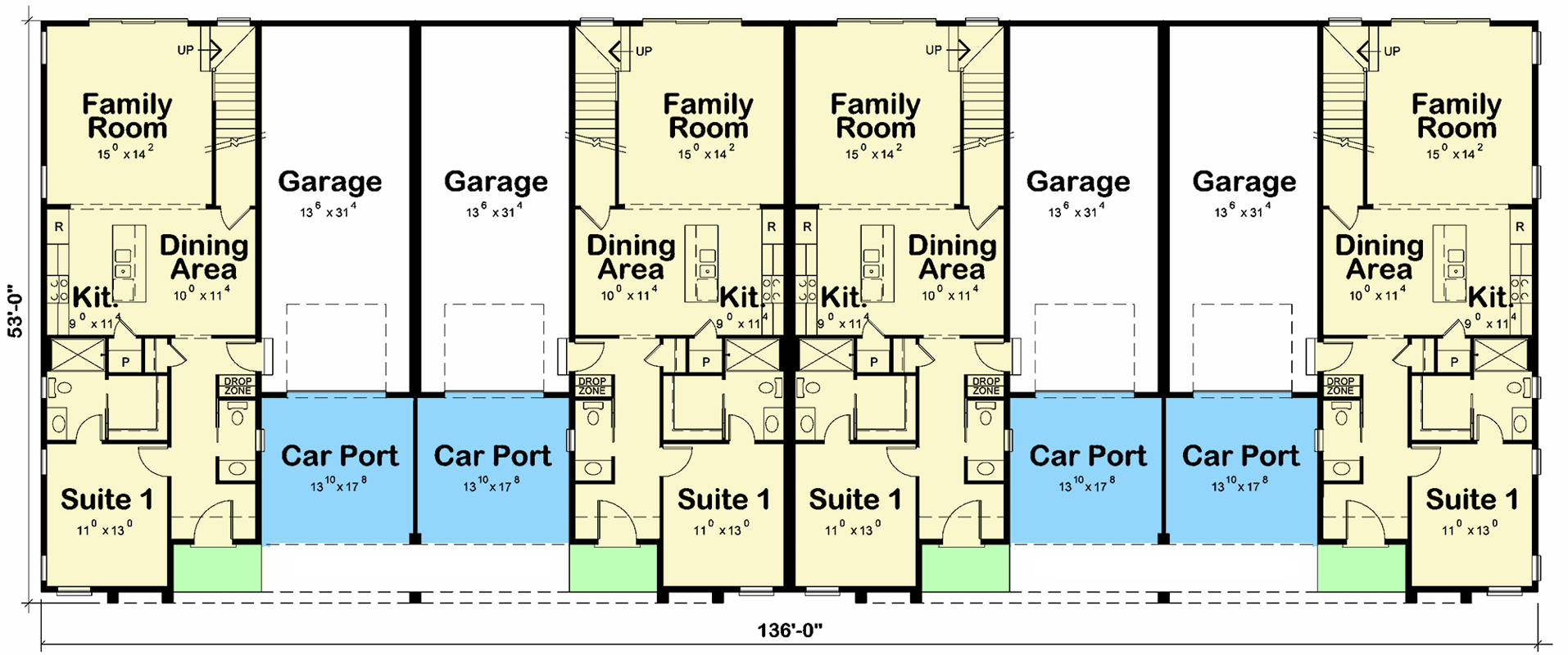

2-Story Modern Fourplex House Plan with 4-Bed Units Under 2500 Square Feet - 42435DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

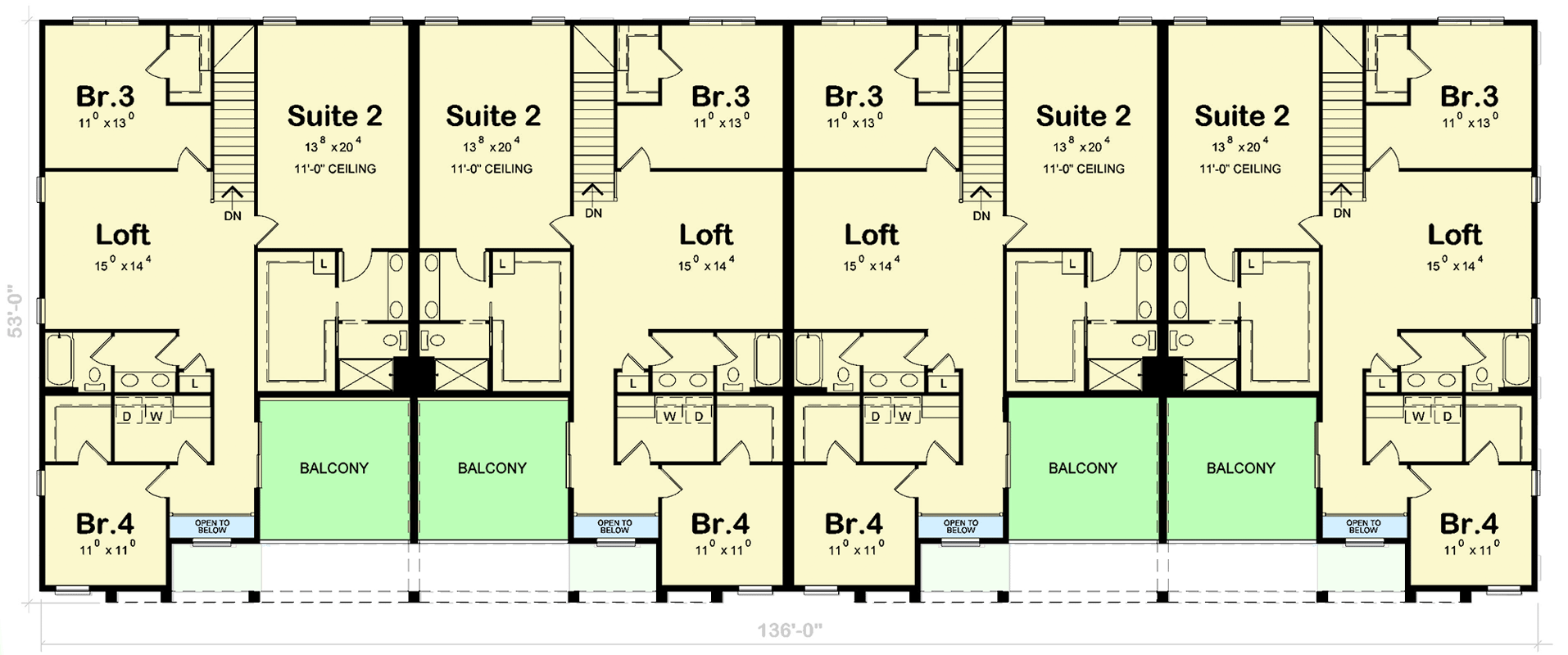

2-Story Modern Fourplex House Plan with 4-Bed Units Under 2500 Square Feet - 42435DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 9,728 sq. ft.
  • 1st Floor: 4,020 sq. ft.
  • 2nd Floor: 5,708 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 136' 0"
  • Depth: 53' 0"
  • Max ridge height: 29' 9"

Garage

  • Type: Carport
  • Area: 1924 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Architectural Style

Special features

2-Story Modern Fourplex House Plan with 4-Bed Units Under 2500 Square Feet

  • 9,728

    Heated s.f.

  • 4

    Units

  • 136'

    Width

  • 53'

    Depth

Buy This Plan
  • Study Set - Digital $1,970
  • PDF - Single-Build $3,080
  • PDF - Unlimited Build $3,580
  • CAD + PDF - Single-Build $5,095
  • CAD - Unlimited Build $5,595
  • View all purchase option online

About This Plan

  • This 2-story fourplex house plan has a modern exterior with steel columns, numerous windows and attractive masonry finishes.
  • Each unit gives you 4 beds, 3.5 baths and 2,432 square feet of heated living (1,005 sq. ft. on the main floor and 1,427 square feet on the second floor) and a 481 square foot garage with carport in front.
  • The second-floor balcony serves as a carport, while the garage’s extra depth offers storage.
  • First and second-floor suites make this an ideal layout for multi-generational households, particularly with the large upstairs loft for reading, play or study.
  • Related Plans: Get a duplex version with house plan 42433DB and a single family version with house plan 42712DB.
