Plan 871022JEN
2-story Modern Home Plan with 3 Half Baths and Bonus Expansion
Heated S.F.
4,307
Beds
2-3
Baths
3.5+
Stories
2
Cars
3
Flyer
Videos
What's Included
Plan Details
  • This 2-story home plan combines modern aesthetics with earthy elements giving you a 106'9"-wide home plan with great curb appeal. Natural materials soften the modern architecture to integrate the home into its environmental setting.
  •  Natural light enters through a wall of windows providing stunning views of the surroundings and the great room ceiling expands upwards to the second floor creating an expansive feeling to the heart of the home. An open floor plan carries this expansiveness throughout the entire first floor.
  •  A screened in porch with fireplace is just steps beyond the kitchen and dining room. In back, there's room for a future pool (not part of the plans), a patio, and firepit giving you great outdoor spaces to enjoy.
  • The large master bedroom wing has dual walk-in closets, a bathroom with both shower and soaking tub, and a private covered porch.
  • An attached 3-car garage with drop zone has immediate access to pantry and kitchen for ease of unloading groceries.
  • Upstairs, the loft can easily be used as a third bedroom if needed and the bonus room is plumbed for use as a future bar.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.
What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan

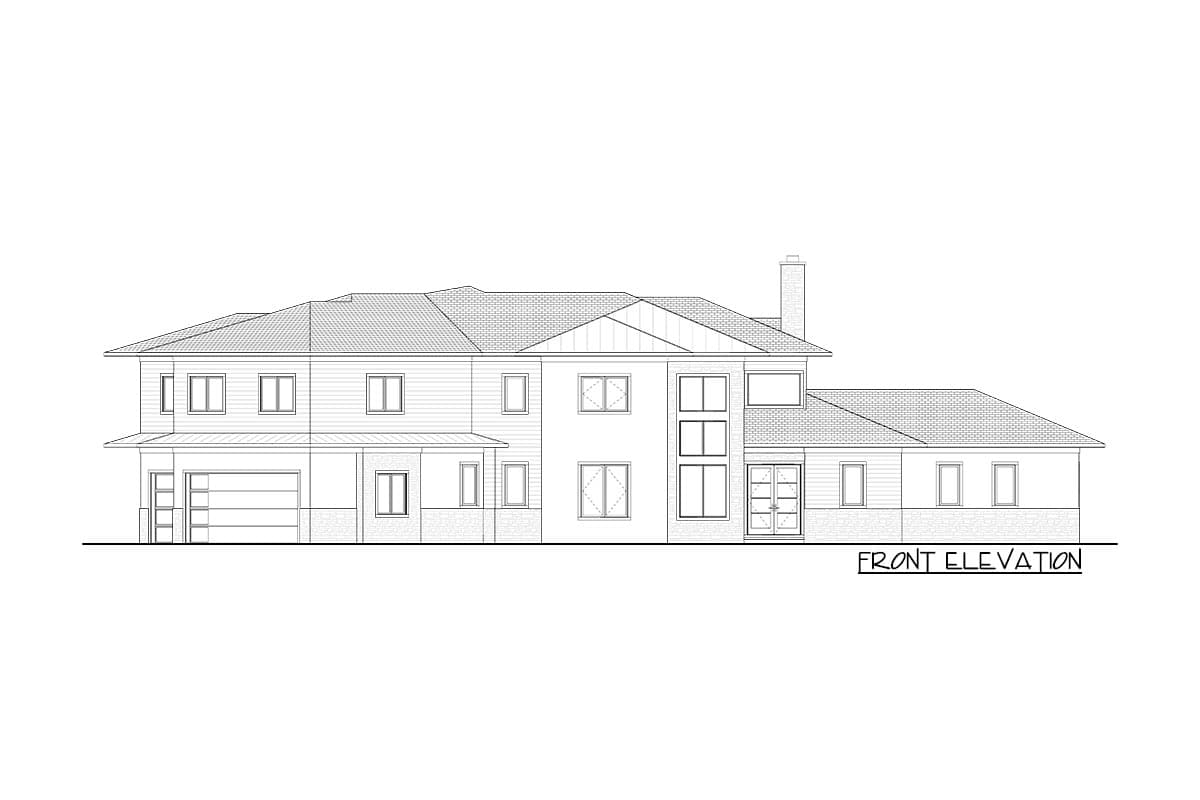

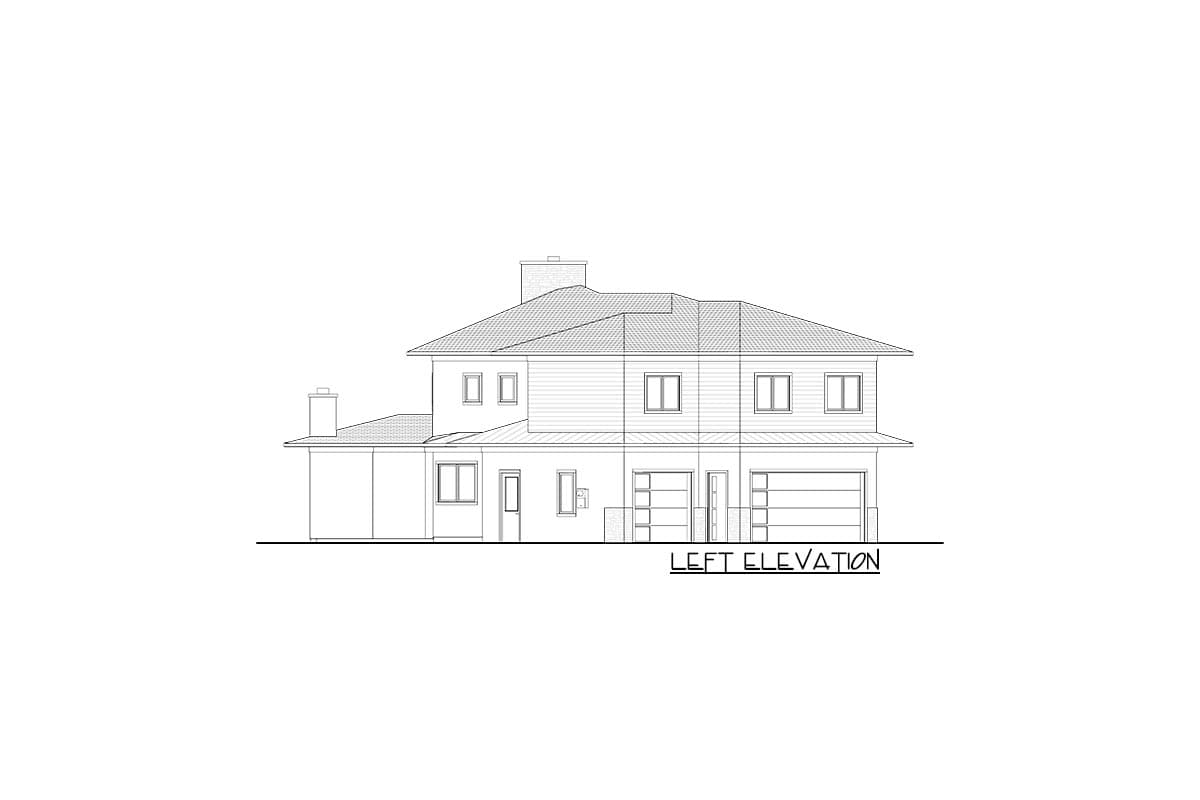

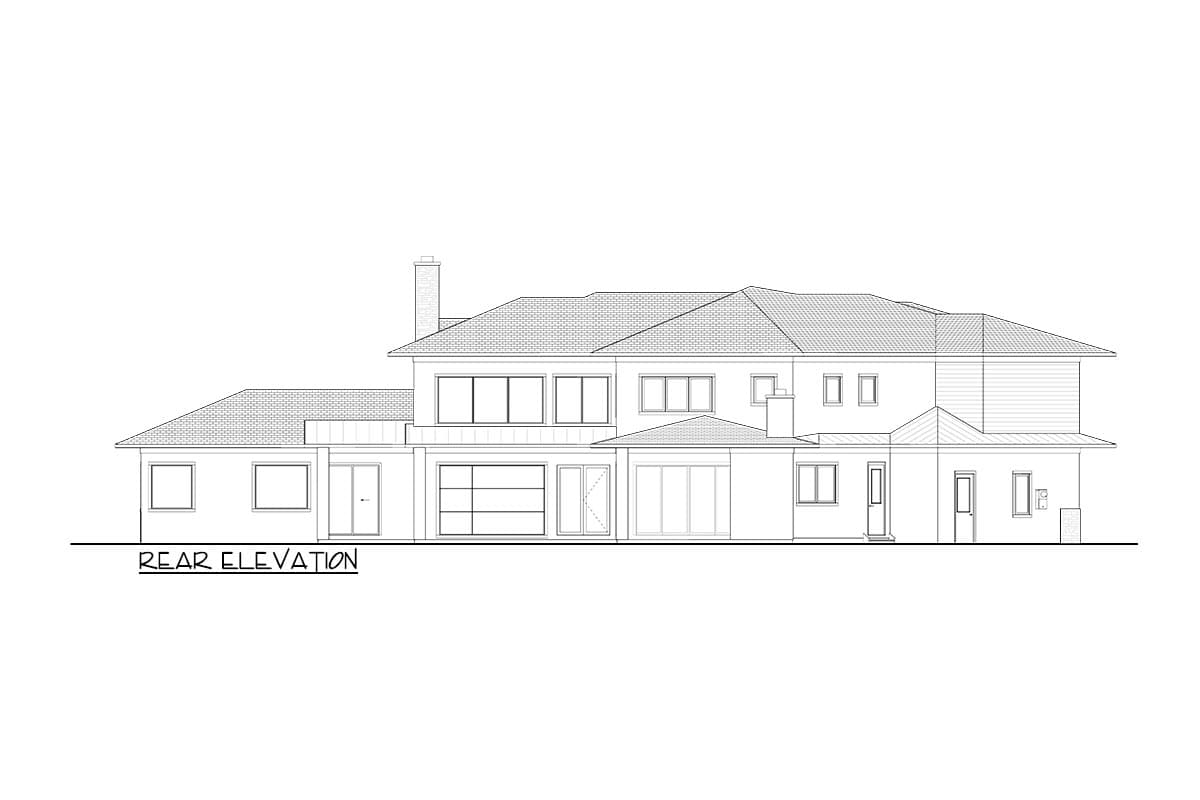

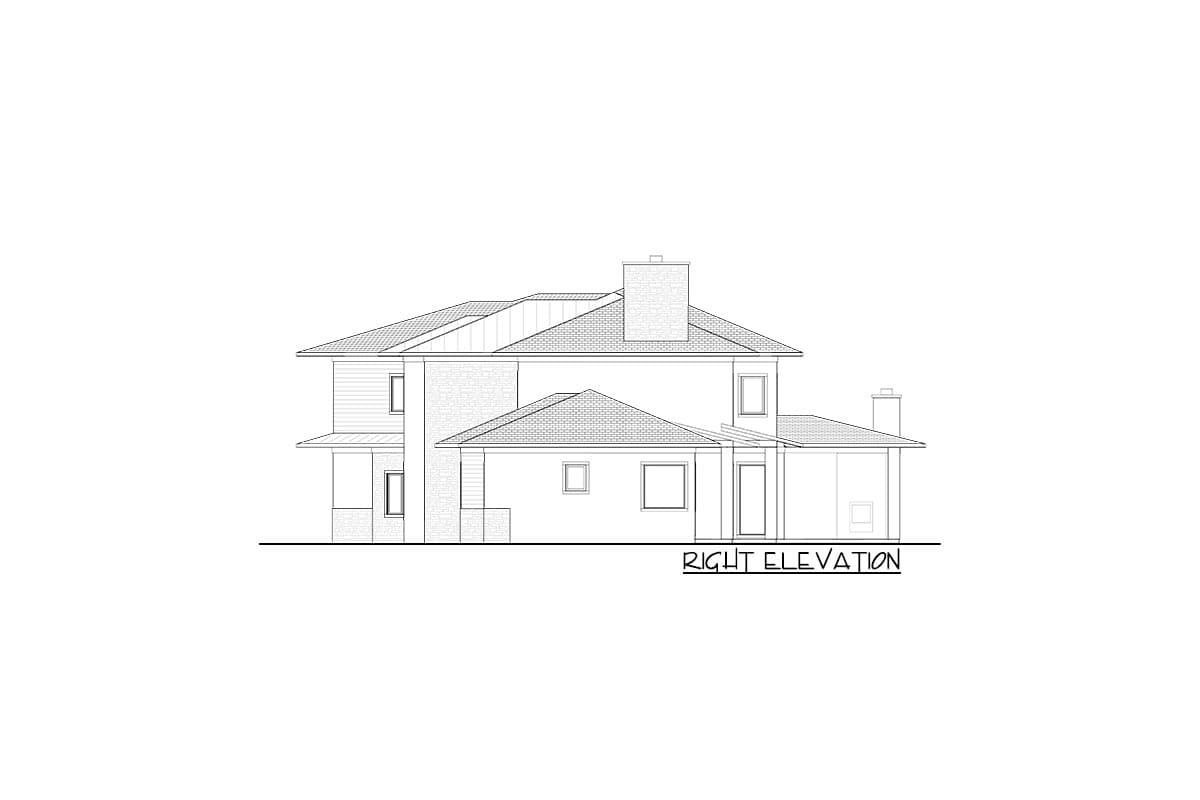

  • Elevations (all four sides)
  • Sections

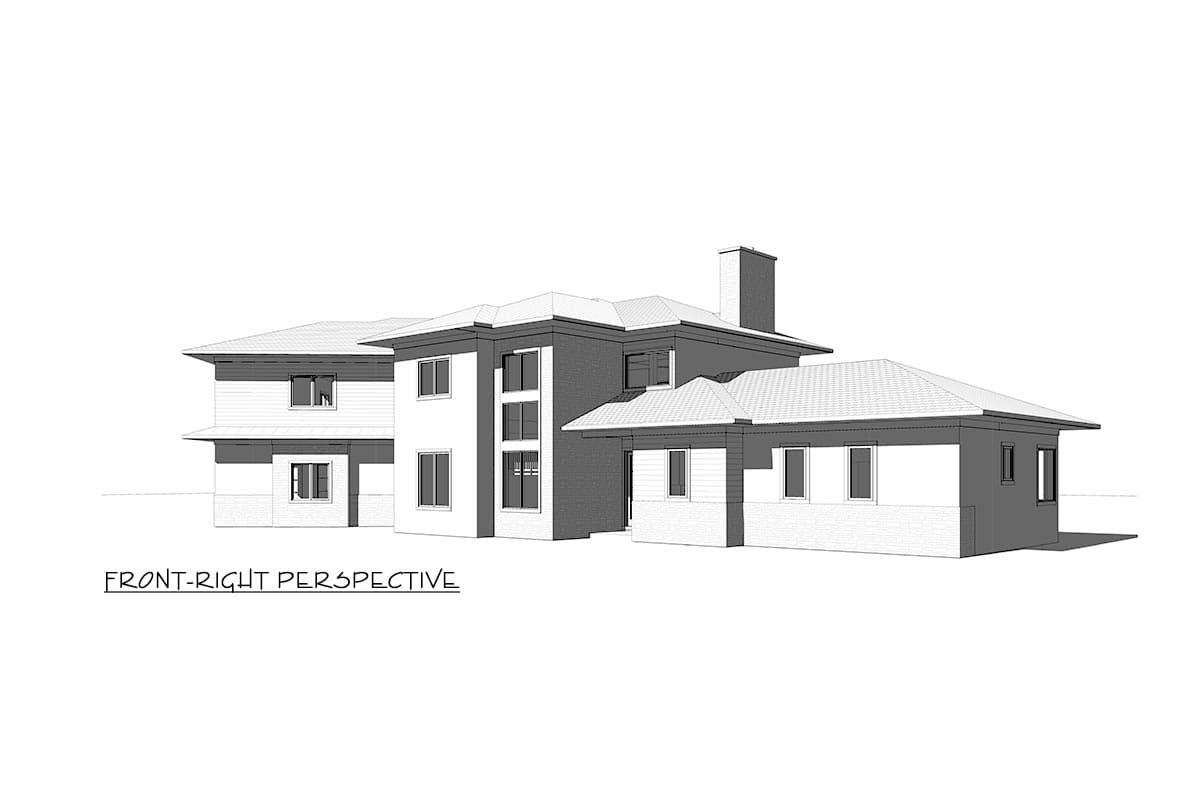

  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-story Modern Home Plan with 3 Half Baths and Bonus Expansion

  • 4,307

    Heated s.f.

  • 2-3

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

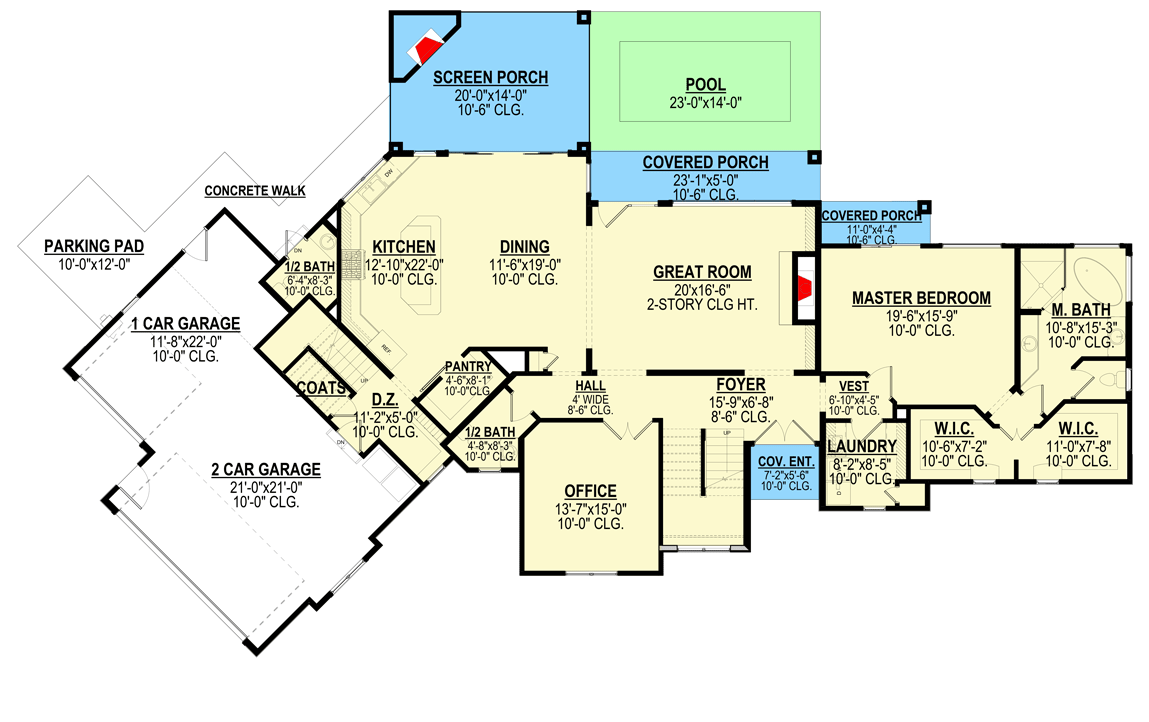

  • Main Level

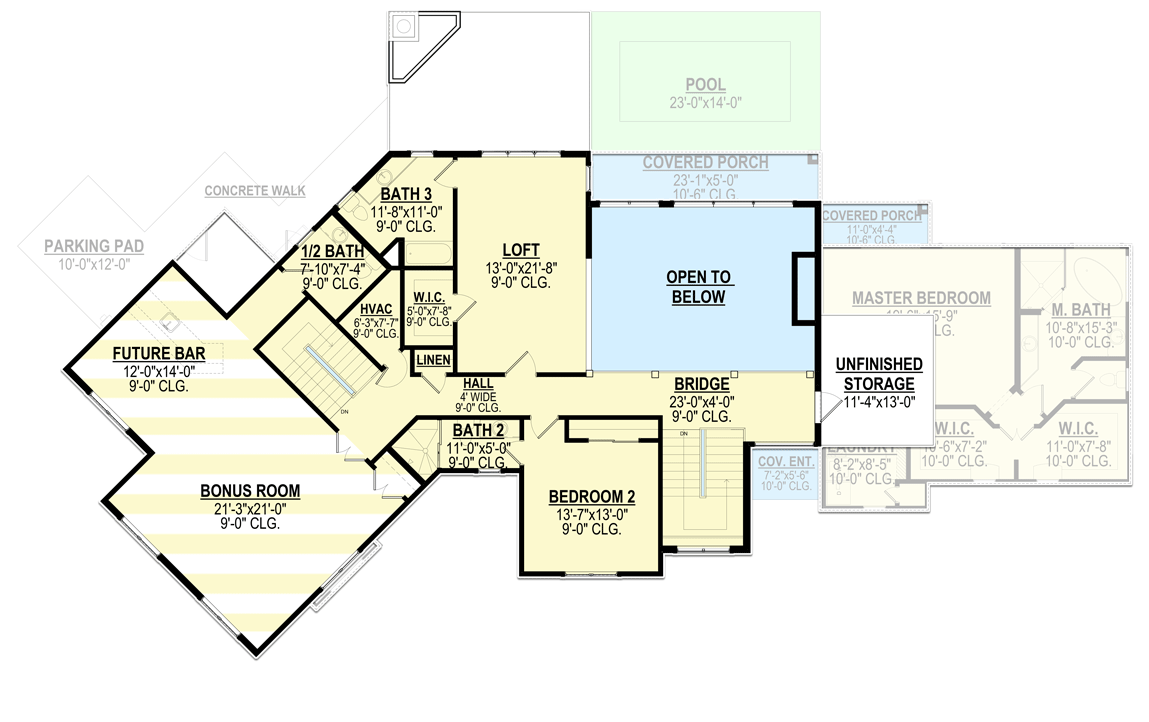

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,307 sq. ft.
  • 1st Floor: 2,478 sq. ft.
  • 2nd Floor: 1,086 sq. ft.

Dimensions

  • Width: 106' 9"
  • Depth: 64' 4"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Area: 752 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
