2-Story Modern Home Plan with First-floor Master Bedroom

Plan 135081GRA

  • 1,719

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • The two-toned, board and batten exterior adds a new dimension to this two-story, Modern home plan.
  • The living room is drenched in natural lighting and permits access to the covered porch through sliding doors.
  • A built-in bench adds character to the dining room, which connects with the island kitchen.
  • The master bedroom is on the first floor and includes a tile shower in the attached bath and a washer / dryer unit in the walk-in closet.
  • Upstairs, a loft guides you to bedrooms 2 and 3 that share a full bathroom.
  • Related Plan: Get an alternate version with house plan 135204GRA.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story Modern Home Plan with First-floor Master Bedroom - 135081GRA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

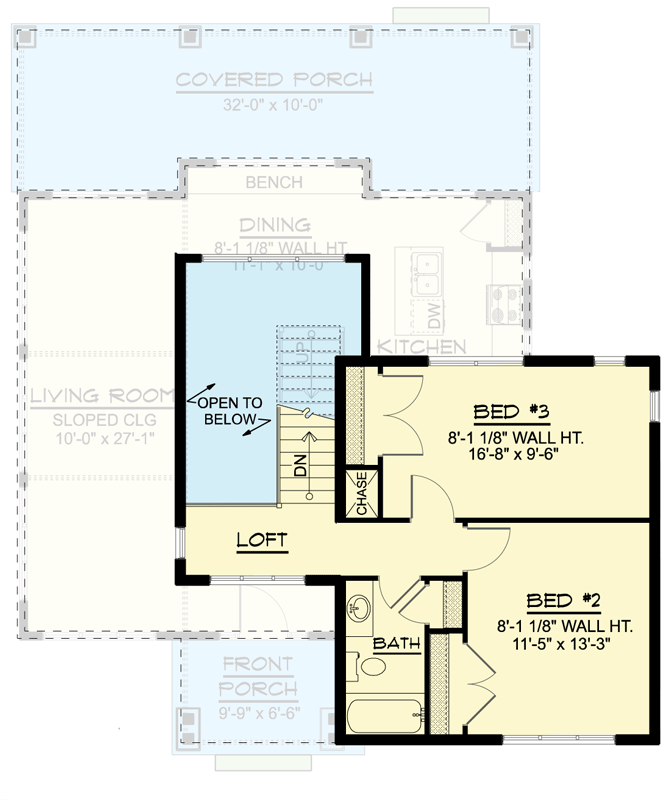

2-Story Modern Home Plan with First-floor Master Bedroom - 135081GRA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,719 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 529 sq. ft.
  • Porch, Rear: 320 sq. ft.
  • Porch, Front: 55 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 44' 6"
  • Max ridge height: 21' 5"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

2-Story Modern Home Plan with First-floor Master Bedroom

  • 1,719

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,150
  • 5 Sets $1,300
  • 5 Sets + PDF $1,400
  • PDF - Unlimited Build $1,650
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • The two-toned, board and batten exterior adds a new dimension to this two-story, Modern home plan.
  • The living room is drenched in natural lighting and permits access to the covered porch through sliding doors.
  • A built-in bench adds character to the dining room, which connects with the island kitchen.
  • The master bedroom is on the first floor and includes a tile shower in the attached bath and a washer / dryer unit in the walk-in closet.
  • Upstairs, a loft guides you to bedrooms 2 and 3 that share a full bathroom.
  • Related Plan: Get an alternate version with house plan 135204GRA.
