Plan 81757AB
2-Story Modern Northwest House Plan with In-Law Suite above Garage
Heated S.F.
2,428
Beds
3-4
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

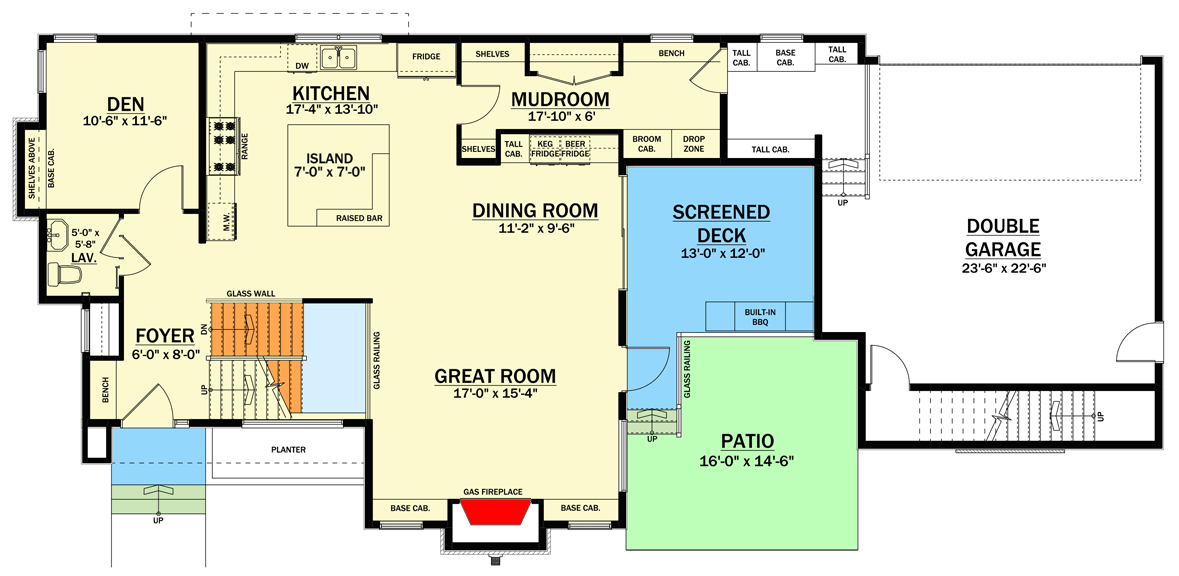

Main Level
Reverse Floor Plan
2-Story Modern Northwest House Plan with In-Law Suite above Garage - 81757AB floor plan - Main Level

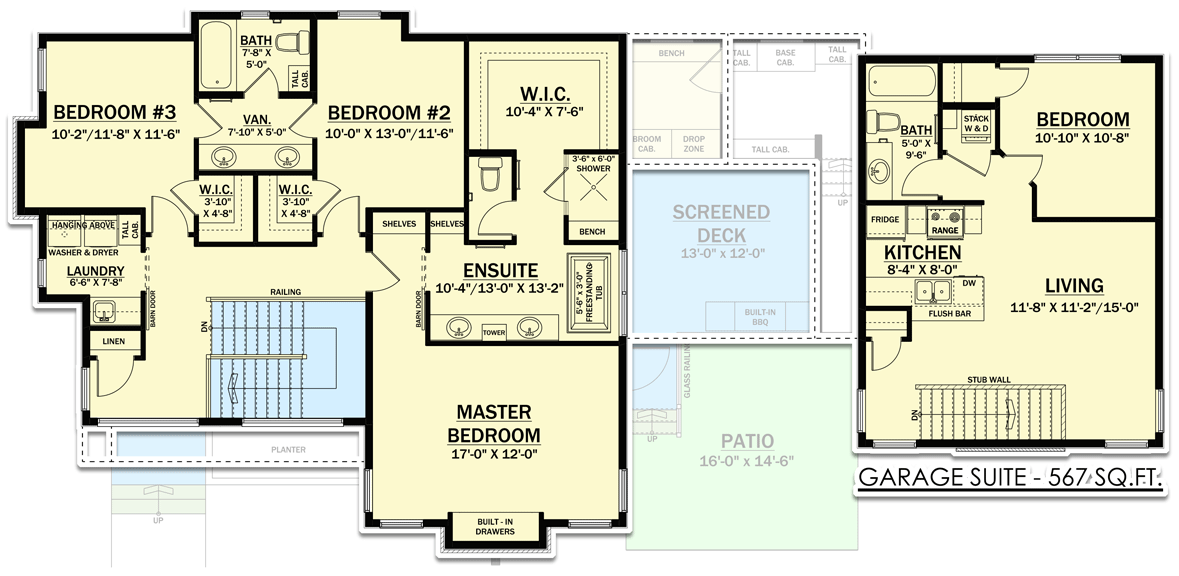

2nd Floor
Reverse Floor Plan
2-Story Modern Northwest House Plan with In-Law Suite above Garage - 81757AB floor plan - 2nd Floor

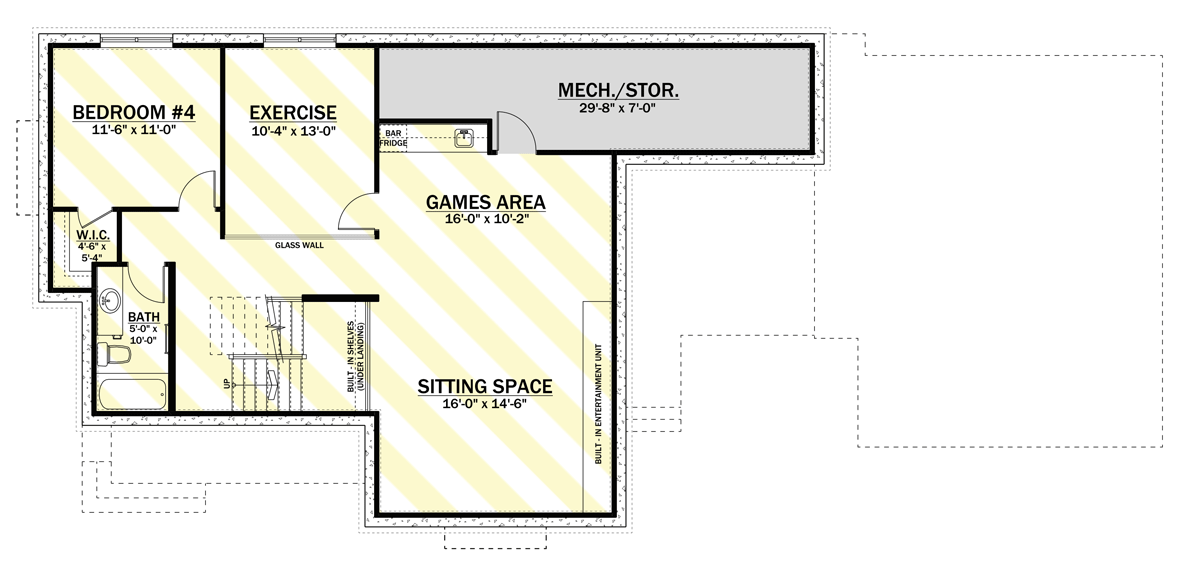

Optionally Finished Lower Level
Reverse Floor Plan
2-Story Modern Northwest House Plan with In-Law Suite above Garage - 81757AB floor plan - Optionally Finished Lower Level
Plan Details
  • Clean lines and eye-catching siding materials grace the exterior of this two-story Modern Northwest house plan that delivers a double garage accessible from the rear with an in-law suite above.
  • The main level is comprised of a spacious living area that freely flows between the great room, dining area, and kitchen. A large island includes an eating bar in the kitchen and a built-in beverage center in the dining room doubles as a buffet when entertaining.
  • A quiet den and screened deck with a BBQ completes the first floor.
  • Upstairs, the master bedroom delights in a 5-fixture bathroom and walk-in closet, while bedrooms 2 and 3 share a Jack-and-Jill bath.
  • The in-law suite above the garage totals 567 sq ft and includes a full kitchen and laundry closet. Finish the lower level to gain another 958 sq ft designed with an exercise room, game area, and fourth bedroom.
What's Included

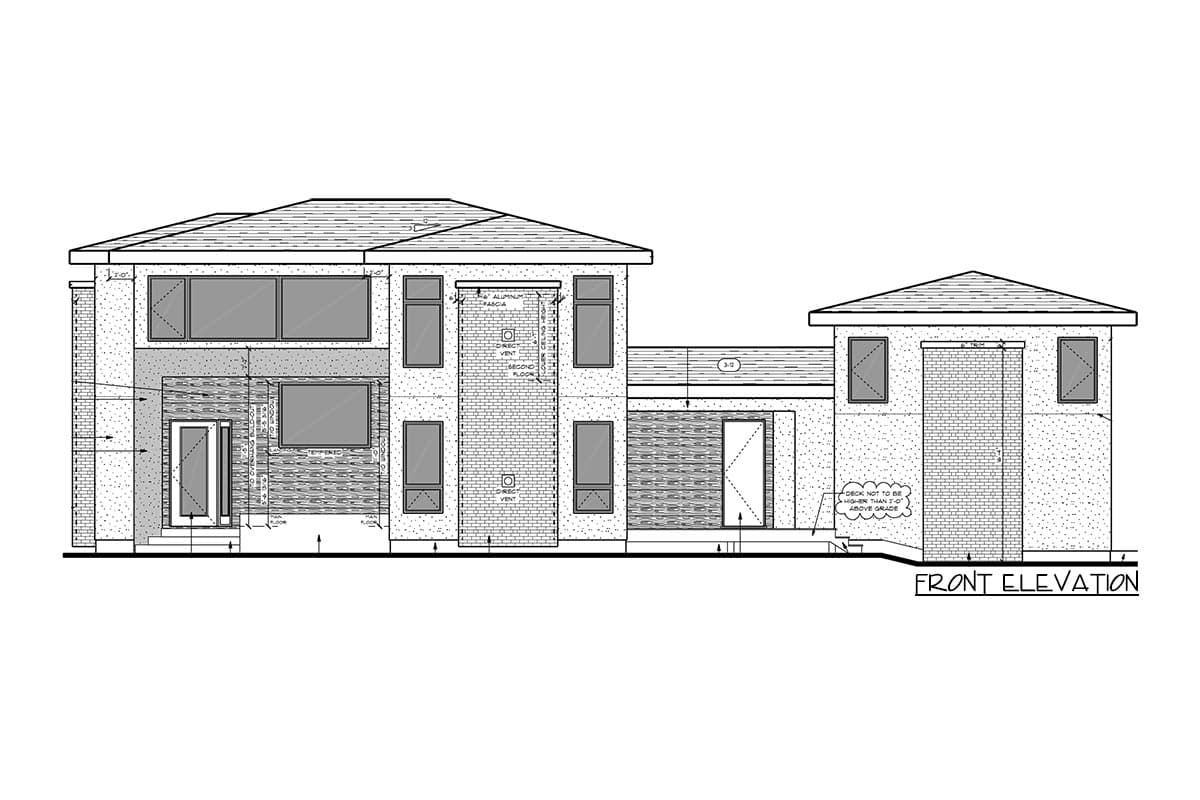

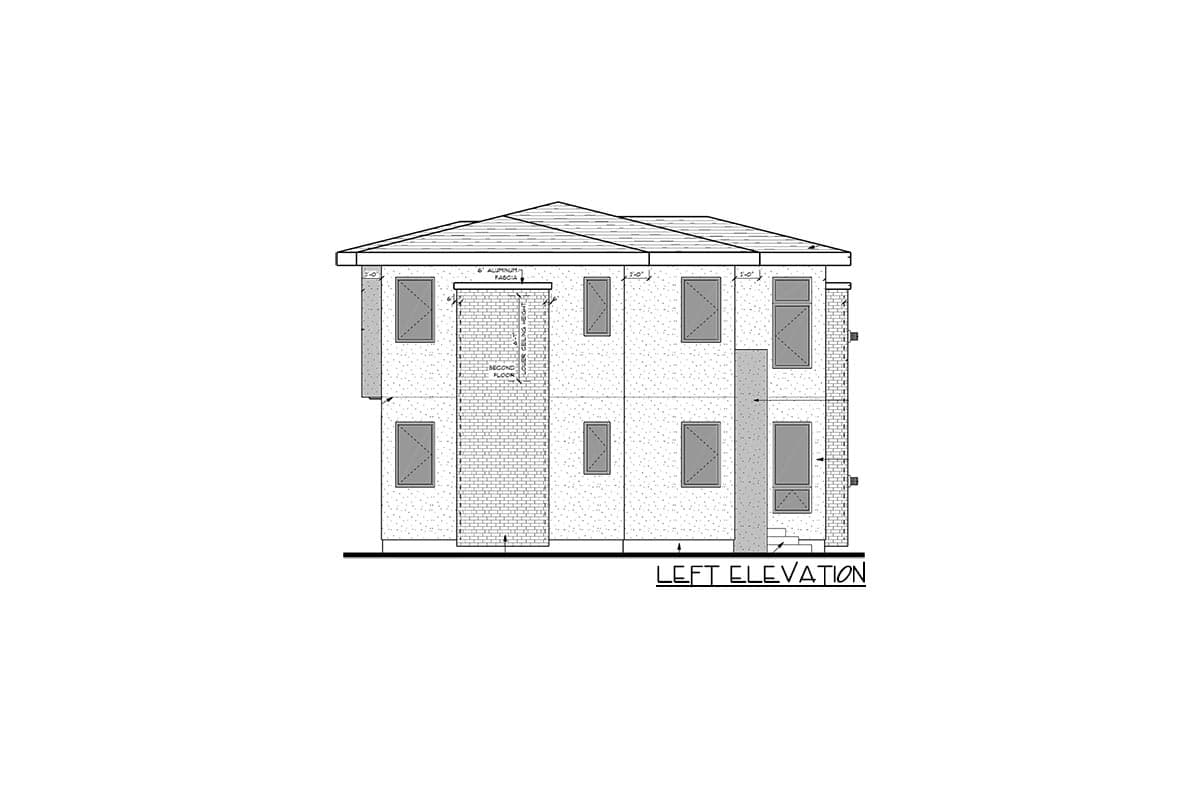

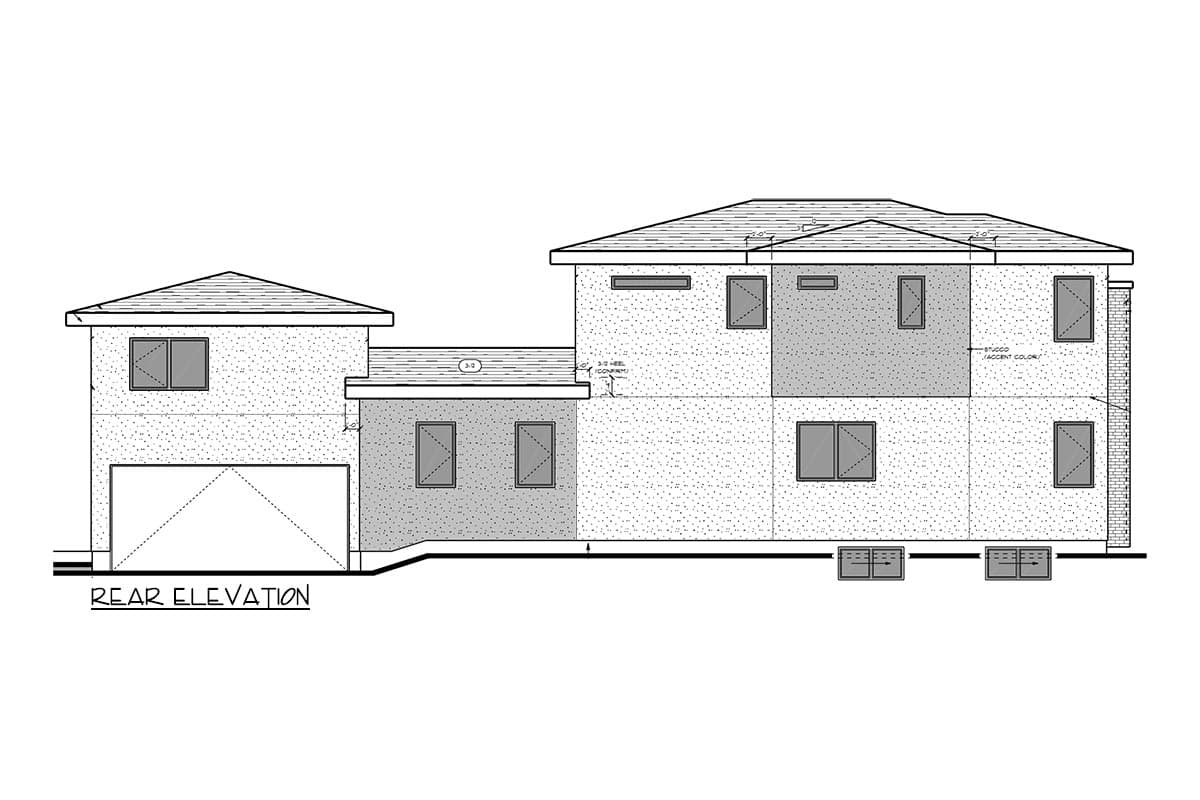

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Modern Northwest House Plan with In-Law Suite above Garage

  • 2,428

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,428 sq. ft.
  • 1st Floor: 1,277 sq. ft.
  • 2nd Floor: 1,151 sq. ft.
  • Garage Suite: 567 sq. ft.

Dimensions

  • Width: 77' 6"
  • Depth: 34' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 601 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
