2-Story Mountain House Plan with Large Vaulted Covered Side Porch

Plan 68856VR

  • 1,770

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • A timber-frame truss lends character to the front porch of this two-story, mountain house plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor (see plan 68622VR for a version with it on the second floor) and boasts a private balcony, a 4-fixture bathroom, and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a fourth bedroom and an open family room plus a bonus room. Mechanicals and storage complete the home.
  • Related Plans: Get an alternate lower level with house plan 680065VR. Make the side porch an open air deck instead with house plans 68747VR and 680066VR and move the master with house plan 68622VR. Get a multi-generational version with house plan 68918VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

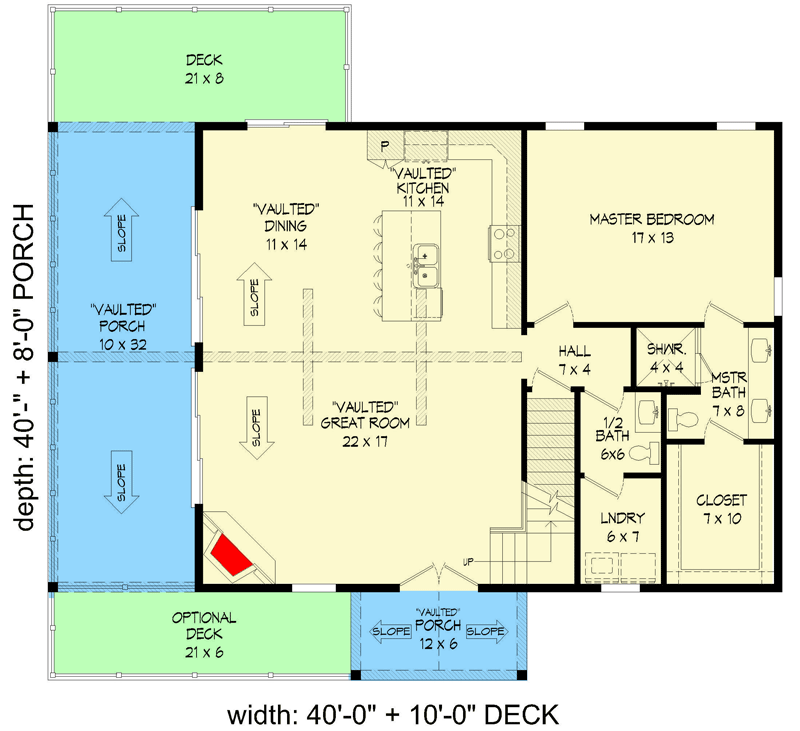

2-Story Mountain House Plan with Large Vaulted Covered Side Porch - 68856VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

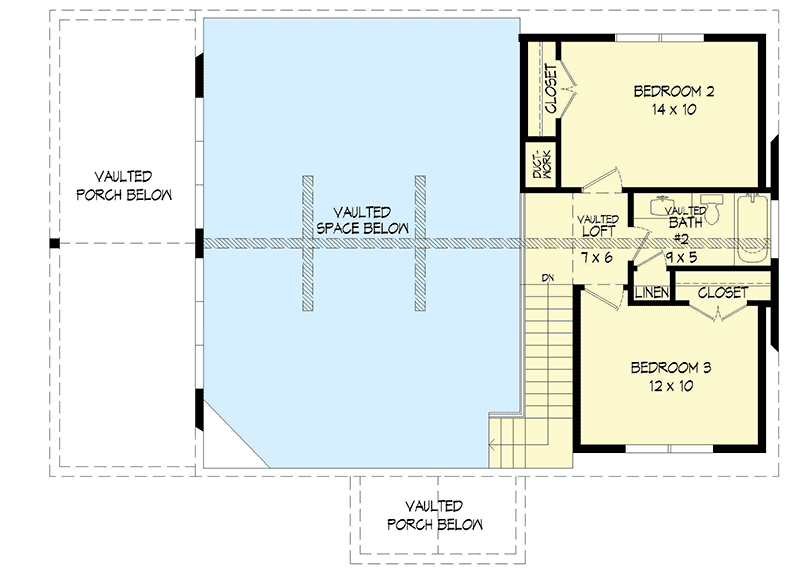

2-Story Mountain House Plan with Large Vaulted Covered Side Porch - 68856VR floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

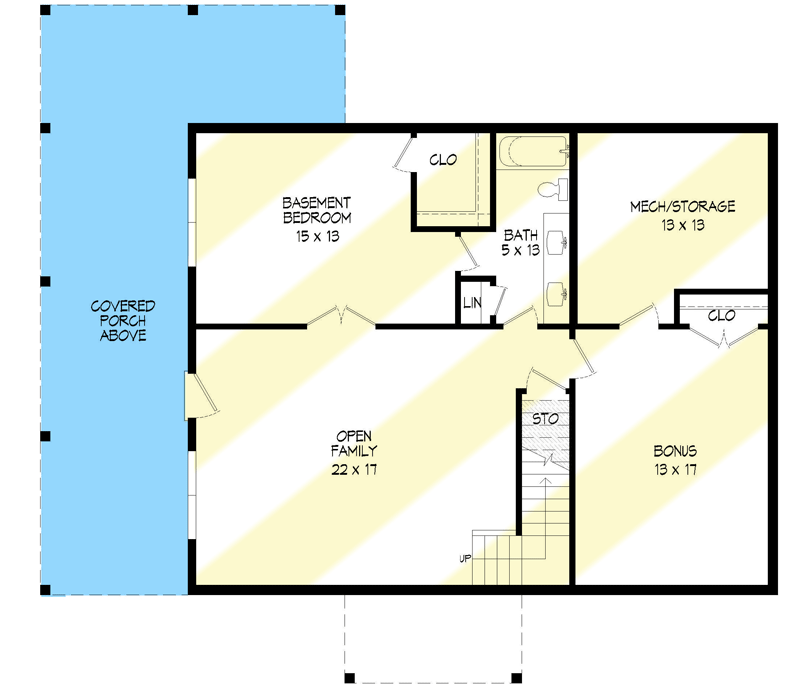

2-Story Mountain House Plan with Large Vaulted Covered Side Porch - 68856VR floor plan - Basement
