Plan 68622VR Two-story Mountain Home Plan with Vaulted Master Loft

1,736 3-4 2 - 3 2
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two-story Mountain Home Plan with Vaulted Master Loft

Plan 68622VR

  • 1,736

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 2

    Stories

  • A timber-frame truss lends character to the front porch of this two-story, mountain home plan, complete with a wrap-around porch to enjoy the available views.

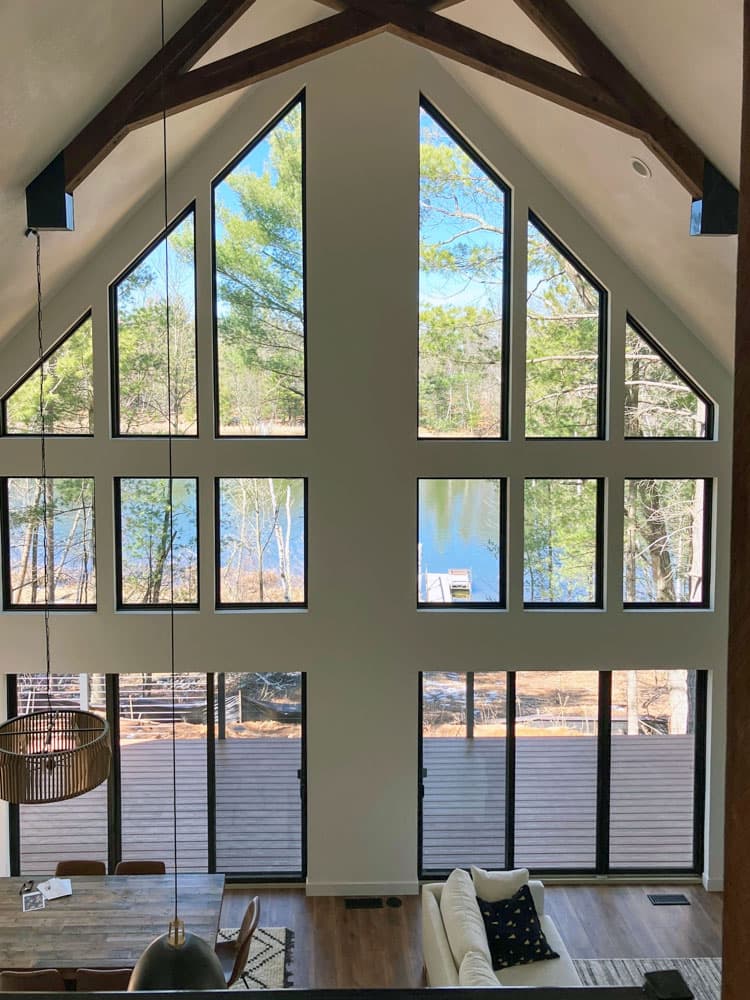

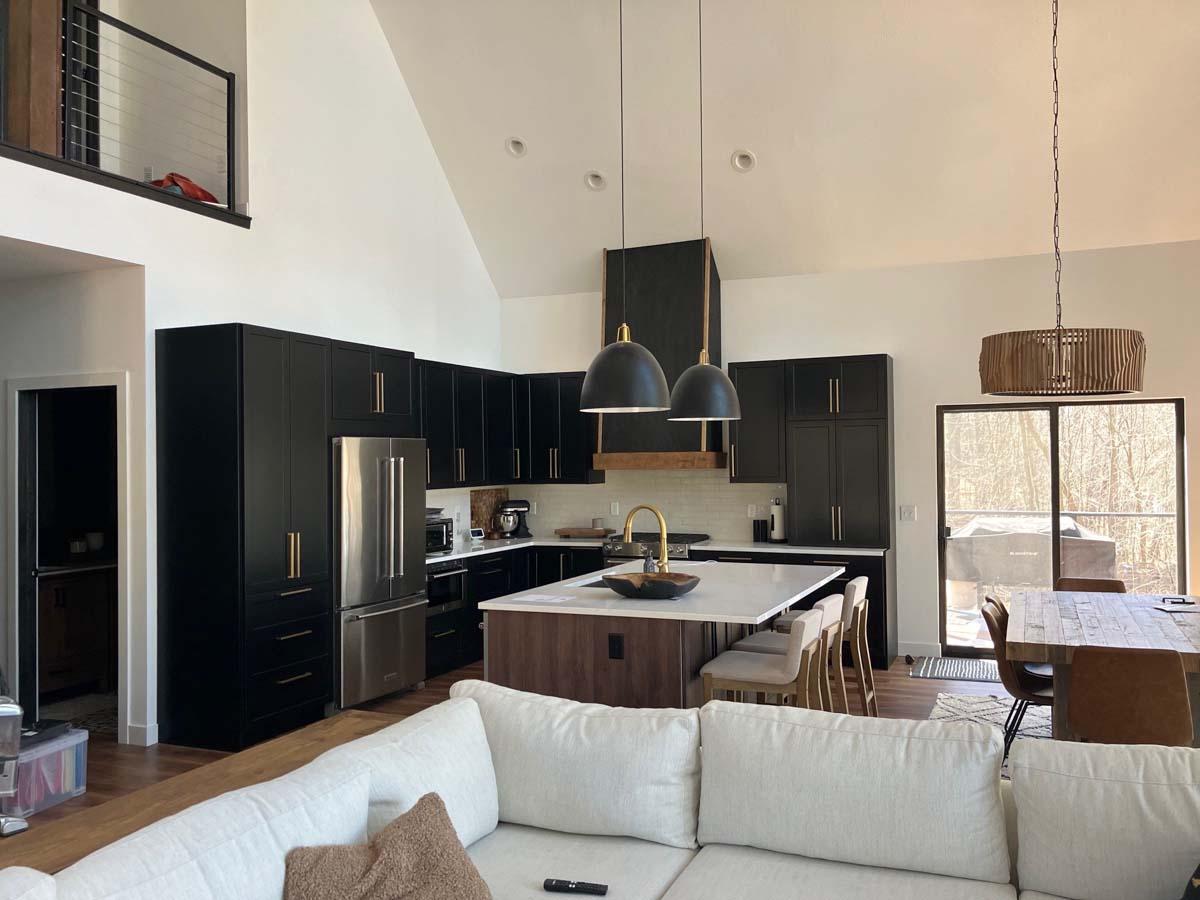

  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Two bedrooms on the main level are separated by a laundry closet with close proximity to a full bath for added convenience.

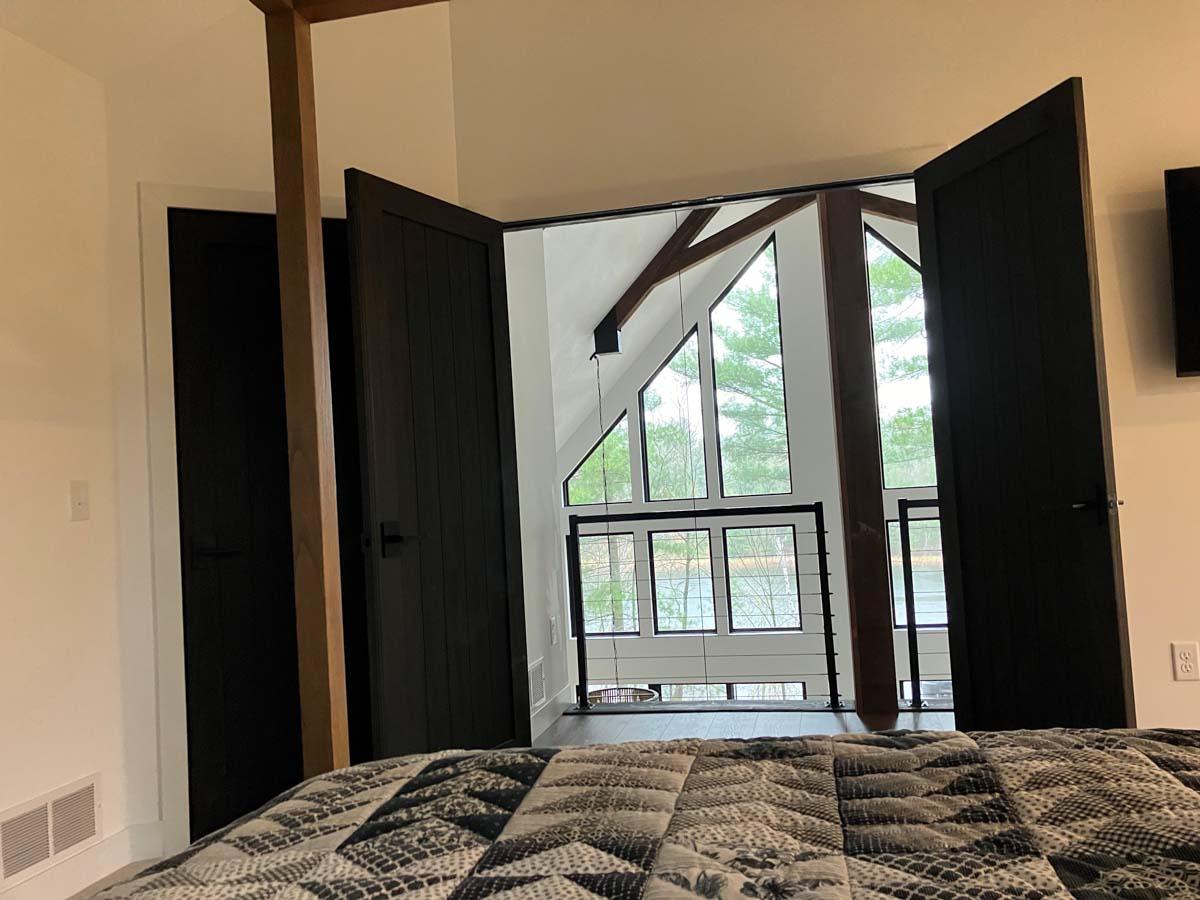

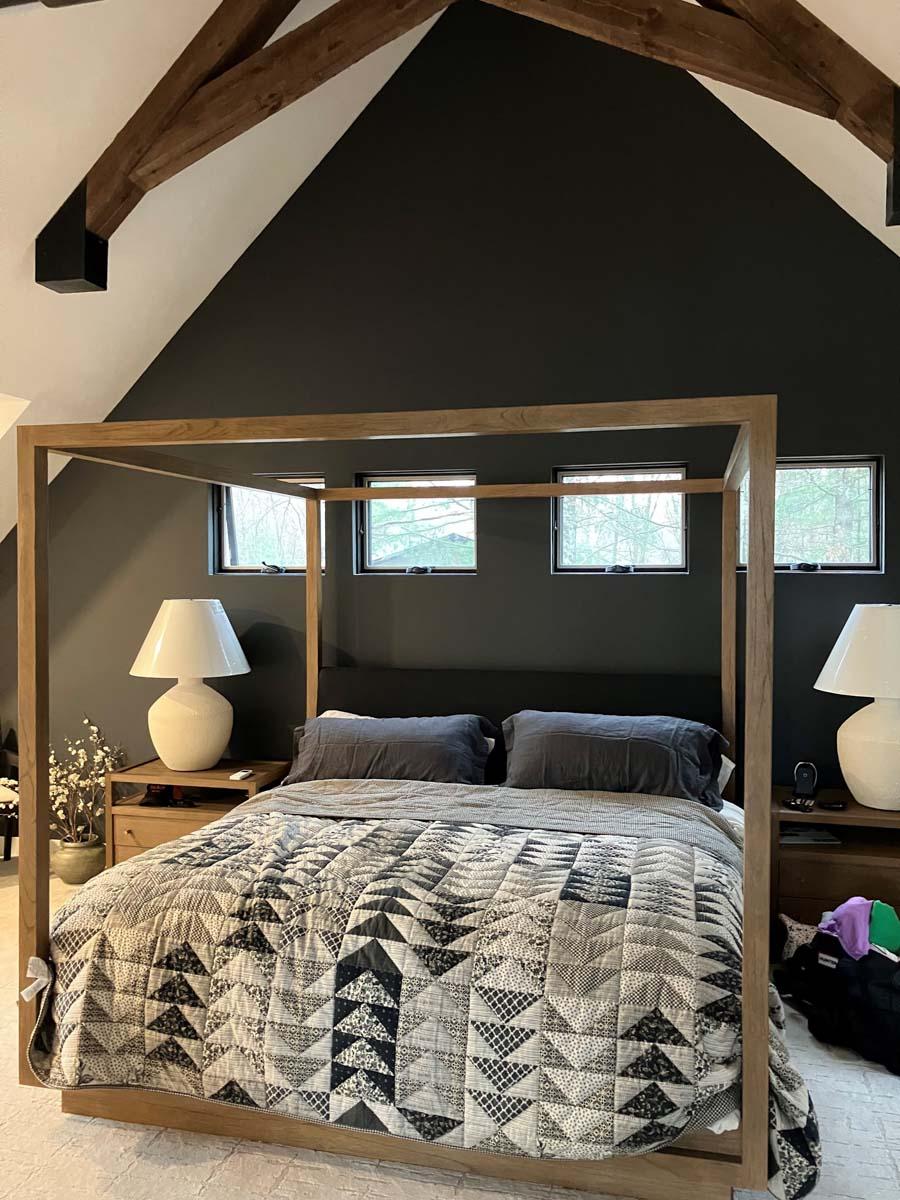

  • The master bedroom is located upstairs and boasts a private balcony, a 4-fixture bathroom, and a walk-in closet.
  • The optional lower level - comes with the plans; not included in the total living area figures - could serve as storage, or utilize the design to increase living space in the future.
  • Related Plans: Put the master on the main floor with house plans 68747VR and 68816VR. Get parking in the lower level with house plan 68623VR. Get a larger deck with house plan 68786VR. Get an alternate version with house plan 68622VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

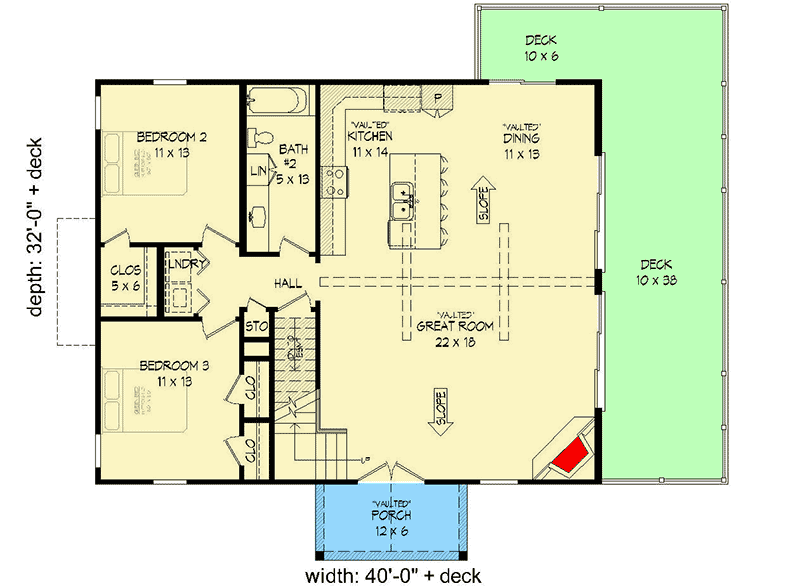

Two-story Mountain Home Plan with Vaulted Master Loft - 68622VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

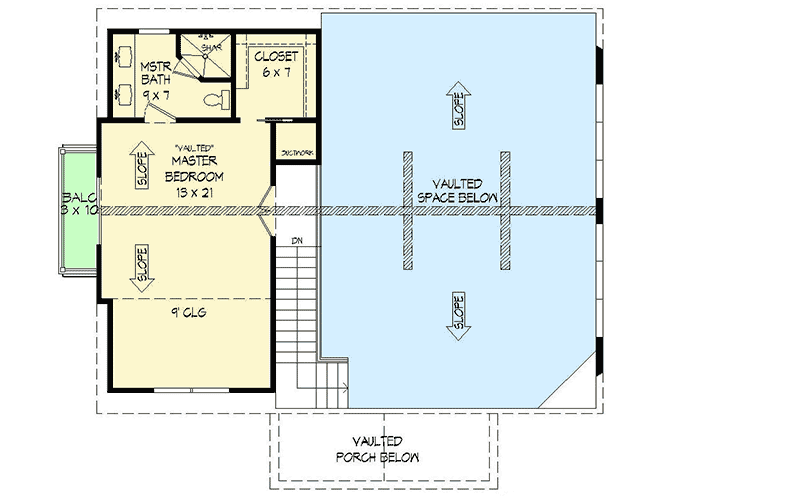

Two-story Mountain Home Plan with Vaulted Master Loft - 68622VR floor plan - 2nd Floor

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

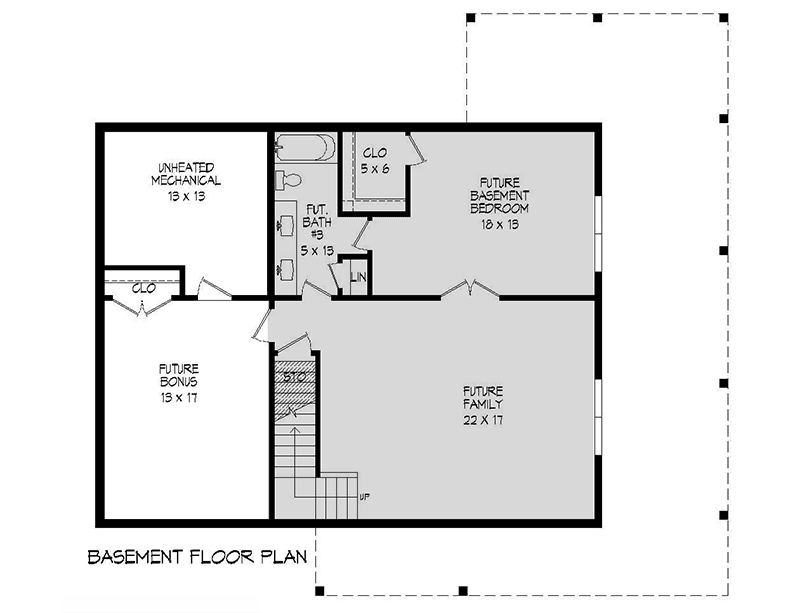

Two-story Mountain Home Plan with Vaulted Master Loft - 68622VR floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,736 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • 2nd Floor: 456 sq. ft.
  • Deck & Porch: 542 sq. ft.
  • Optional Lower Level: 1,112 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Daylight, Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 32' 0"
  • Max ridge height: 26' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Two-story Mountain Home Plan with Vaulted Master Loft

  • 1,736

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,575
  • 5 Sets $1,660
  • 5 Sets + PDF $1,805
  • CAD + PDF - Single-Build $2,125
  • View all purchase option online

About This Plan

  • A timber-frame truss lends character to the front porch of this two-story, mountain home plan, complete with a wrap-around porch to enjoy the available views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • Two bedrooms on the main level are separated by a laundry closet with close proximity to a full bath for added convenience.
  • The master bedroom is located upstairs and boasts a private balcony, a 4-fixture bathroom, and a walk-in closet.
  • The optional lower level - comes with the plans; not included in the total living area figures - could serve as storage, or utilize the design to increase living space in the future.
  • Related Plans: Put the master on the main floor with house plans 68747VR and 68816VR. Get parking in the lower level with house plan 68623VR. Get a larger deck with house plan 68786VR. Get an alternate version with house plan 68622VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,736 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • 2nd Floor: 456 sq. ft.
  • Deck & Porch: 542 sq. ft.
  • Optional Lower Level: 1,112 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Daylight, Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 32' 0"
  • Max ridge height: 26' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
