Plan 680011VR

2120 Square Foot Modern Lake House Plan for a Rear Sloped Lot

Heated S.F.
2,120
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2

Floor Plan

Plan 680011VR

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Walkout Foundation
Optionally Finished Walkout Foundation

Plan 680011VR

M-F 9am-5pm EST |

1-203-761-8500

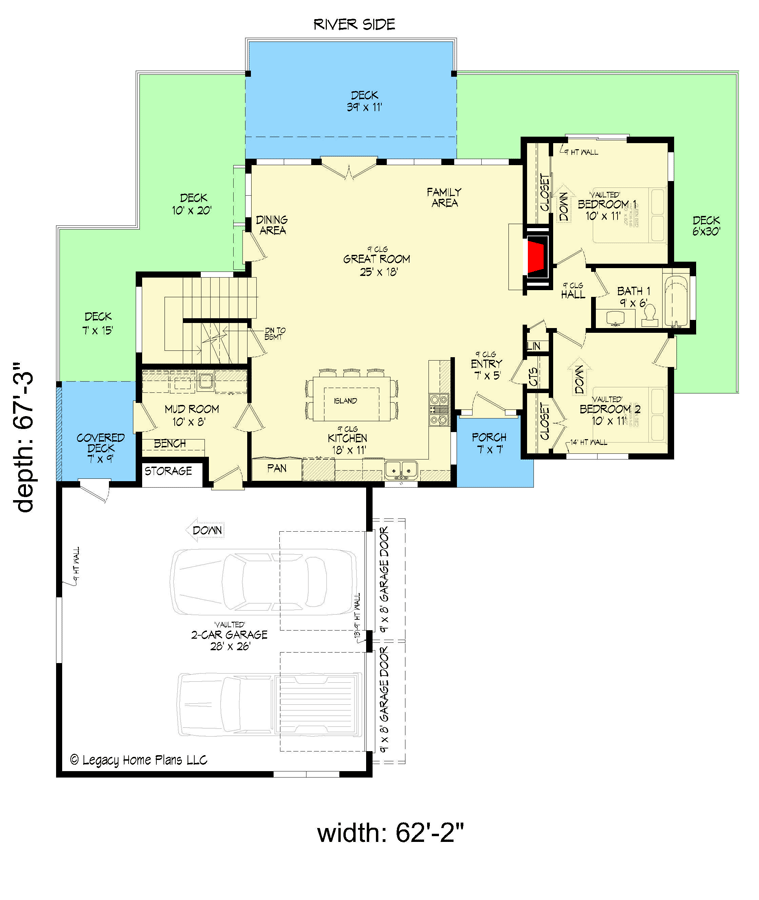

Main Level

Plan 680011VR: 2120 Square Foot Modern Lake House Plan for a Rear Sloped Lot - Floor Plan - Main Level - Contemporary, Mid Century Modern, Mountain, Northwest

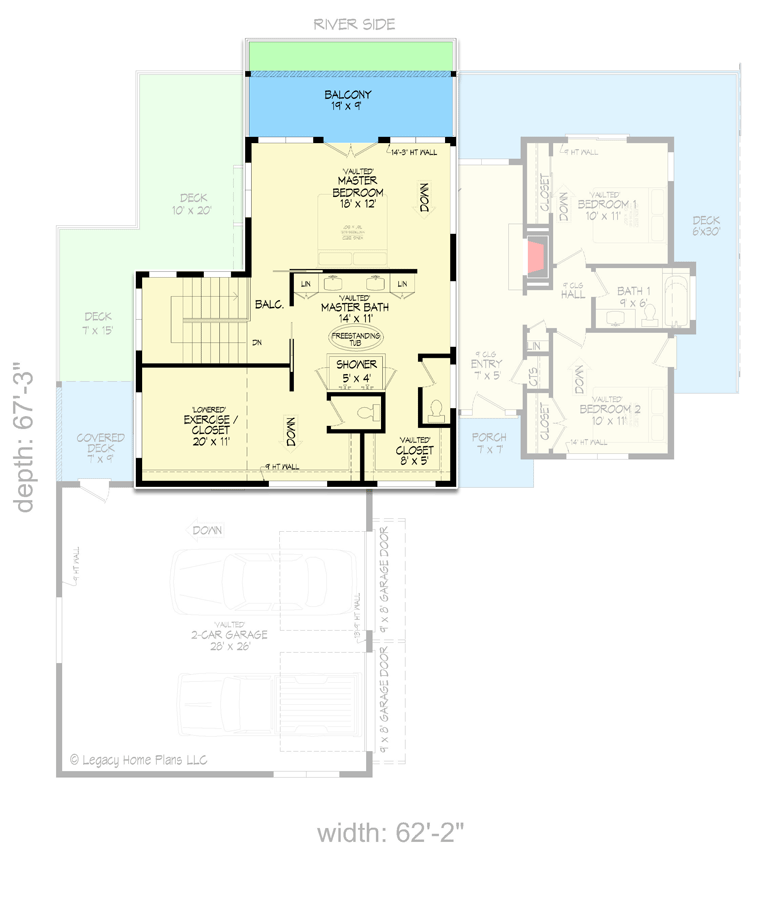

2nd Floor

Plan 680011VR: 2120 Square Foot Modern Lake House Plan for a Rear Sloped Lot - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Mountain, Northwest

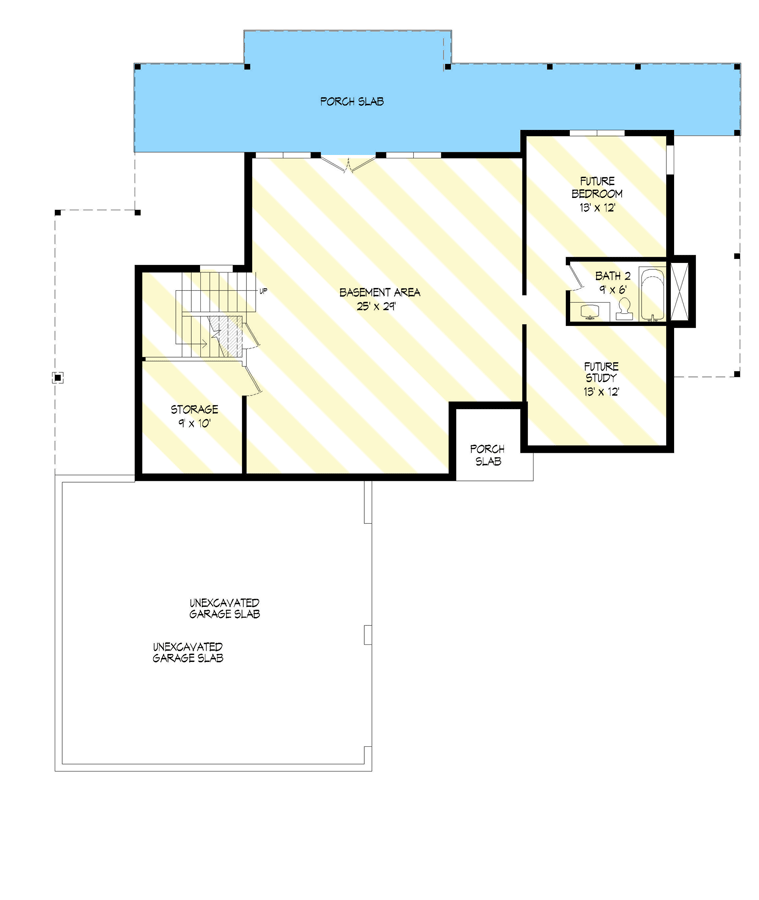

Optionally Finished Walkout Foundation

Plan 680011VR: 2120 Square Foot Modern Lake House Plan for a Rear Sloped Lot - Floor Plan - Optionally Finished Walkout Foundation - Contemporary, Mid Century Modern, Mountain, Northwest

Plan Details

  • Designed in response to requests for a smaller version of 68753VR (2,318 square feet), this contemporary floor plan keeps the exterior with sloping rooflines and three levels with outdoor living with a focus on views to the back while shaving off a couple hundred square feet of heated living area.
  • The main level consists of an open and airy living space with casual dining at the kitchen island, along with space for a formal dining table.
  • The wrap-around deck provides ample space for grilling, dining outdoors, or just relaxing with a view.
  • Two bedrooms can be found the main level, separated by a full bath, while the master suite consumes the upper floor and includes a 5-fixture bathroom, private balcony, and an exercise room (or second closet).
  • Plenty of storage is available on the lower level that opens onto a patio, designed for a future expansion with two bedrooms, a full bath, and large recreation room.
  • Related Plans: Get a larger version with house plans 68753VR (2,318 sq. ft.), 680130VR (2,506 sq. ft.) and 680046VR (3,433 sq. ft.).

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

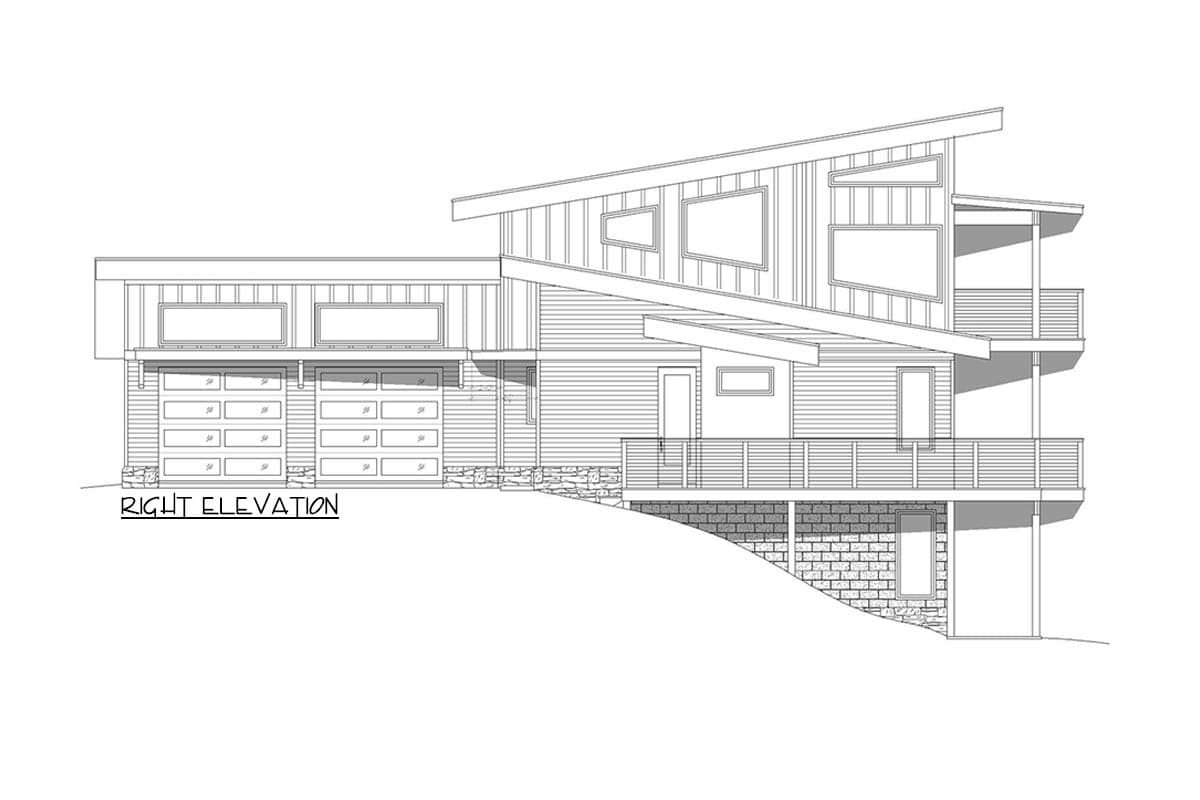

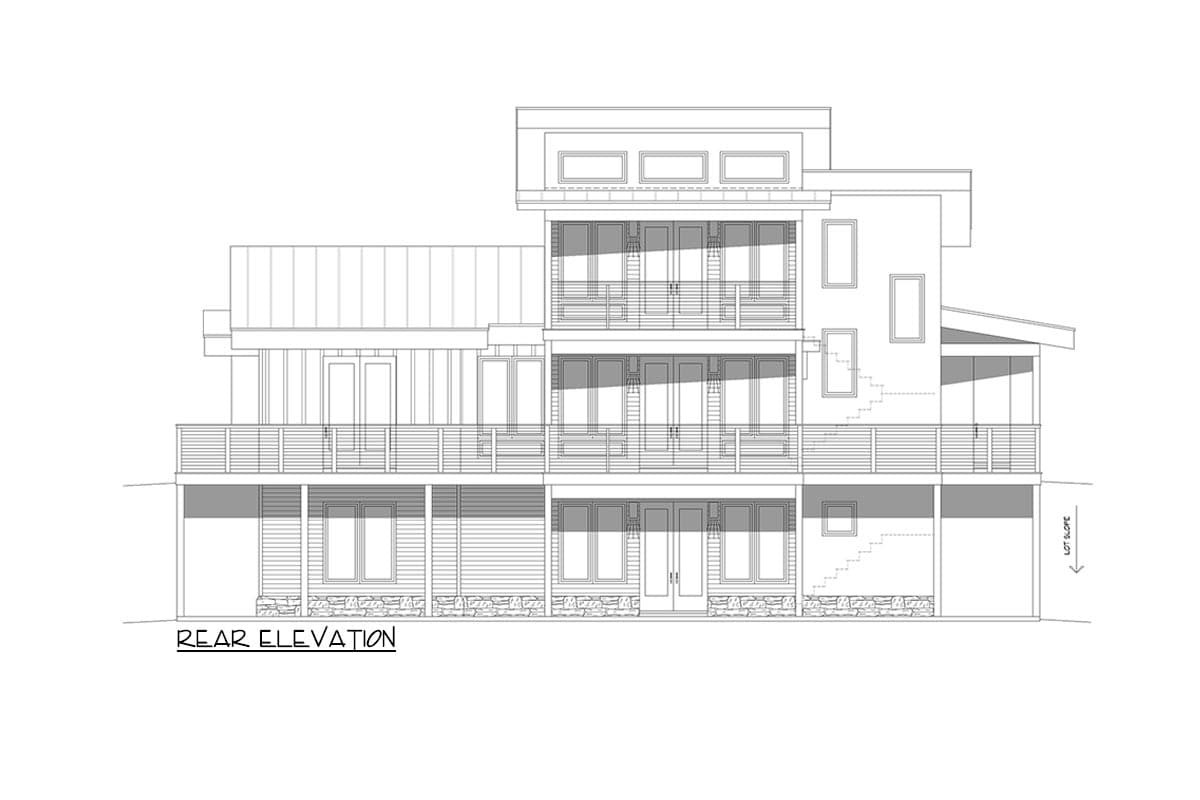

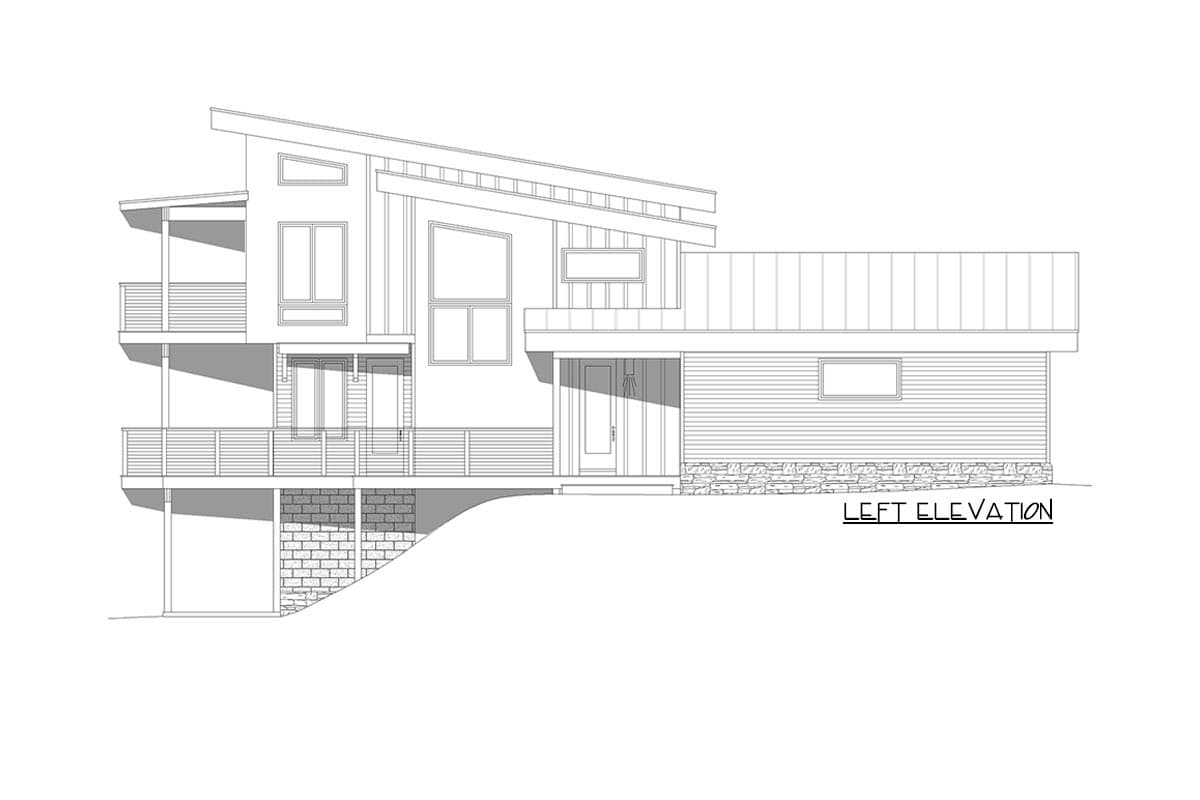

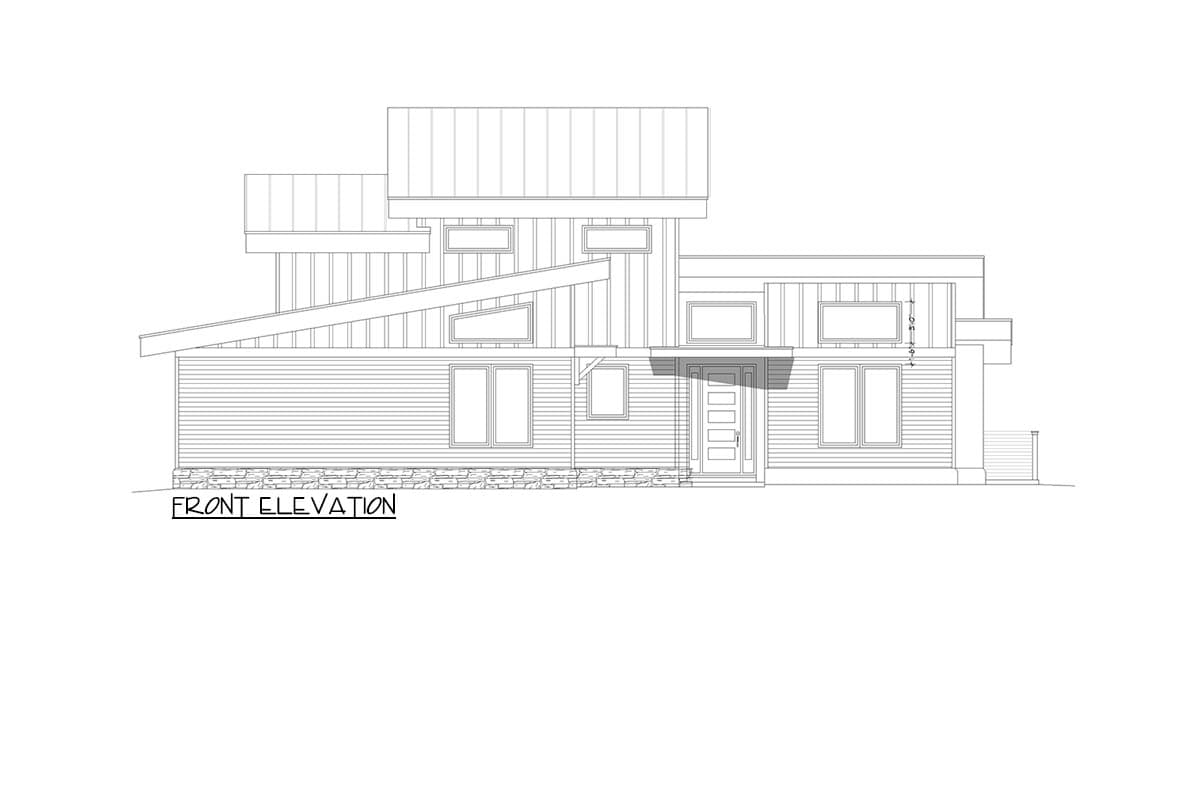

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,120 sq. ft.

1st Floor

1,313 sq. ft.

2nd Floor

807 sq. ft.

Optional Lower Level

1,313 sq. ft.

Porch, Combined

1,528 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 2"

Depth

67' 3"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

776 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary

Mid Century Modern

Mountain

Northwest

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,120 sq. ft.

1st Floor

1,313 sq. ft.

2nd Floor

807 sq. ft.

Optional Lower Level

1,313 sq. ft.

Porch, Combined

1,528 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 2"

Depth

67' 3"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

776 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary

Mid Century Modern

Mountain

Northwest

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Plan Collections

Lake House Plans
