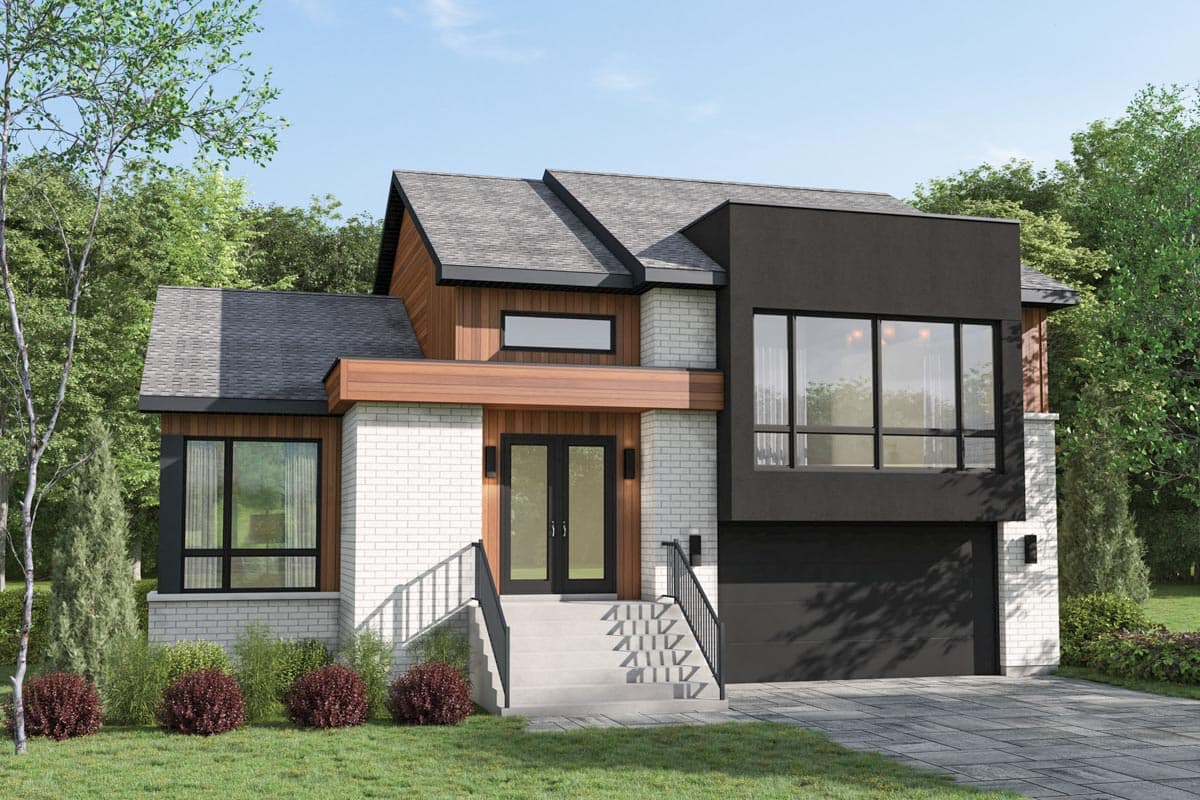

Plan 801118PM 2406 Square Foot Split Level House Plan with Modern Exterior

2,406 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2406 Square Foot Split Level House Plan with Modern Exterior

Plan 801118PM

  • 2,406

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This split level modern house plan gives you 3 beds, 2.5 baths and 2,406 square feet of heated living space.
  • The main level is dedicated to bedrooms and laundry with 3 bedrooms sharing two baths. Laundry is conveniently located to all bedrooms.
  • Lots of windows brighten the second floor. An open-concept layout has the dining room, a kitchen with an island, a large living room with a fireplace, a washroom and a flex room in the corner which can be used as a den or home office.
  • NOTE: Please allow up to 15 business days for delivery.

Plan sets include the following:

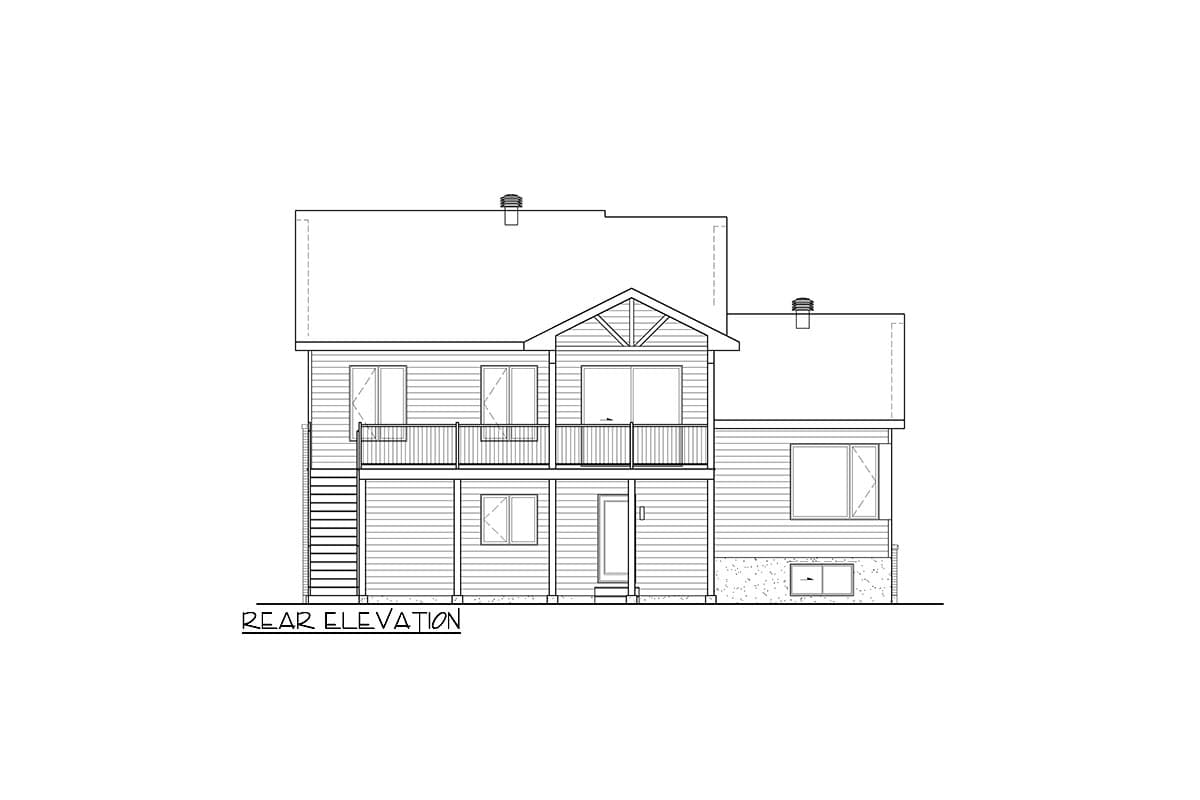

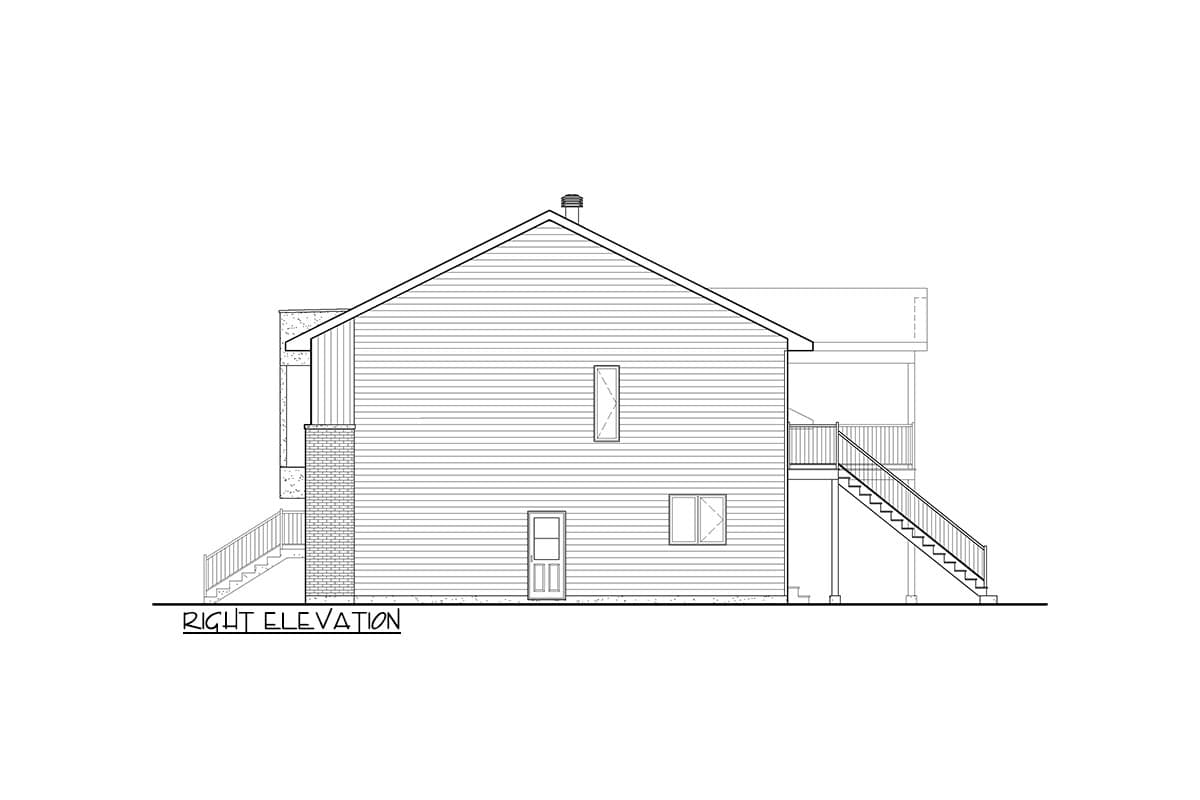

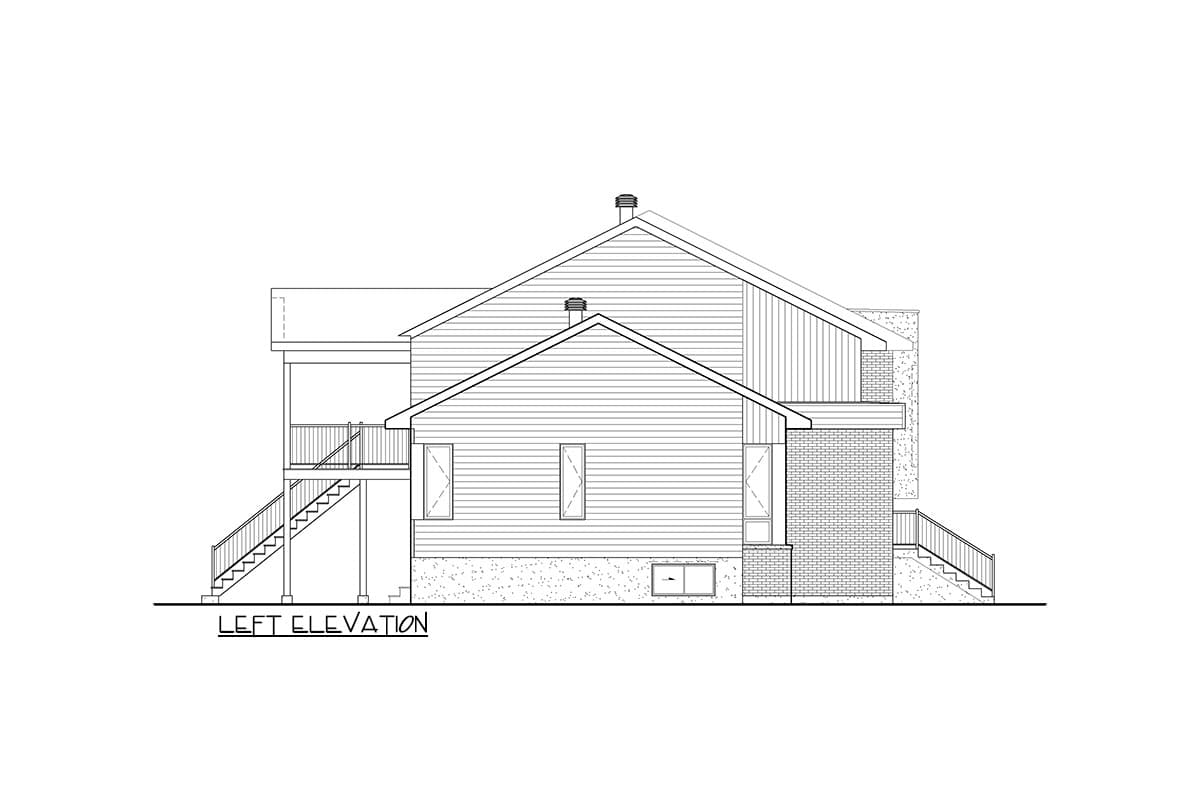

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

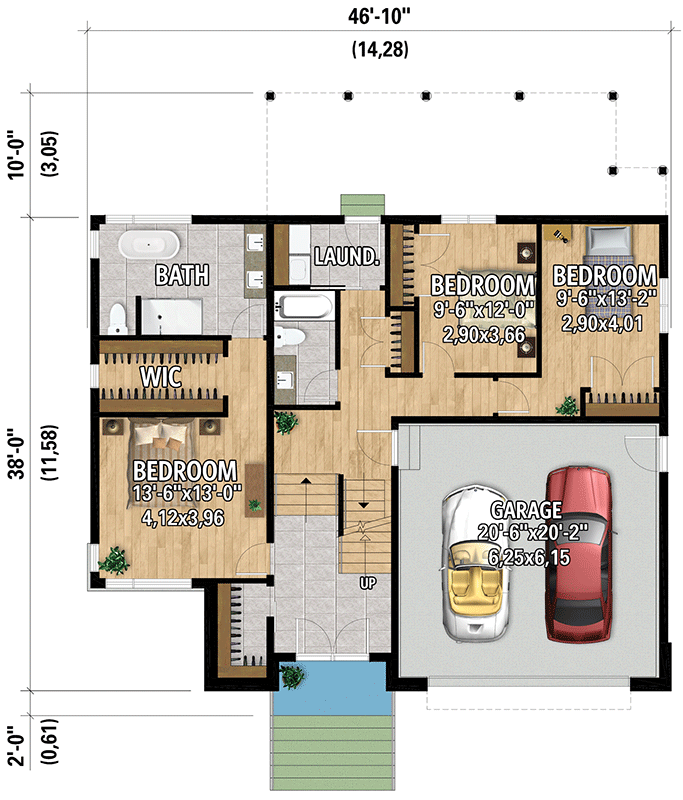

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2406 Square Foot Split Level House Plan with Modern Exterior - 801118PM floor plan - Main Floor

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2406 Square Foot Split Level House Plan with Modern Exterior - 801118PM floor plan - Second Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,406 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 1,216 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 10"
  • Depth: 38' 0"
  • Max ridge height: 31' 1"

Garage

  • Type: Attached
  • Area: 465 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

2406 Square Foot Split Level House Plan with Modern Exterior

  • 2,406

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,070
  • 5 Sets $1,115
  • 5 Sets + PDF $1,215
  • 5 Set + PDF + Materials List $1,310
  • CAD + PDF - Single-Build $2,090
  • View all purchase option online

About This Plan

  • This split level modern house plan gives you 3 beds, 2.5 baths and 2,406 square feet of heated living space.
  • The main level is dedicated to bedrooms and laundry with 3 bedrooms sharing two baths. Laundry is conveniently located to all bedrooms.
  • Lots of windows brighten the second floor. An open-concept layout has the dining room, a kitchen with an island, a large living room with a fireplace, a washroom and a flex room in the corner which can be used as a den or home office.
  • NOTE: Please allow up to 15 business days for delivery.

Floor Plans

  • Main Floor

  • Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,406 sq. ft.
  • 1st Floor: 1,190 sq. ft.
  • 2nd Floor: 1,216 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 10"
  • Depth: 38' 0"
  • Max ridge height: 31' 1"

Garage

  • Type: Attached
  • Area: 465 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
Plan 801118PM
View this and more for this plan by visiting www.architechtecturaldesigns.com/801118PM
|
