Plan 330002WLE

2500 Square Foot Transitional House Plan Just 22-Feet Wide

Heated S.F.
2,514
Beds
4
Baths
2.5
Stories
2

Floor Plan

Plan 330002WLE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 330002WLE

M-F 9am-5pm EST |

1-203-761-8500

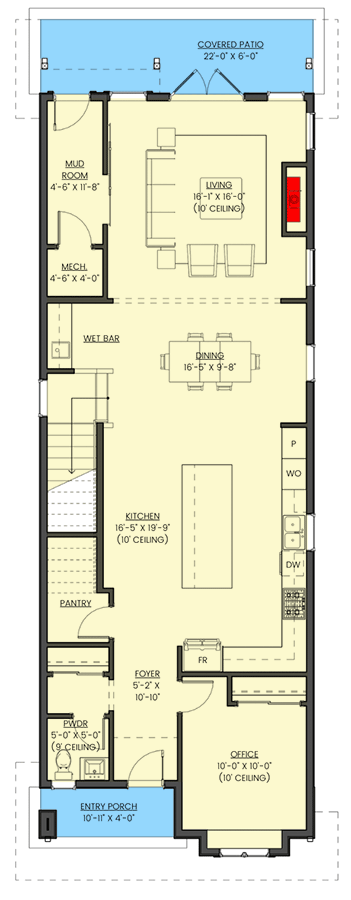

Main Level

Plan 330002WLE: 2500 Square Foot Transitional House Plan Just 22-Feet Wide - Floor Plan - Main Level - Contemporary, Prairie, Transitional

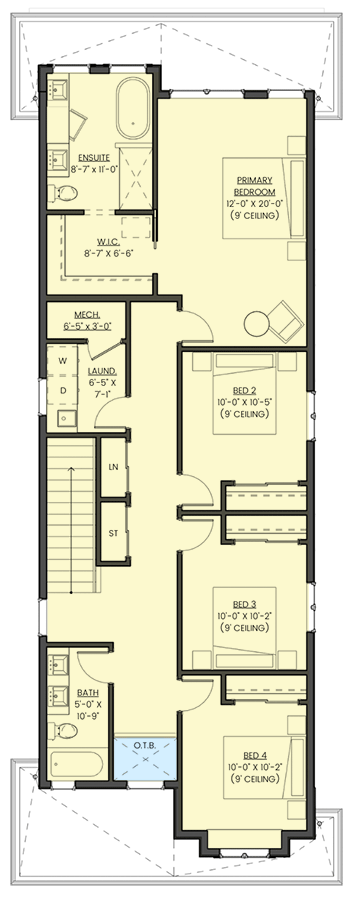

2nd Floor

Plan 330002WLE: 2500 Square Foot Transitional House Plan Just 22-Feet Wide - Floor Plan - 2nd Floor - Contemporary, Prairie, Transitional

Plan Details

  • This Transitional house plan is just 22' making it perfectly suited for your narrow lot. Inside, it gives you 4 beds, 2.5 baths and 2,514 square feet of heated living space with all the bedrooms and the laundry on the second floor.
  • A home office and a powder room are to either side of the foyer. Further back, the home opens up with the kitchen having unobstructed views to the dining room and the living room beyond.
  • Details such as a walk-in pantry, an enormous island, a wet bar and a generous mud room are signs that livability is at the forefront of the designer's mind.
  • Related Plan: Get an alternate exterior with house plan 330000WLE.

What's Included

  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing Drawings
  • Framing and roof framing layouts with beam sizes and locations
  • Footing sizing, depths and rebar calculations
  • Material lists
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,514 sq. ft.

1st Floor

1,286 sq. ft.

2nd Floor

1,228 sq. ft.

Entry

44 sq. ft.

Covered Patio

132 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

61' 5"

Max Ridge Height

27' 8"

Ceiling Heights

First Floor

9' 11"

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Prairie

Transitional

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Wet Bar

Plan Collections

Canadian House Plans

Home Office

Square Footage Breakdown

Total Heated Area

2,514 sq. ft.

1st Floor

1,286 sq. ft.

2nd Floor

1,228 sq. ft.

Entry

44 sq. ft.

Covered Patio

132 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

61' 5"

Max Ridge Height

27' 8"

Ceiling Heights

First Floor

9' 11"

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Prairie

Transitional

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Wet Bar

Plan Collections

Canadian House Plans

Home Office
