2536 Sq Ft 4-Bed Modern Craftsman with 3 Ensuite Bedrooms on Main Level
Heated S.F.
2,536
Beds
3-4
Baths
4.5
Stories
1
Cars
3
What's Included
Plan Details
  • Introducing a Craftsman-style house plan that seamlessly blends luxury with nature. Each of the three primary bedrooms showcases vaulted ceilings, a hallmark of the Craftsman design.
  • Upon entering, you're greeted by a grand foyer with 11' ceilings, leading you to the inviting great room. The kitchen features a 9' ceiling and a spacious island.
  • In back, a large covered lounge and an open terrace extend your enjoyment to the outdoors.
  • The upstairs bonus space (included in the total heated square footage) with an adjoining bathroom can serve as a fourth bedroom, a media room, or a tranquil retreat.
  • Related Plan: Get an angled garage with house plan 54220HU.
What's Included
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2536 Sq Ft 4-Bed Modern Craftsman with 3 Ensuite Bedrooms on Main Level

  • 2,536

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

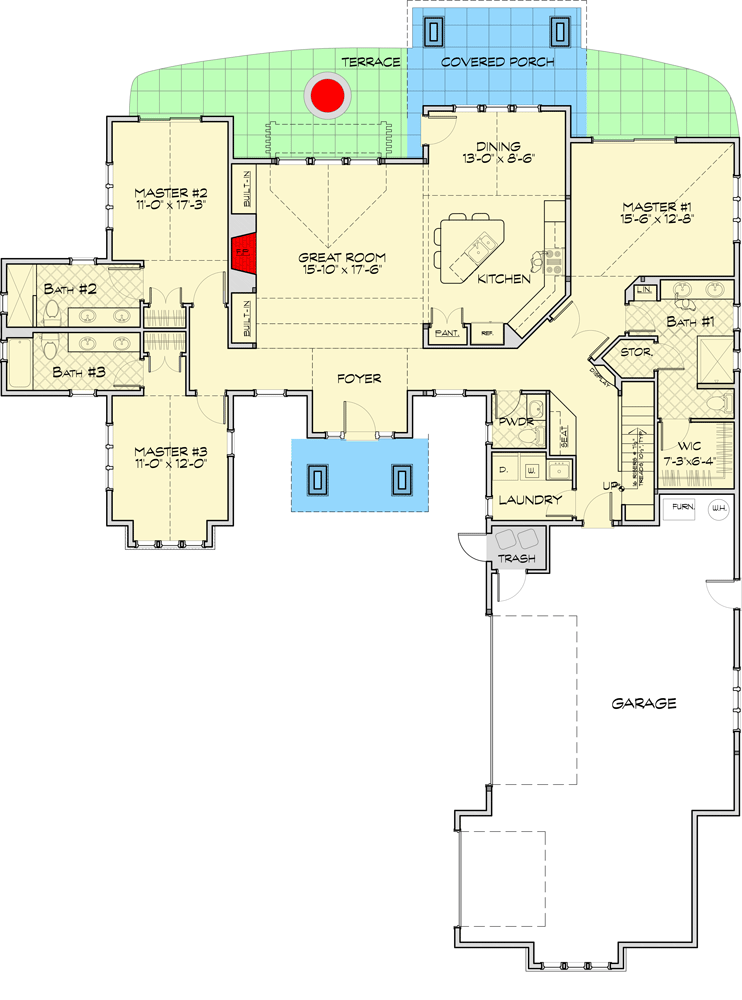

Floor Plan
