Plan 623233DJ
2606 Square Foot Barndominium-Style House Plan with Drive-Through Garage
Heated S.F.
2,608
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour
What's Included
Plan Details
  • This 2606 square foot Barndominium-style house plan blends rustic charm with modern convenience by combining a classic barn aesthetic with the comfort and style of a contemporary home. The exterior boasts a distinctive barn-shaped gambrel roof and a 12'-deep lean-to covered patio extends down the entire left side giving you a great fresh-air space to enjoy.
  • Upon entering the barndominium, you are greeted by a mudroom that helps organize clutter and that allows you to transition seamlessly from the outdoors to the comforts of home. It offers ample storage for coats, shoes, and other everyday items, while the adjacent laundry room provides a dedicated space for washing and drying.
  • Stepping further into the heart of the home, you'll discover a spacious kitchen with abundant counter space and a convenient walk-in pantry. The open concept design seamlessly connects the kitchen to the great room and dining area, creating an inviting and versatile space for family gatherings and socializing.
  • Upstairs, three generously sized bedrooms and two well-appointed bathrooms provide ample space for family members and guests alike. The master suite includes a comfortable bedroom, a private bathroom, and a spacious walk-in closet.
  • A 711 square foot garage with drive-through access can easily fit two cars in tandem style.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2606 Square Foot Barndominium-Style House Plan with Drive-Through Garage

  • 2,608

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

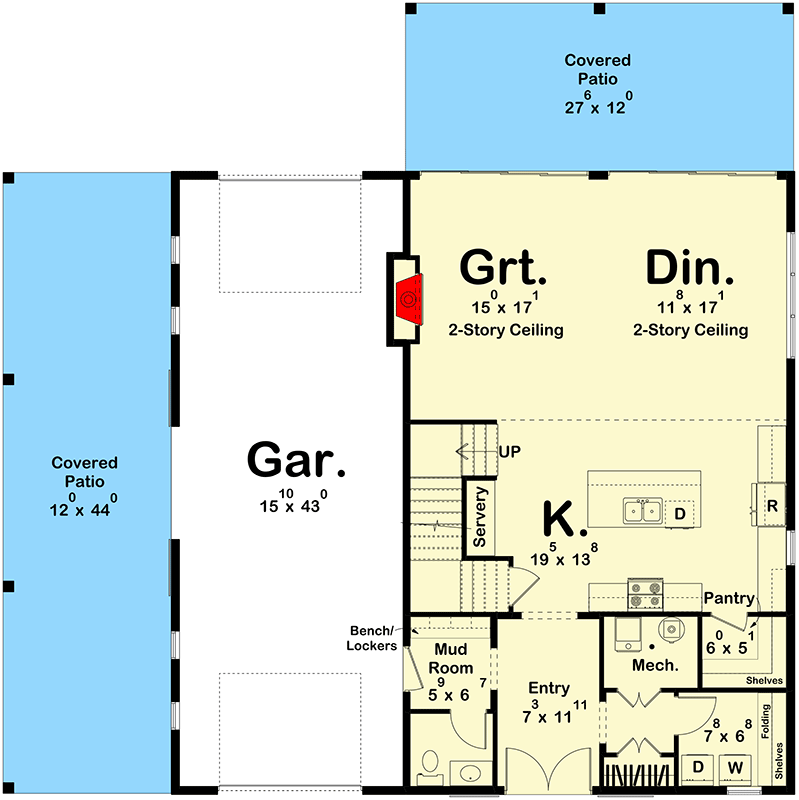

  • Main Level

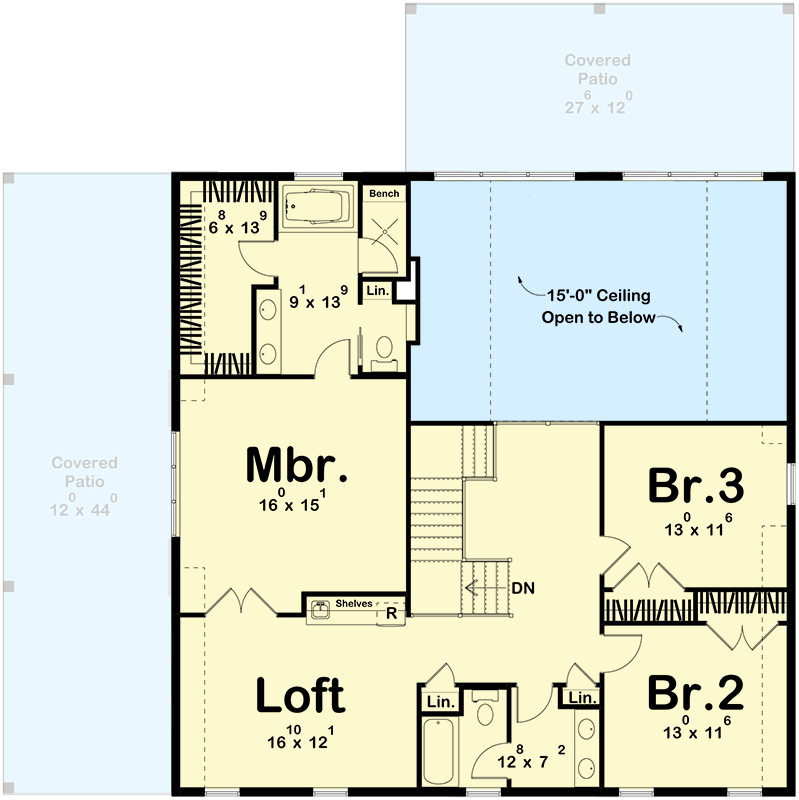

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,608 sq. ft.
  • 1st Floor: 1,191 sq. ft.
  • 2nd Floor: 1,417 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 56' 0"
  • Max ridge height: 32' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
