Plan 28104J

2700 Square Foot Craftsman with a 30-Foot-Wide Footprint

Heated S.F.
2,700
Beds
3 - 5
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 28104J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28104J

M-F 9am-5pm EST |

1-203-761-8500

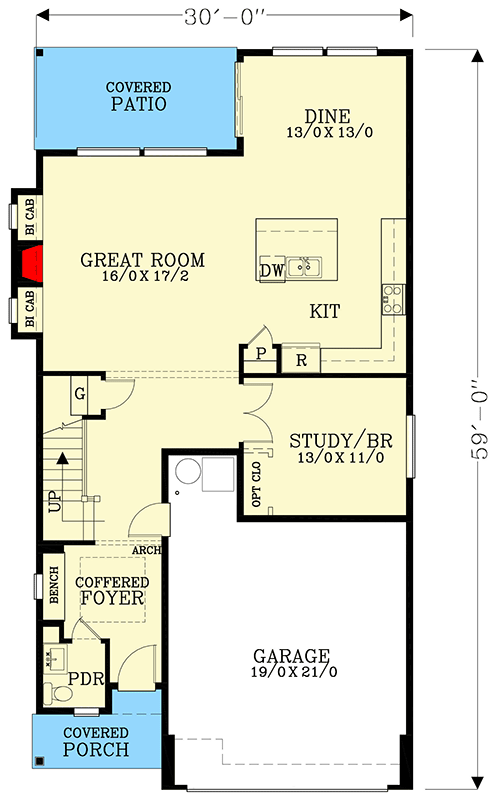

Main Level

Plan 28104J: 2700 Square Foot Craftsman with a 30-Foot-Wide Footprint - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, New American

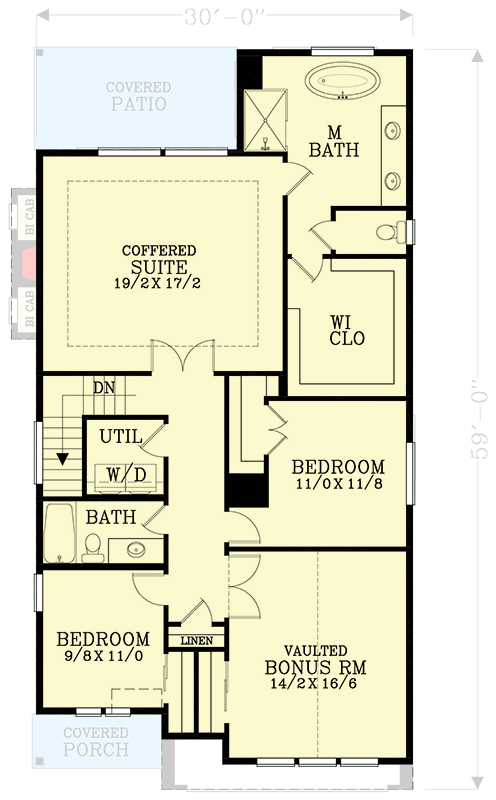

2nd Floor

Plan 28104J: 2700 Square Foot Craftsman with a 30-Foot-Wide Footprint - Floor Plan - 2nd Floor - Country, Craftsman, Modern Farmhouse, New American

Plan Details

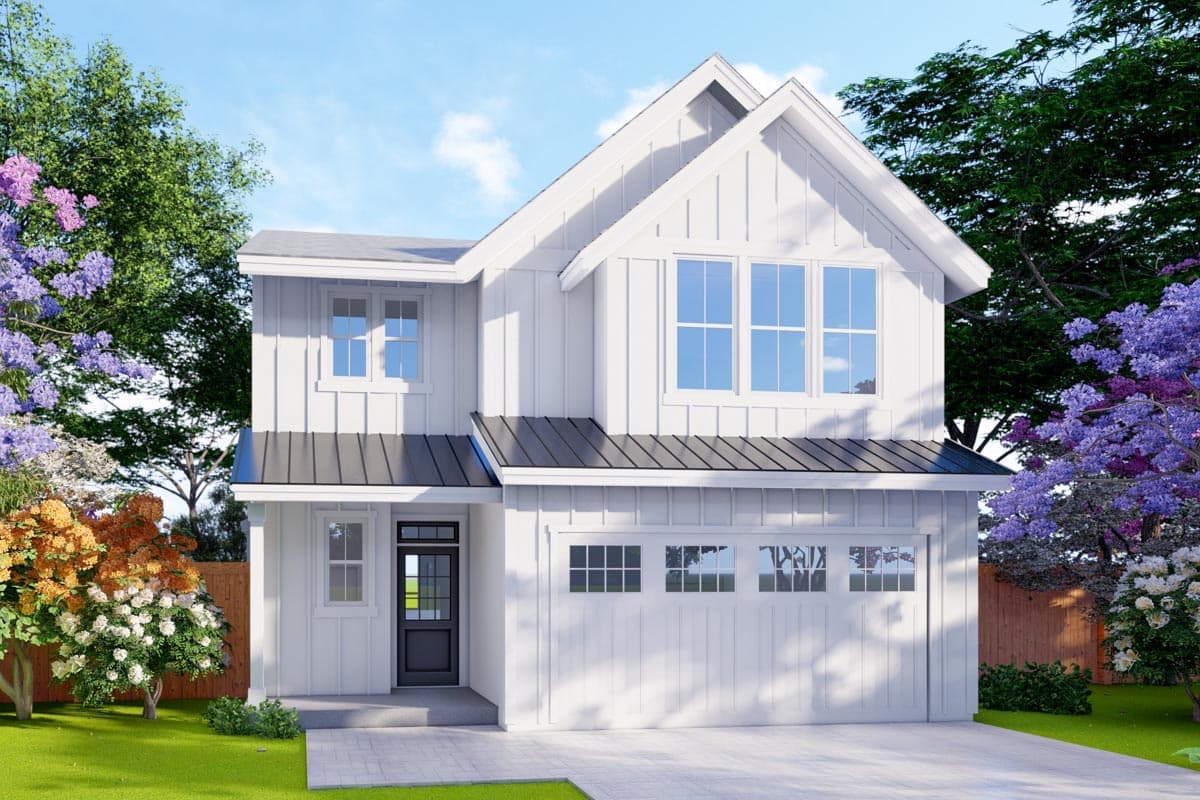

  • This 2,700 square foot Craftsman house plan has a compact 30'-wide footprint making this great for you narrow lot. Board and batten siding helps give it a Modern Farmhouse appeal.
  • The convenient foyer, crowned by a coffered ceiling, includes a powder bath and built-in bench. The rear-facing living space is filled with natural light and expands onto a covered patio to grill or dine outdoors.
  • A flex room (bedroom or study or home office) resides behind French doors.
  • Upstairs, three bedrooms surround the laundry room and a bonus room - factored into the total living area - gives you additional flexibility.
  • A tray ceiling adds vertical space to the master bedroom that is accompanied by a 5-fixture bathroom with a garden tub and walk-in closet.
  • Related Plans: Get alternate versions with house plans 28030J (2,379 sq. ft.), 28032J (1,753 sq. ft.), 28033J (2,357 sq. ft.) and 28105J (2,700 sq. ft.).

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,700 sq. ft.

1st Floor

1,147 sq. ft.

2nd Floor

1,553 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

128 sq. ft.

Covered Patio

128 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

59' 0"

Max Ridge Height

29' 1"

Garage

Type

Attached

Area

471 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 0''

Bonus

Vaulted

9' 0''

Roof Details

Primary Pitch

12 on 5

Secondary Pitch

12 on 10

Framing Type

Truss

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Home Office
