Plan 28030J
New American Craftsman Plan with Study and Island Kitchen
Heated S.F.
2,379
Beds
3-4
Baths
2.5
Stories
2
Cars
2
Plan Details
  • Horizontal and vertical siding add to the visually-pleasing aesthetic of this New American Craftsman plan that delivers nearly 2,400 square feet of living space.
  • The convenient foyer, crowned by a coffered ceiling, includes a powder bath and built-in bench. The rear-facing living space is filled with natural light and expands onto a covered patio to grill or dine outdoors.
  • A study resides behind french doors, near the double garage, or frame in a closet to make it a fifth bedroom.
  • Upstairs, four bedrooms surround the laundry room and a built-in desk lends the ideal spot for homework or electronics.
  • A tray ceiling adds vertical space to the master bedroom that is accompanied by a 5-fixture bathroom with a garden tub and walk-in closet.
  • Related Plans: Get alternate versions with house plans 28032J (1,753 sq. ft.), 28033J (2,357 sq. ft.), 28104J (2,700 sq. ft.) and 28105J (2,700 sq. ft.).
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Plan with Study and Island Kitchen

  • 2,379

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

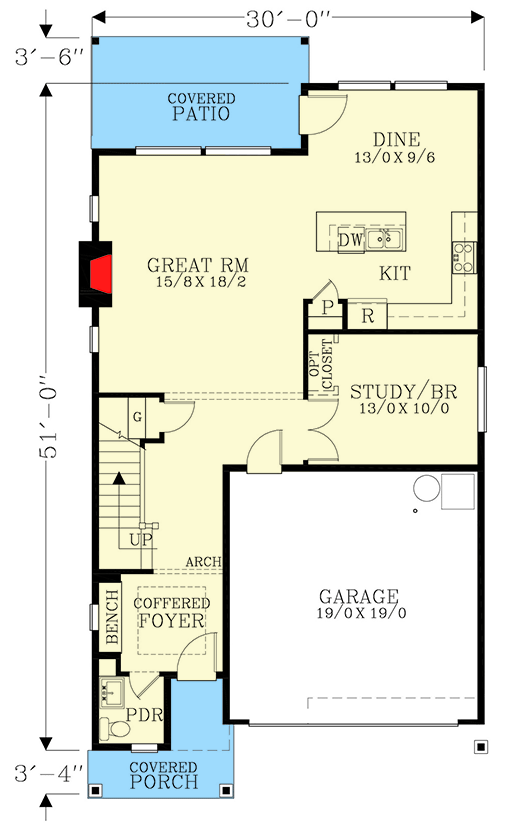

  • Main Level

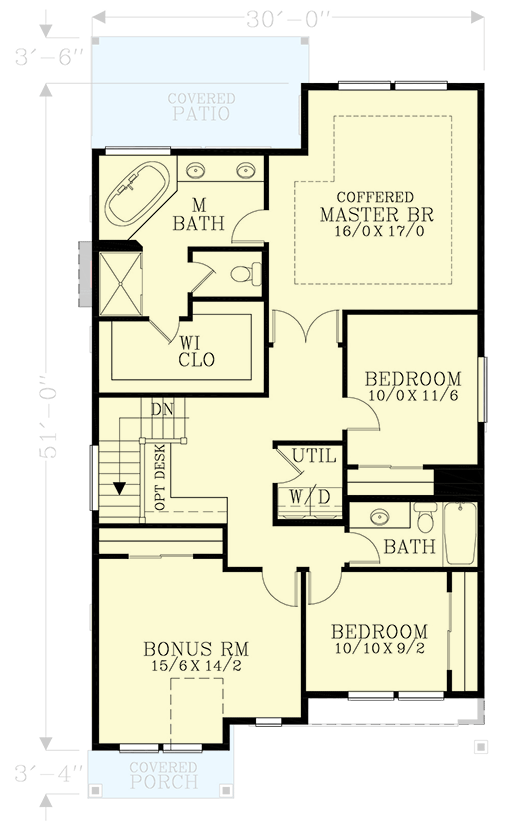

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,379 sq. ft.
  • 1st Floor: 995 sq. ft.
  • 2nd Floor: 1,384 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 51' 0"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
