Plan 81732AB
2900 Square Foot 3-Bed Craftsman Home Plan with Lower Level Expansion
Heated S.F.
2,926
Beds
3-6
Baths
4 - 5
Stories
2
Cars
3
What's Included
Plan Details

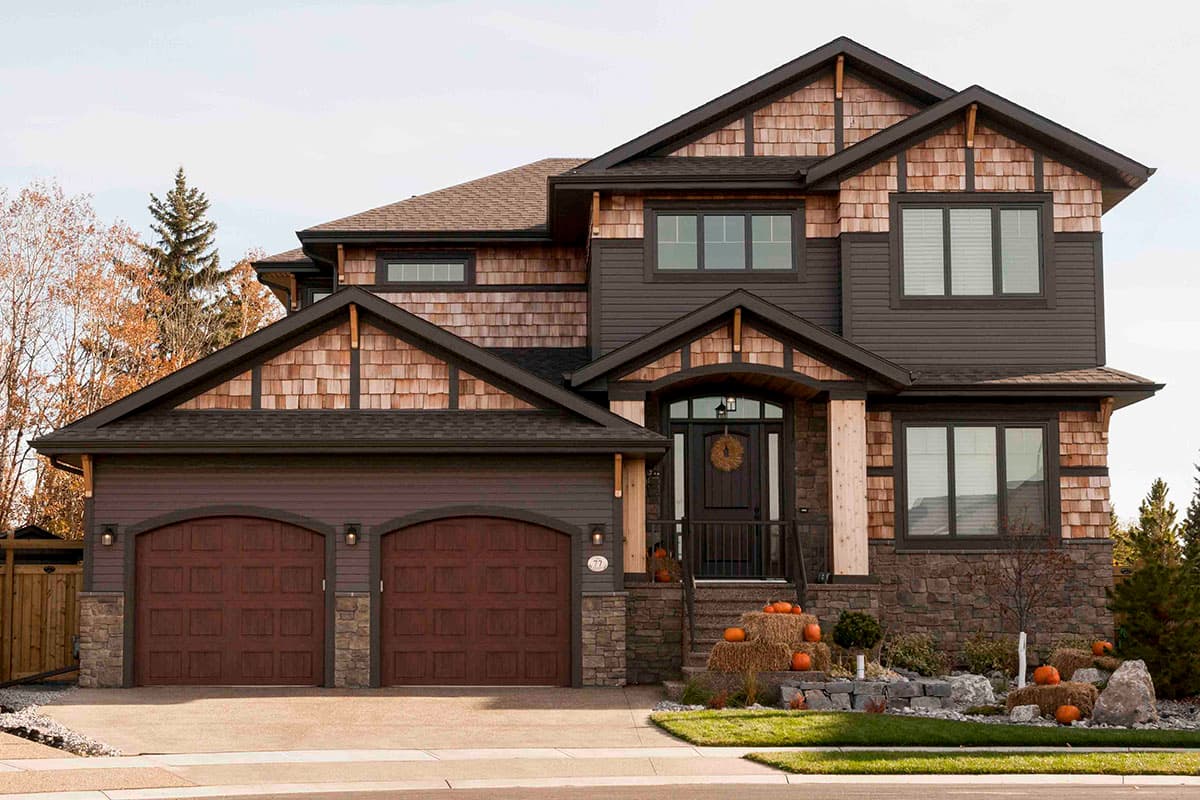

  • Get anywhere from 3 to 6 bedrooms in this 2,926 square foot Craftsman home plan with lower level expansion of 1,224 square feet. A 790 square foot front-facing garage get you parking for up to 3 cars if you park two of them tandem style.

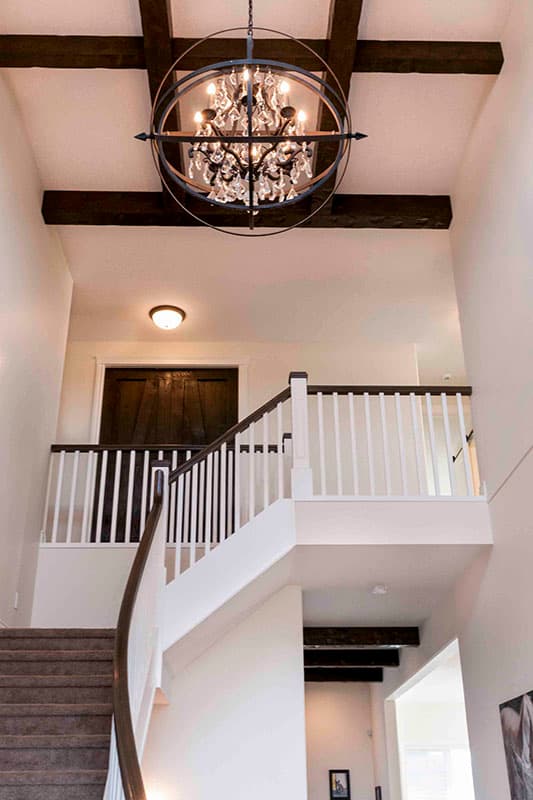

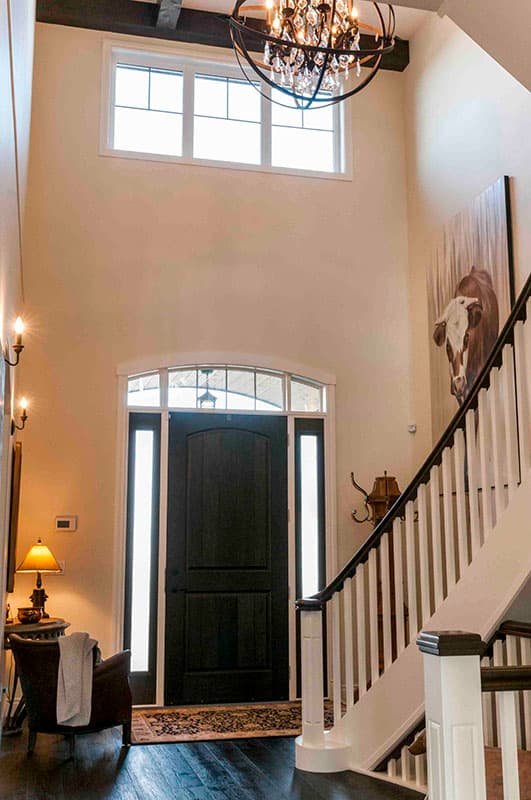

  • A 2-story foyer welcomes you as you step in from the covered entry. Stairs are located straight ahead and there is space for a residential elevator as well.
  • A home office is located in the back-left corner adjacent to a full bath, making this room suitable for a guest bedroom if needed.

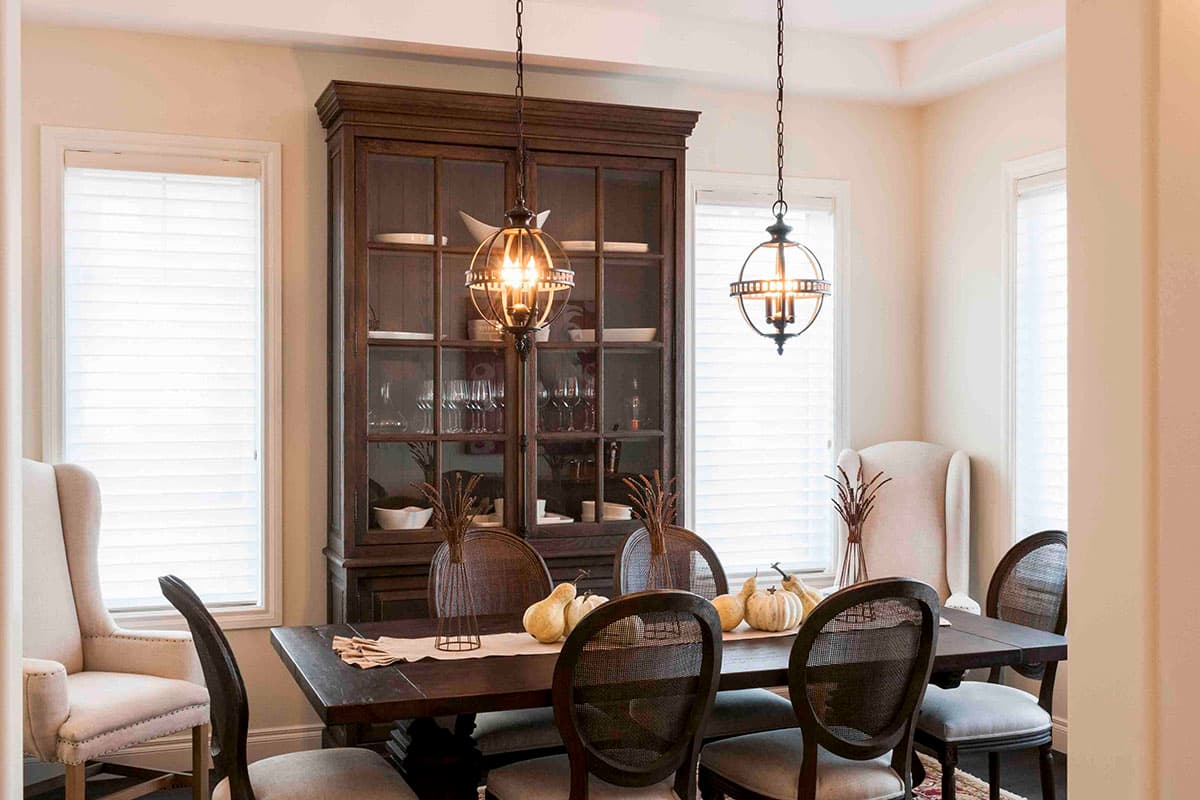

  • Dine in the formal dining room or the breakfast nook which has access to the back porch through a pair of French doors.

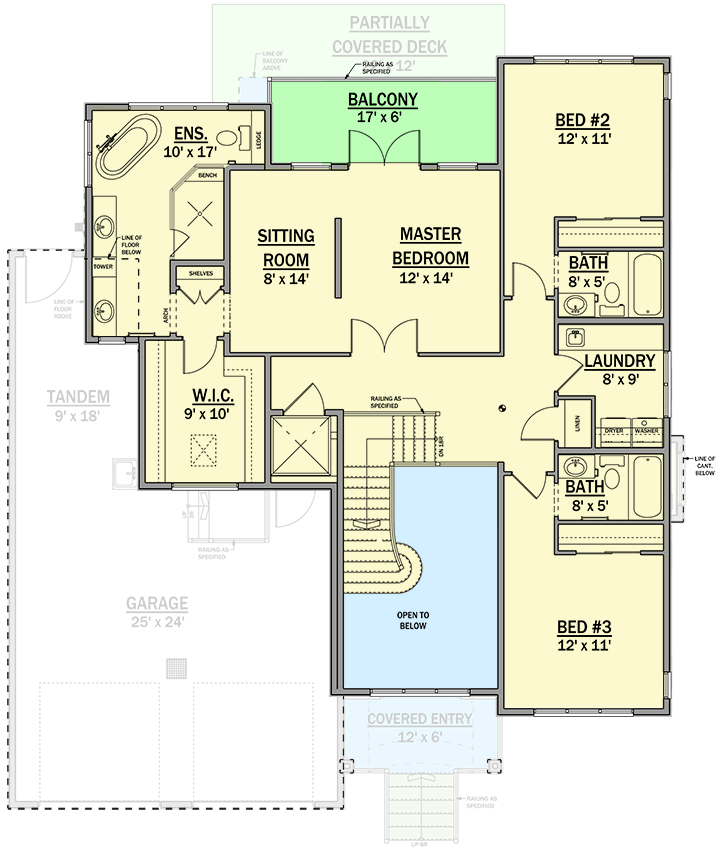

  • Upstairs, find 3 bedrooms including the master suite with private balcony and a sitting room accessed from either side of the wall that divides it from the bed portion. Laundry is located between the two remaining bedrooms.

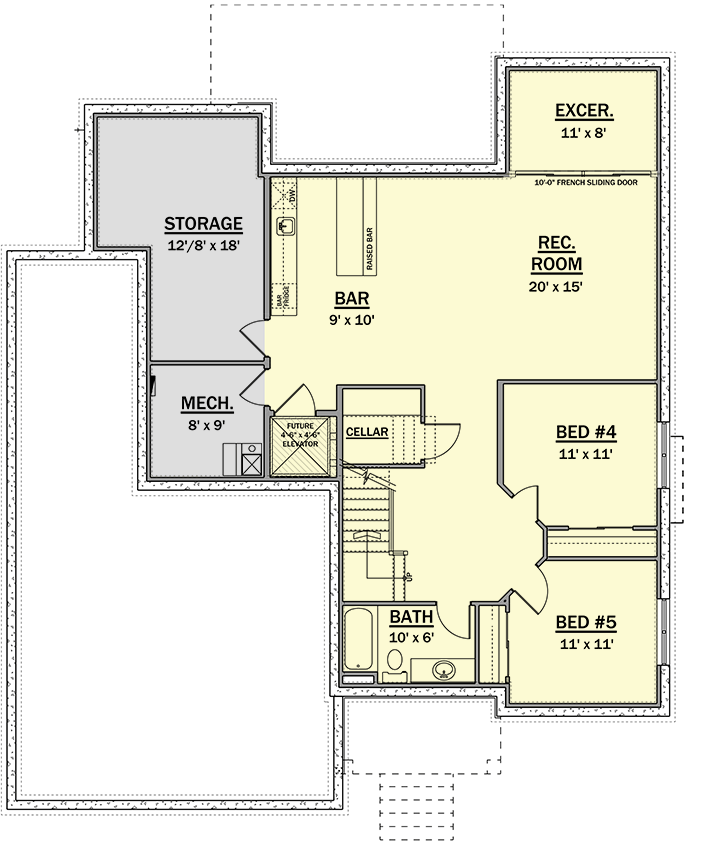

  • Expand in the lower level and get a bar, two beds, a bathplus storage and a rec room.
What's Included

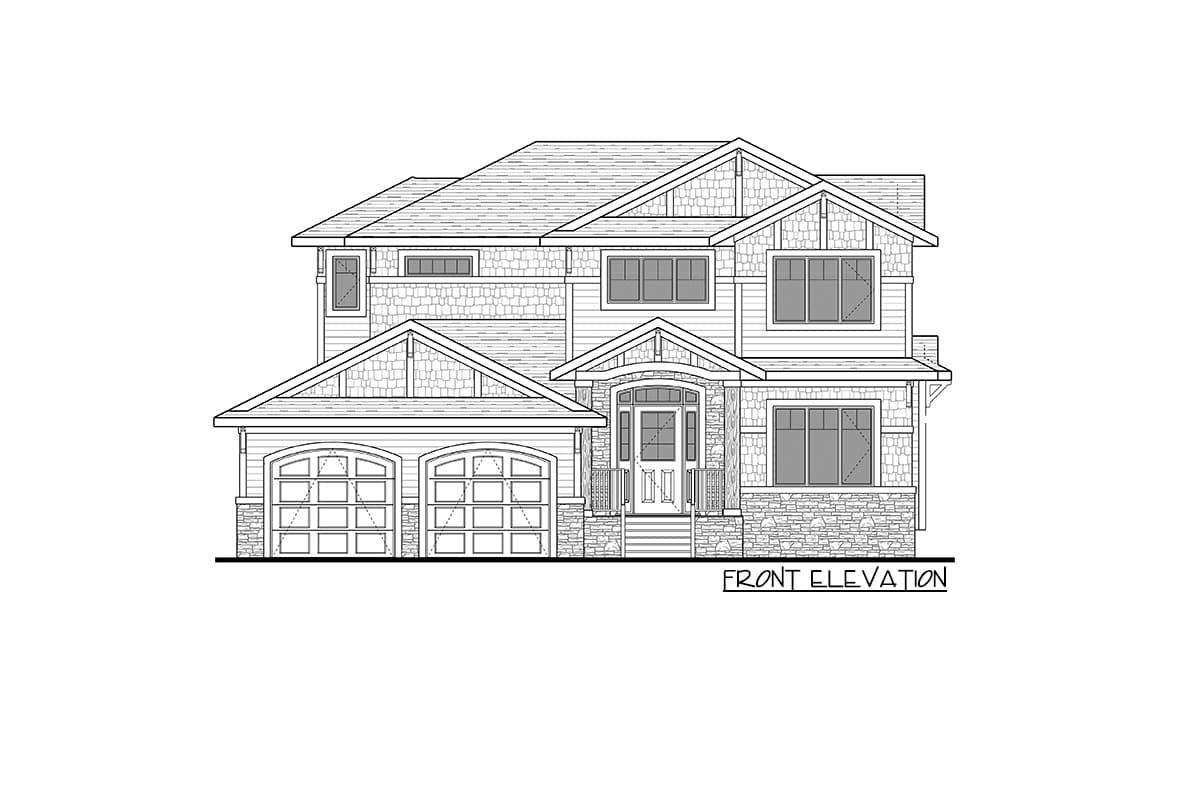

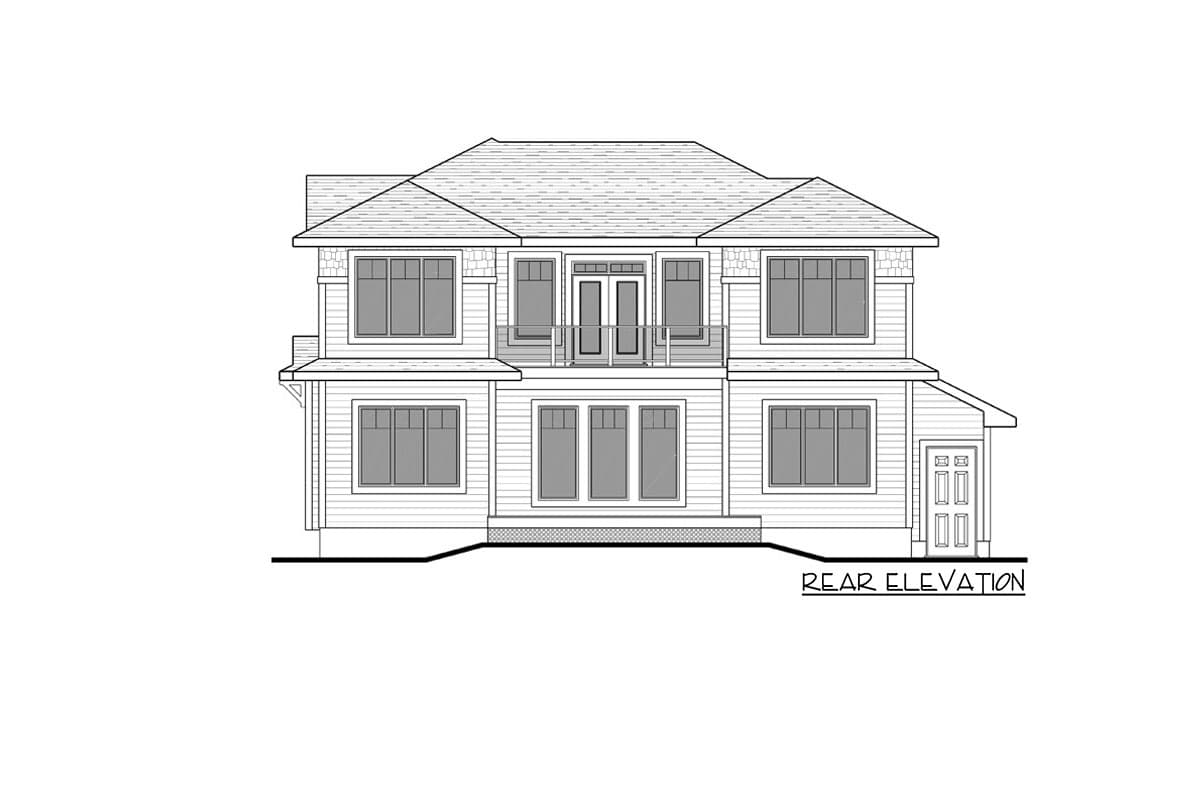

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2900 Square Foot 3-Bed Craftsman Home Plan with Lower Level Expansion

  • 2,926

    Heated s.f.

  • 3-6

    Beds

  • 4 - 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

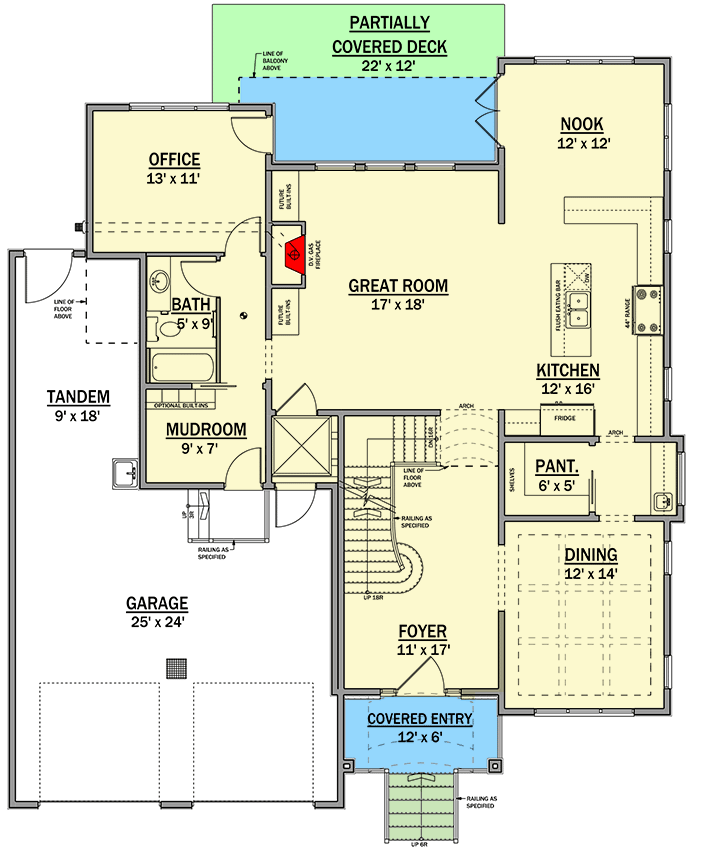

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,926 sq. ft.
  • 1st Floor: 1,591 sq. ft.
  • 2nd Floor: 1,335 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 57' 0"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 4 or 5

Garage

  • Type: Attached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 10' 1"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
