Plan 623156DJ 2900 Square Foot Transitional Home Plan with 4 Beds and a 2-Car Garage

2,925 4 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2900 Square Foot Transitional Home Plan with 4 Beds and a 2-Car Garage

Plan 623156DJ

  • 2,925

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This transitional house plan gives you 2,925 square feet of heated living space and 4 beds, 3 bathrooms and a 631 square foot 2-car garage. A window-filled gable and a front porch with paired columns help give the home great curb appeal.
  • A flex room in front can be put to use as a formal dining room with access to the kitchen through the pantry or as an office if you closed off that access.
  • An open floor plan is great for entertaining which can be taken to the outdoors through the door in the dining area.
  • The master bedroom is the only bedroom on the main floor and has a large walk-in closet with direct laundry access. Upstairs, three bedrooms share a bath and a loft that makes a great play or game room gives the kids a place to play.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

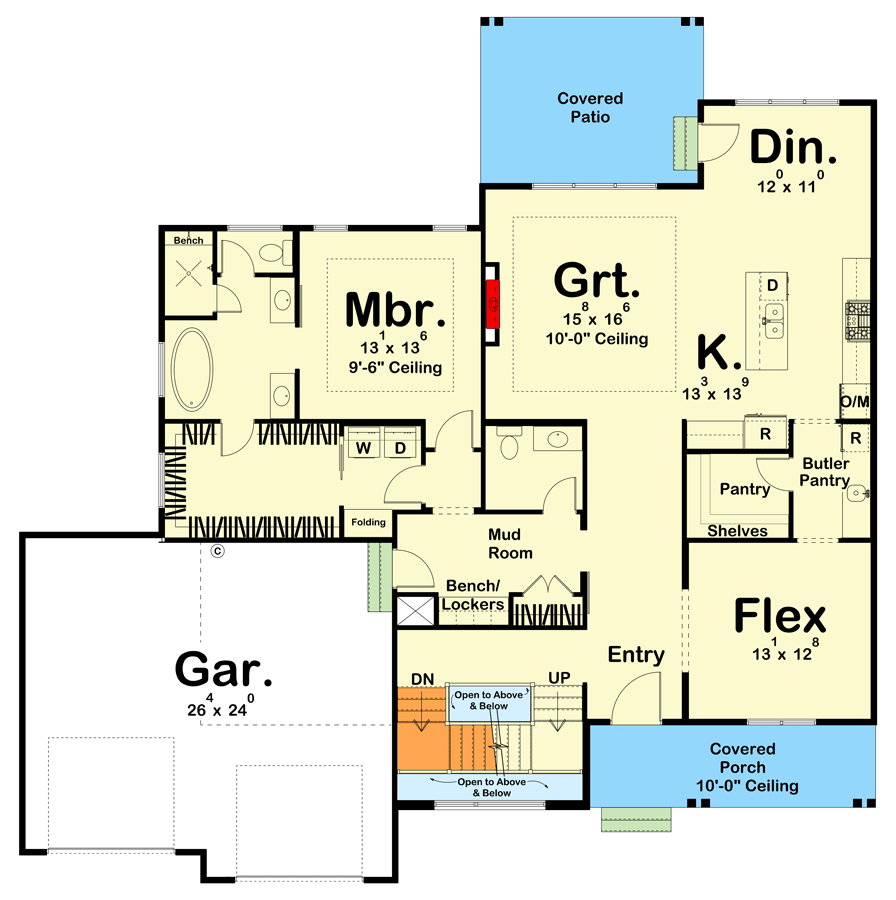

2900 Square Foot Transitional Home Plan with 4 Beds and a 2-Car Garage - 623156DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

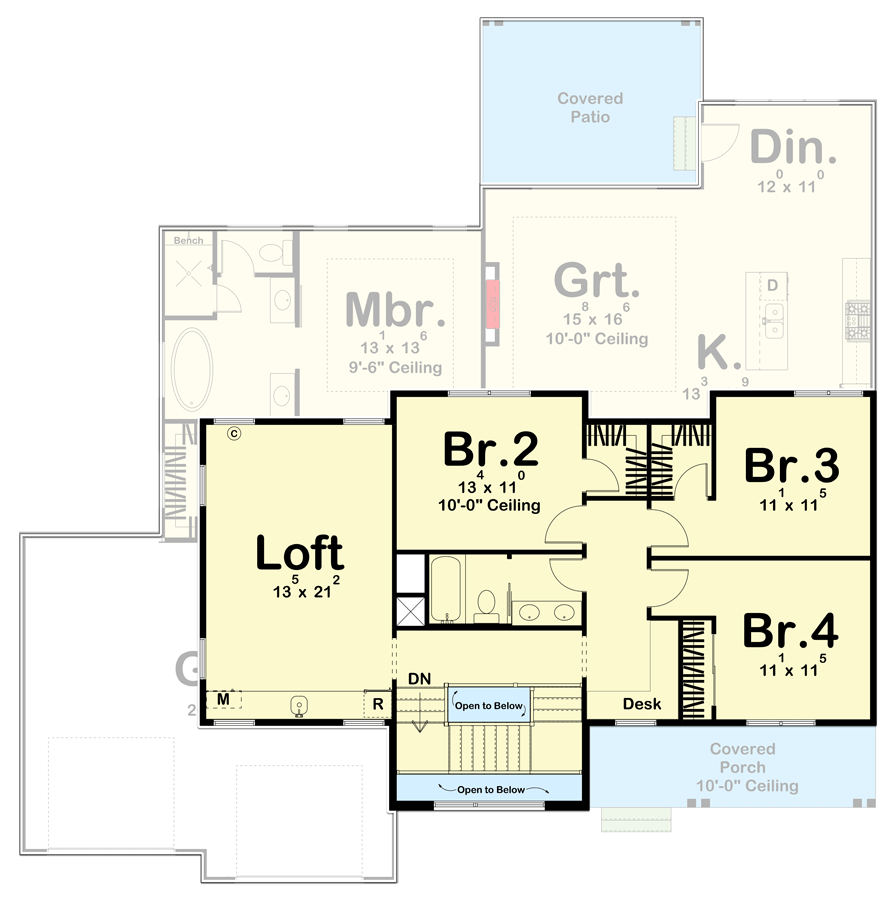

2900 Square Foot Transitional Home Plan with 4 Beds and a 2-Car Garage - 623156DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,925 sq. ft.
  • 1st Floor: 1,854 sq. ft.
  • 2nd Floor: 1,071 sq. ft.
  • Porch, Combined: 314 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 4"
  • Depth: 58' 0"
  • Max ridge height: 27' 1"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 On 12; 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2900 Square Foot Transitional Home Plan with 4 Beds and a 2-Car Garage

  • 2,925

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • 5 Sets + PDF $1,850
  • PDF - Unlimited Build $2,100
  • CAD + PDF - Single-Build $2,100
  • CAD Unlimited + PDF $2,600
  • View all purchase option online

About This Plan

  • This transitional house plan gives you 2,925 square feet of heated living space and 4 beds, 3 bathrooms and a 631 square foot 2-car garage. A window-filled gable and a front porch with paired columns help give the home great curb appeal.
  • A flex room in front can be put to use as a formal dining room with access to the kitchen through the pantry or as an office if you closed off that access.
  • An open floor plan is great for entertaining which can be taken to the outdoors through the door in the dining area.
  • The master bedroom is the only bedroom on the main floor and has a large walk-in closet with direct laundry access. Upstairs, three bedrooms share a bath and a loft that makes a great play or game room gives the kids a place to play.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,925 sq. ft.
  • 1st Floor: 1,854 sq. ft.
  • 2nd Floor: 1,071 sq. ft.
  • Porch, Combined: 314 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 4"
  • Depth: 58' 0"
  • Max ridge height: 27' 1"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 On 12; 3 on 12
  • Framing Type: Truss
Plan 623156DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623156DJ
|
Need Help? 800-854-7852
|
