Plan 42434DB
3-Bed 1603 Square Foot Modern Home Plan with Distinctive Shed Roof
Heated S.F.
1,603
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

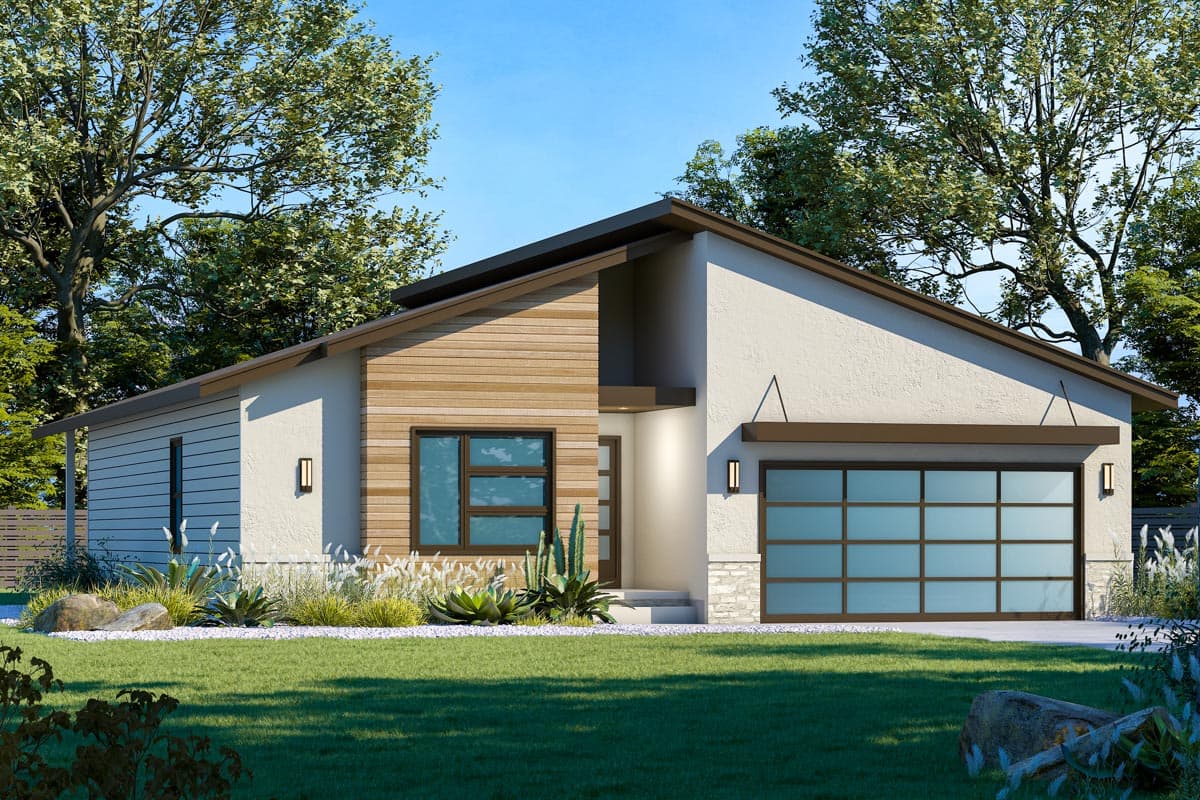

  • A shed roof over the garage adds distinctive character to this 3-bed, 1,603 square foot house plan.
  • Inside, a hallway to the left leads to two bedrooms and a full bath. A few steps further, a barn door reveals a pocket office, while the main living spaces are combined and open towards the rear.
  • A corner fireplace in the family room sits diagonally across from the kitchen, which features an island to boost meal prep space. Sliding doors off the dining area lead to an optional covered patio for outdoor enjoyment.
  • The owner's suite is situated apart from the secondary bedrooms, and includes a 4-fixture bathroom and walk-in closet.
  • Enter the 2-car garage from the front of the home, and take advantage of the drop zone to help organize your personal items once inside.
  • Related Plans: Get alternate exteriors with house plans 42681DB, 42638DB, 42632DB and 42631DB.
What's Included
  • General Notes

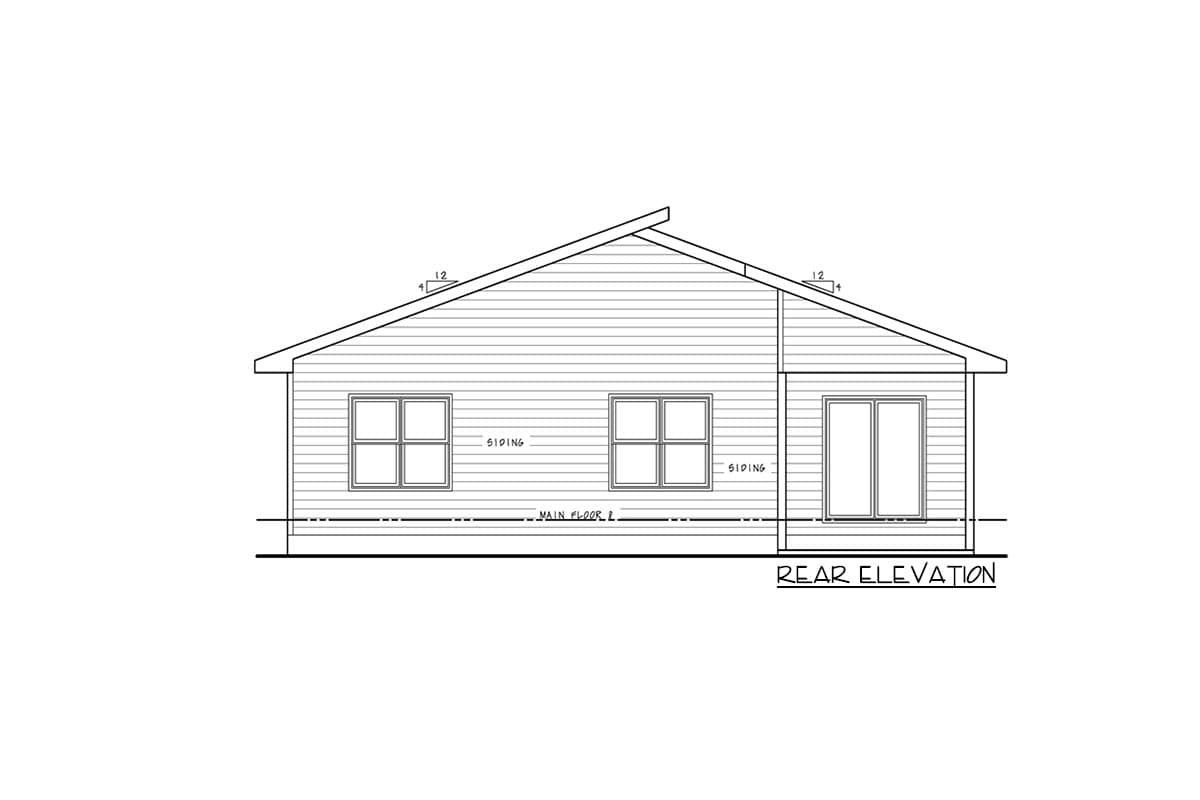

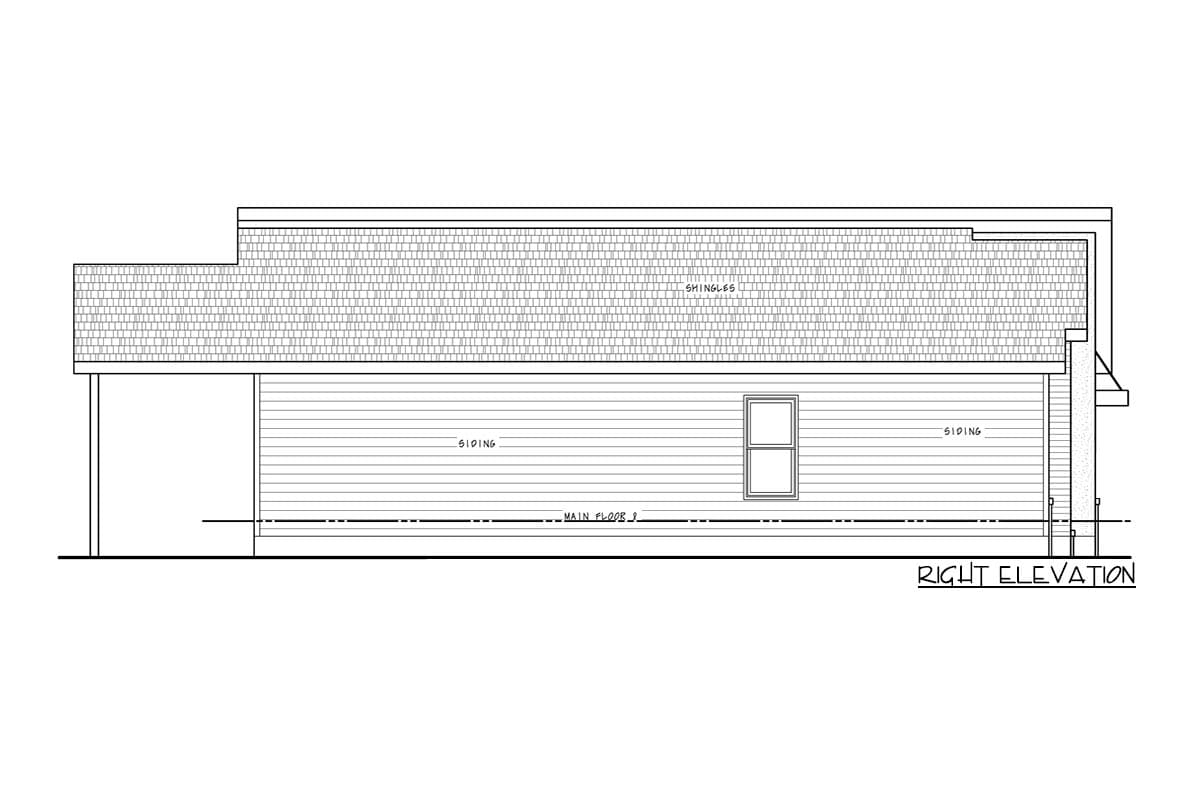

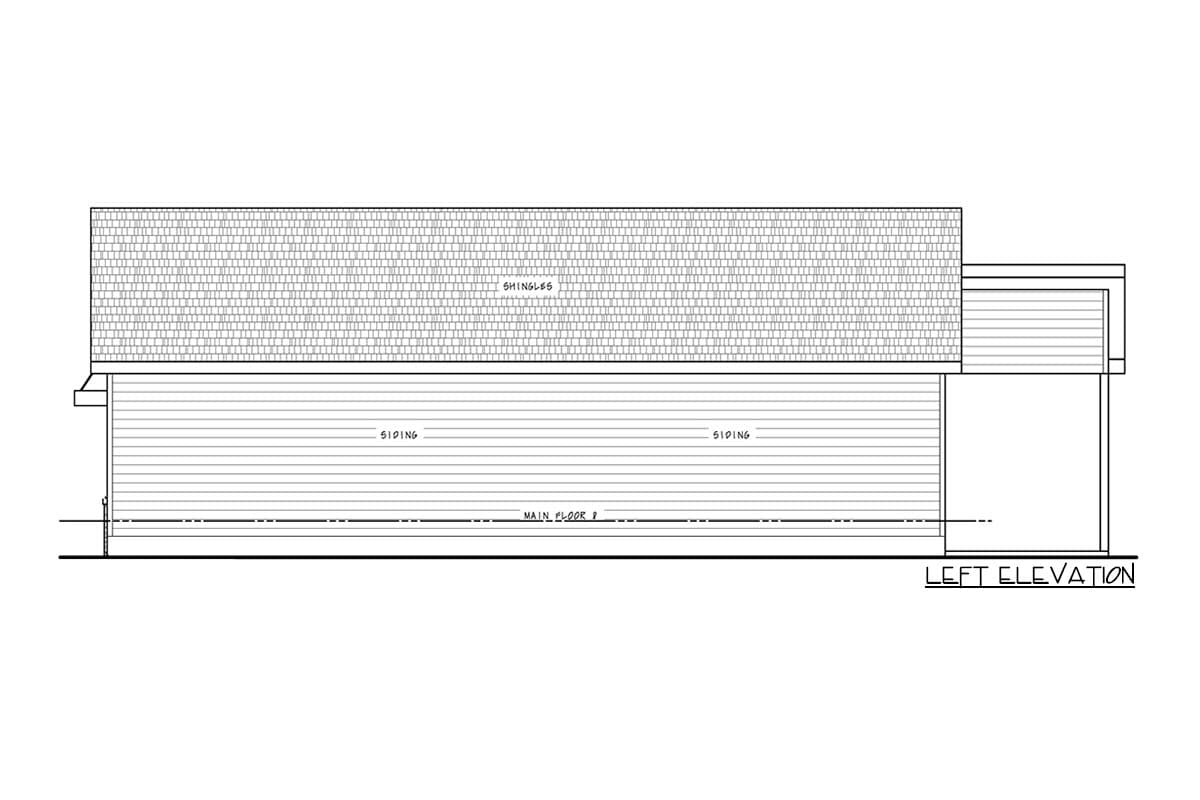

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed 1603 Square Foot Modern Home Plan with Distinctive Shed Roof

  • 1,603

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

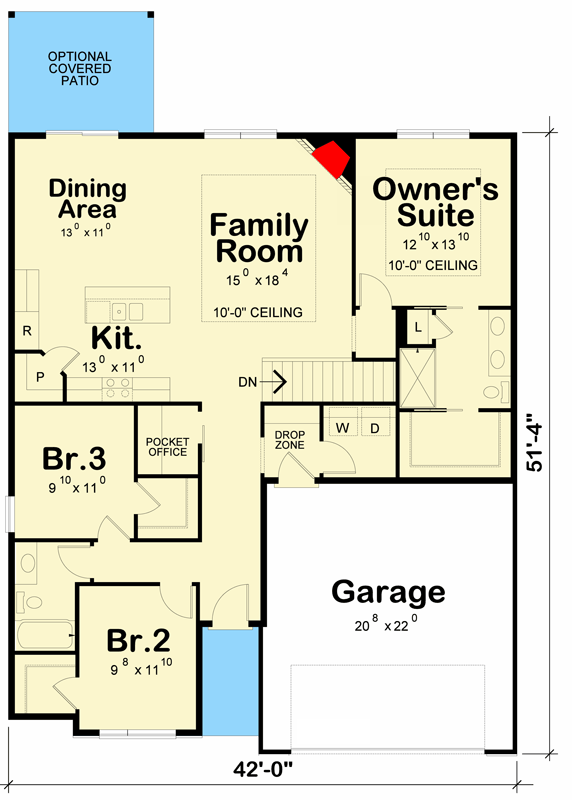

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,603 sq. ft.
  • 1st Floor: 1,603 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 51' 4"
  • Max ridge height: 24' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

3-Bed 1603 Square Foot Modern Home Plan with Distinctive Shed Roof

  • 1,603

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

3-Bed 1603 Square Foot Modern Home Plan with Distinctive Shed Roof

  • 1,603

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,603 sq. ft.
  • 1st Floor: 1,603 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 51' 4"
  • Max ridge height: 24' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick

    Main Level
