Plan 623361DJ

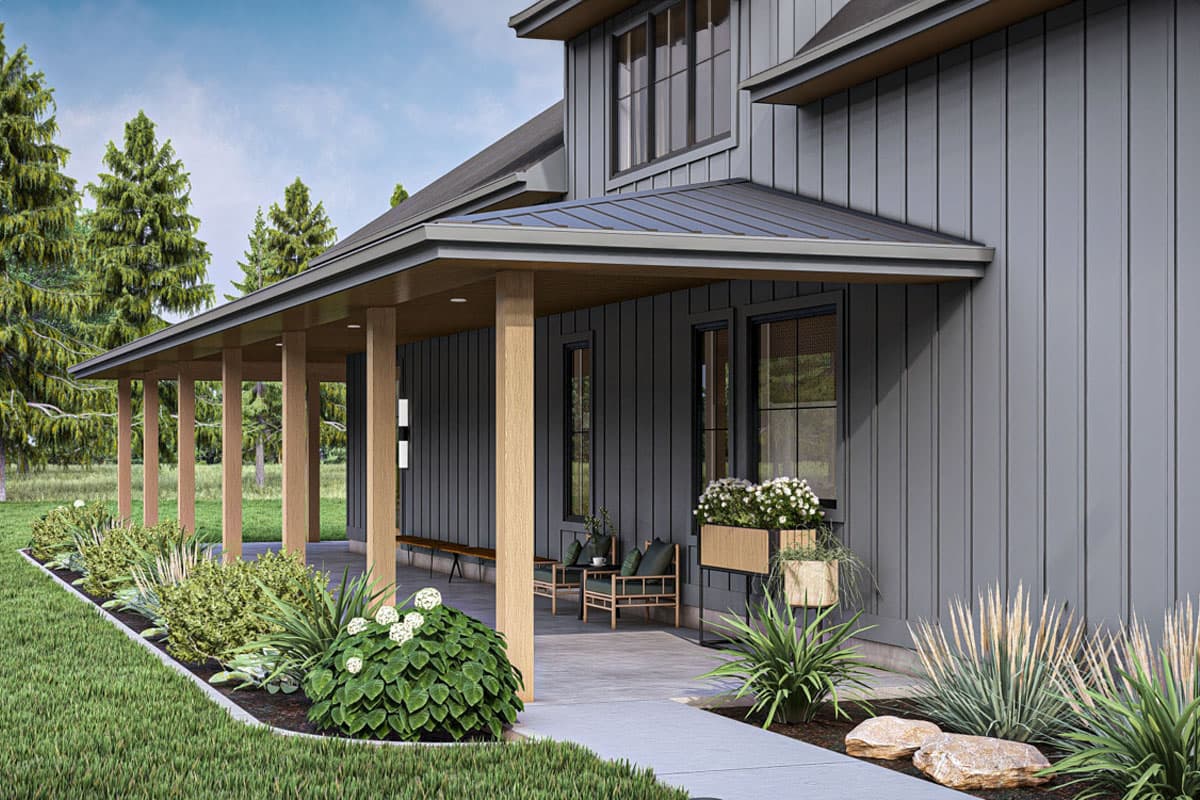

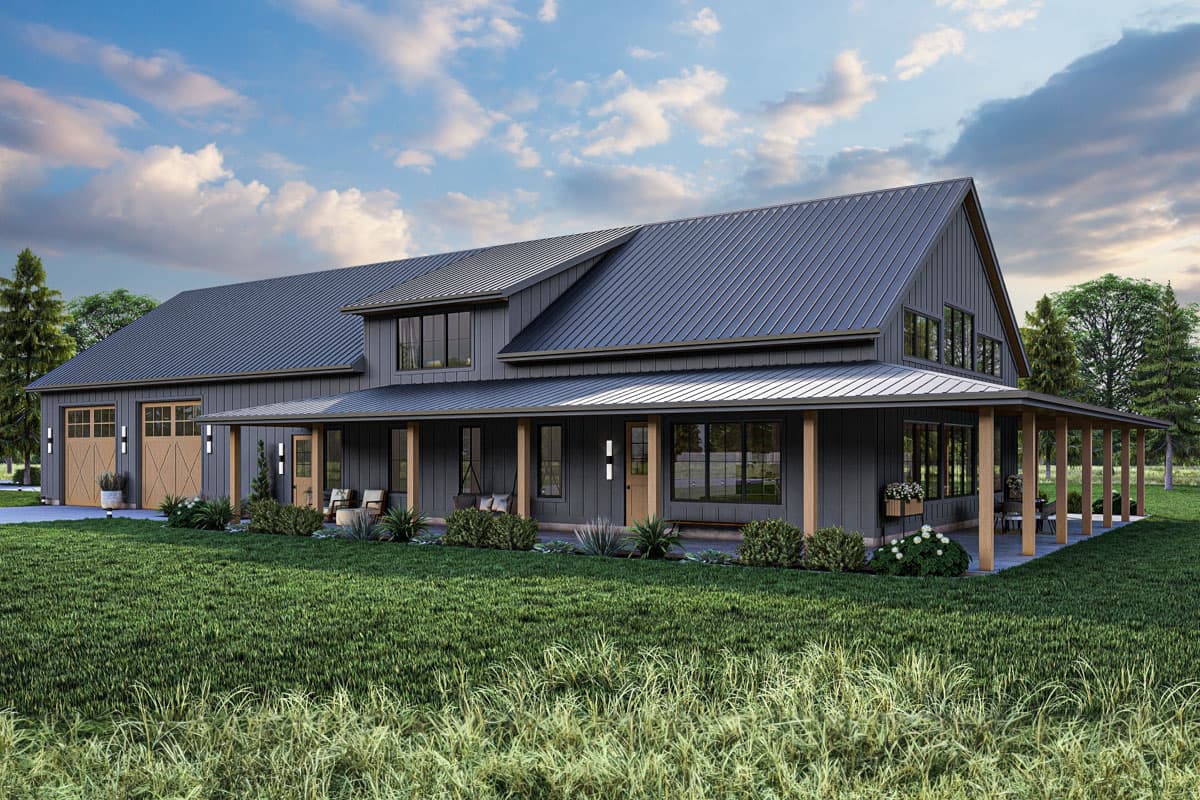

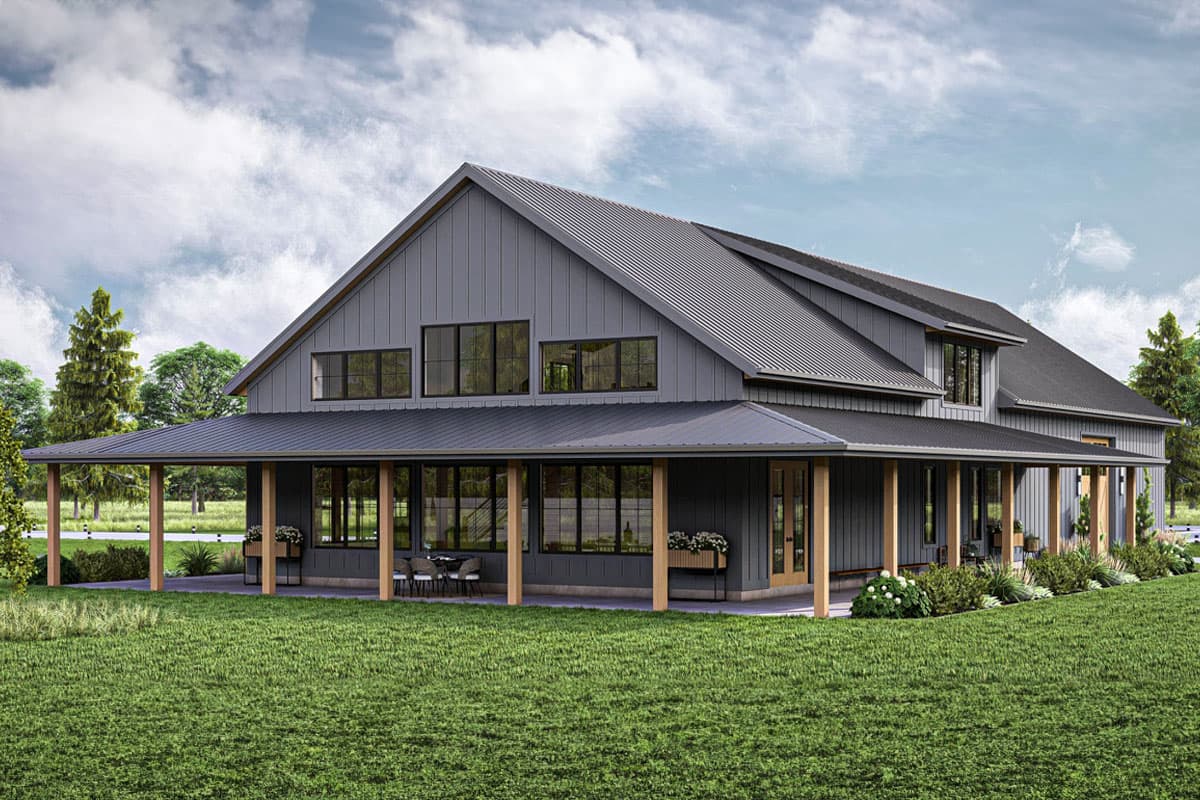

3-Bed Barndominium-style House Plan with Wrap Around Porch and Loft Above - 3176 Sq Ft

Heated S.F.
3,176
Beds
3
Baths
3
Stories
2
Cars
4
Tour

Floor Plan

Plan 623361DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623361DJ

M-F 9am-5pm EST |

1-203-761-8500

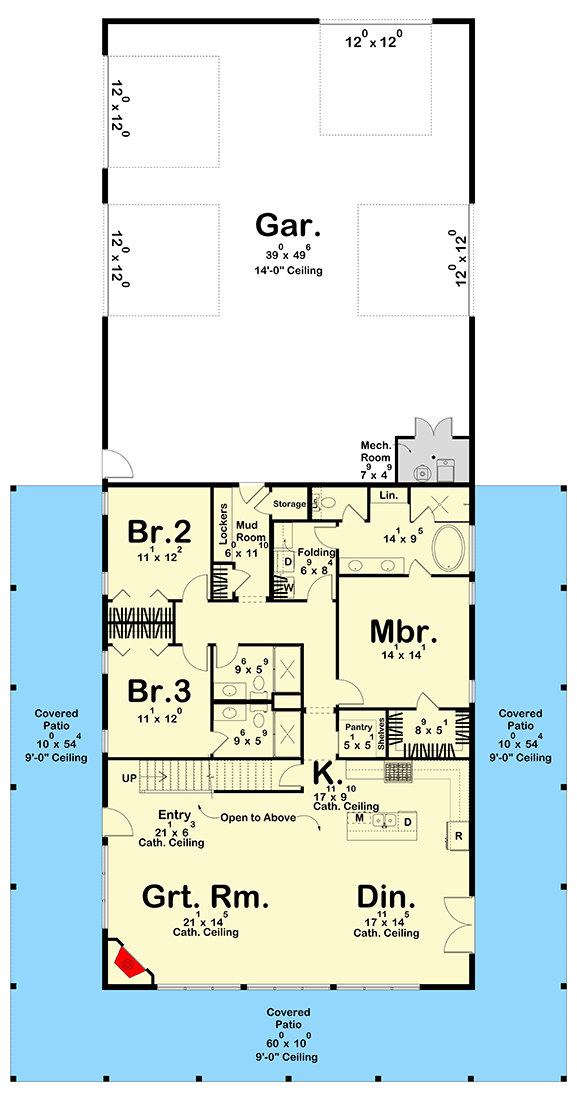

Main Level

Plan 623361DJ: 3-Bed Barndominium-style House Plan with Wrap Around Porch and Loft Above - 3176 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Modern Farmhouse, New American

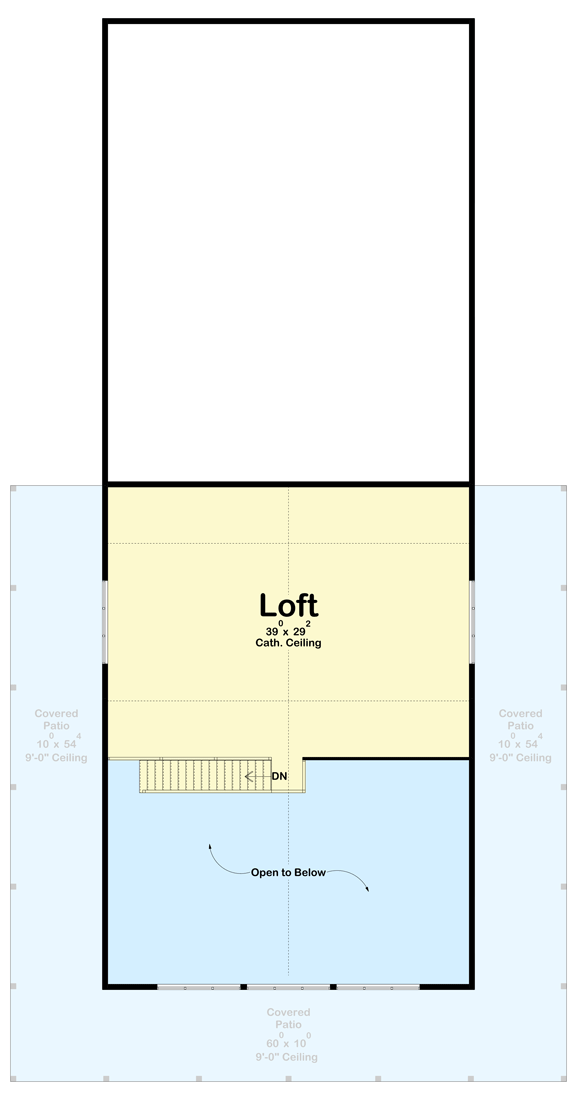

2nd Floor

Plan 623361DJ: 3-Bed Barndominium-style House Plan with Wrap Around Porch and Loft Above - 3176 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Country, Modern Farmhouse, New American

Plan Details

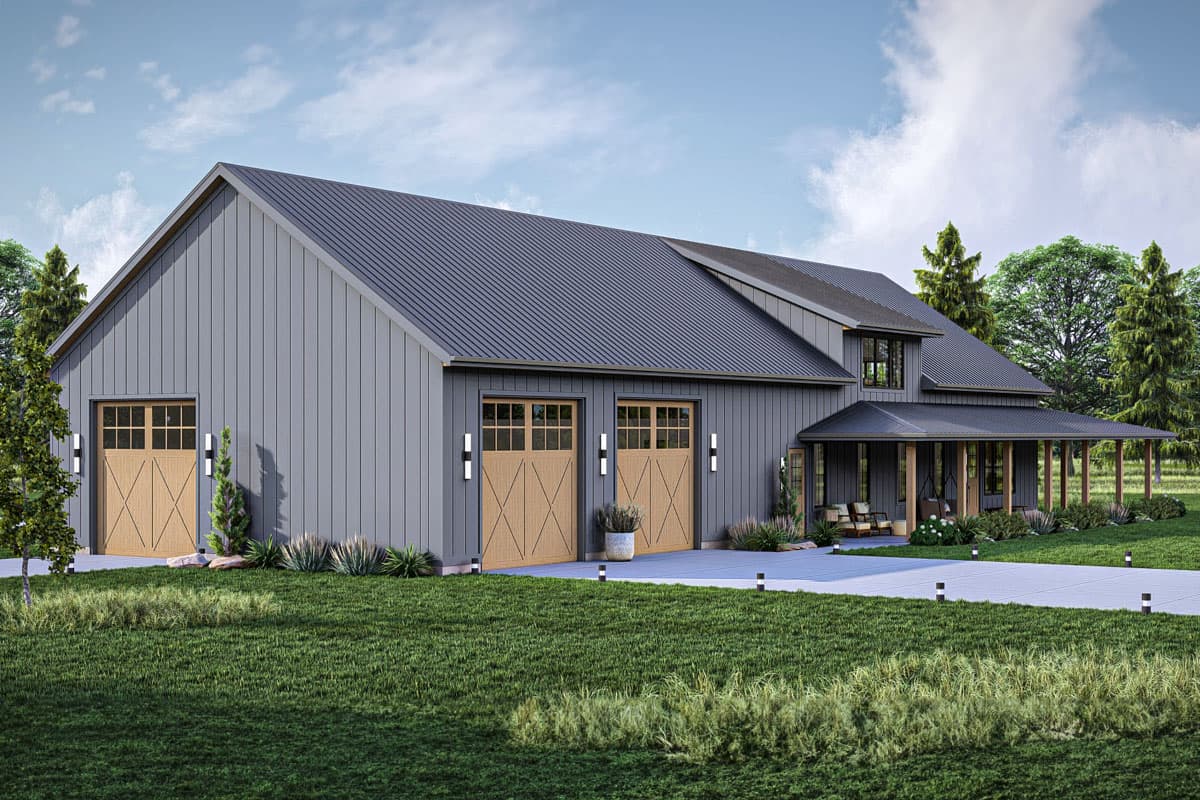

  • This 3,176 square foot Barndominium-style home plan offers 3-bedrooms, 3 full baths, and an 1,960 square foot oversized 4-car side load garage with a rear bay as well for additional flexibility in how you can work the space.
  • Step inside to discover an expansive open-concept living area flooded with natural light, accentuated by high ceilings.

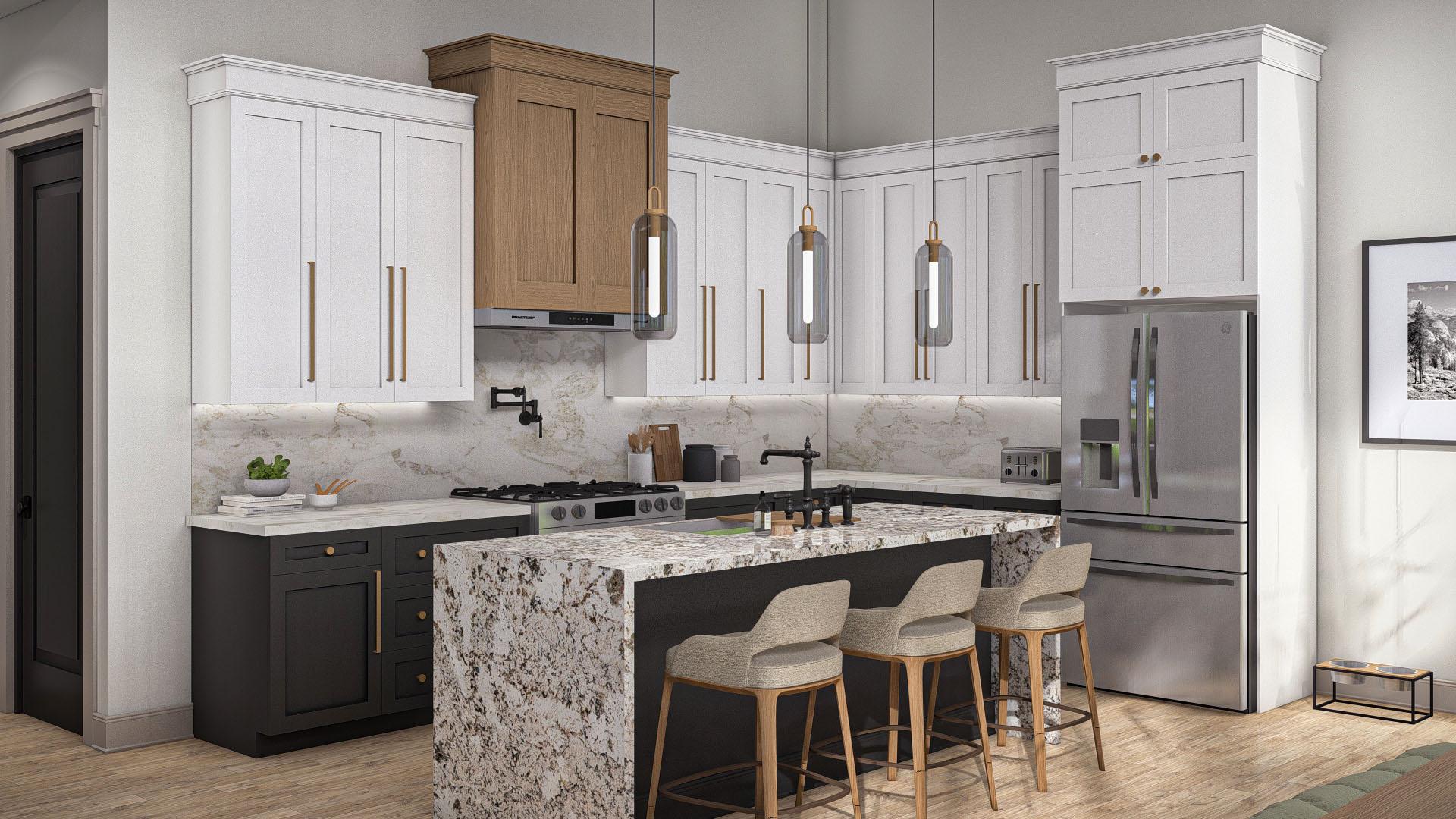

  • The gourmet kitchen, a chef's delight, features high-end appliances and sleek countertops.

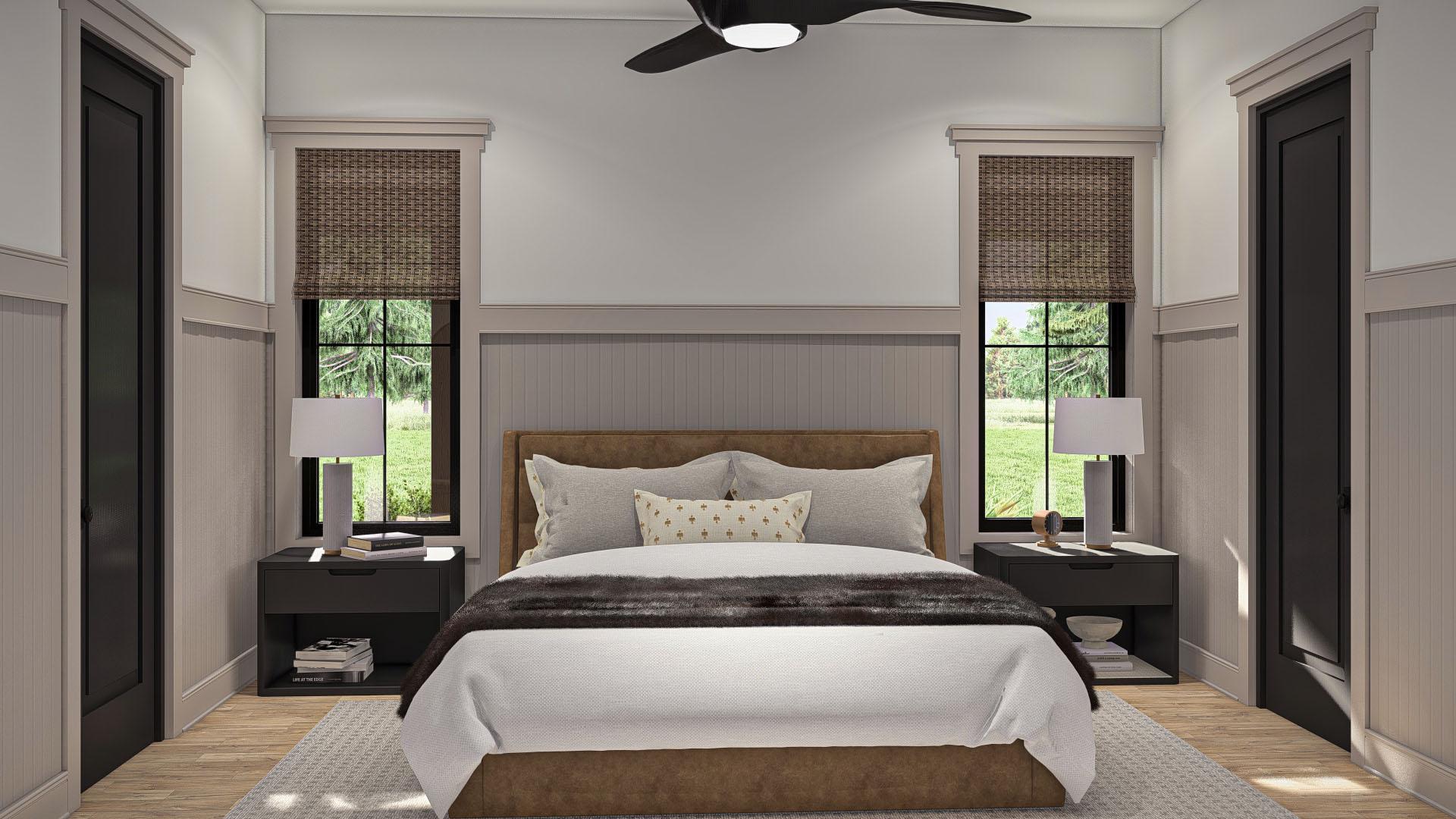

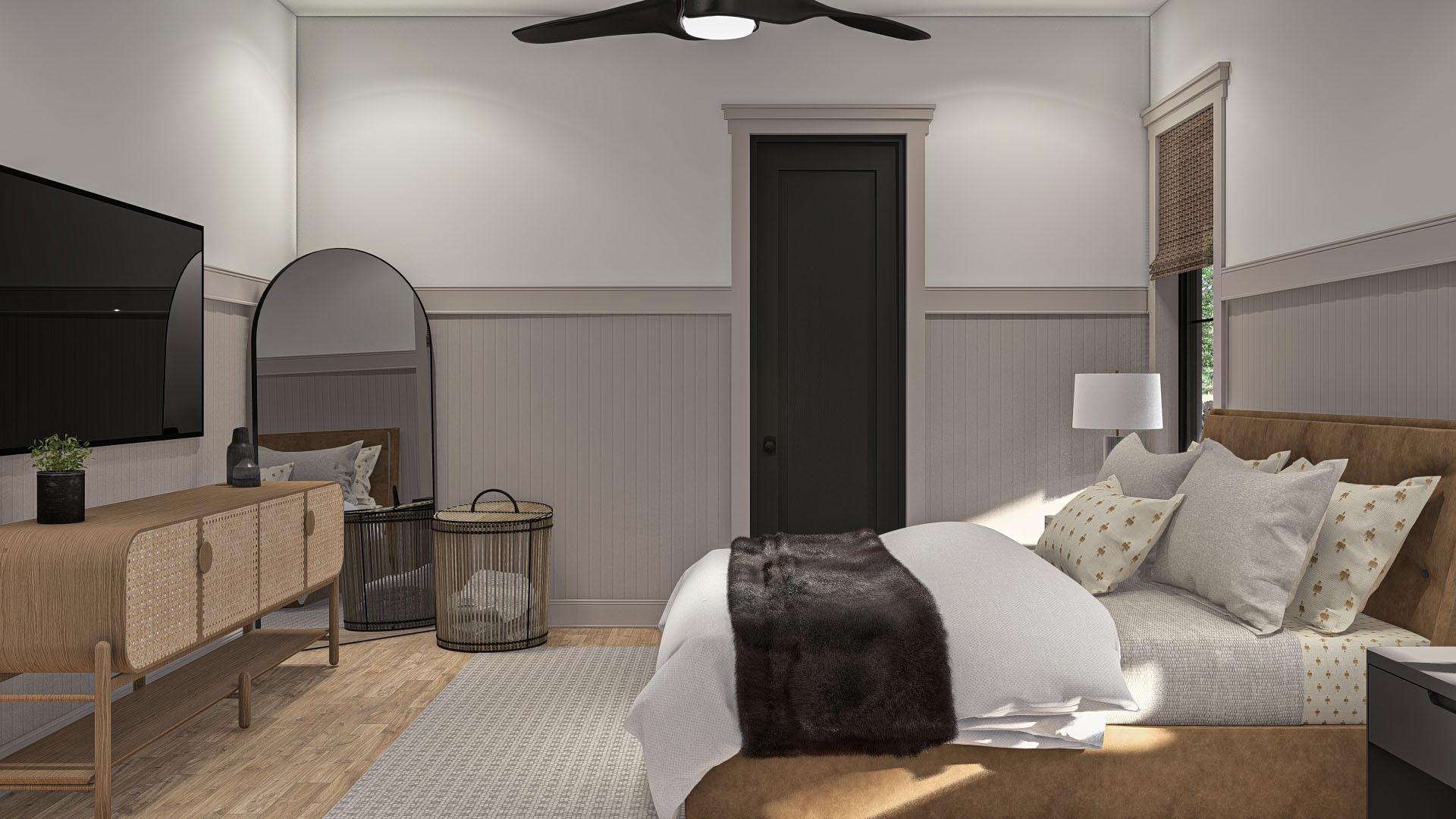

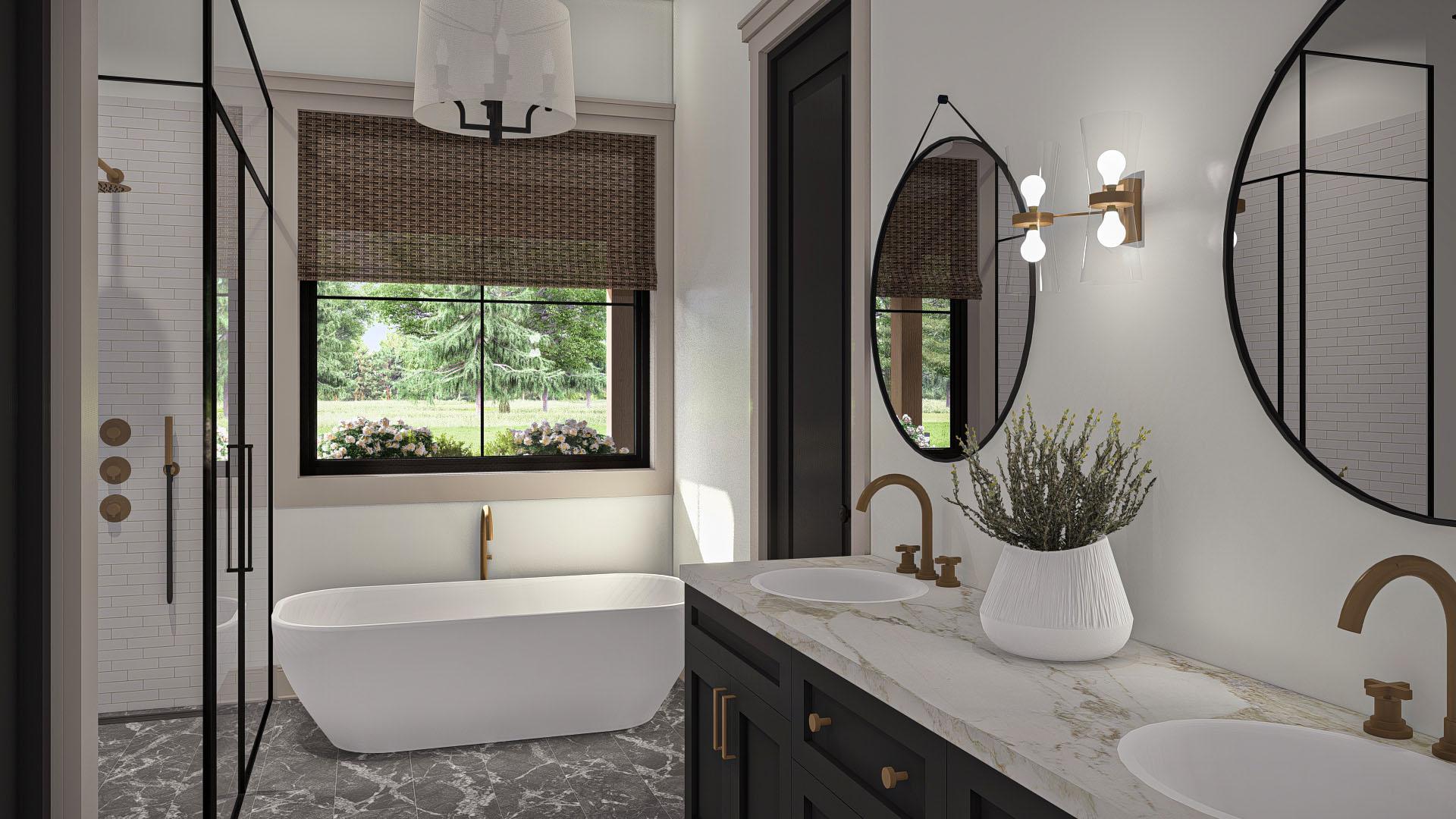

  • The owners ensuite offers a serene retreat with luxurious amenities, while two additional bedrooms cater to guests' comfort.

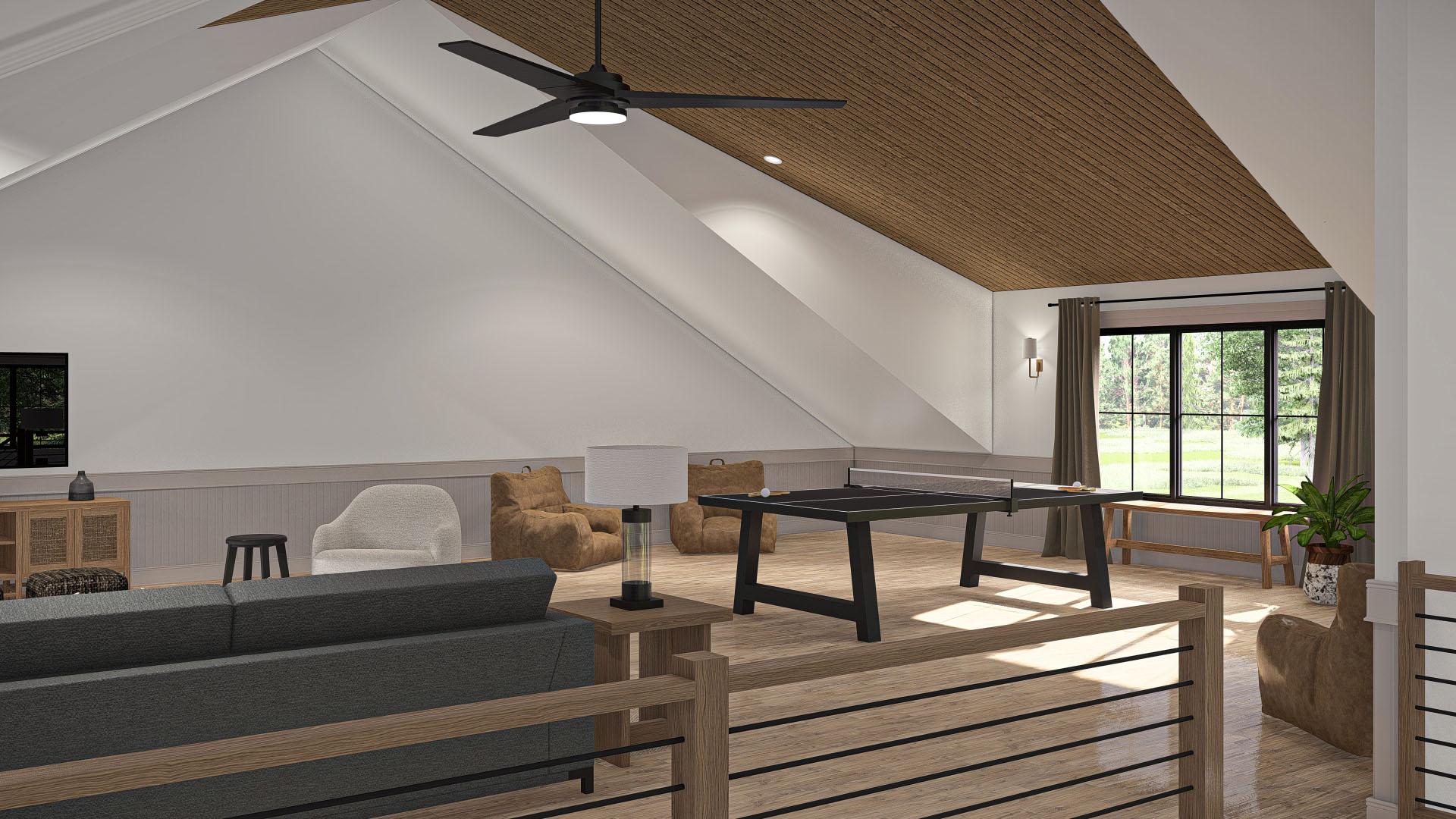

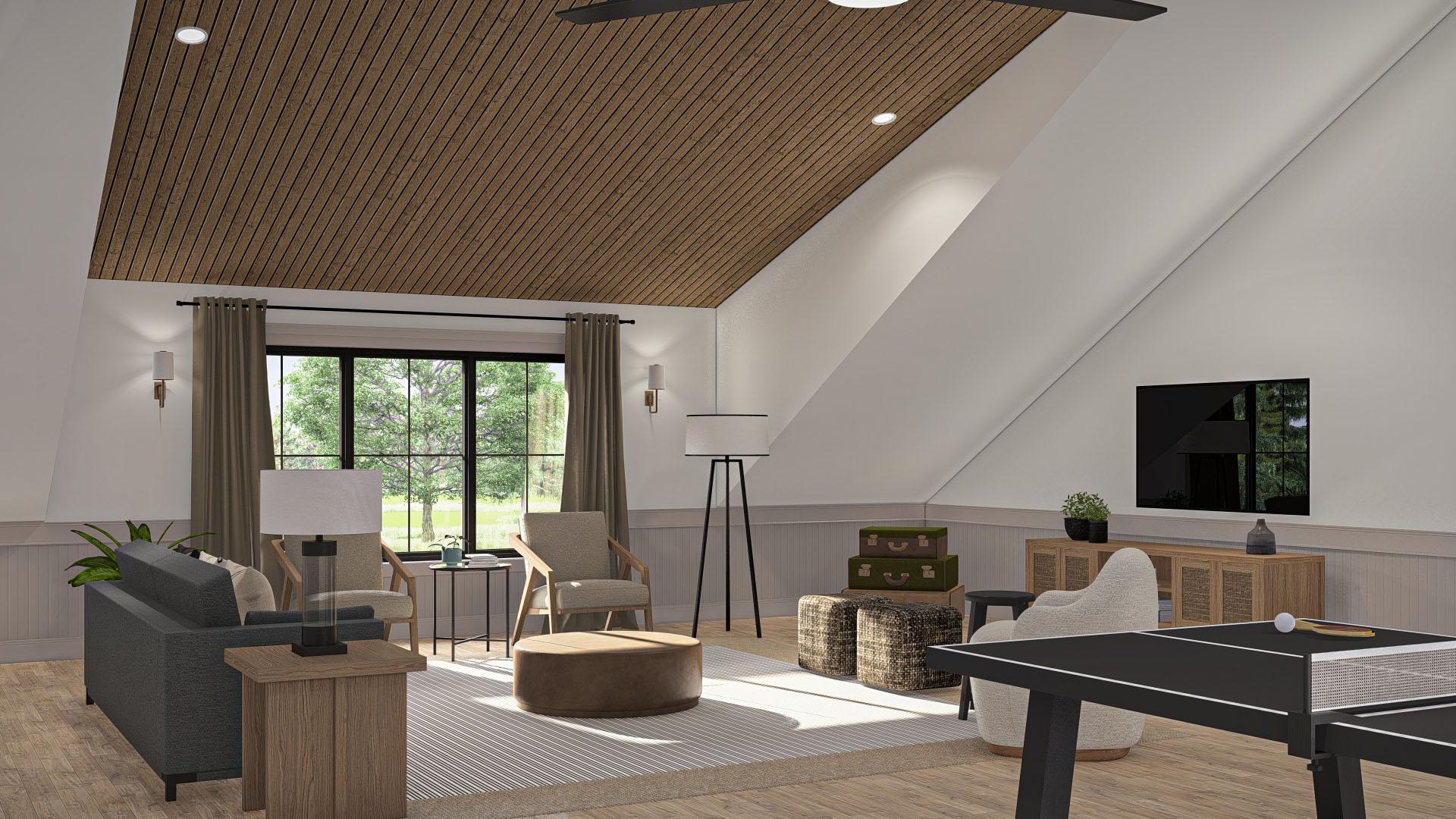

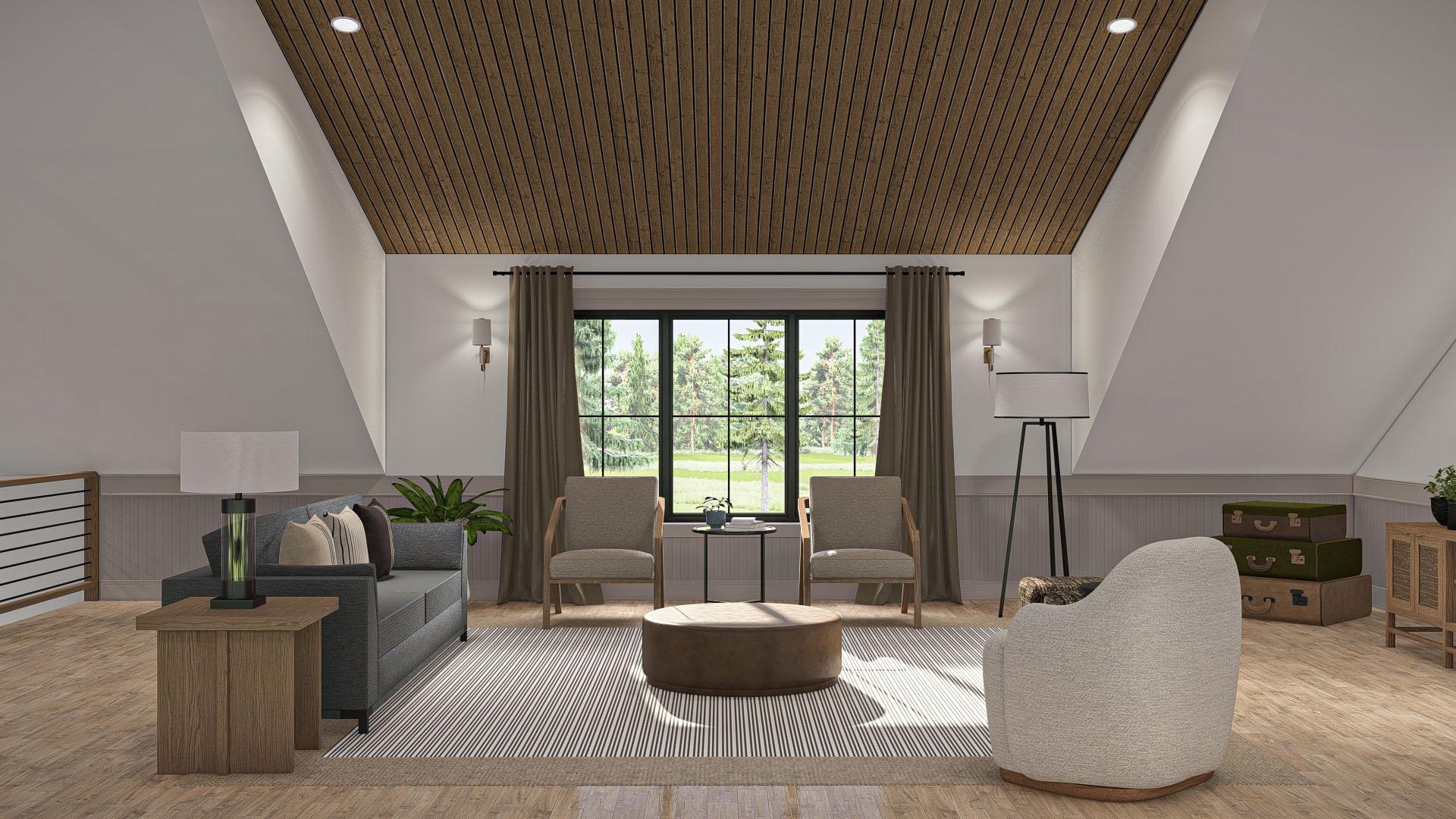

  • Upstairs, a versatile loft space awaits customization. Outside, a sprawling backyard completes the perfect country living experience.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a smaller version of this plan by eliminating the 2nd floor loft, and add a pocket office with house plan 623113DJ (2,113  sq. ft.).

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,176 sq. ft.

1st Floor

2,187 sq. ft.

2nd Floor

989 sq. ft.

Porch, Combined

1,687 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

114' 8"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

1960 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Architectural Style

Barndominium

Country

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Workshop

Wraparound Porch
