Plan 22501DR
3-Bed Contemporary Home Plan with Laundry Chute
Heated S.F.
1,700
Beds
3
Baths
1.5
Stories
2
Cars
1
What's Included
Plan Details

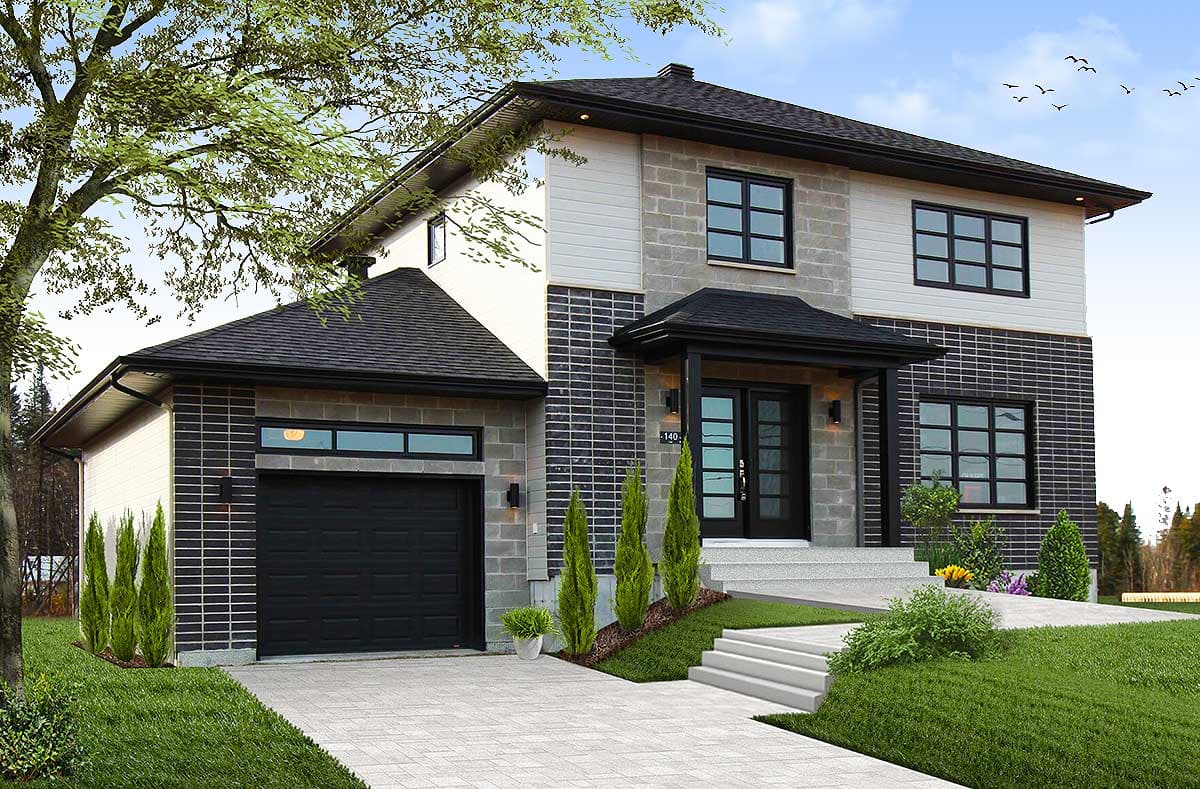

  • Striking contemporary styling is enhanced by the symmetry of the windows and the contrast in exterior cladding create the dramatic appeal of this home.
  • The covered entrance opens to a foyer with generous closet space and a powder room complete with laundry area.
  • This wonderful example of open living concept offers a central, three sided fireplace which can be viewed from living room, dining room and kitchen.
  • A comfortable master bedroom with walk-in closet and two generous secondary bedrooms share a well appointed bathroom complete with separate shower and bath that has a discreet laundry-chute built in.
  • Related Plan: Remove the garage with house plan 22365DR.
What's Included

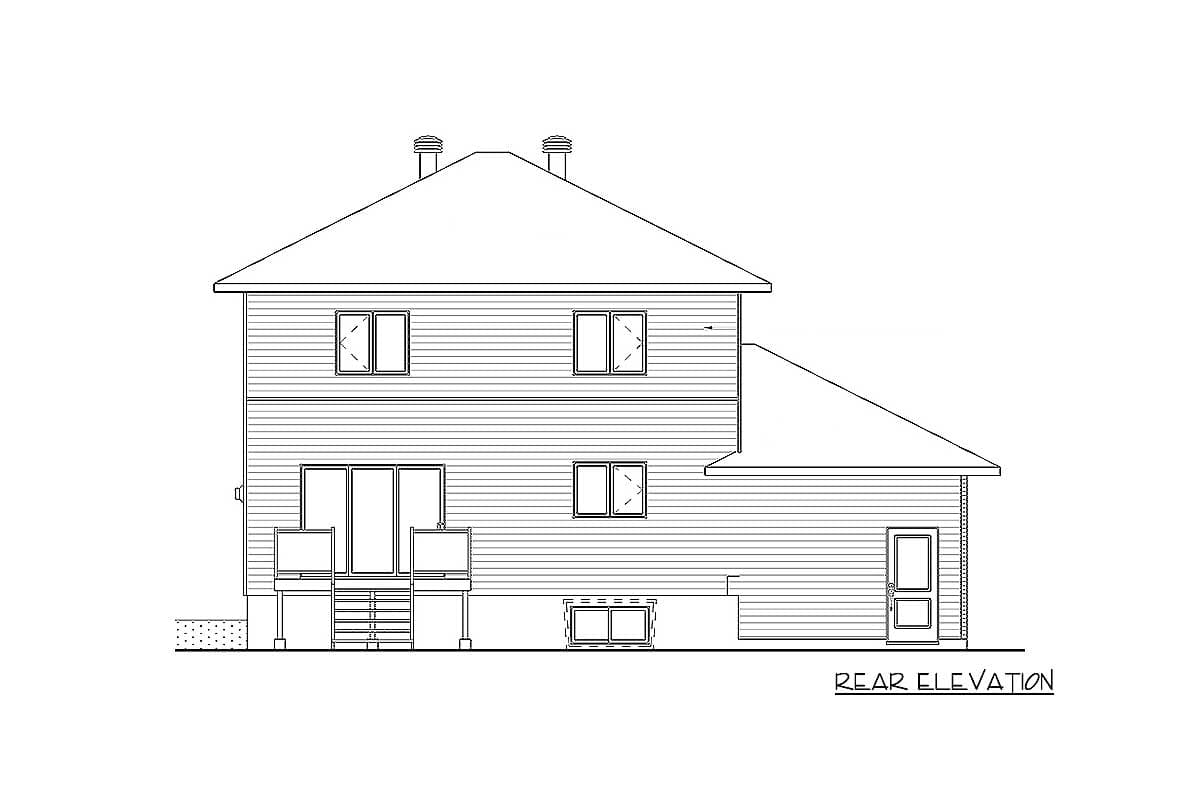

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Contemporary Home Plan with Laundry Chute

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

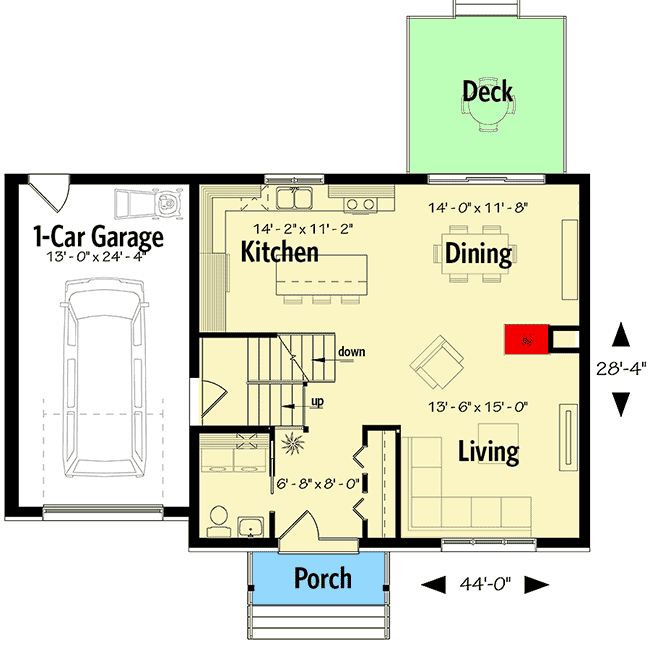

  • Main Level

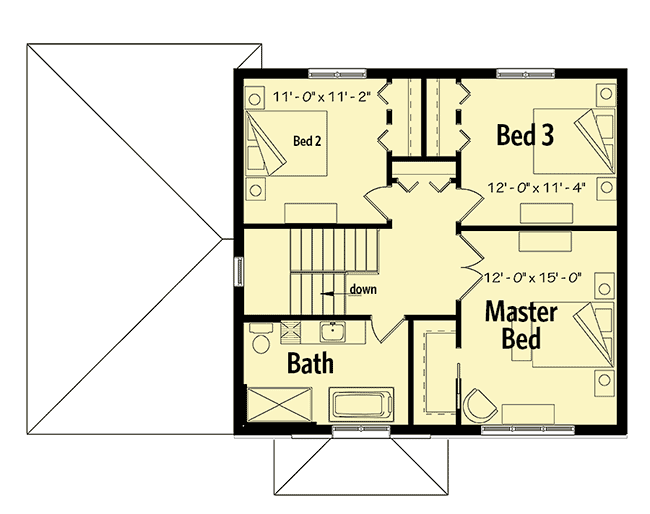

  • 2nd Floor

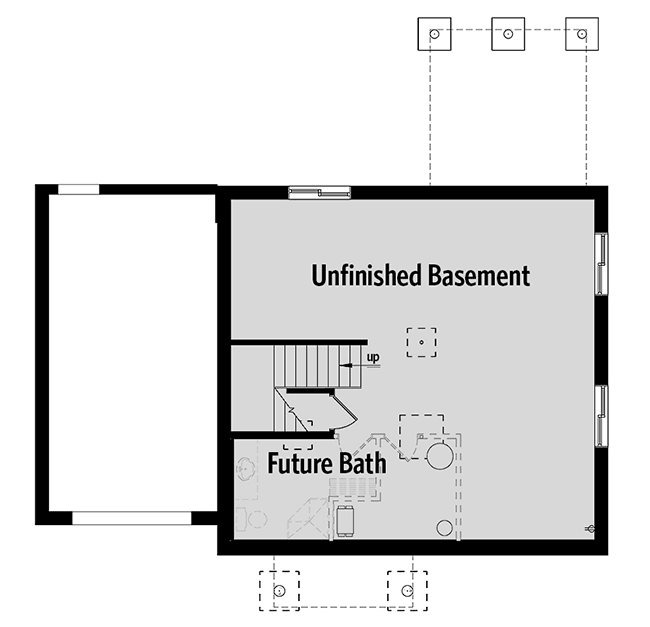

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,700 sq. ft.
  • 1st Floor: 850 sq. ft.
  • 2nd Floor: 850 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 28' 4"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 364 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site

3-Bed Contemporary Home Plan with Laundry Chute

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

3-Bed Contemporary Home Plan with Laundry Chute

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,700 sq. ft.
  • 1st Floor: 850 sq. ft.
  • 2nd Floor: 850 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 28' 4"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 364 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6
