3-Bed Contemporary House Plan with Walkout Basement & Drive-Under Car Port

Plan 90232PD

  • 1,576

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Cedar siding and stone accent this dramatic Contemporary home plan designed for a sloping lot.
  • Enter through the carport on the ground level and step into your family room.
  • This level also contains two bedrooms so it makes a terrific kids wing.
  • The main living area is one floor above and this offers a screened porch and lots of open decks.
  • A delightful two-sided fireplace is shared by the master suite and the living area.
  • Since the master suite is the only bedroom on this level, you have your quiet and privacy.
  • The main roof pitch is 2 on 12.
  • Related Plan: Get all 3 bedrooms on the lower floor and a little more room with house plan 90241PD (1,647 sq. ft.). Get an alternate exterior and a larger floor plan with house plan 90298PD (1,825 sq. ft.).

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

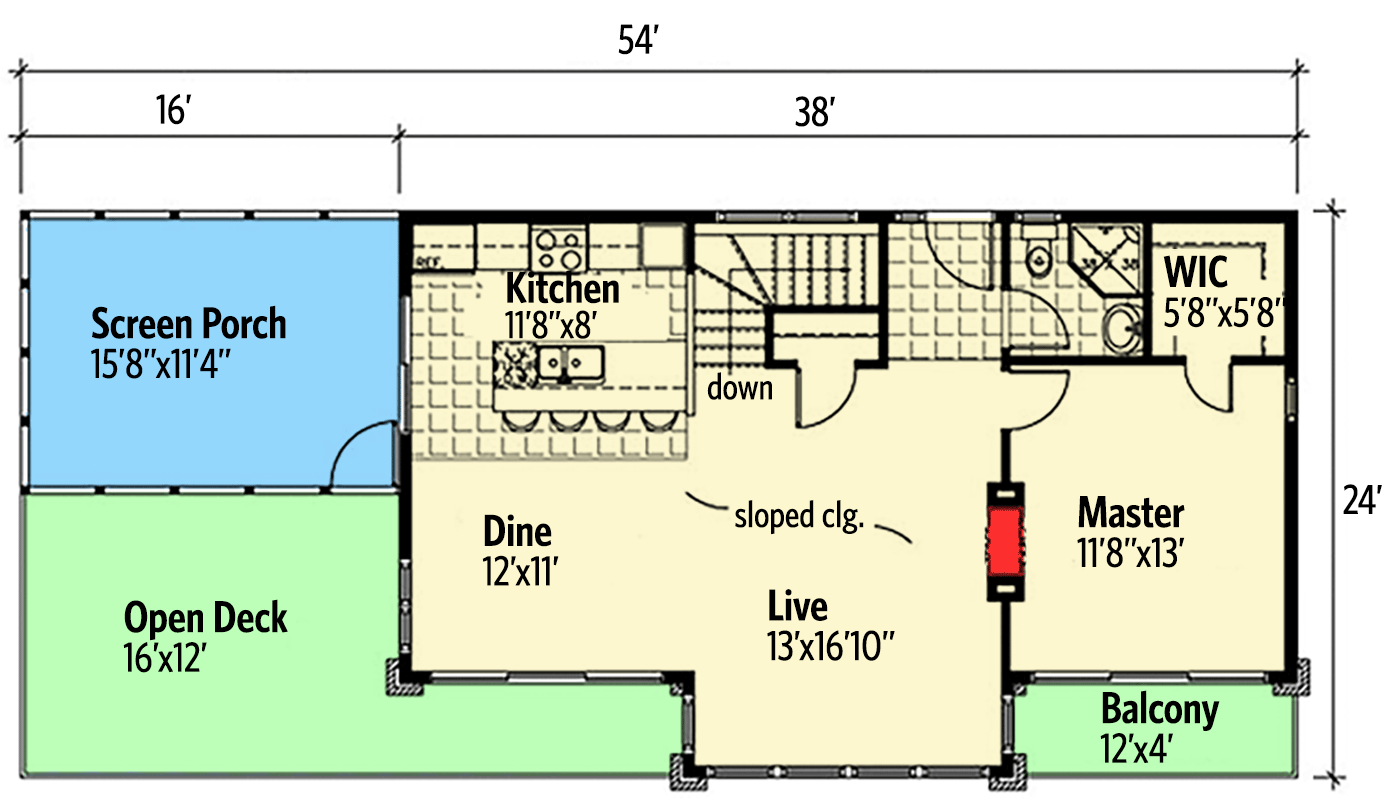

3-Bed Contemporary House Plan with Walkout Basement & Drive-Under Car Port - 90232PD floor plan - Main Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

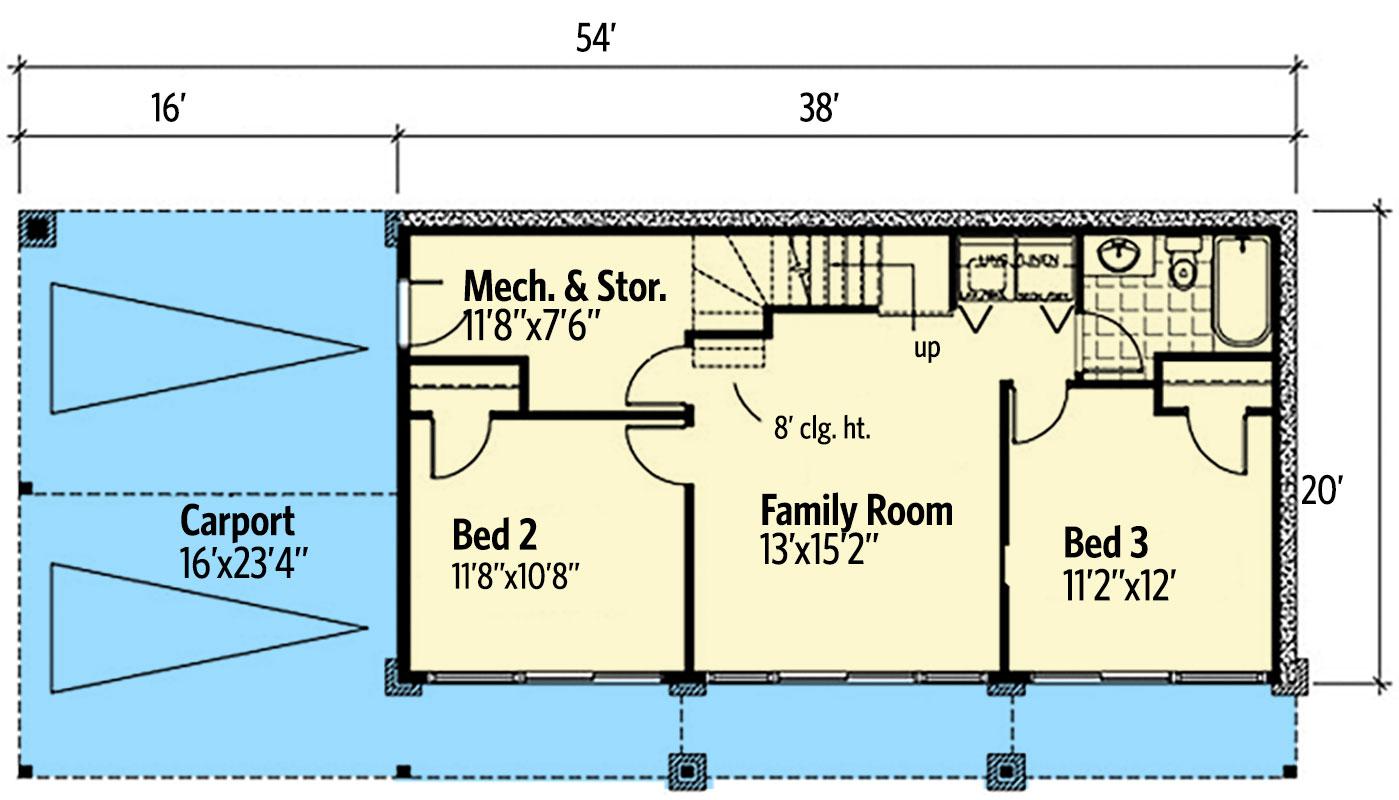

3-Bed Contemporary House Plan with Walkout Basement & Drive-Under Car Port - 90232PD floor plan - Lower Level

3-Bed Contemporary House Plan with Walkout Basement & Drive-Under Car Port

  • 1,576

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,576 sq. ft.
  • Lower Level: 760 sq. ft.
  • 1st Floor: 816 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Carport, Drive Under
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Truss
