3-Bed Contemporary Vacation Home with Split Bedrooms

Plan 22562DR

1,704
Heated s.f.
3
Beds
2
Baths
1
Stories
2
Cars

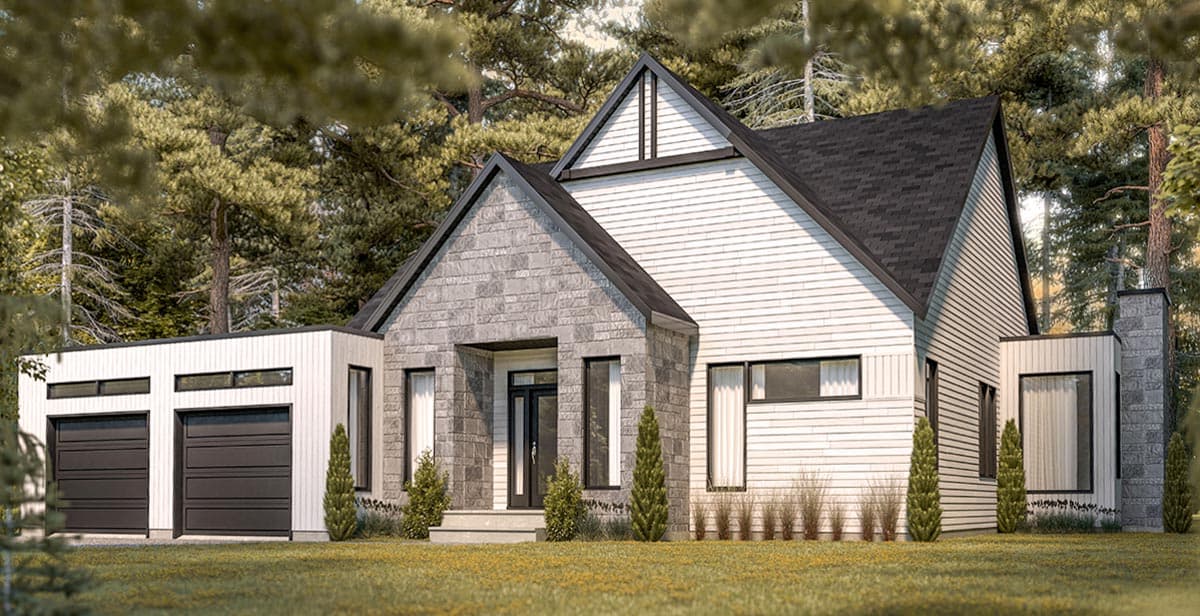

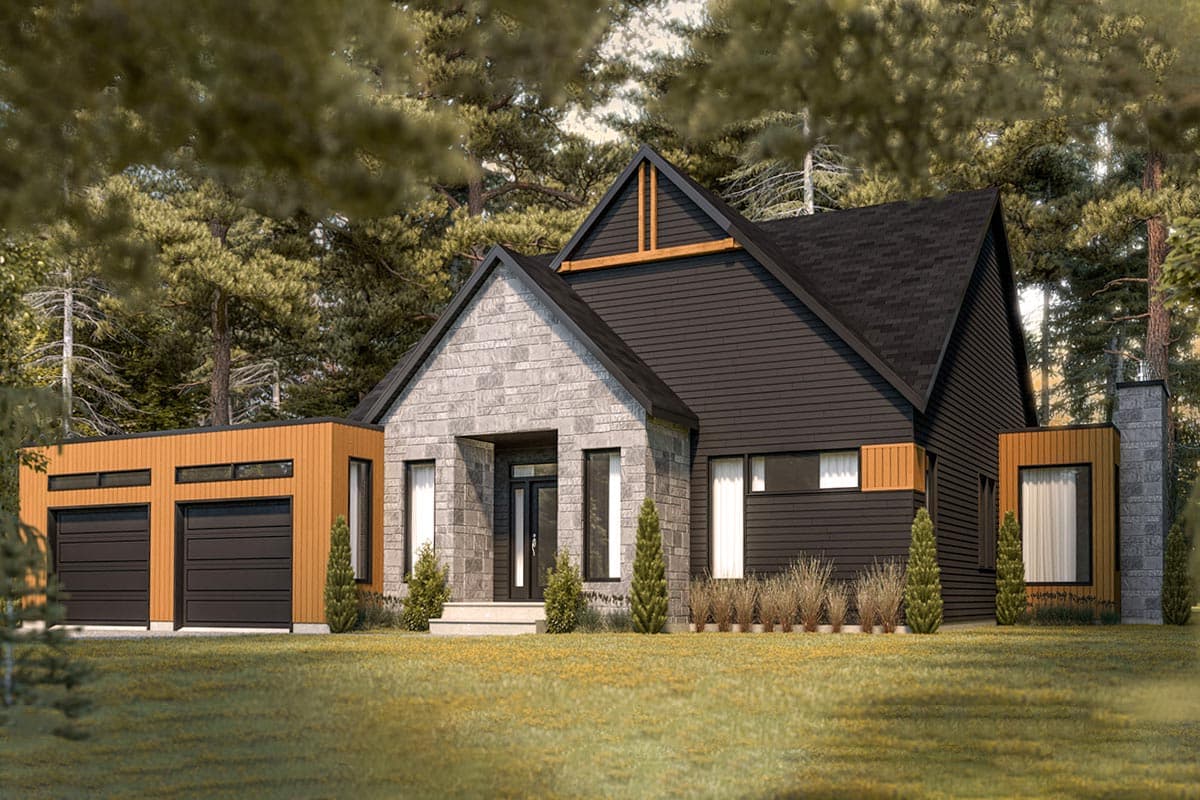

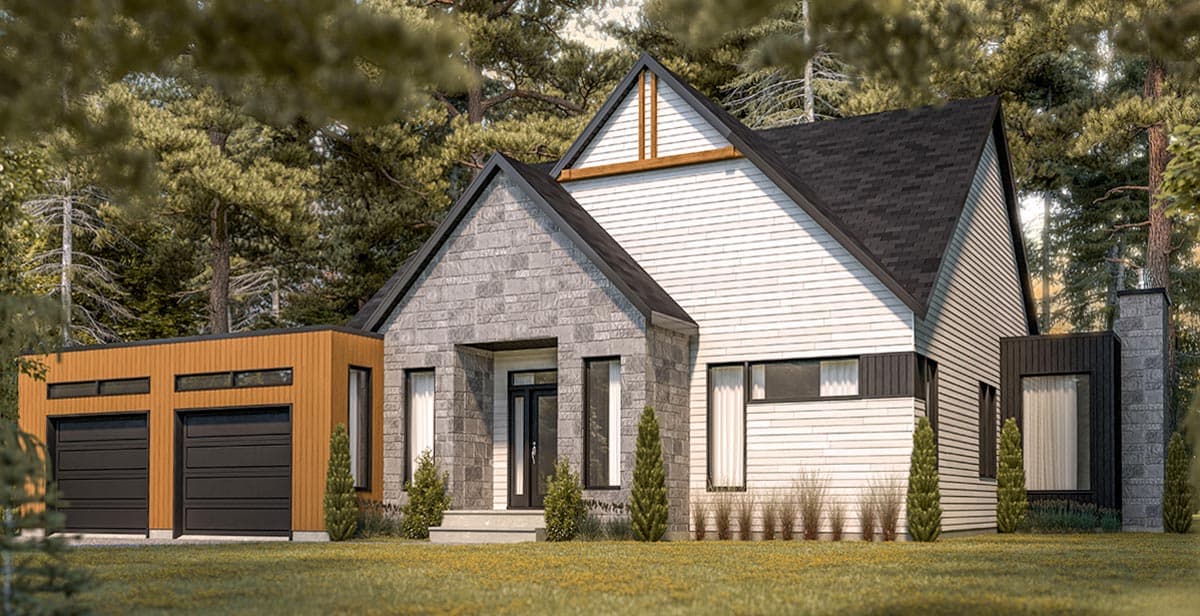

This show-stopping, contemporary home plan offers massive curb appeal with its striking features, cross-gable and flat roof combo, and stone accents.
The formal and family entries merge, creating a central space for outdoor gear and personal items.

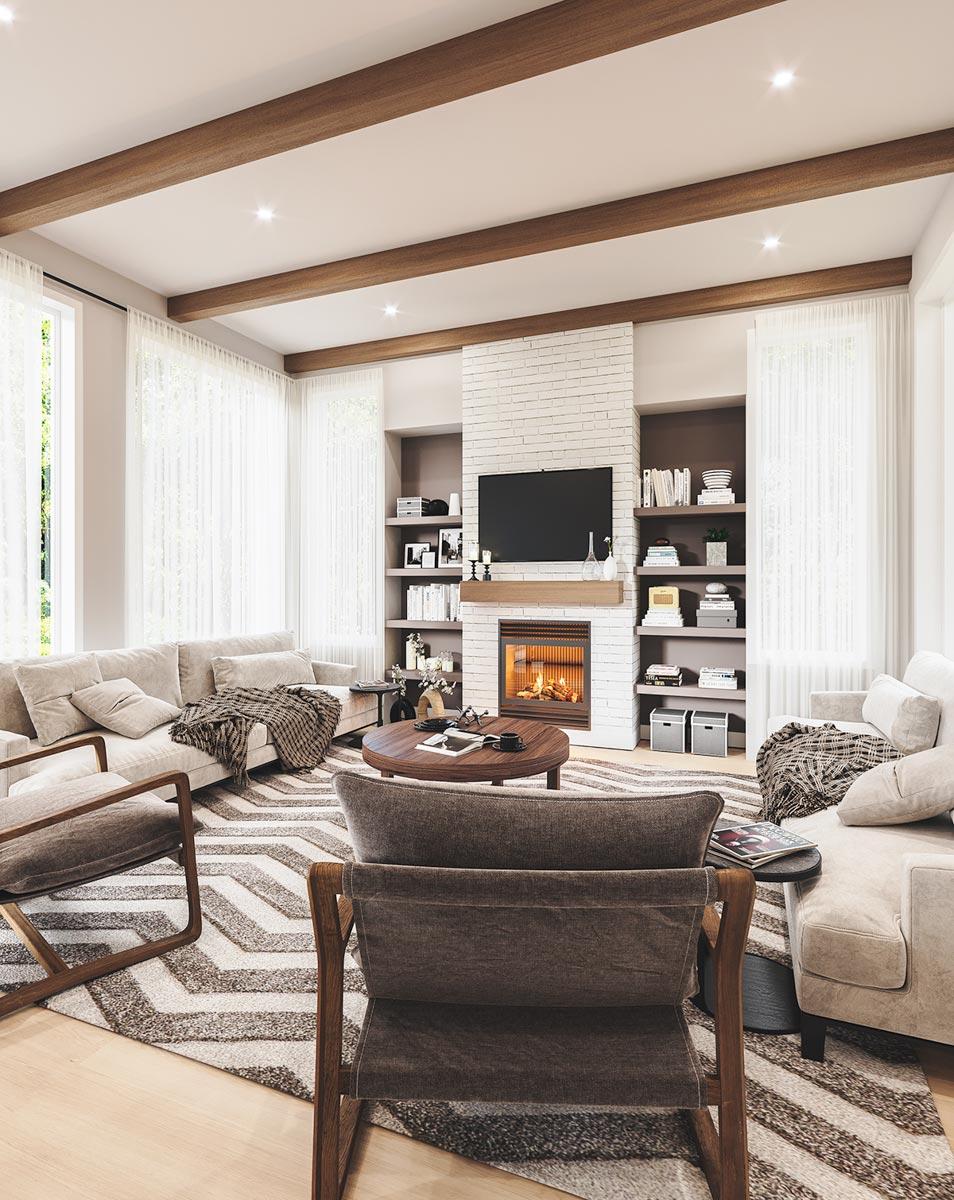

Towards the back of the home, the shared living spaces are open to one another, with a grand fireplace serving as the focal point. Decorative beams above the living room help define the space, and a large, covered terrace encourages outdoor living.

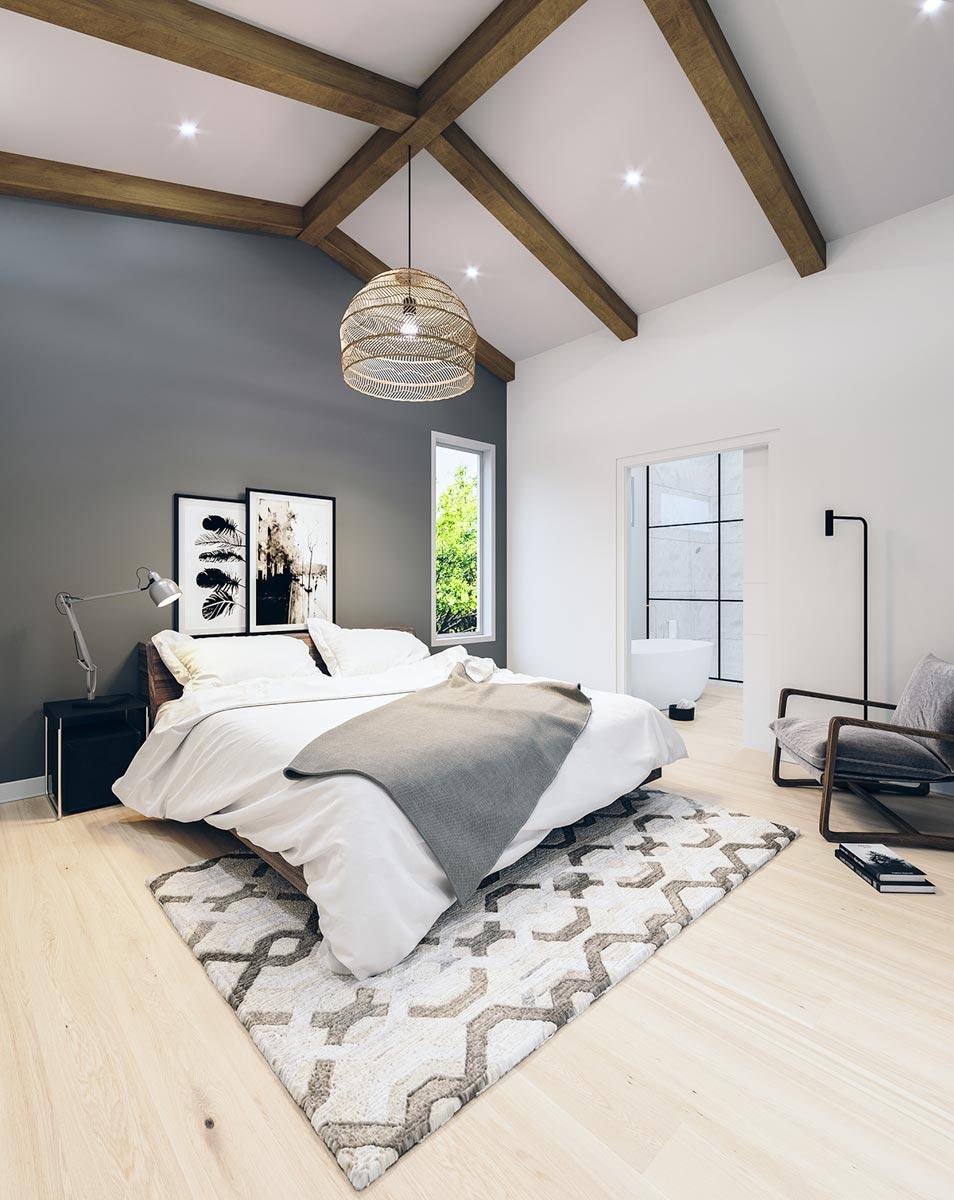

The master suite is tucked behind the kitchen, and features a cathedral ceiling, which makes the room feel larger. The master bath includes an oversized shower and two sinks.
Two additional family bedrooms share a hall bath, and a spacious, unfinished basement lends plenty of space for storage.
Related Plans: Get a 1-car garage with house plan 22611DR and a smaller version with a carport with house plan 22565DR.

Each plan includes the following:

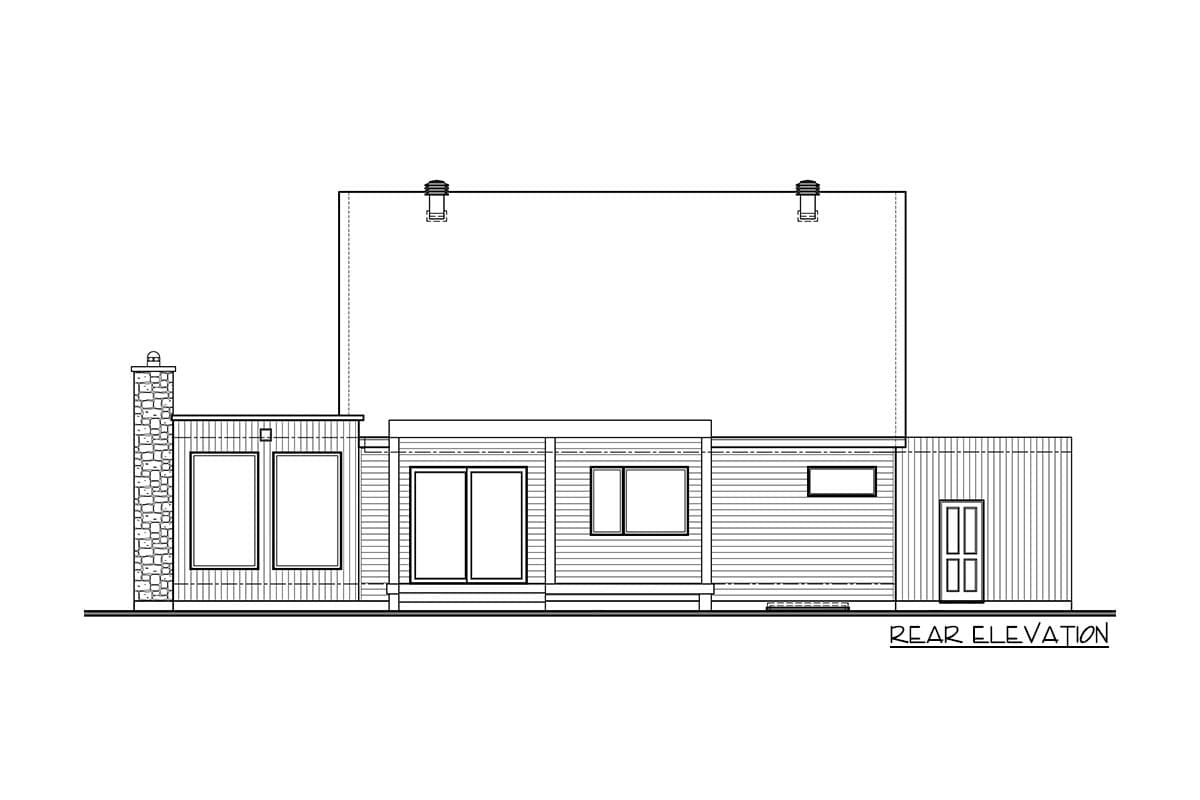

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

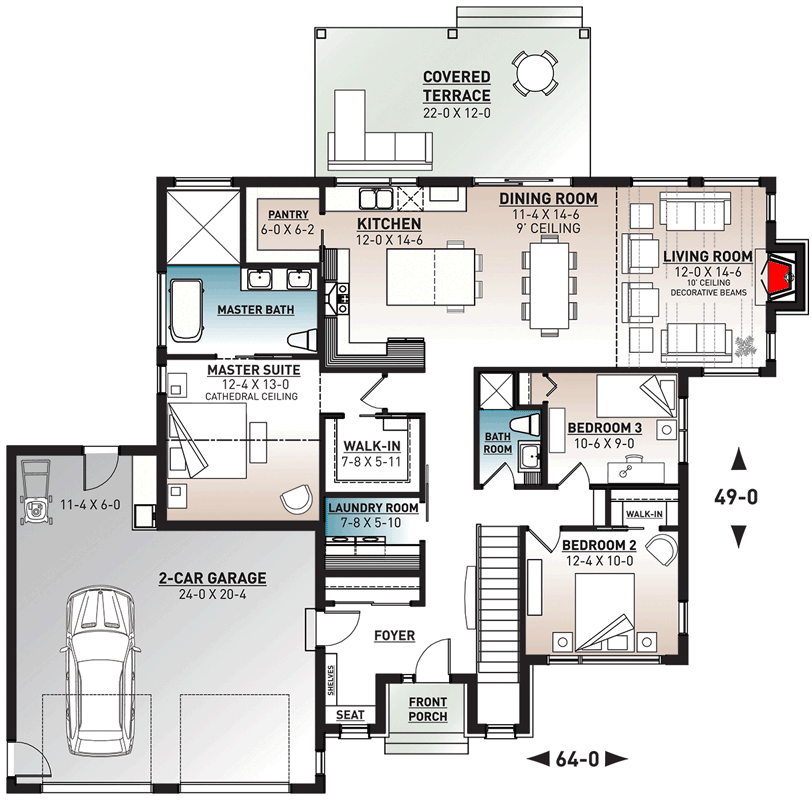

3-Bed Contemporary Vacation Home with Split Bedrooms - 22562DR floor plan - Main Level

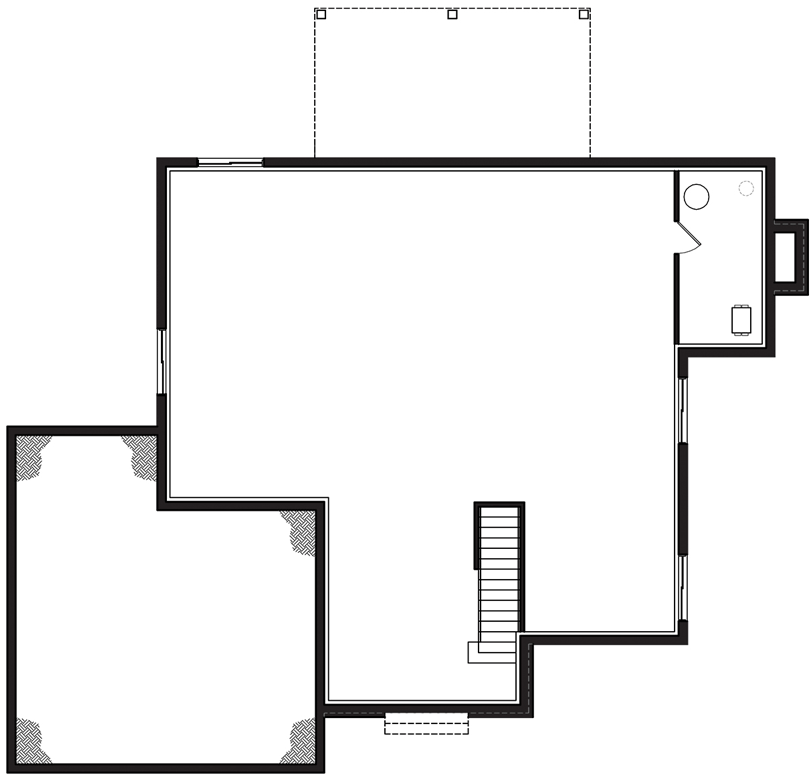

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3-Bed Contemporary Vacation Home with Split Bedrooms - 22562DR floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,704 sq. ft.
1st Floor: 1,704 sq. ft.

Basement Unfinished: 1,421 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Stem Wall

Optional Foundations: Monolithic Slab, Basement, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 64' 0"
Depth: 49' 0"
Max ridge height: 20' 2"

Garage

Type: Attached
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Great Room	Beamed			10' 0"
Master Bedroom	Vaulted			9' 0" to 11' 0"

Roof Details

Primary Pitch: 3 on 12

Framing Type: Truss

Architectural Style

Special features
