Plan 350066GH

3-Bed Contemporary With Two Story Great Room and Upstairs Master Suite - 2143 Sq Ft

Heated S.F.
2,142
Beds
3
Baths
3
Stories
3
Cars
2

Floor Plan

Plan 350066GH

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 350066GH

M-F 9am-5pm EST |

1-203-761-8500

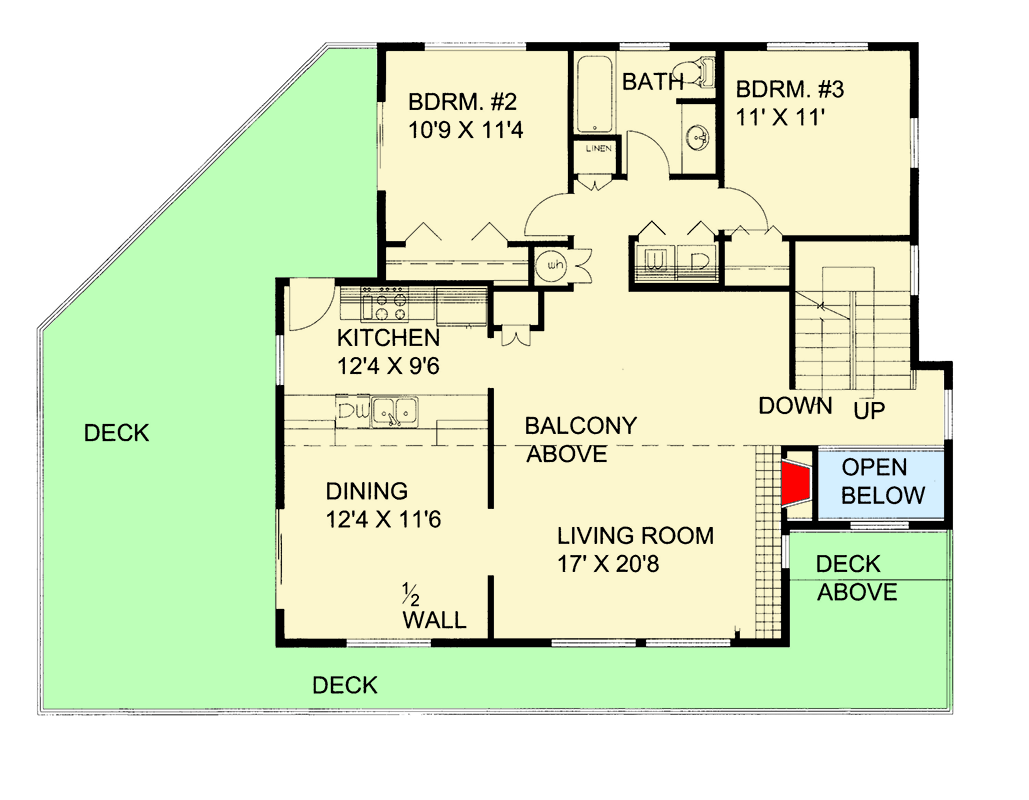

Main Level

Plan 350066GH: 3-Bed Contemporary With Two Story Great Room and Upstairs Master Suite - 2143 Sq Ft - Floor Plan - Main Level - Contemporary, Modern, Northwest

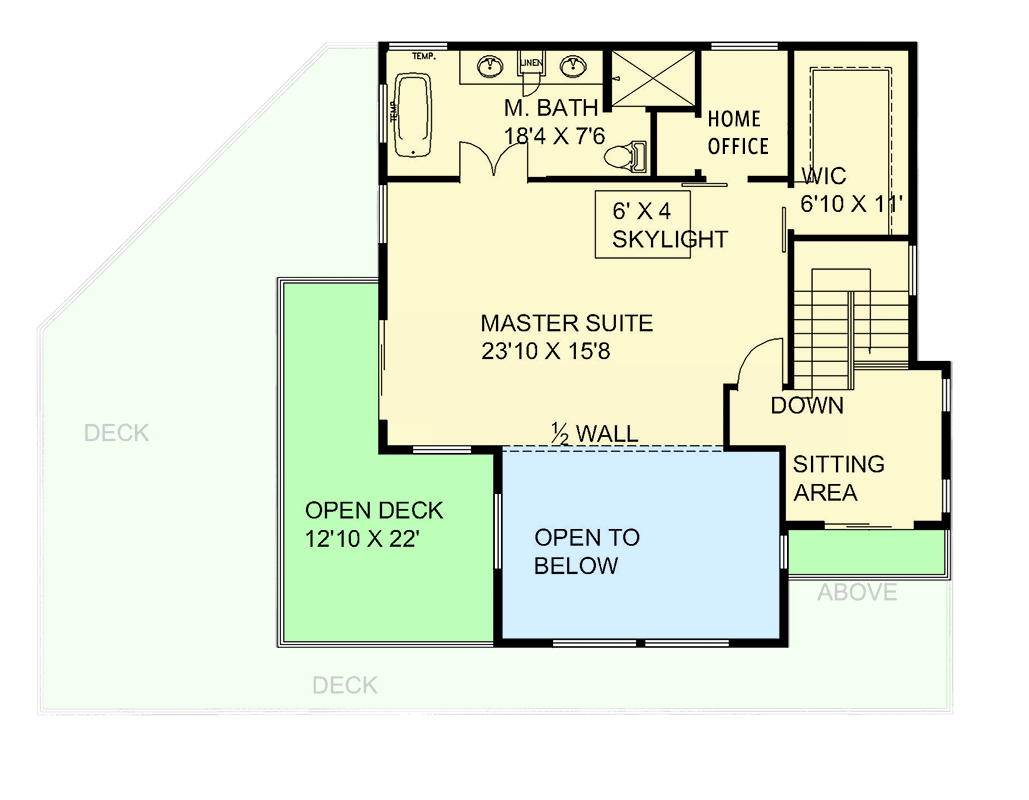

2nd Floor

Plan 350066GH: 3-Bed Contemporary With Two Story Great Room and Upstairs Master Suite - 2143 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

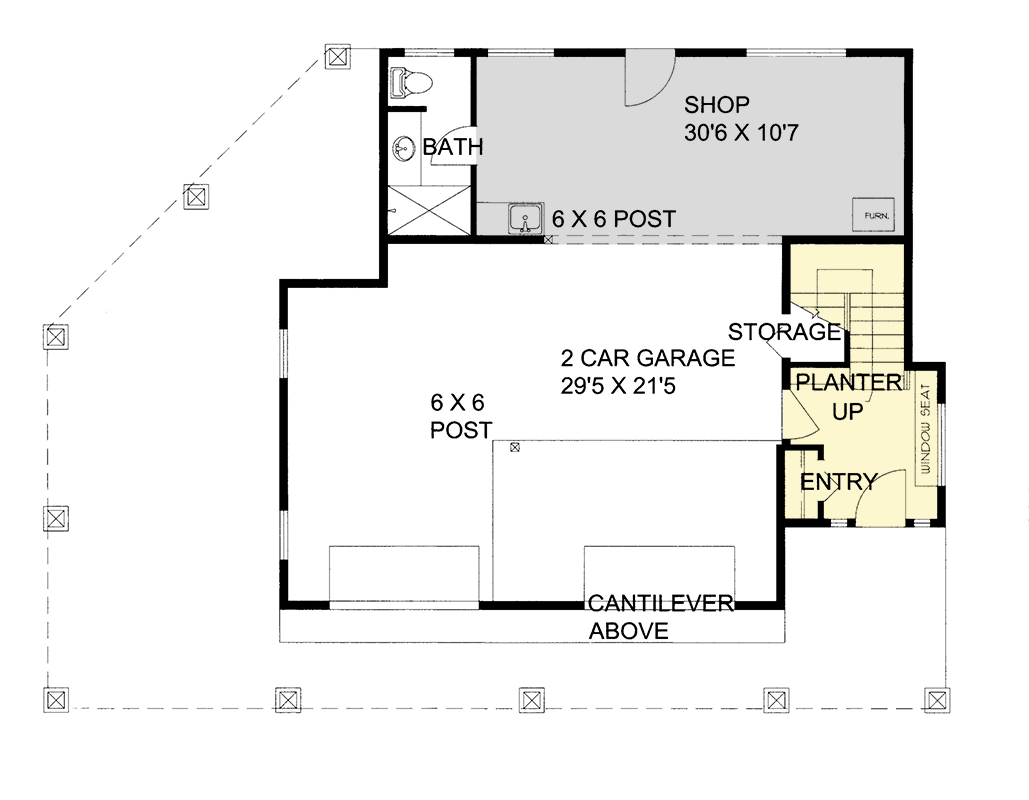

Lower Level

Plan 350066GH: 3-Bed Contemporary With Two Story Great Room and Upstairs Master Suite - 2143 Sq Ft - Floor Plan - Lower Level - Contemporary, Modern, Northwest

Plan Details

  • This 3 bed, 3 bath Contemporary house plan gives you 2,143 square feet of heated living and 2-car drive under garage along with a workshop (1107 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,142 sq. ft.

Lower Level

98 sq. ft.

1st Floor

1,205 sq. ft.

2nd Floor

839 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Garage

Type

Attached, Drive Under

Area

1107 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Second Story

9' 0''

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Workshop

Wraparound Porch

Square Footage Breakdown

Total Heated Area

2,142 sq. ft.

Lower Level

98 sq. ft.

1st Floor

1,205 sq. ft.

2nd Floor

839 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Garage

Type

Attached, Drive Under

Area

1107 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Second Story

9' 0''

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Workshop

Wraparound Porch
