Plan 70514MK
3 Bed Cottage with Loft Overlook - 1559 Sq Ft
Heated S.F.
1,559
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 70514MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70514MK

1-800-854-7852

1-262-521-4596

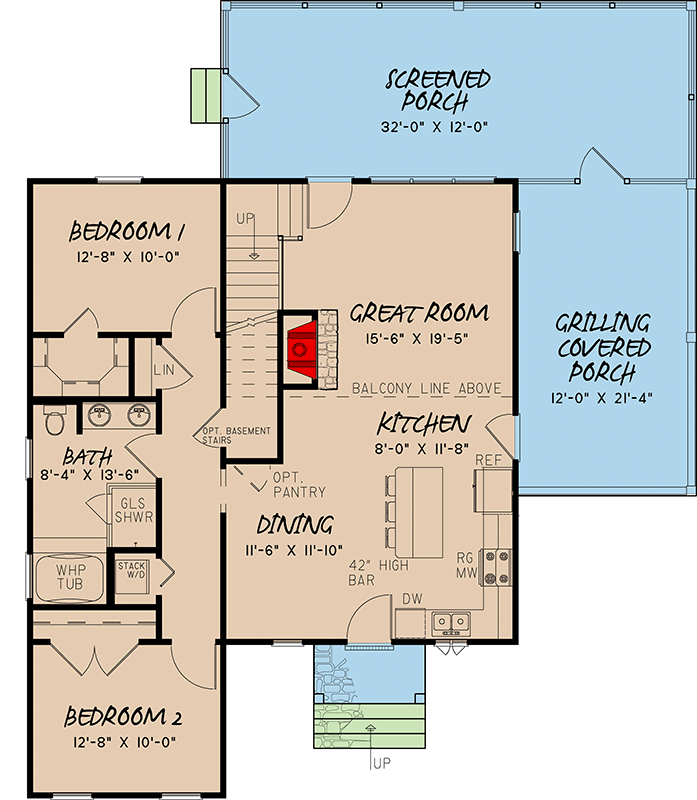

Main Level
floor plan image Main Level

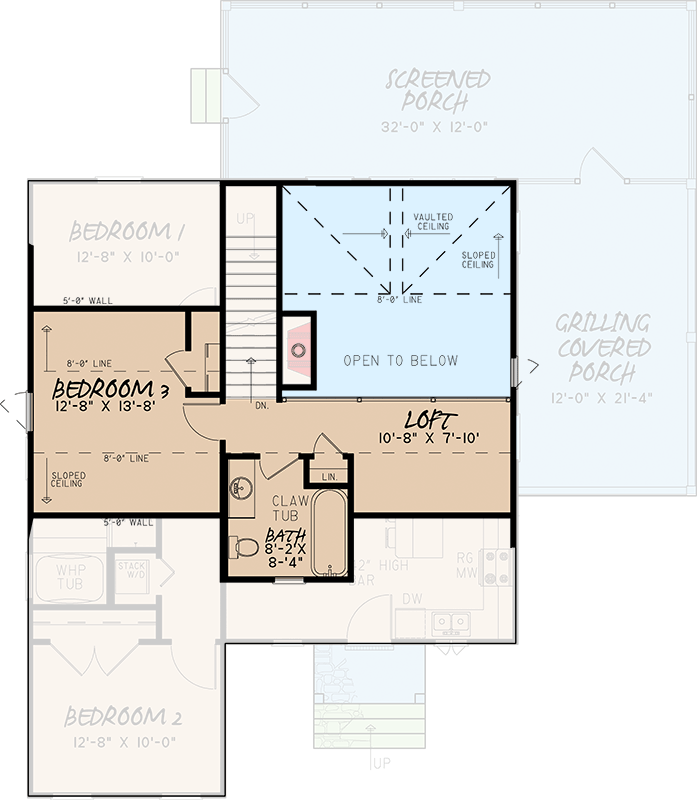

2nd Floor
floor plan image 2nd Floor
Plan Details

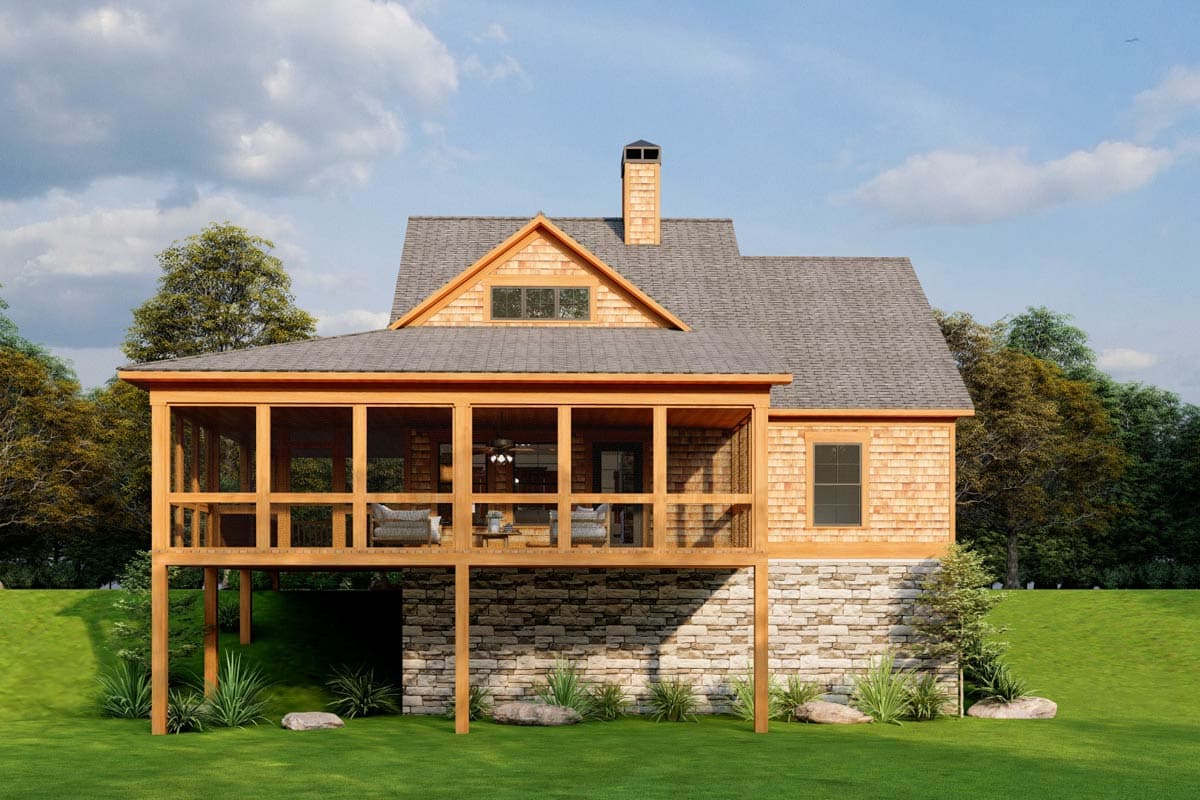

  • This 3 bed house plan gives you rustic appeal with a shingled exterior and porches wrapping the back-right corner.
  • The front covered entry welcomes you into the open floor plan with kitchen, dining area and great room combined into one big space.
  • The kitchen features an eat-at island bar and has views of the great room with its fireplace on the side wall. Doors lead to the outside from the kitchen (to the grilling porch) and great room (to the screened porch).
  • Two bedrooms are located on the left side of the home with a bathroom in the middle that offers a glass shower and a whirlpool tub. Upstairs you'll find the third bedroom and bathroom with a tub. There is also a loft that overlooks the great room below.
  • The roof is stick framed and has 9:12 main pitch and a 4:12 secondray pitch.
  • Related Plans: For an alternate version, see house plans - 60653ND
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,559 sq. ft.

1st Floor

1,171 sq. ft.

2nd Floor

388 sq. ft.

Porch, Combined

670 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

53' 8"

Max Ridge Height

23' 6"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,559 sq. ft.

1st Floor

1,171 sq. ft.

2nd Floor

388 sq. ft.

Porch, Combined

670 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

53' 8"

Max Ridge Height

23' 6"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Two Story Great Room
