Plan 60653ND

Rustic Shingle Style House Plan

Heated S.F.
1,560
Beds
3
Baths
2
Stories
2

Floor Plan

Plan 60653ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60653ND

M-F 9am-5pm EST |

1-203-761-8500

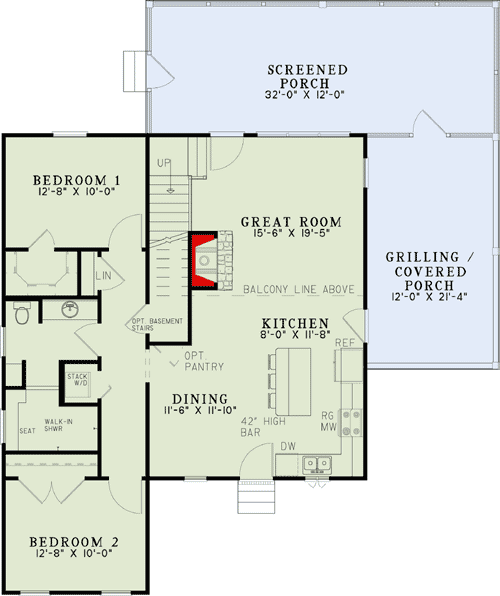

Main Level

Plan 60653ND: Rustic Shingle Style House Plan - Floor Plan - Main Level - Cabin, Mountain, Rustic, Shingle

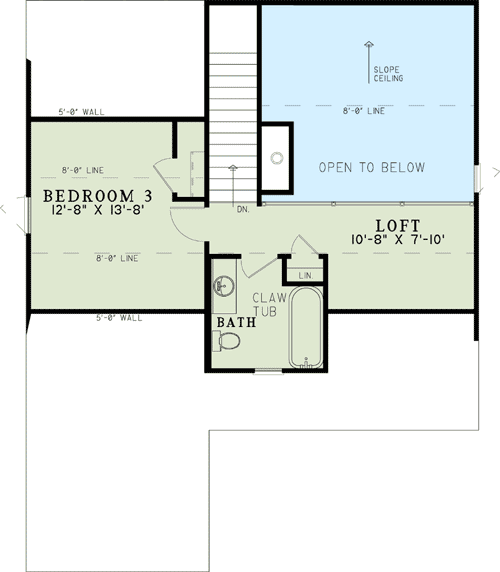

2nd Floor

Plan 60653ND: Rustic Shingle Style House Plan - Floor Plan - 2nd Floor - Cabin, Mountain, Rustic, Shingle

Plan Details

  • This rustic Shingle style home features shake siding and an open floor plan and offers a wonderful covered grilling porch on the side as well as a large screened porch in the rear.
  • The kitchen features an eat-at island bar and is open to the dining area and the great room.
  • The great room has access to both porches and features a fireplace.
  • Bedrooms 1 and 2 are down the hall from one another with a bathroom between them.
  • Upstairs is a loft overlooking the great room as well as the master bedroom and a full bathroom.
  • Related Plans: For an alternate version, see house plans - 70514MK

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,560 sq. ft.

1st Floor

1,172 sq. ft.

2nd Floor

388 sq. ft.

Porch, Rear

256 sq. ft.

Screened Porch

384 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

53' 8"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cabin

Mountain

Rustic

Shingle

Special Features

Laundry - Main Level

Loft

Master Suite - Upstairs

Two Story Great Room

Wraparound Porch
