Plan 51927HZ

3-Bed Farmhouse-Style Cottage with 2-Car Garage - 1479 Sq Ft

Heated S.F.
1,479
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51927HZ

Main Level
Main Level
Main Level - Basement Stair Location
Main Level - Basement Stair Location

Plan 51927HZ

M-F 9am-5pm EST |

1-203-761-8500

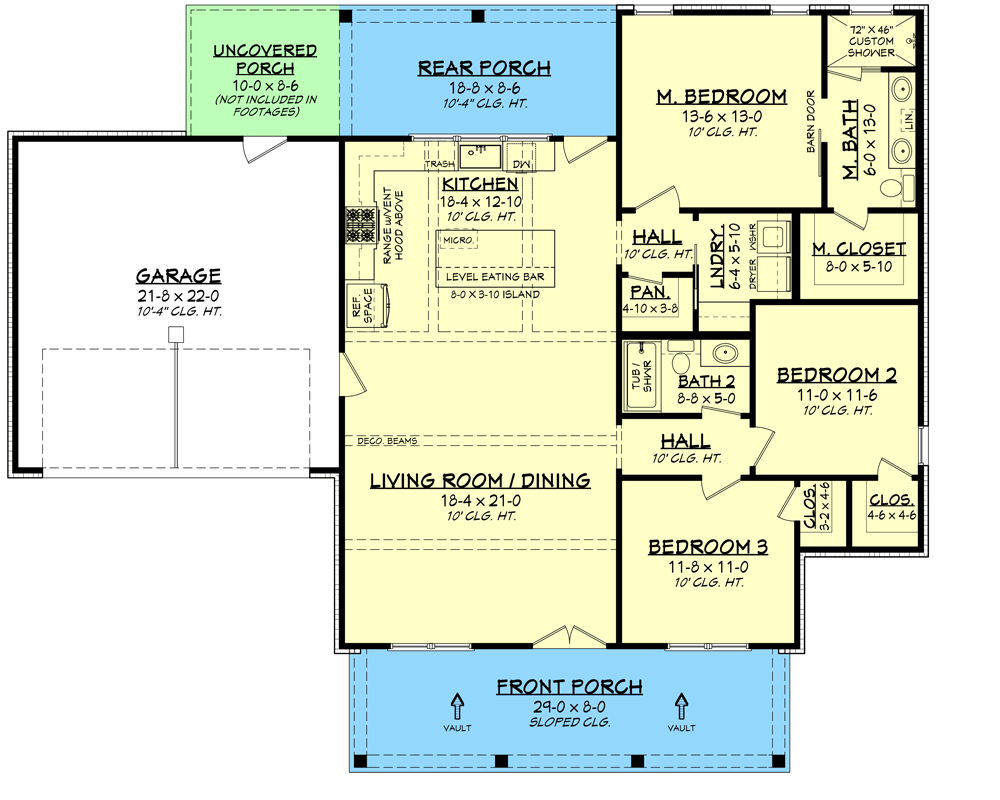

Main Level

Plan 51927HZ: 3-Bed Farmhouse-Style Cottage with 2-Car Garage - 1479 Sq Ft - Floor Plan - Main Level - Cottage, Country, Farmhouse, Modern Farmhouse

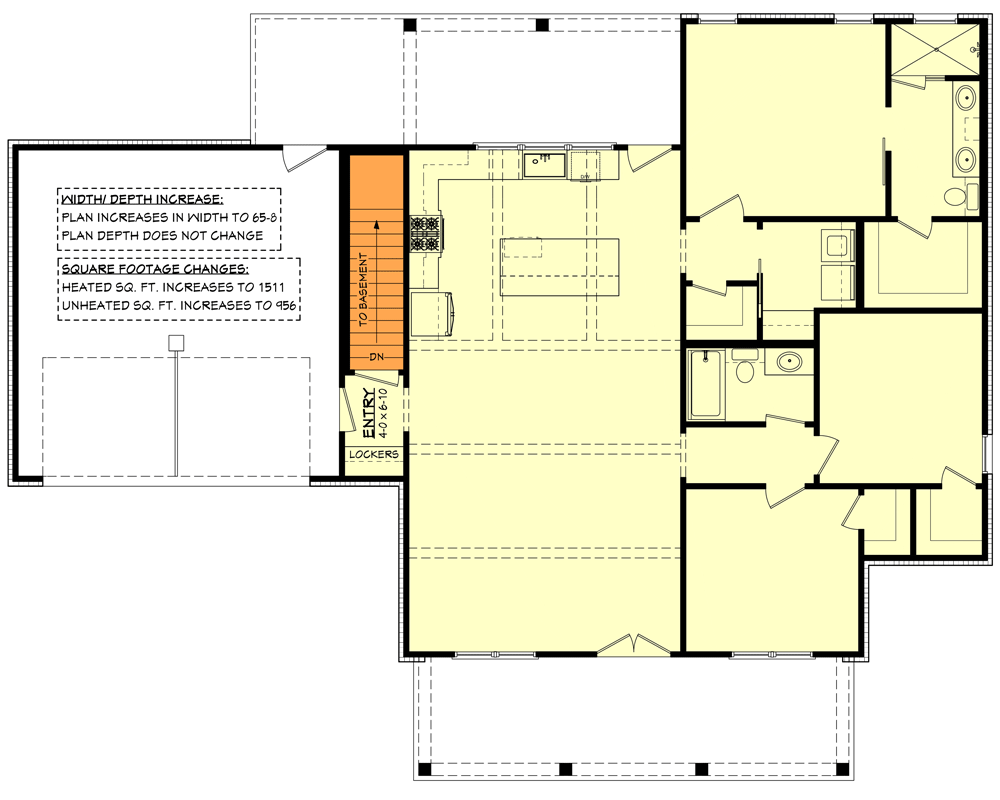

Main Level - Basement Stair Location

Plan 51927HZ: 3-Bed Farmhouse-Style Cottage with 2-Car Garage - 1479 Sq Ft - Floor Plan - Main Level - Basement Stair Location - Cottage, Country, Farmhouse, Modern Farmhouse

Plan Details

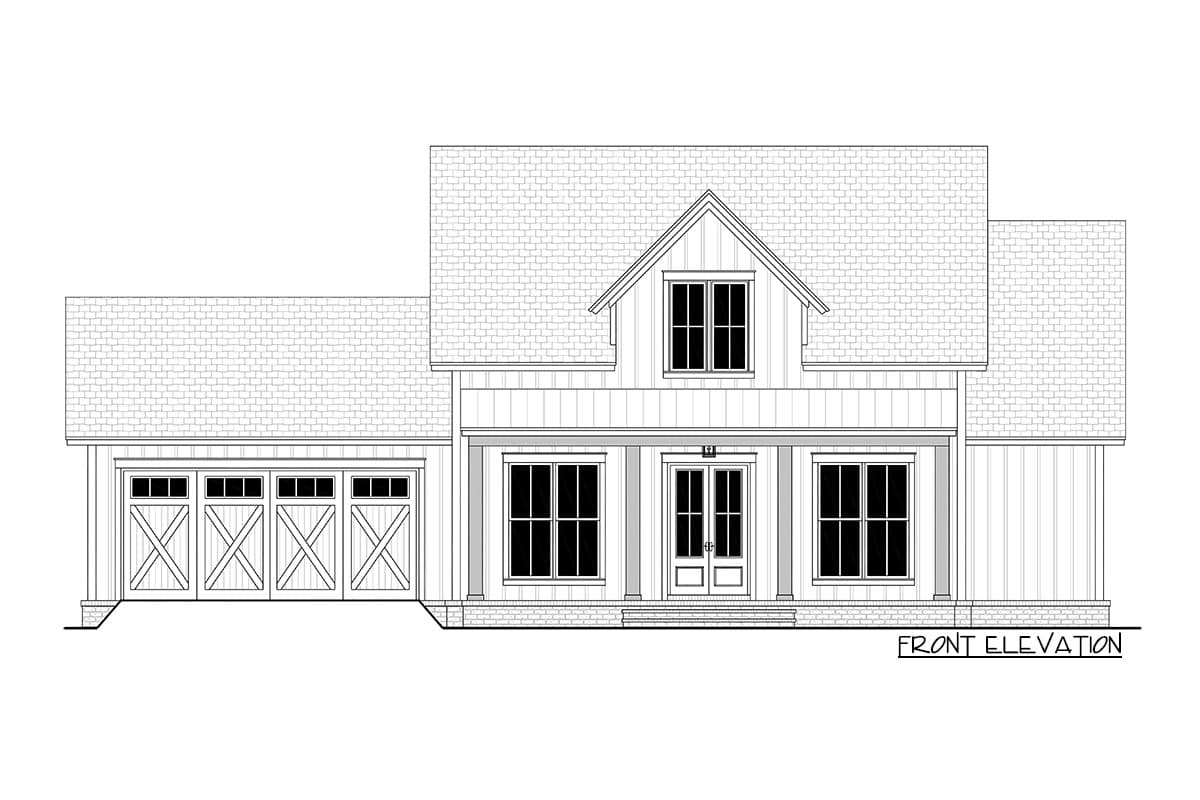

  • A large gable (there for aesthetic purposes) is centered over the 8'-deep front porch on this small farmhouse plan and gives it great curb appeal. The board and batten exterior - and standing seam metal roof over the front porch - adds to the farmhouse vibe.
  • Step through the double doors and you find yourself in a space open front to back giving you a kitchen and a combined living and dining room space with decorative beams.
  • The kitchen has 8' by 3' island with seating on the living room side and access to a walk-in pantry and to the rear 8'6"-deep porch.
  • Bedrooms are located on the right, including the master suite with dual vanities. and walk-in closet.
  • An oversized 2-car garage gives you parking and access to the back yard.
  • Related Plans: Get an alternate version with house plan 51865HZ (1,448 sq. ft.) and remove the garage with house plans 51899HZ (1,263 sq. ft.) and 51835HZ (1,257 sq. ft.).

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

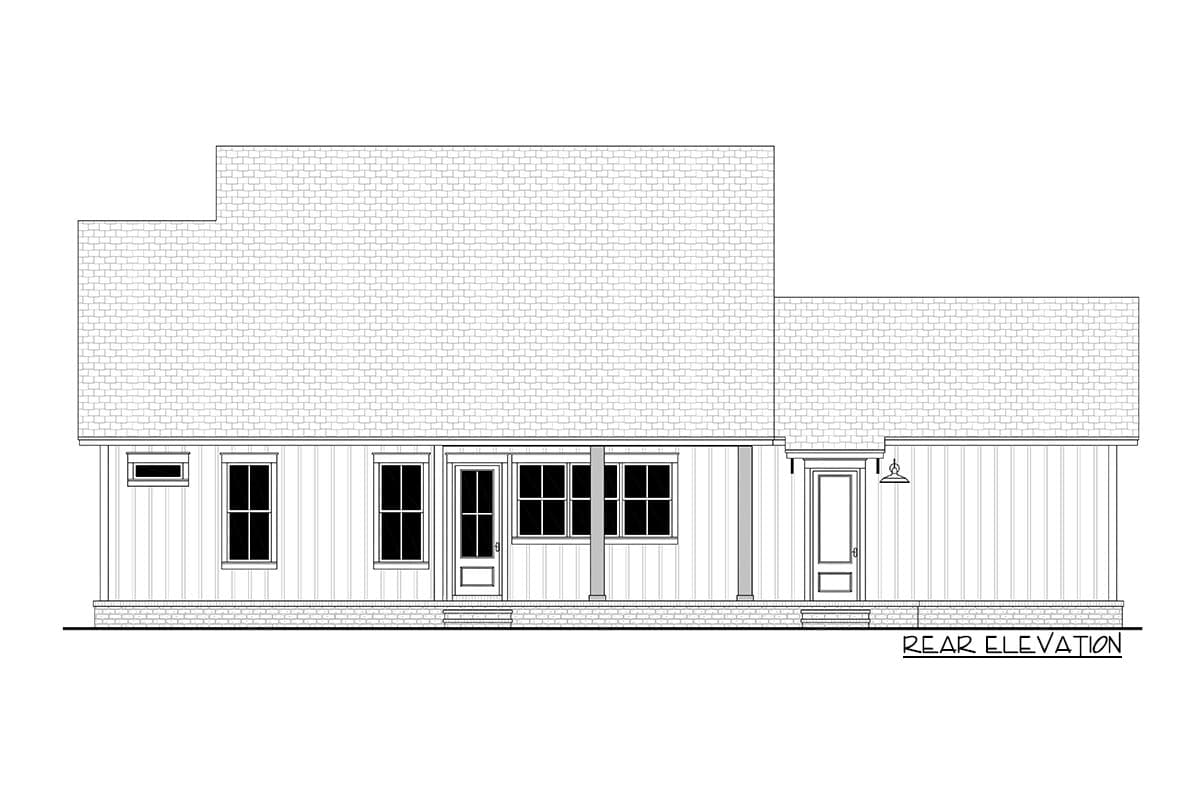

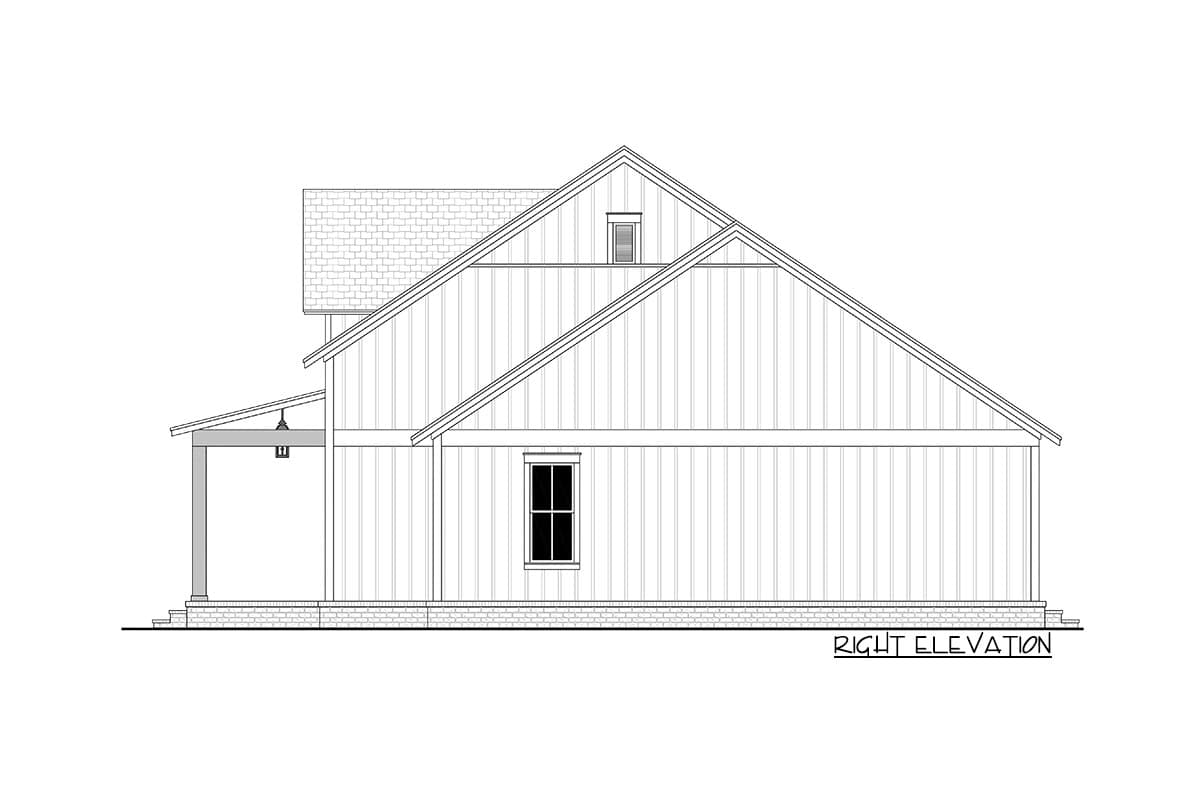

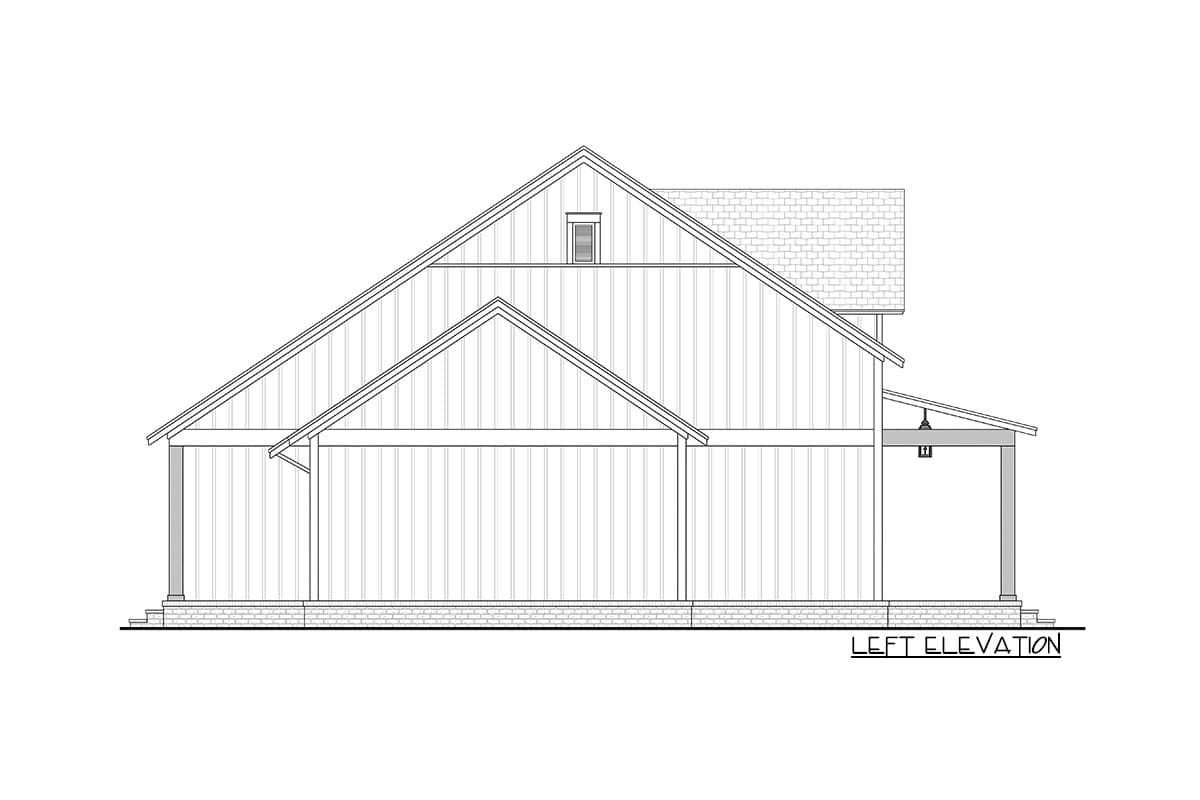

Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional notes
Page 7  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,479 sq. ft.

1st Floor

1,479 sq. ft.

Porch, Front

232 sq. ft.

Porch, Rear

159 sq. ft.

Porch, Combined

391 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 4"

Depth

51' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Modern Farmhouse

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,479 sq. ft.

1st Floor

1,479 sq. ft.

Porch, Front

232 sq. ft.

Porch, Rear

159 sq. ft.

Porch, Combined

391 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 4"

Depth

51' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Modern Farmhouse

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
