Plan 420017WNT 3-Bed Home Plan with Expansive Rear Porch

2,648 3-4 2 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Home Plan with Expansive Rear Porch

Plan 420017WNT

  • 2,648

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

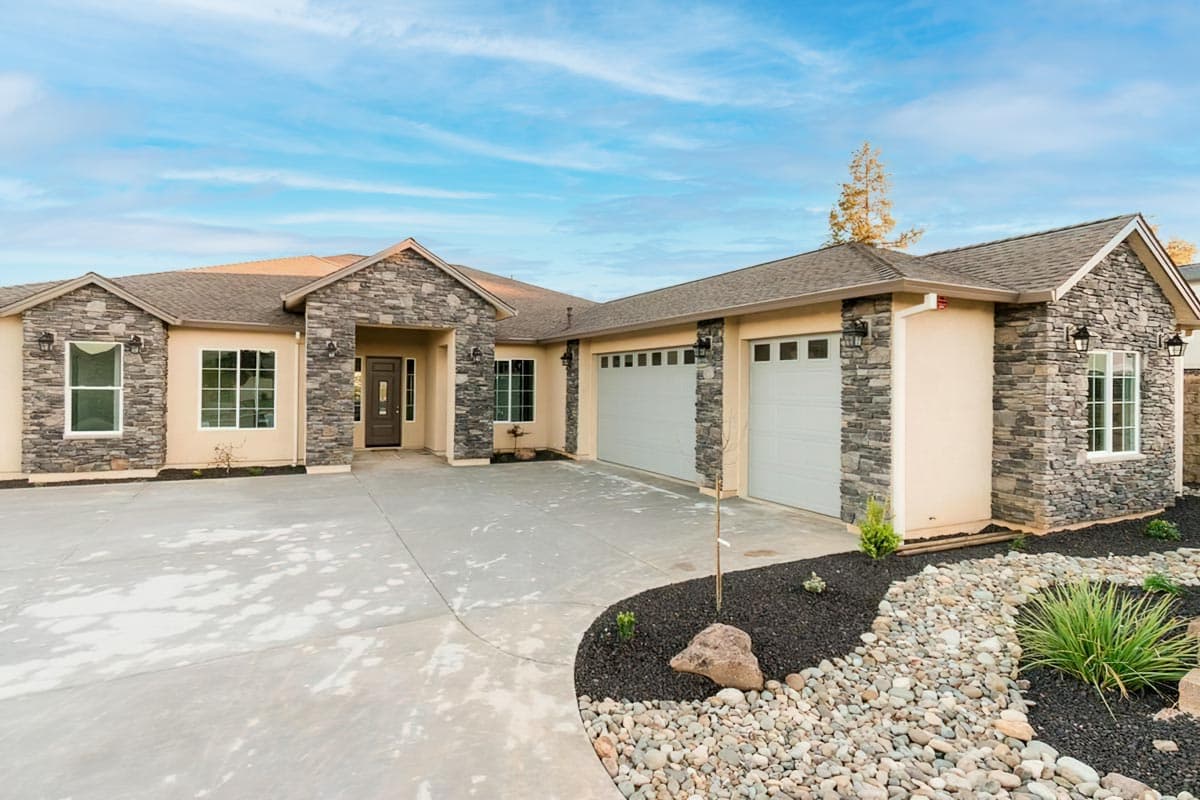

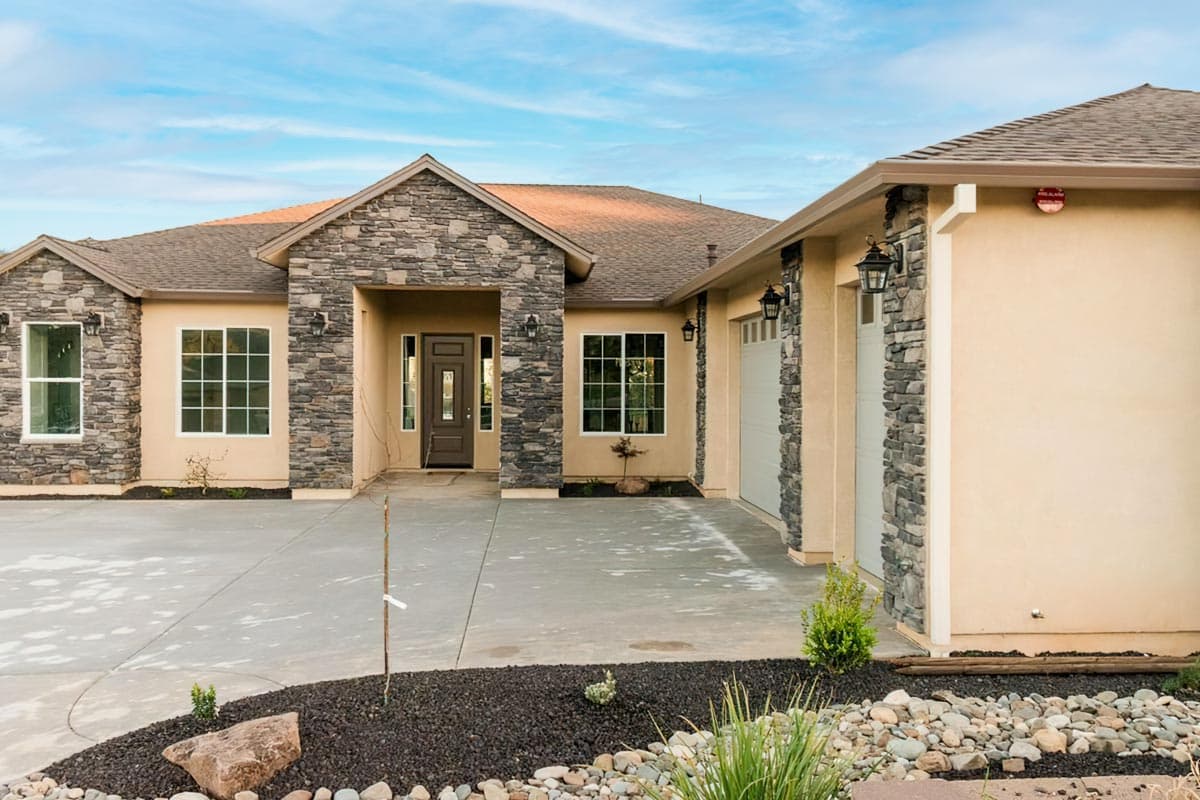

  • A parking courtyard in front of this 3-bedroom home plan provides a space for friends and family, created by the 3-car garage that protrudes from the front elevation.

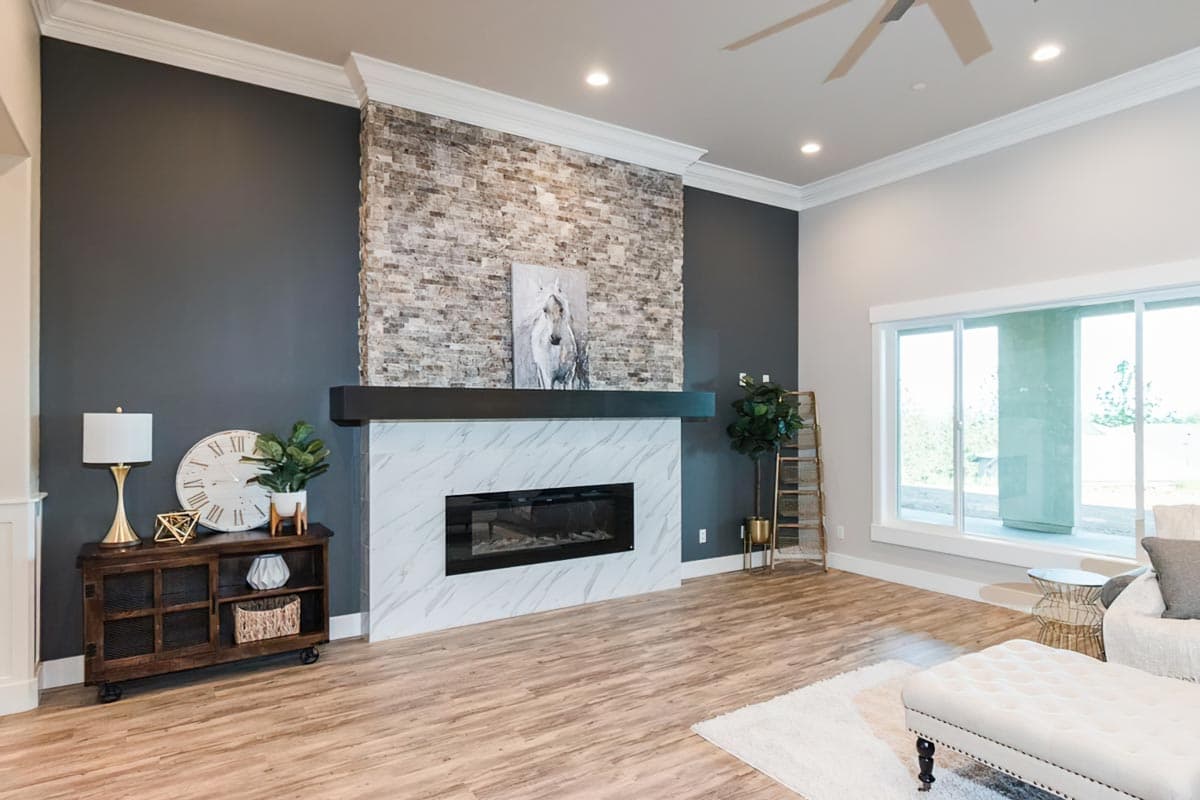

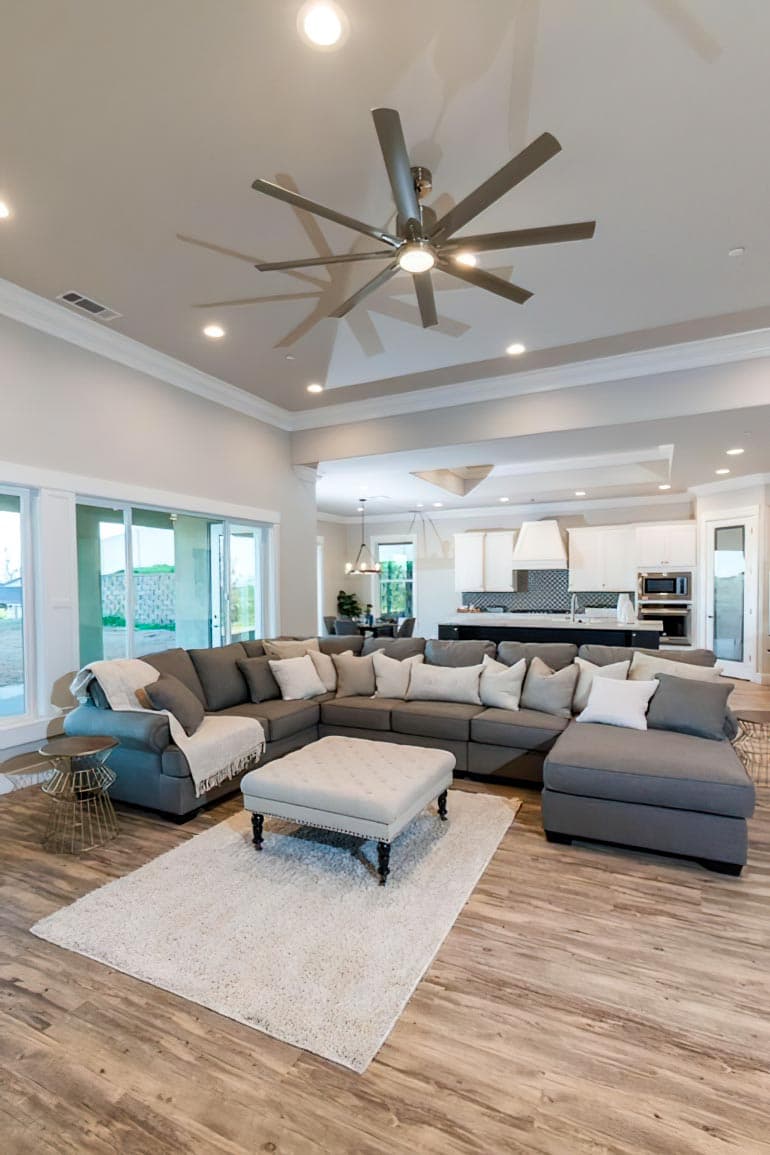

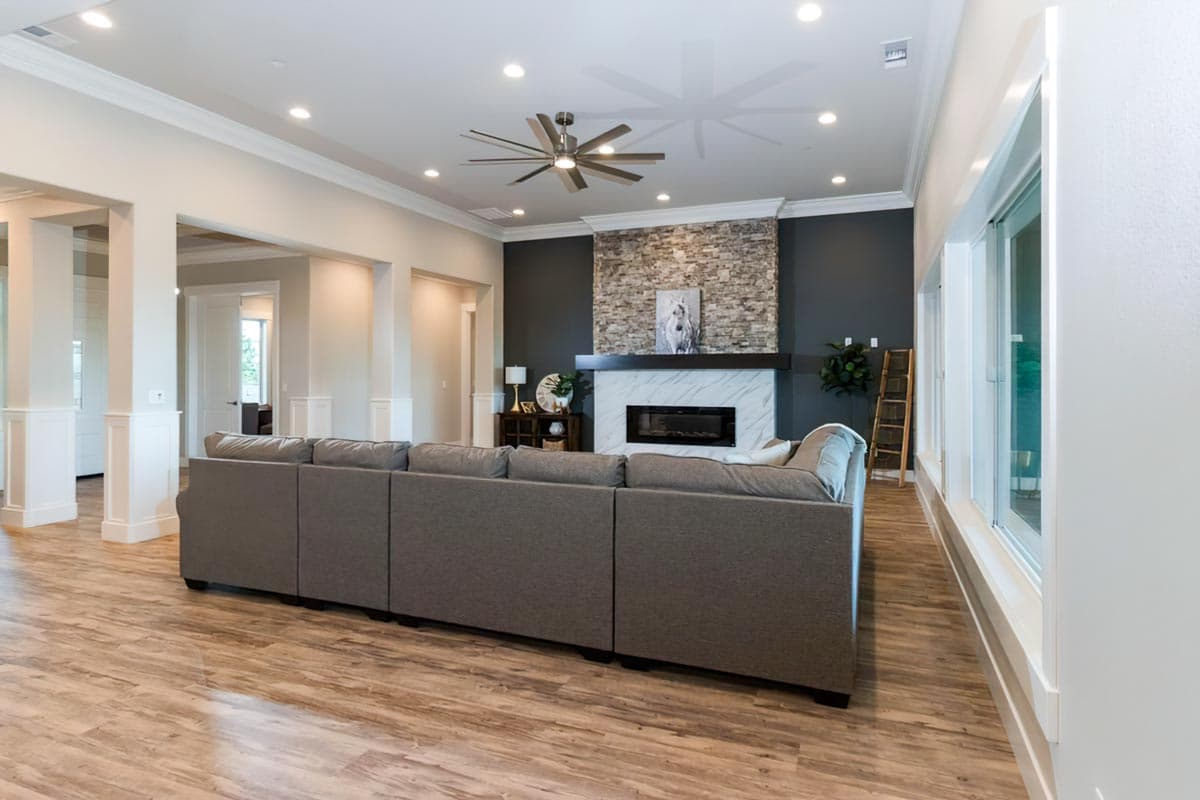

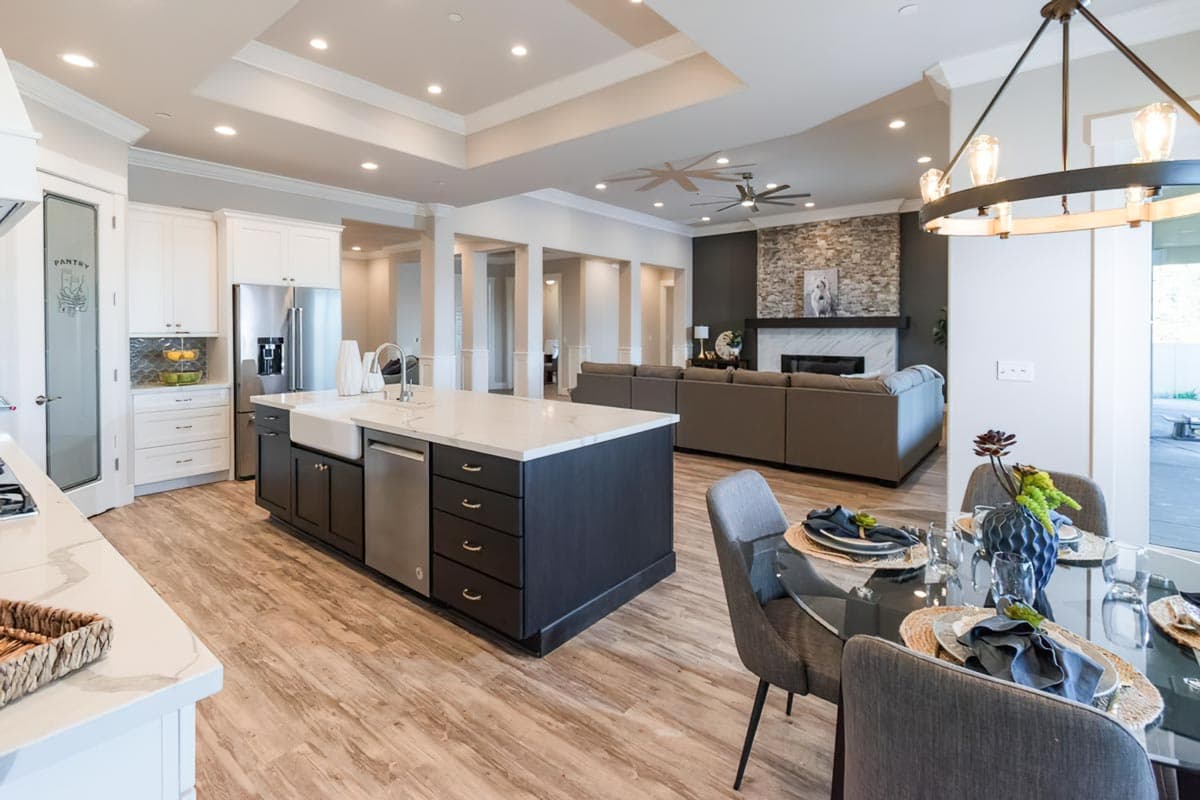

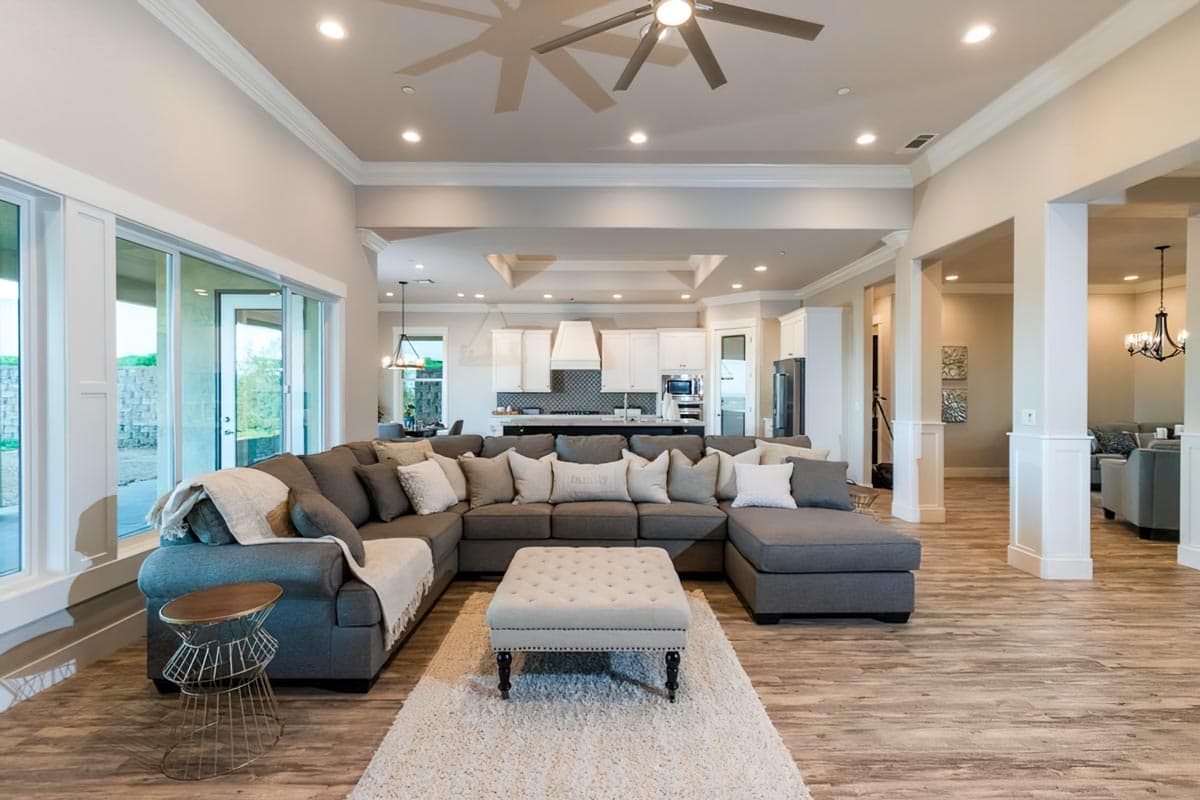

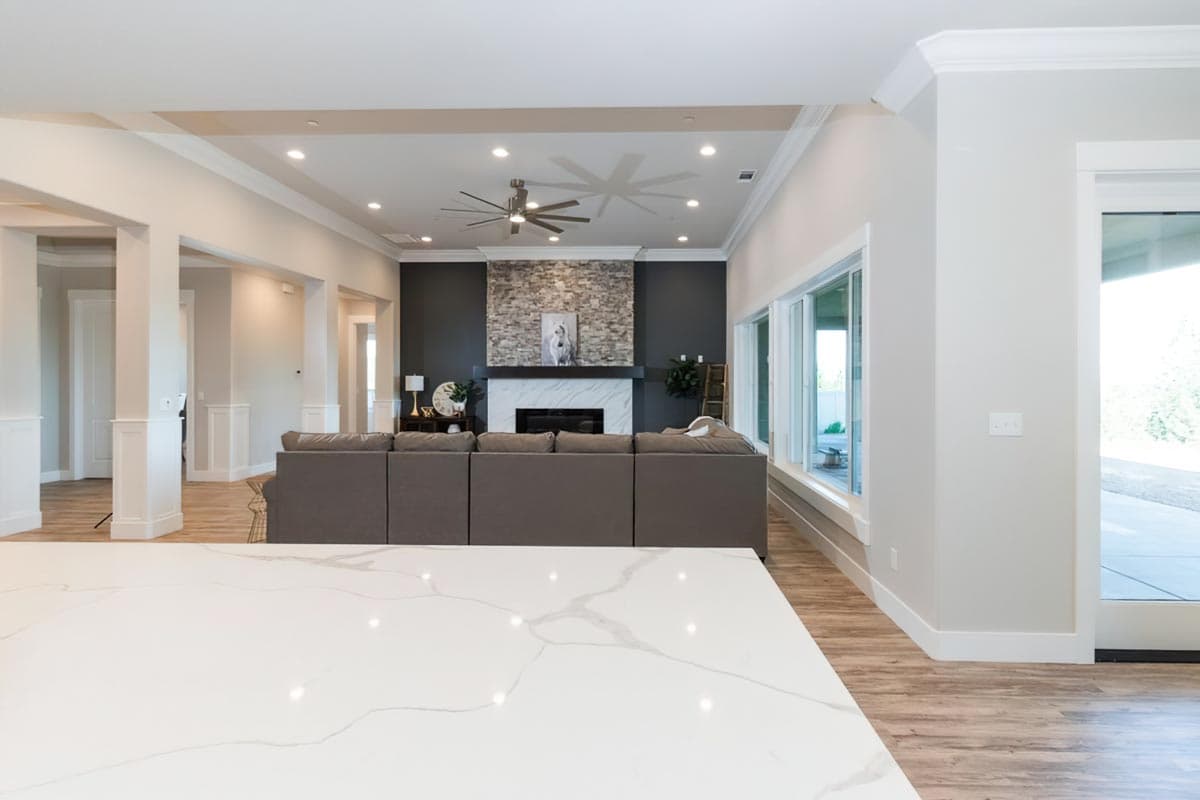

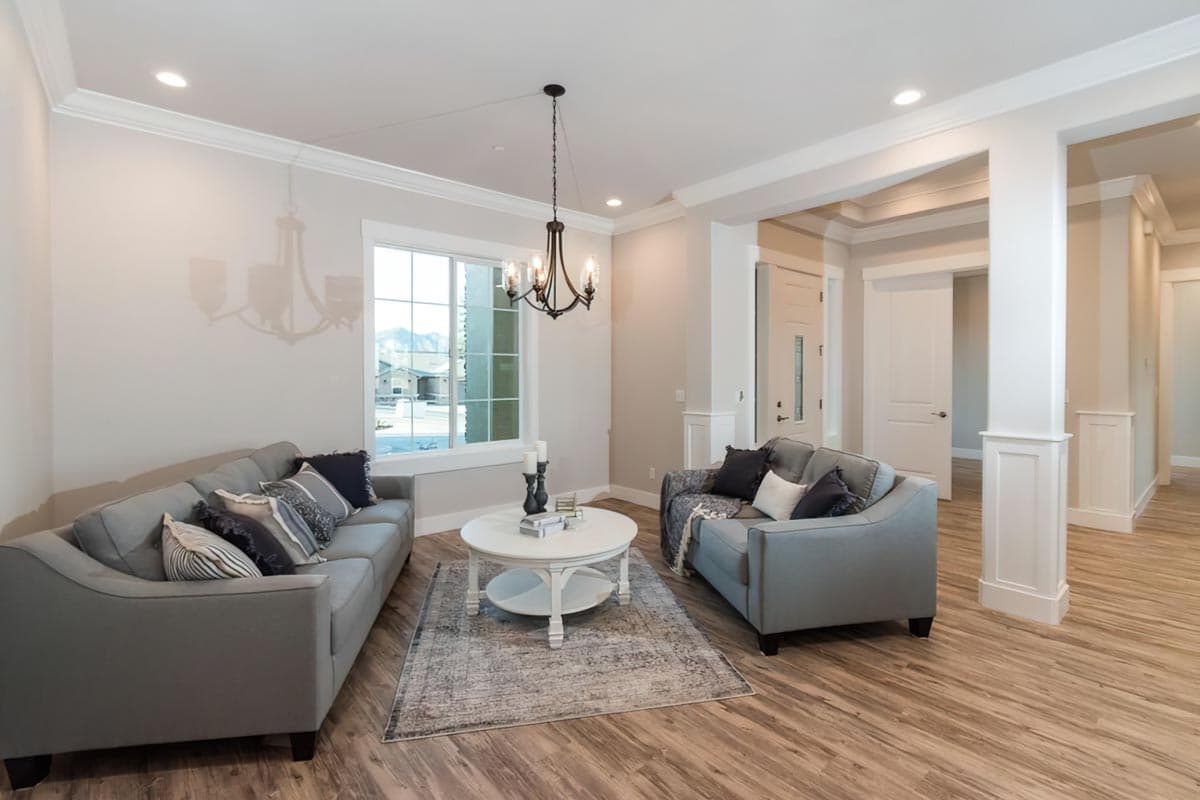

  • The formal dining room sits to the right of the foyer, which opens to a spacious living room and kitchen. An electric fireplace anchors the left wall, and two oversized windows provide views onto the back porch and beyond.

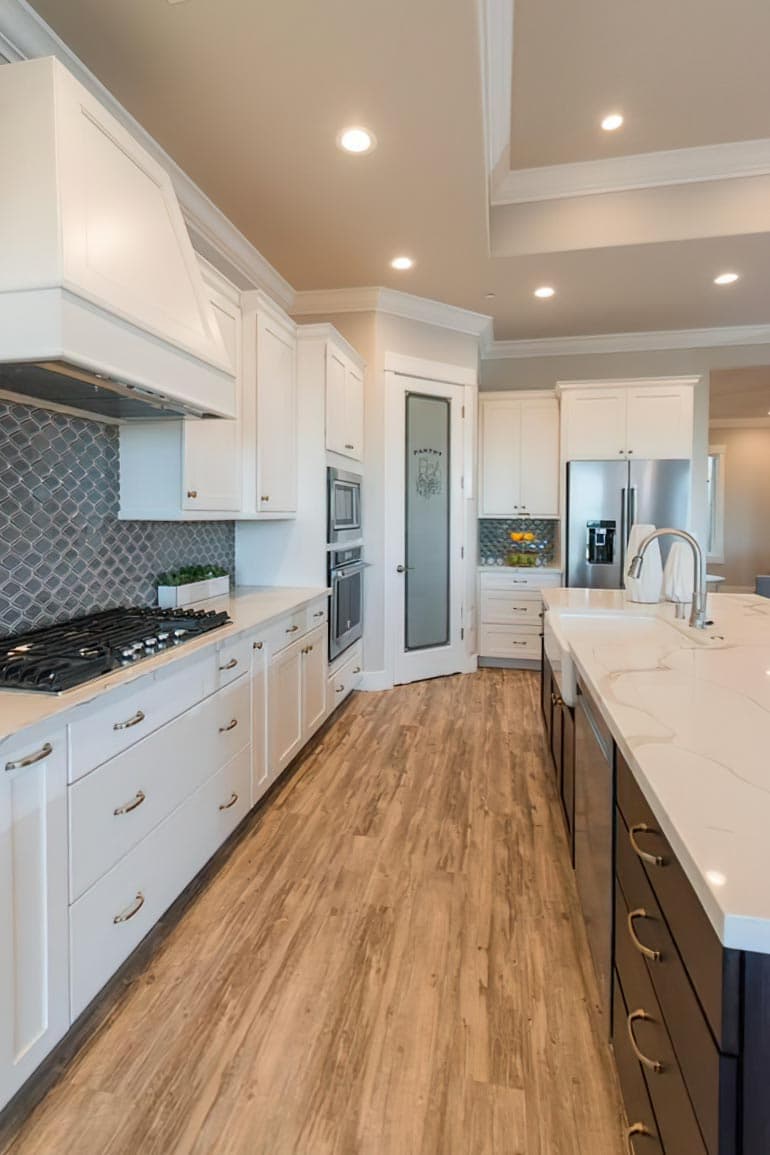

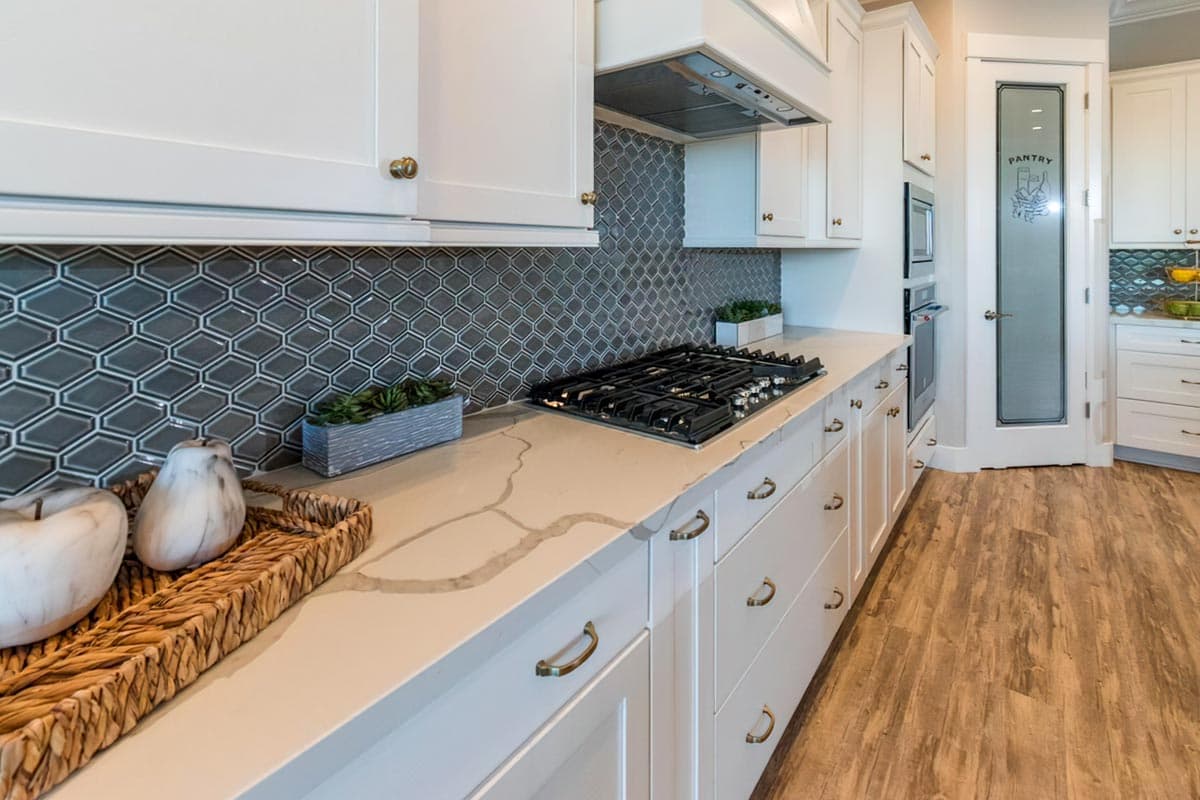

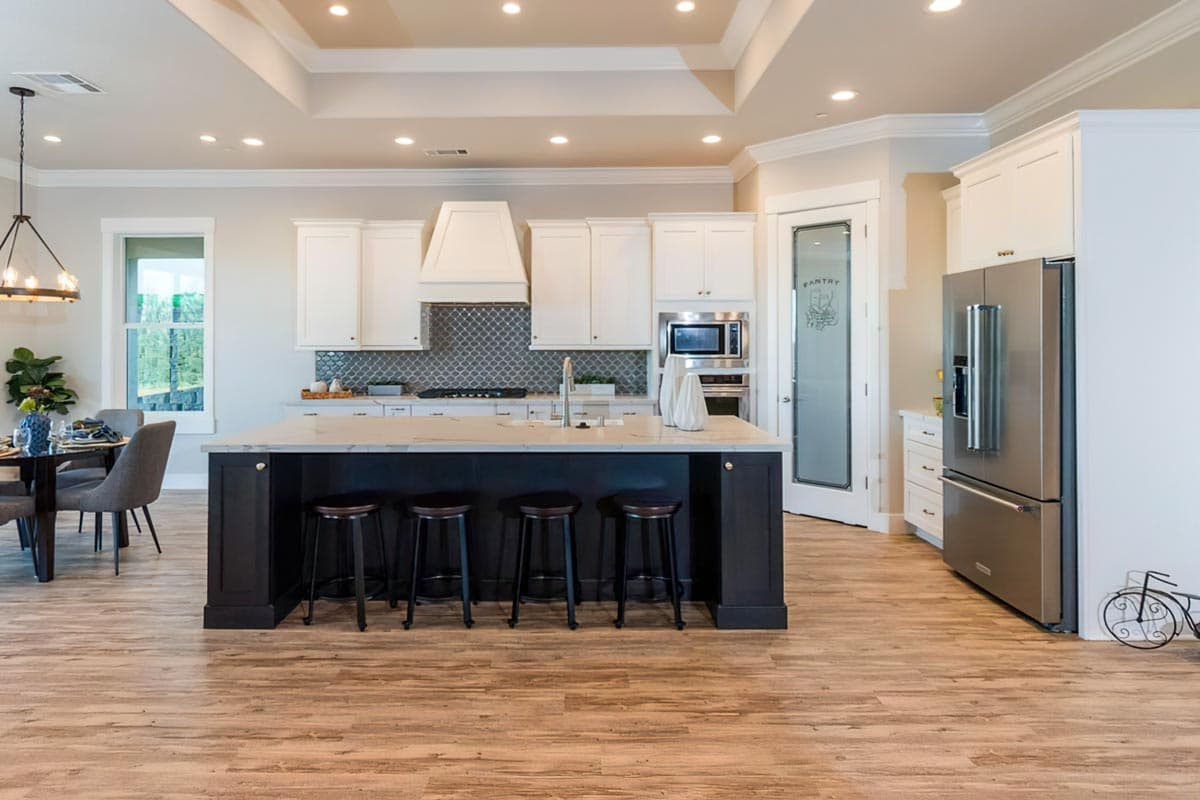

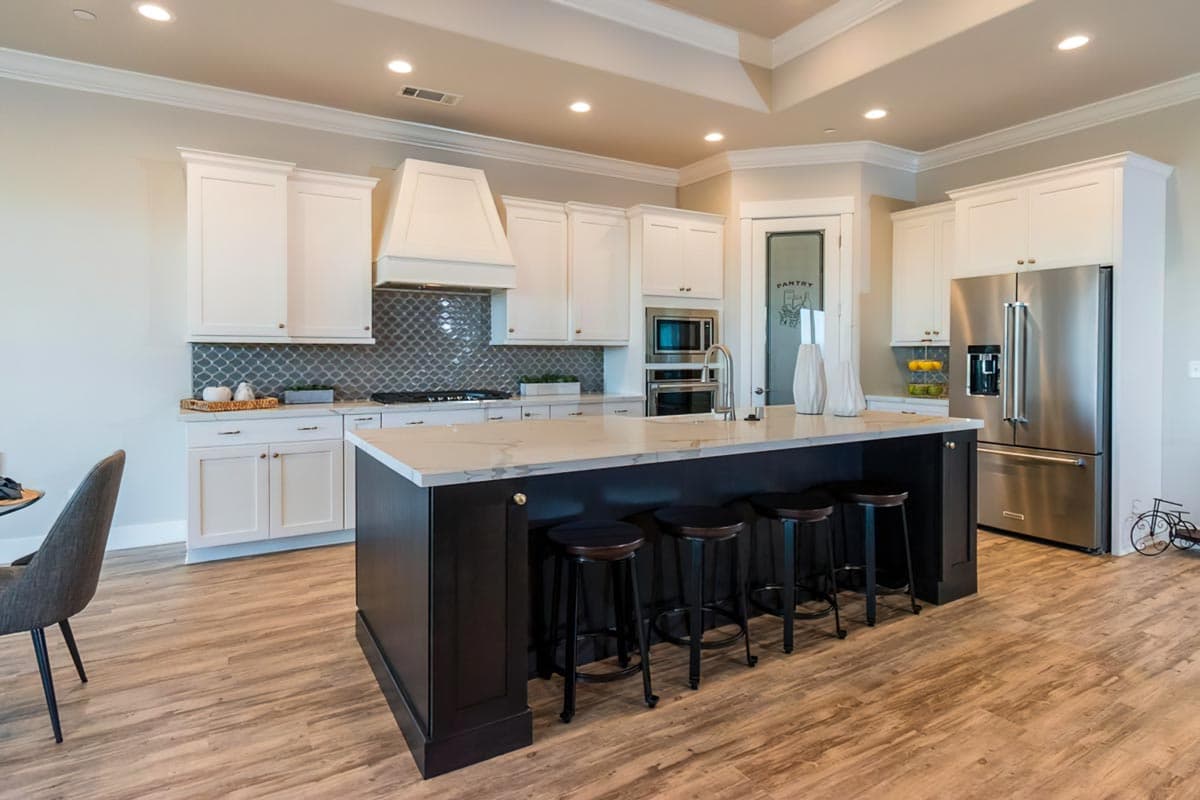

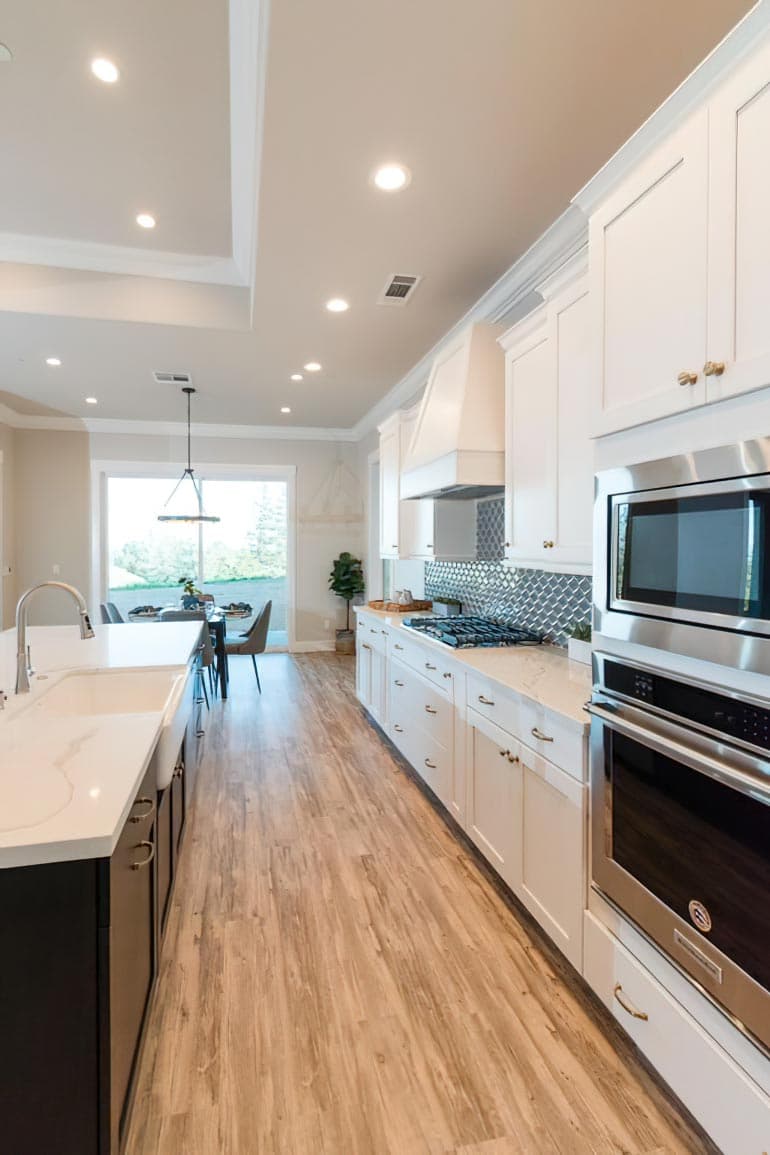

  • Cooking is a delight in this spacious kitchen, which hosts a central island, corner pantry, and 6-burner range.

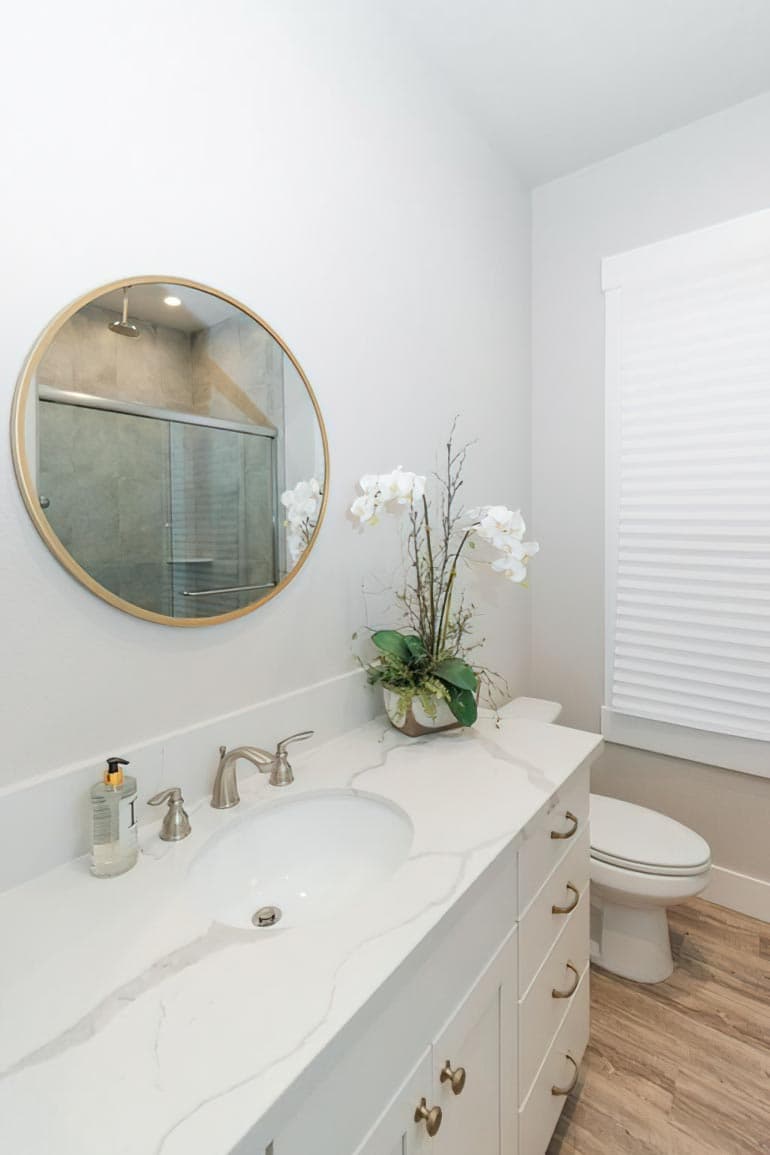

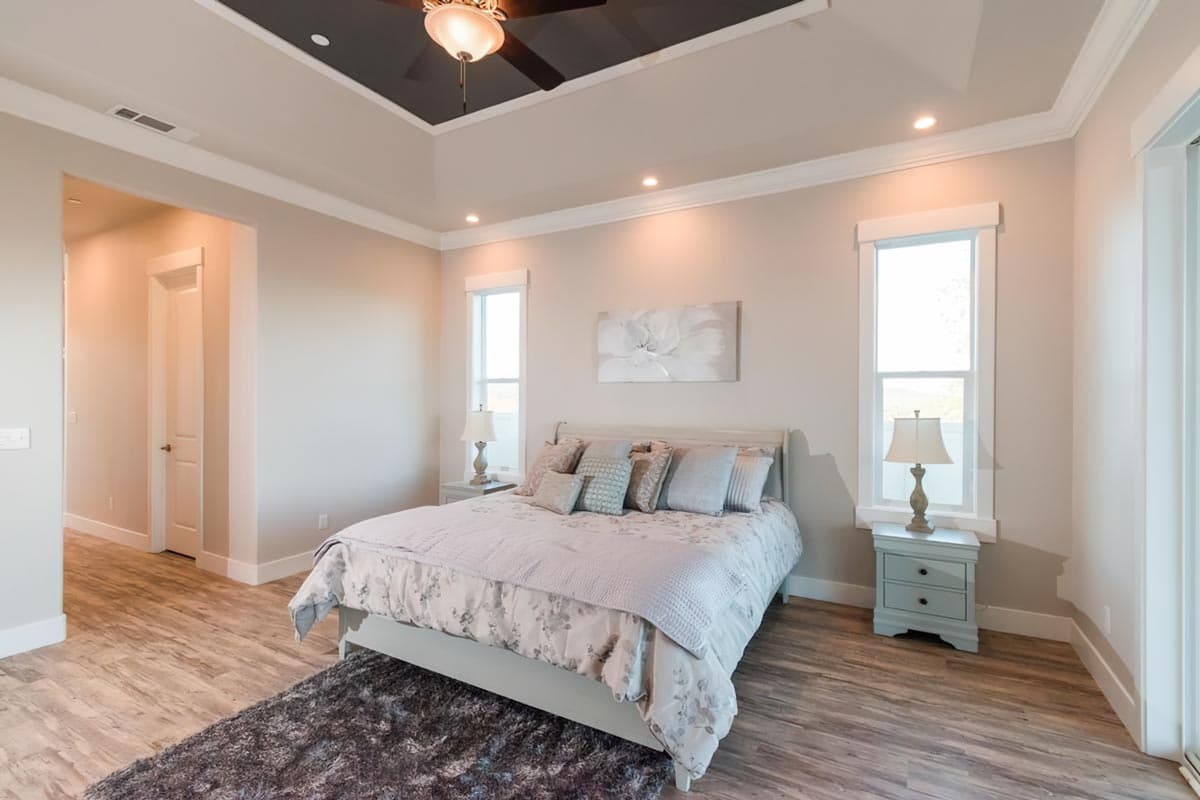

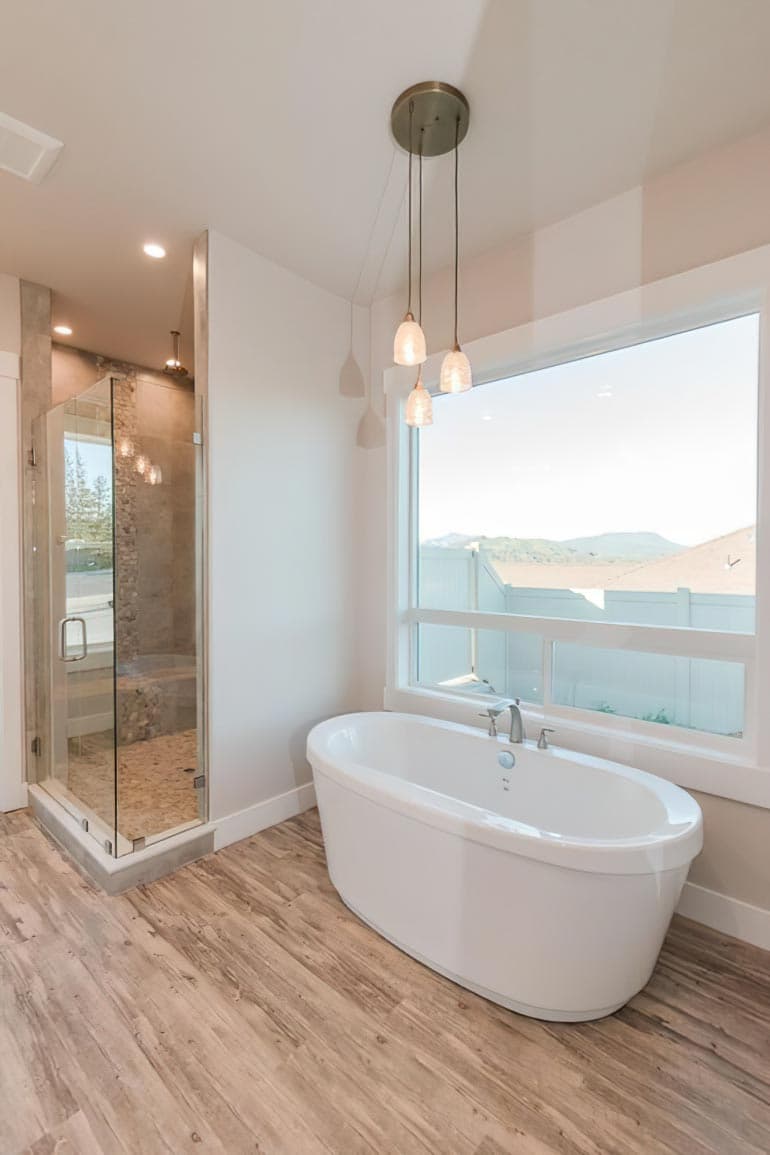

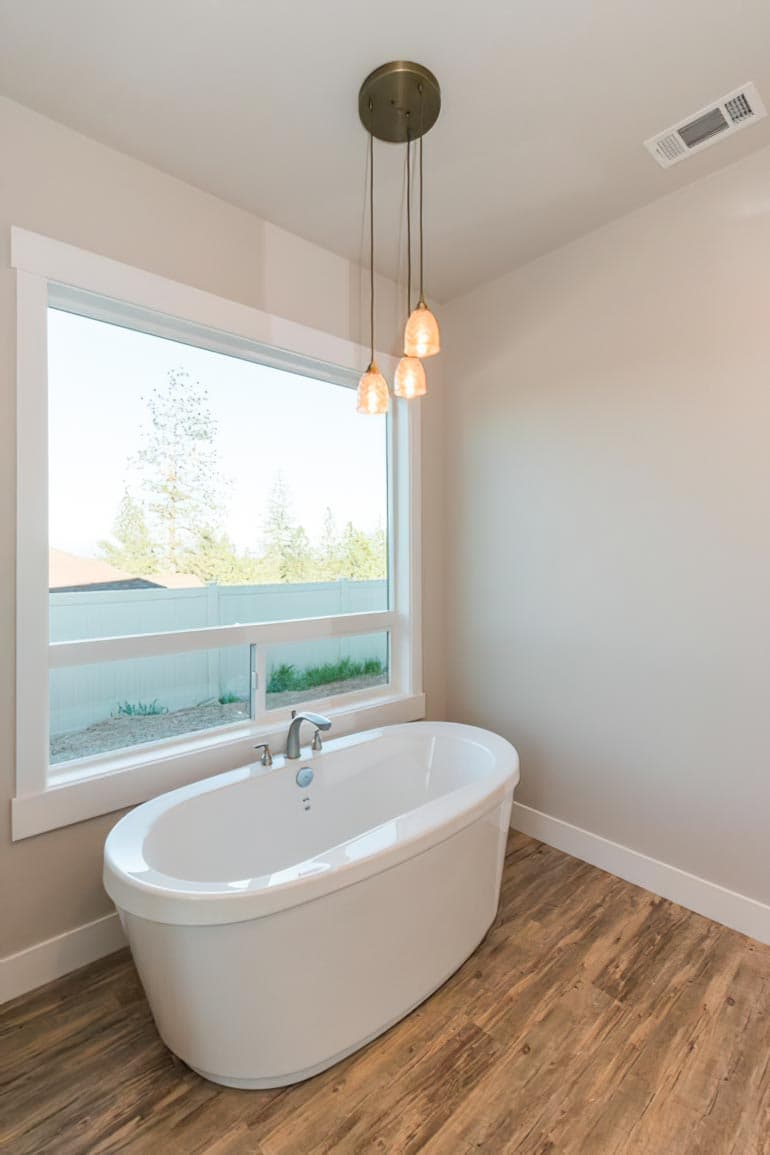

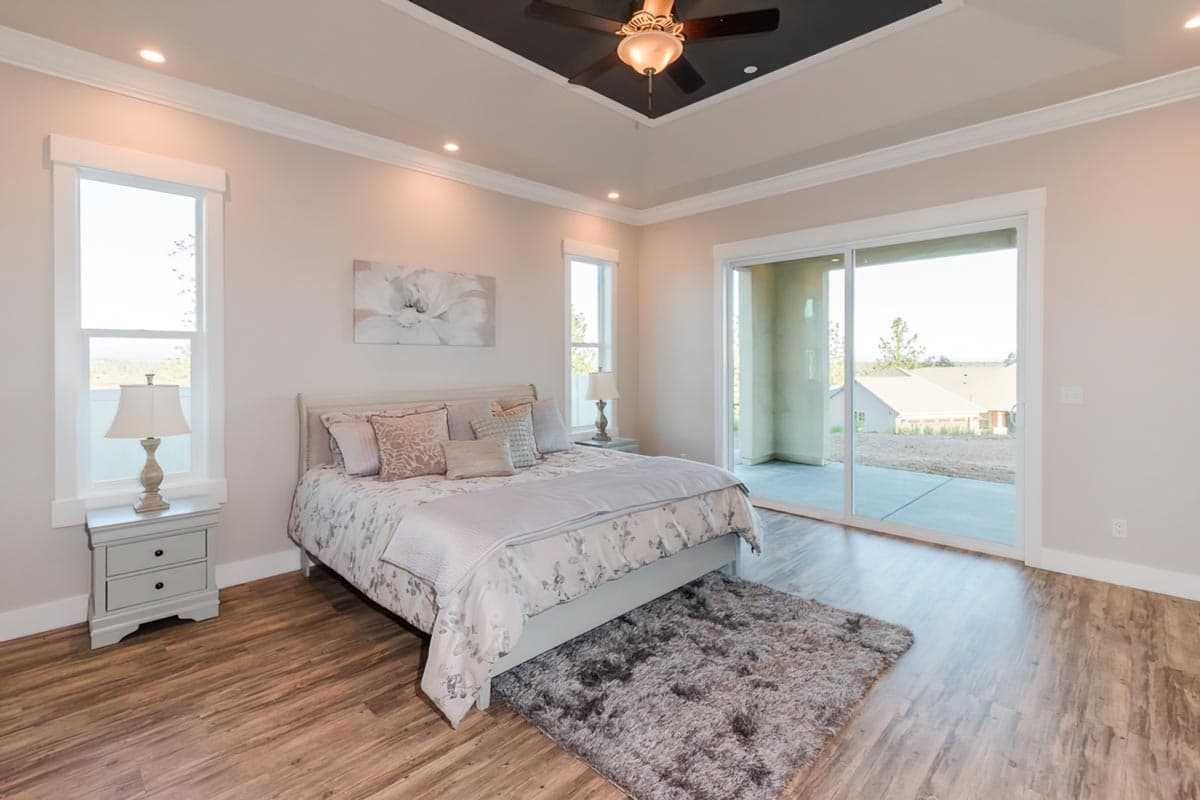

  • Two walk-in closets can be found in the master bedroom, along with a tile shower and standalone tub in the attached bath.

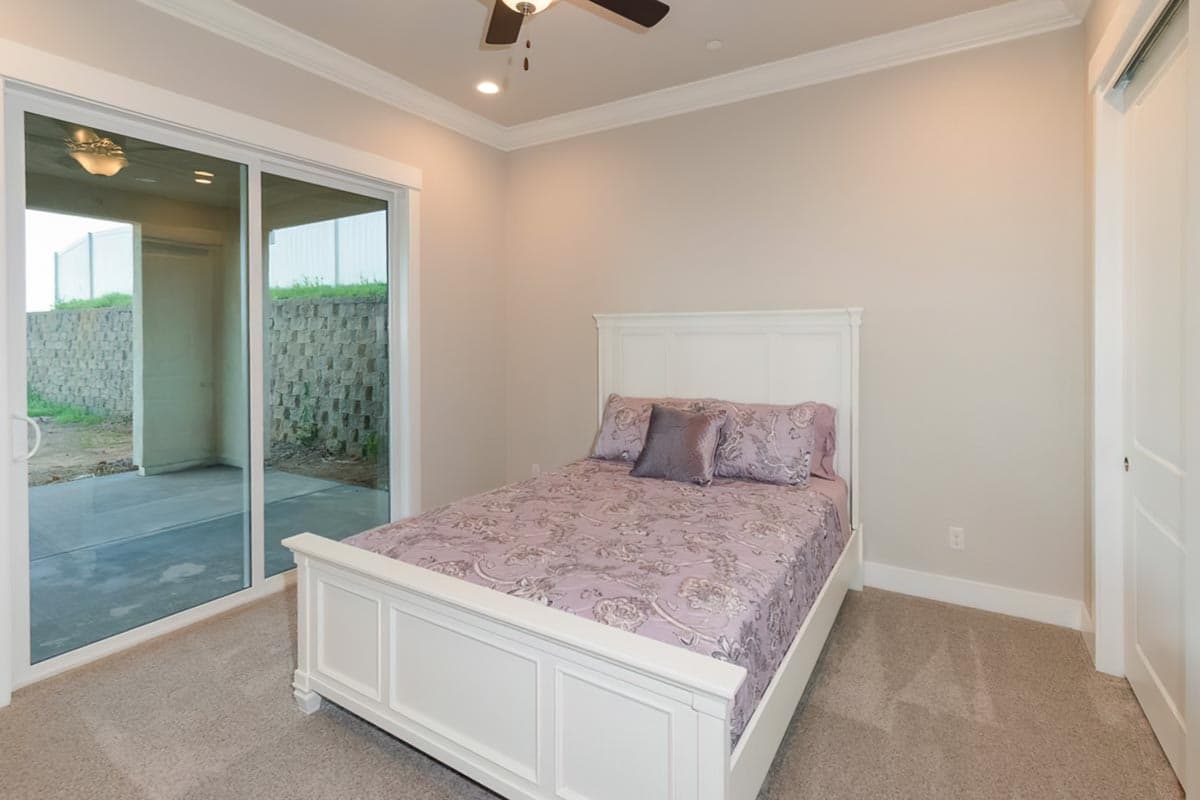

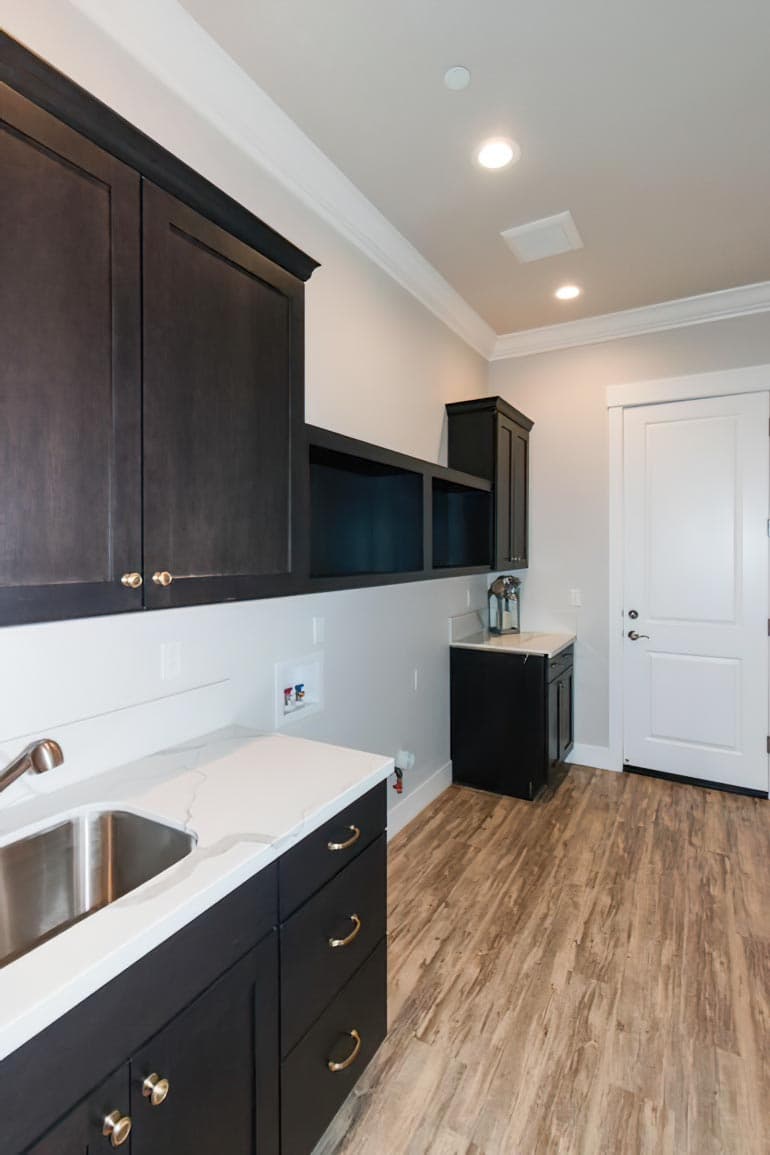

  • Three additional bedrooms are dotted throughout the design, and the laundry room includes a utility sink and leads you to the garage.
  • NOTE: Please allow 3 to 5 business days for delivery.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

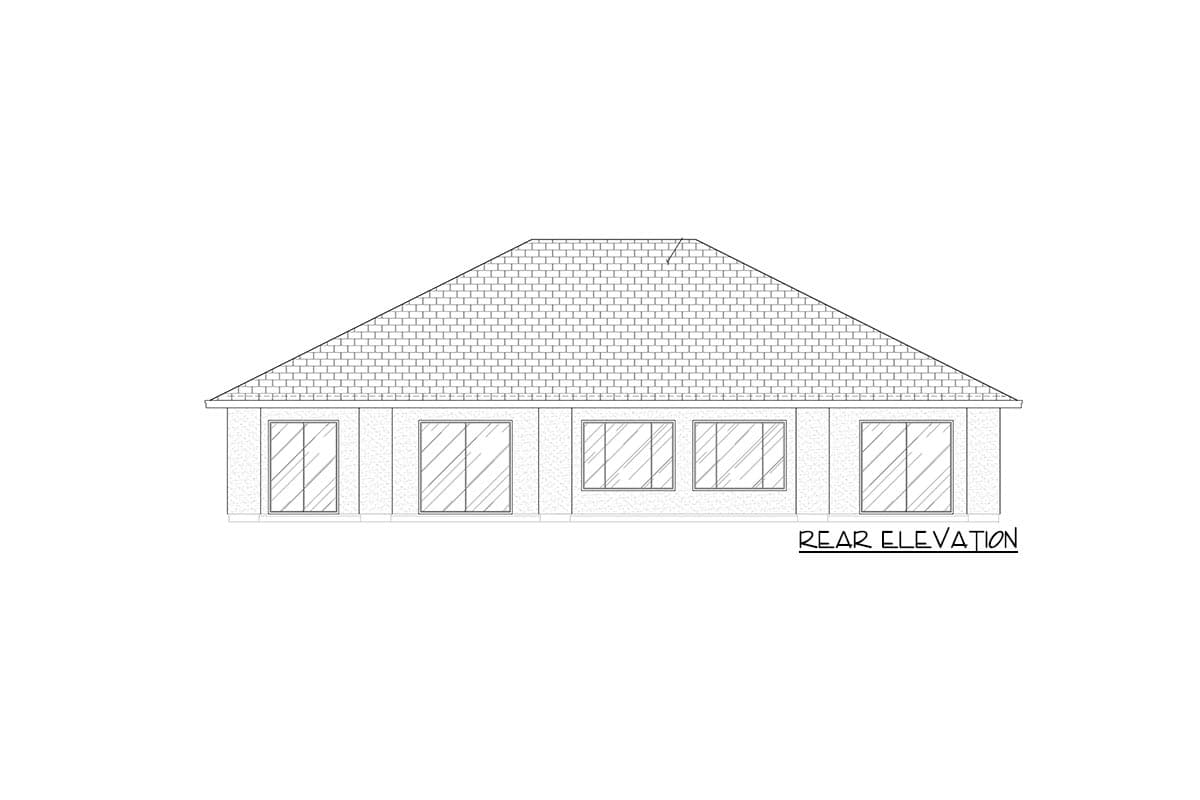

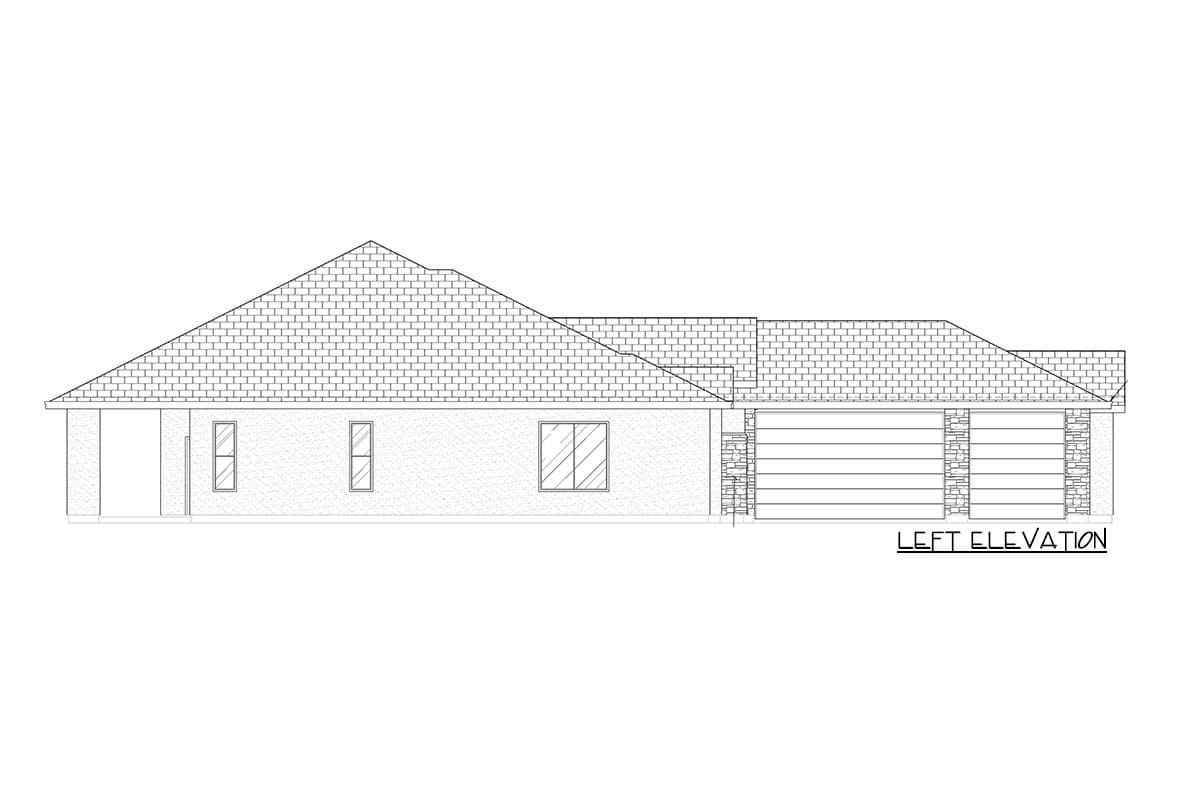

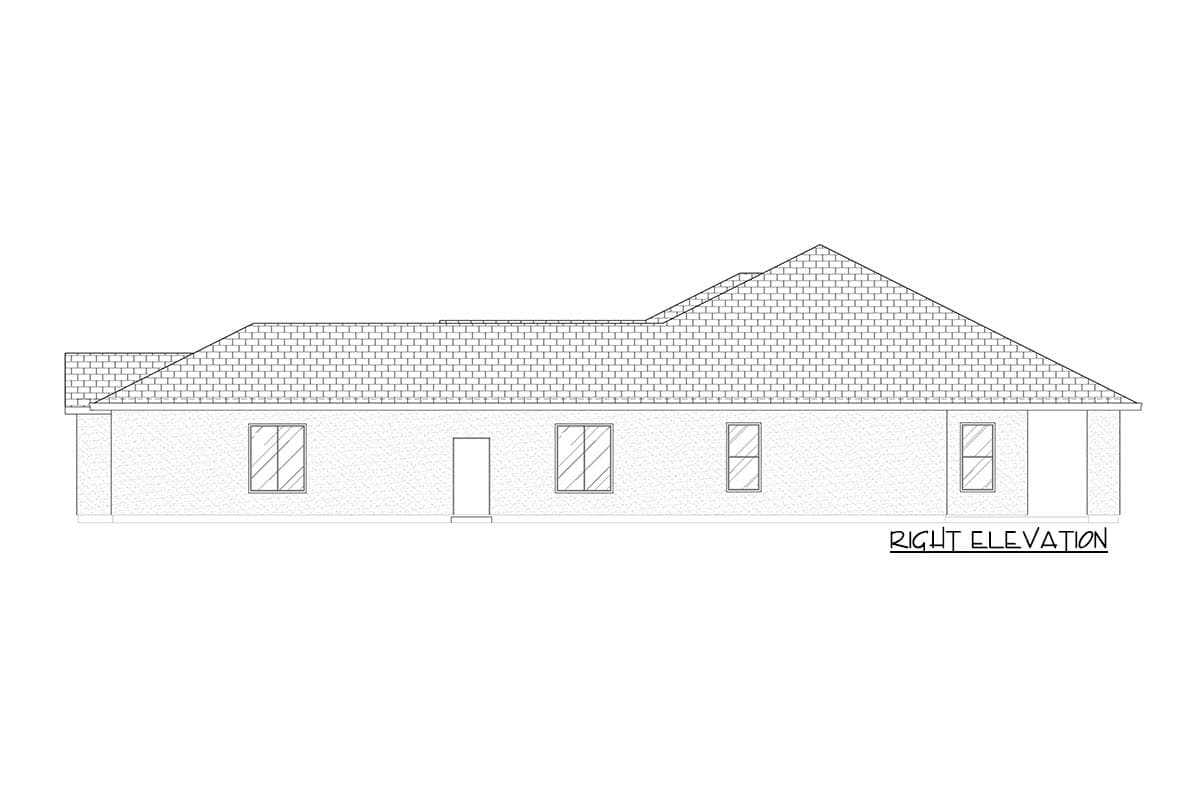

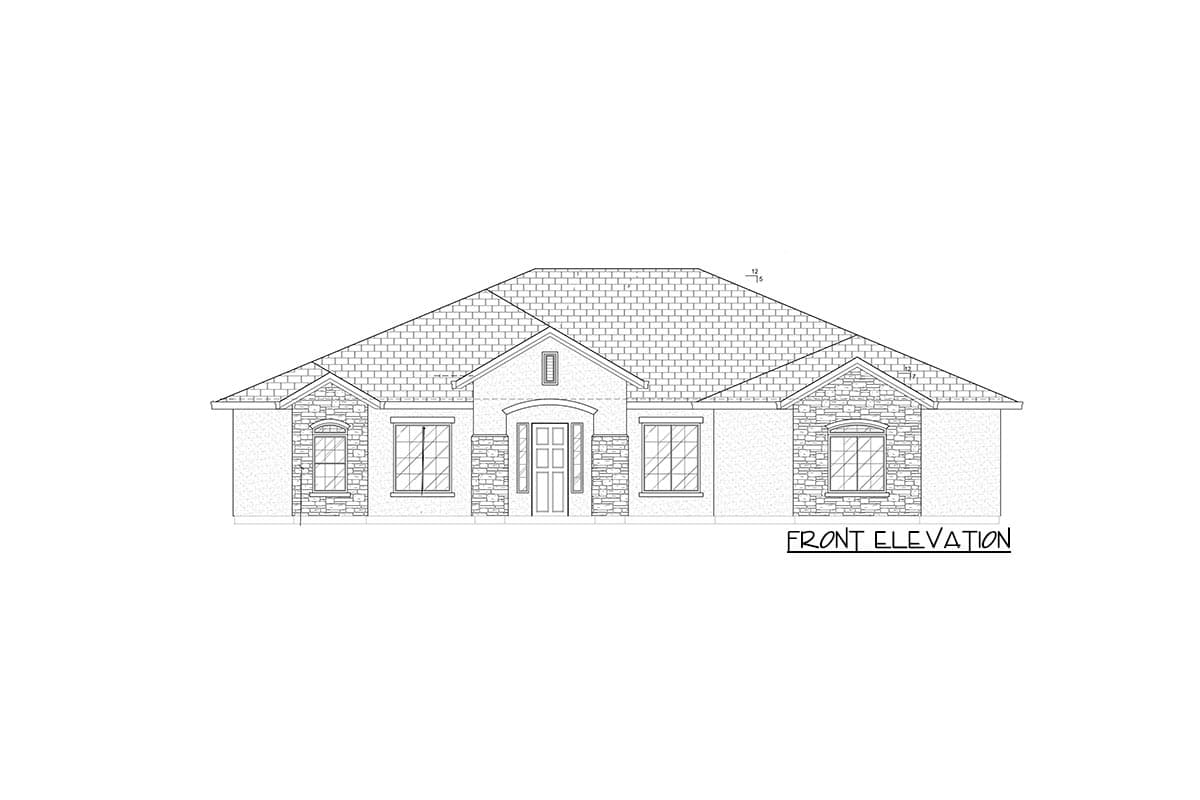

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

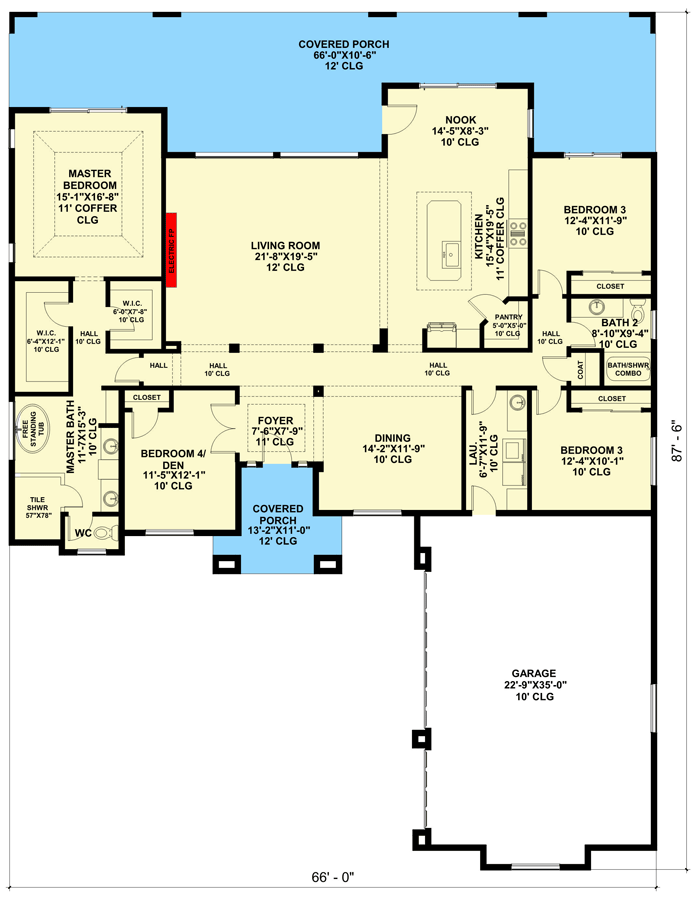

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Home Plan with Expansive Rear Porch - 420017WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,648 sq. ft.
  • 1st Floor: 2,648 sq. ft.
  • Covered Patio: 810 sq. ft.
  • Porch, Combined: 920 sq. ft.

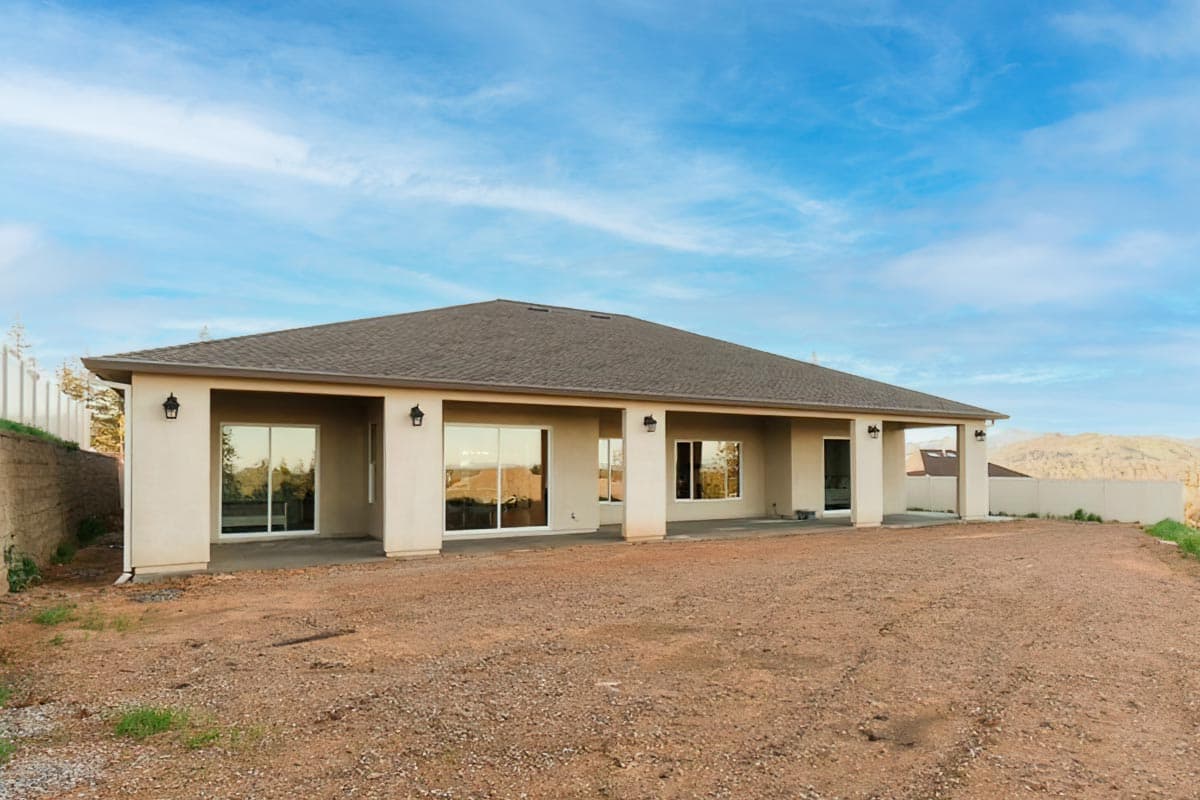

  • Porch, Rear: 810 sq. ft.
  • Porch, Front: 110 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 87' 6"
  • Max ridge height: 20' 0"

Garage

  • Type: Attached
  • Area: 873 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Living Room Flat 12' 0"
Kitchen Coffered 10' 0" to 11' 0"
Master Bedroom Coffered 10' 0" to 11' 0"
Entry Flat 12' 0"

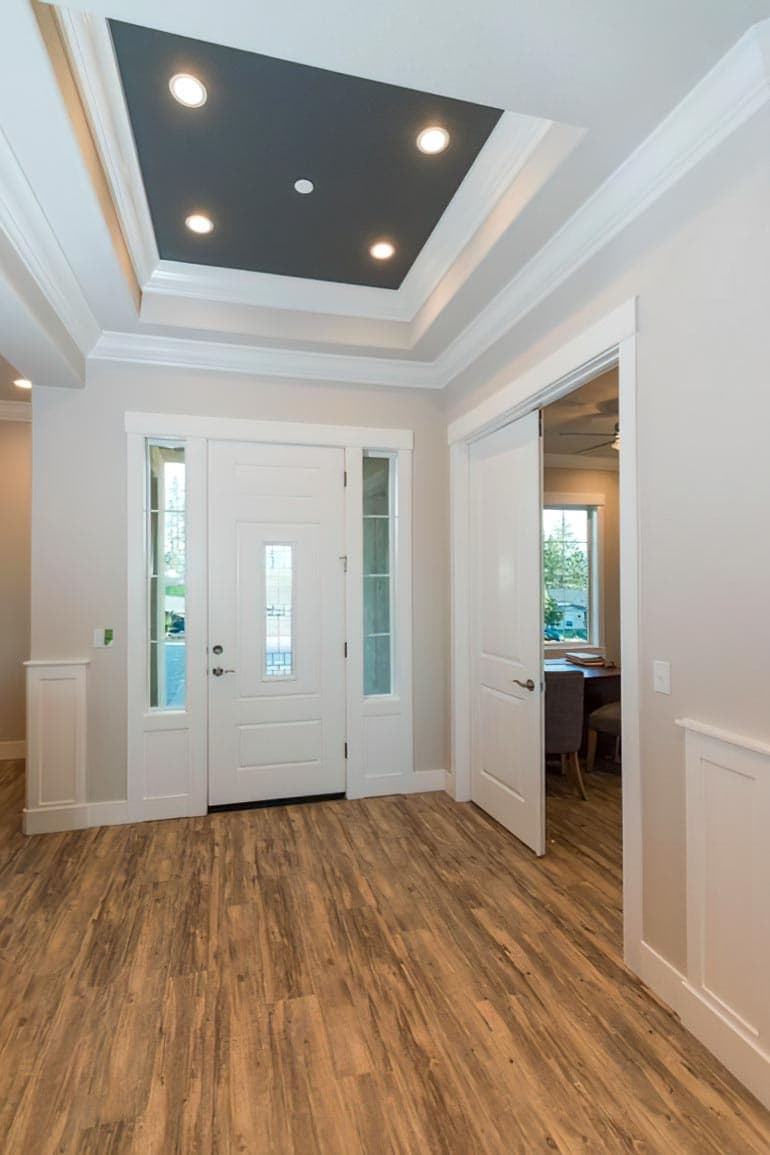

Foyer Tray 10' 0" to 11' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3-Bed Home Plan with Expansive Rear Porch

  • 2,648

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • 5 Sets $1,545
  • 5 Sets + PDF $1,745
  • PDF - Unlimited Build $1,795
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • A parking courtyard in front of this 3-bedroom home plan provides a space for friends and family, created by the 3-car garage that protrudes from the front elevation.
  • The formal dining room sits to the right of the foyer, which opens to a spacious living room and kitchen. An electric fireplace anchors the left wall, and two oversized windows provide views onto the back porch and beyond.
  • Cooking is a delight in this spacious kitchen, which hosts a central island, corner pantry, and 6-burner range.
  • Two walk-in closets can be found in the master bedroom, along with a tile shower and standalone tub in the attached bath.
  • Three additional bedrooms are dotted throughout the design, and the laundry room includes a utility sink and leads you to the garage.
  • NOTE: Please allow 3 to 5 business days for delivery.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,648 sq. ft.
  • 1st Floor: 2,648 sq. ft.
  • Covered Patio: 810 sq. ft.
  • Porch, Combined: 920 sq. ft.
  • Porch, Rear: 810 sq. ft.
  • Porch, Front: 110 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 87' 6"
  • Max ridge height: 20' 0"

Garage

  • Type: Attached
  • Area: 873 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
Plan 420017WNT
View this and more for this plan by visiting www.architechtecturaldesigns.com/420017WNT
|
Need Help? 800-854-7852
|
Plan 420017WNT
