3-Bed House Plan with Alternate Versions

Plan 22499DR

  • 1,024

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • This 3-bed house plan gives you 1,024 square feet of heated living space and comes in alternate versions.
  • The living space is open with no walls separating the living room from the kitchen.
  • Three bedrooms share a bathroom.
  • Laundry is in the basement where you'll find room for expansion..
  • Related Plans: Add a garage with house plan 22477DR. Get a bumpout on the side with house plan 21714DR and get a little more room with house plan 21967DR (975 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

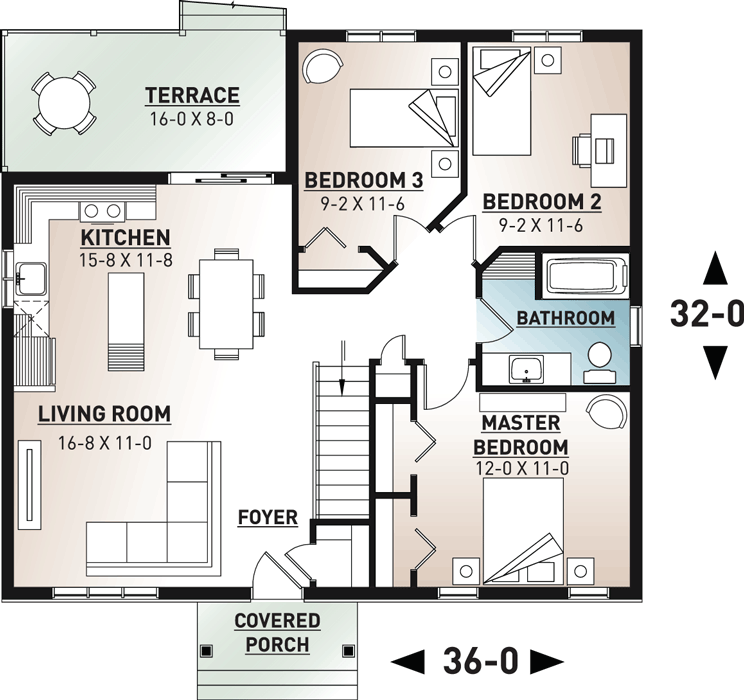

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed House Plan with Alternate Versions - 22499DR floor plan - Main Level

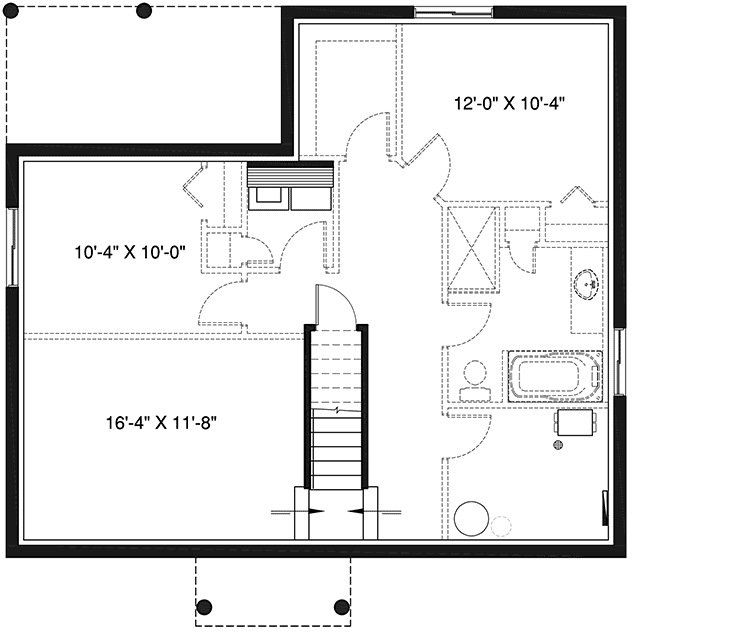

Basement Unfinished

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed House Plan with Alternate Versions - 22499DR floor plan - Basement Unfinished

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,024 sq. ft.
  • 1st Floor: 1,024 sq. ft.
  • Deck: 128 sq. ft.
  • Porch, Front: 30 sq. ft.
  • Basement Unfinished: 1,024 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 32' 0"
  • Max ridge height: 16' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3-Bed House Plan with Alternate Versions

  • 1,024

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • 3 Sets + PDF $1,375
  • CAD + PDF - Single-Build $1,850
  • View all purchase option online

About This Plan

  • This 3-bed house plan gives you 1,024 square feet of heated living space and comes in alternate versions.
  • The living space is open with no walls separating the living room from the kitchen.
  • Three bedrooms share a bathroom.
  • Laundry is in the basement where you'll find room for expansion..
  • Related Plans: Add a garage with house plan 22477DR. Get a bumpout on the side with house plan 21714DR and get a little more room with house plan 21967DR (975 sq. ft.).

Floor Plans

  • Main Level

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,024 sq. ft.
  • 1st Floor: 1,024 sq. ft.
  • Deck: 128 sq. ft.
  • Porch, Front: 30 sq. ft.
  • Basement Unfinished: 1,024 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 32' 0"
  • Max ridge height: 16' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 22499DR
