Plan 22337DR
3-Bed Modern Home Pan with a Drive Under Garage
Heated S.F.
1,883
Beds
3
Baths
2
Stories
2
Cars
1
What's Included
Plan Details
  • This home plan is an extremely attractive model for narrow, sloping lots. A basement with a drive-under garage and generous storage area will surely be appreciated.
  • The main level boasts 8'8" ceilings, an open floor plan and ample windows.
  • The adjoining kitchen features a 40"x70" island, walk-in pantry and triple patio doors.
  • A flex space off the kitchen can evolve with the family as a playroom, study, office or reading room.
  • The upstairs is a dedicated sleeping area with three bedrooms. The master includes a full-wall bank of closets and private access to the 5 fixture bathroom complete with 4'x4' shower, soaker tub, and dual vanity.
  • Two secondary bedrooms share hall access to the bathroom and all bedrooms will appreciate a laundry on this level.
  • Additional space is available by developing the basement.
  • The roof is a truss design.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Modern Home Pan with a Drive Under Garage

  • 1,883

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

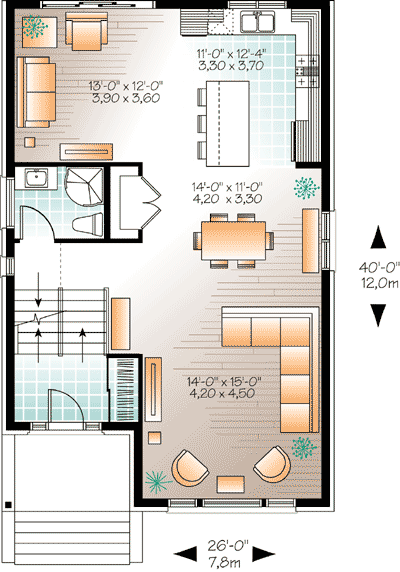

  • Main Level

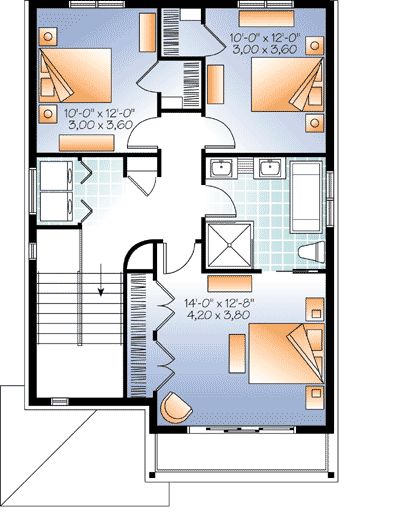

  • 2nd Floor

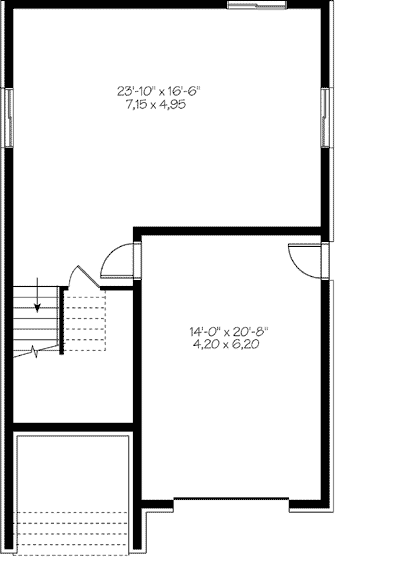

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,883 sq. ft.
  • 1st Floor: 980 sq. ft.
  • 2nd Floor: 903 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 40' 0"
  • Max ridge height: 33' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 331 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 8" Second Floor / 8' 0"
