Plan 490042NAH 3 Bed Modern Mountain Home Plan with Front Balconies

3 Bed Modern Mountain Home Plan with Front Balconies

Plan 490042NAH

  • 1,703

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Originally designed as a mountain lakehouse, this modern plan offers large windows and doors to maximize views. Angled roofs help this house plan stand out from the crowd.
  • With the open concept design, the kitchen is centered across from the great room's fireplace with the dining room off to the side. A large island, pantry, and tons of natural light make this a highly functional kitchen.
  • As you come up the stairs, you are met with more beautiful windows. To one side, the open vaulted gathering space with a covered balcony in front. On the other side, a comfortable primary suite awaits with an oversized shower and convenient laundry. The front wall of the master suite opens to give you access to a private balcony.
  • Down on the main floor, you'll find two additional bedrooms, each with its own bathroom and walk-in closet. The mudroom has plenty of storage to keep the shoes, jackets, and mess downstairs away from the action.
  • This home plan offers basement expansion (554 square feet when finished as shown) with another large, open space for gathering.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

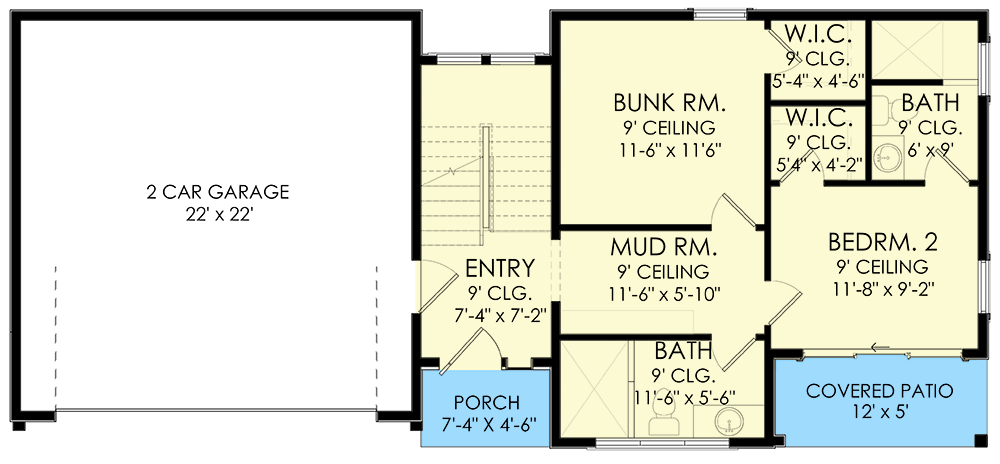

3 Bed Modern Mountain Home Plan with Front Balconies - 490042NAH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

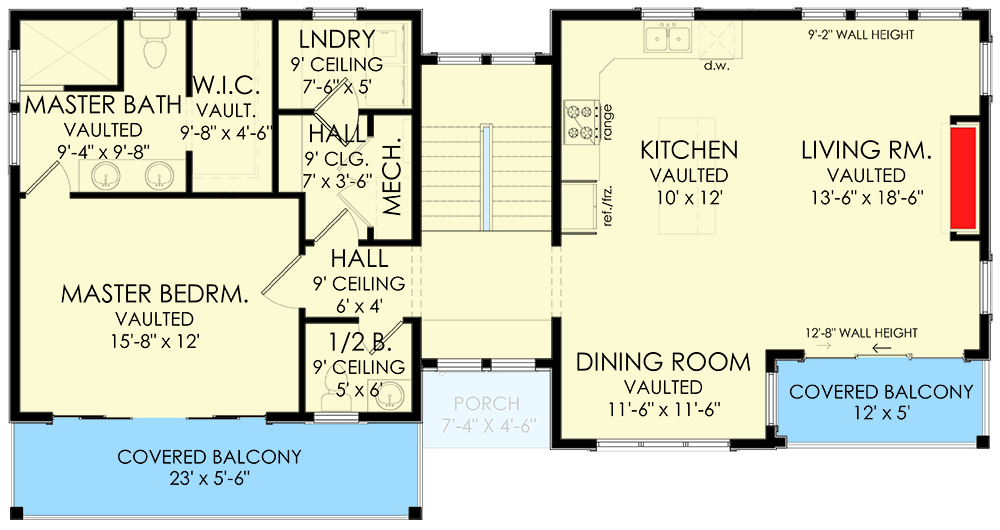

3 Bed Modern Mountain Home Plan with Front Balconies - 490042NAH floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

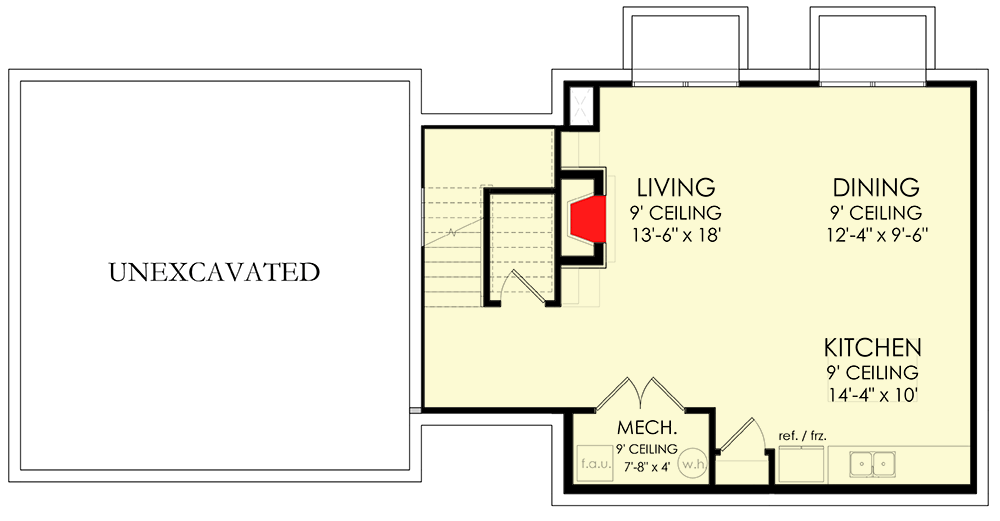

3 Bed Modern Mountain Home Plan with Front Balconies - 490042NAH floor plan - Lower Level

Main Level - Slab/Crawl Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

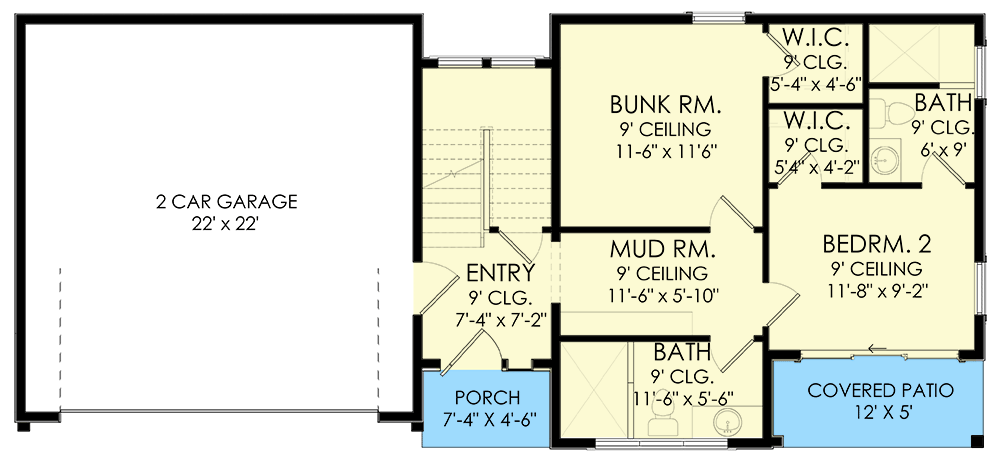

3 Bed Modern Mountain Home Plan with Front Balconies - 490042NAH floor plan - Main Level - Slab/Crawl Option

Plan details

3 Bed Modern Mountain Home Plan with Front Balconies

  • 1,703

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,200
  • View all purchase option online

About This Plan

  • Originally designed as a mountain lakehouse, this modern plan offers large windows and doors to maximize views. Angled roofs help this house plan stand out from the crowd.
  • With the open concept design, the kitchen is centered across from the great room's fireplace with the dining room off to the side. A large island, pantry, and tons of natural light make this a highly functional kitchen.
  • As you come up the stairs, you are met with more beautiful windows. To one side, the open vaulted gathering space with a covered balcony in front. On the other side, a comfortable primary suite awaits with an oversized shower and convenient laundry. The front wall of the master suite opens to give you access to a private balcony.
  • Down on the main floor, you'll find two additional bedrooms, each with its own bathroom and walk-in closet. The mudroom has plenty of storage to keep the shoes, jackets, and mess downstairs away from the action.
  • This home plan offers basement expansion (554 square feet when finished as shown) with another large, open space for gathering.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

  • Main Level - Slab/Crawl Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,703 sq. ft.
  • 1st Floor: 593 sq. ft.
  • 2nd Floor: 1,110 sq. ft.
  • Deck: 187 sq. ft.
  • Optional Lower Level: 554 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 10"
  • Depth: 24' 6"

Garage

  • Type: Attached
  • Area: 525 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
