3 Bed Modern Ranch House Plan

Heated S.F.
2,011
Beds
3
Baths
2
Stories
1
Cars
3
Client Photos

Floor Plan

Plan 62547DJ

Main Level
Main Level

Plan 62547DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

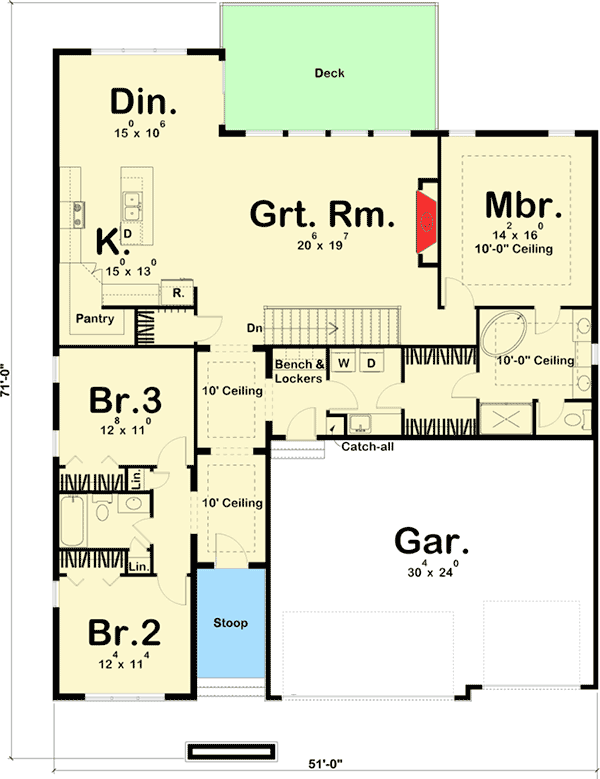

Plan 62547DJ: 3 Bed Modern Ranch House Plan - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Ranch

Plan Details

  • This modern ranch house plan has a stunning exterior and floor plan that gives you an open layout for your entertaining spaces and privacy with a split bedroom layout.
  • Raked eaves and deep overhangs, simple use of materials, and simple shed roofs give this plan character and appeal.
  • The plan features a spacious great room that is open to the kitchen and dinette. Windows overlook the deck in back accessible from the dining room.
  • The master suite has a walk-in closet with direct access to the laundry room. Two beds share a bath across the home.
  • The roomy 3 car garage has an entry that takes you to the mud room with lockers to help manage clutter.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Modern House Plan 62547DJ Comes to Life in Iowa

Modern House Plan 62547DJ Comes to Life in Iowa

13

Photos

build gallery item - Modern House Plan 62547DJ comes to life in Michigan

Modern House Plan 62547DJ comes to life in Michigan

17

Photos

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,011 sq. ft.

1st Floor

2,011 sq. ft.

Basement Unfinished

2,011 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 0"

Depth

65' 4"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

739 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Tray

10' 0''

Foyer

Tray

10' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area
