Plan 70522SND

3 Bed Modern with Upstairs Sleeping Loft

Heated S.F.
2,494
Beds
3
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 70522SND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70522SND

M-F 9am-5pm EST |

1-203-761-8500

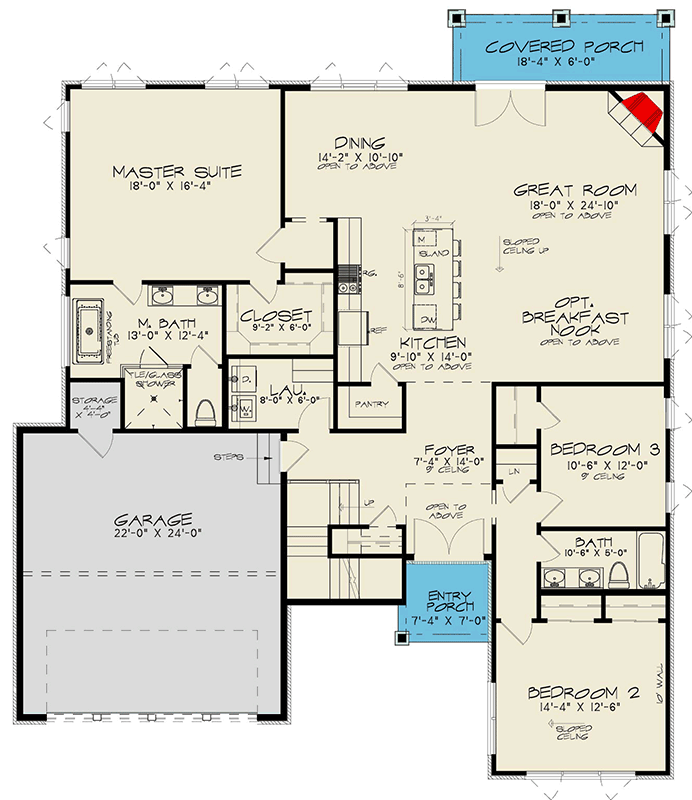

Main Level

Plan 70522SND: 3 Bed Modern with Upstairs Sleeping Loft - Floor Plan - Main Level - Contemporary, Mediterranean, Mid Century Modern, Modern

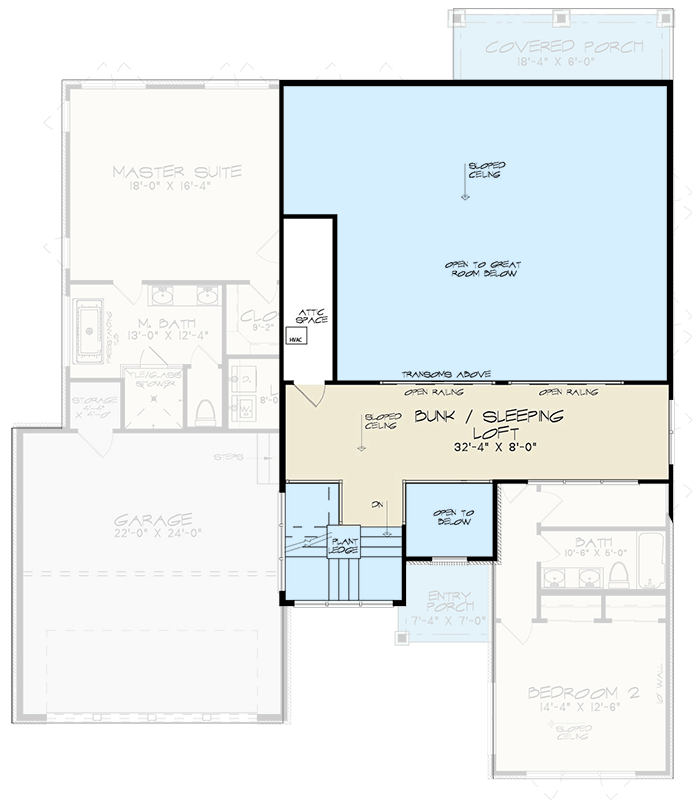

2nd Floor

Plan 70522SND: 3 Bed Modern with Upstairs Sleeping Loft - Floor Plan - 2nd Floor - Contemporary, Mediterranean, Mid Century Modern, Modern

Plan Details

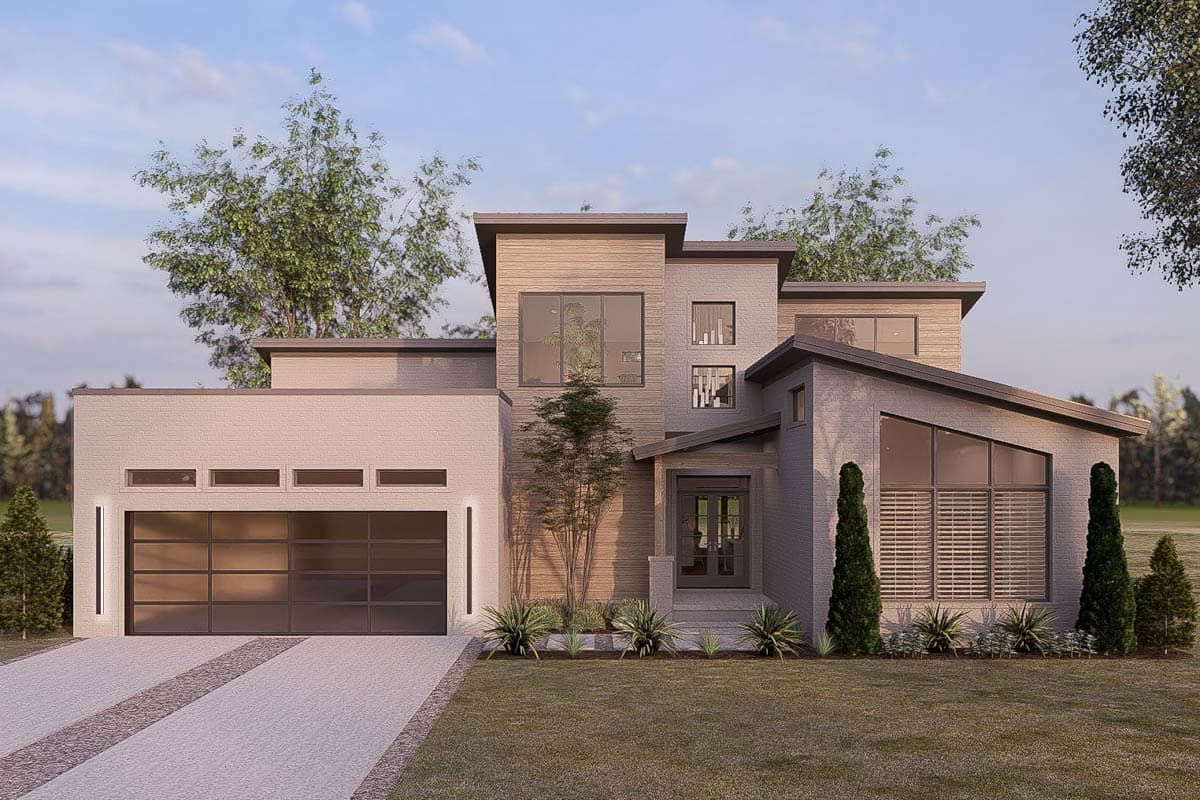

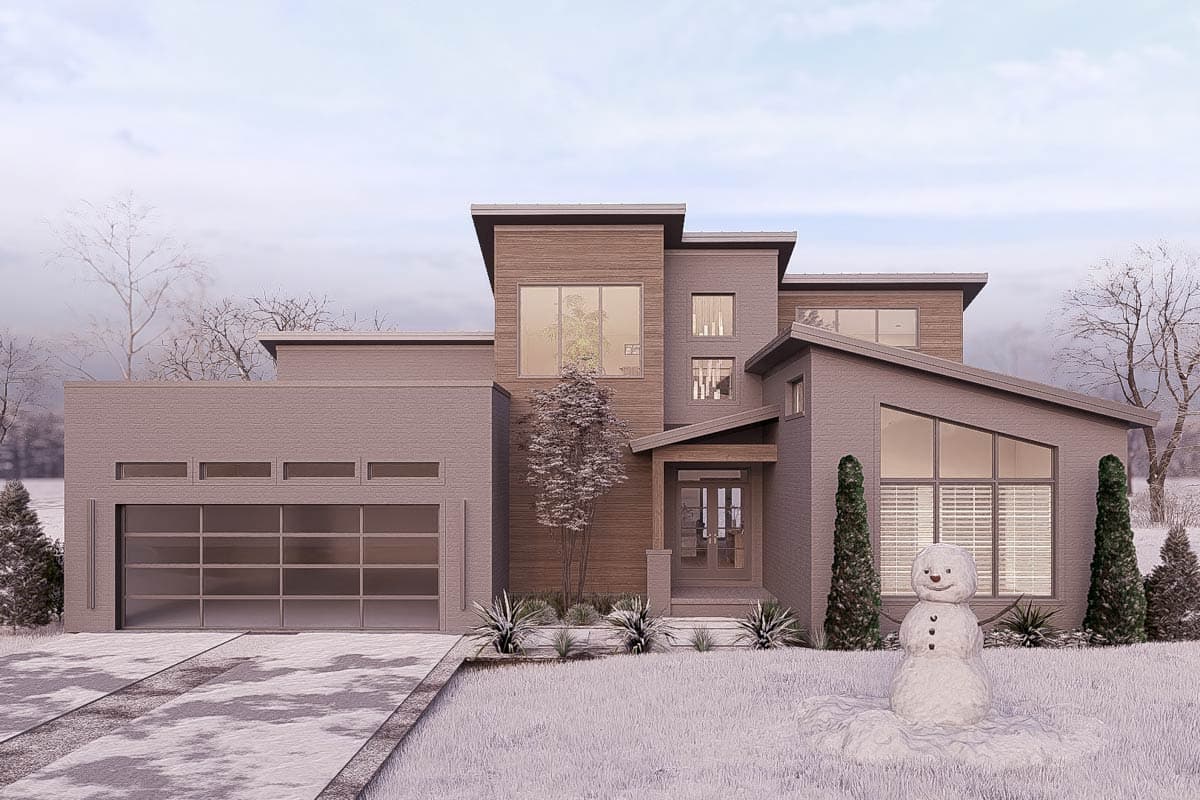

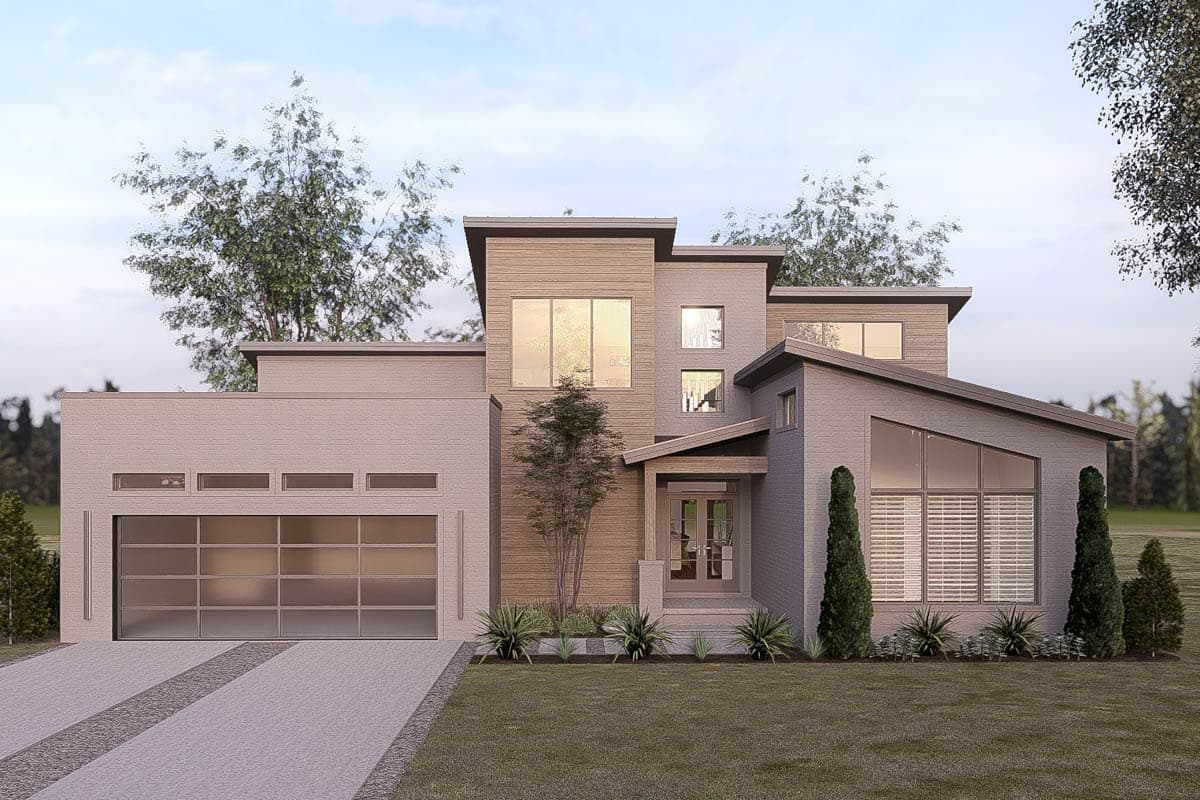

  • This 2,494 sq. ft. contemporary modern house plan features 3 bedrooms, 2 bathrooms, and an attached 579 sq. ft. two-car garage, all wrapped in a sleek, multi-textured exterior.

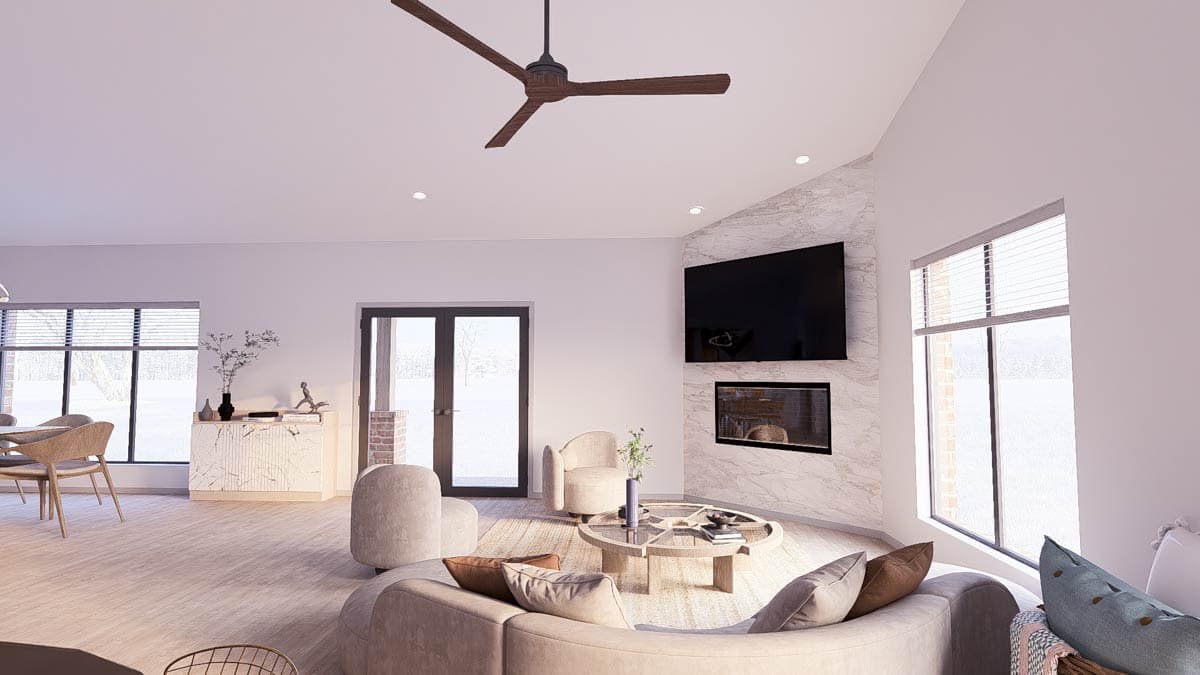

  • Step inside the inviting foyer, which immediately opens to the dramatic two-story Great Room, setting the tone for the home's expansive, open-concept living with soaring ceilings.

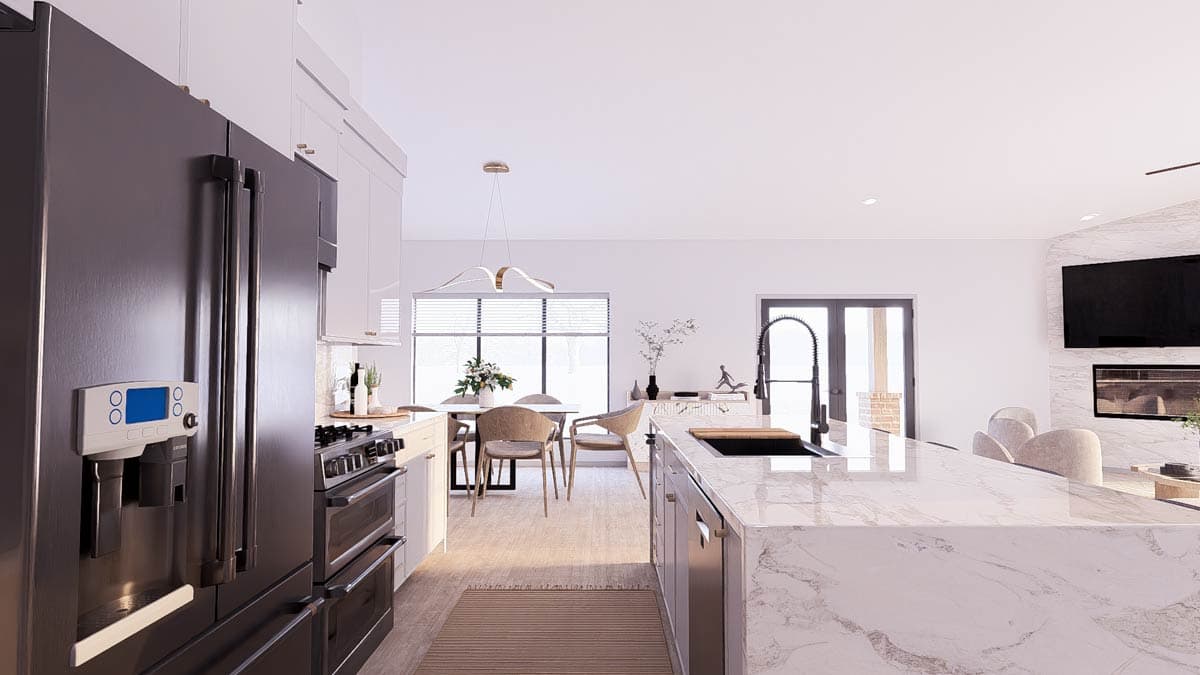

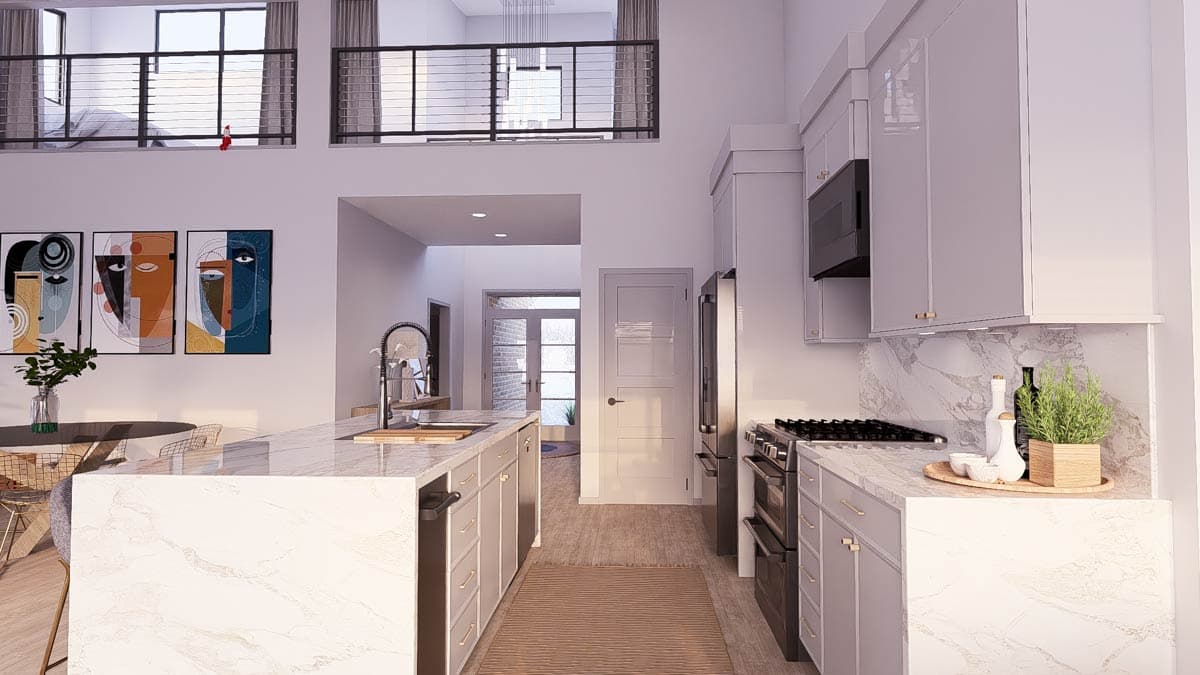

  • The heart of the home unfolds into a seamless flow between the Great Room, Dining area, and a gourmet Kitchen, perfect for both daily living and entertaining. The Kitchen boasts a central island and a functional butler walk-in pantry, opening directly to the Dining space and offering views into the grand Great Room, which extends outdoors to a spacious covered porch.
  • The luxurious main-level master suite is privately situated, offering a serene retreat with an expansive bedroom, a spa-like master bath featuring both a soaking tub and a separate shower, and a generous walk-in closet. Two additional bedrooms are thoughtfully separated on the opposite side of the home, ensuring privacy for all residents.

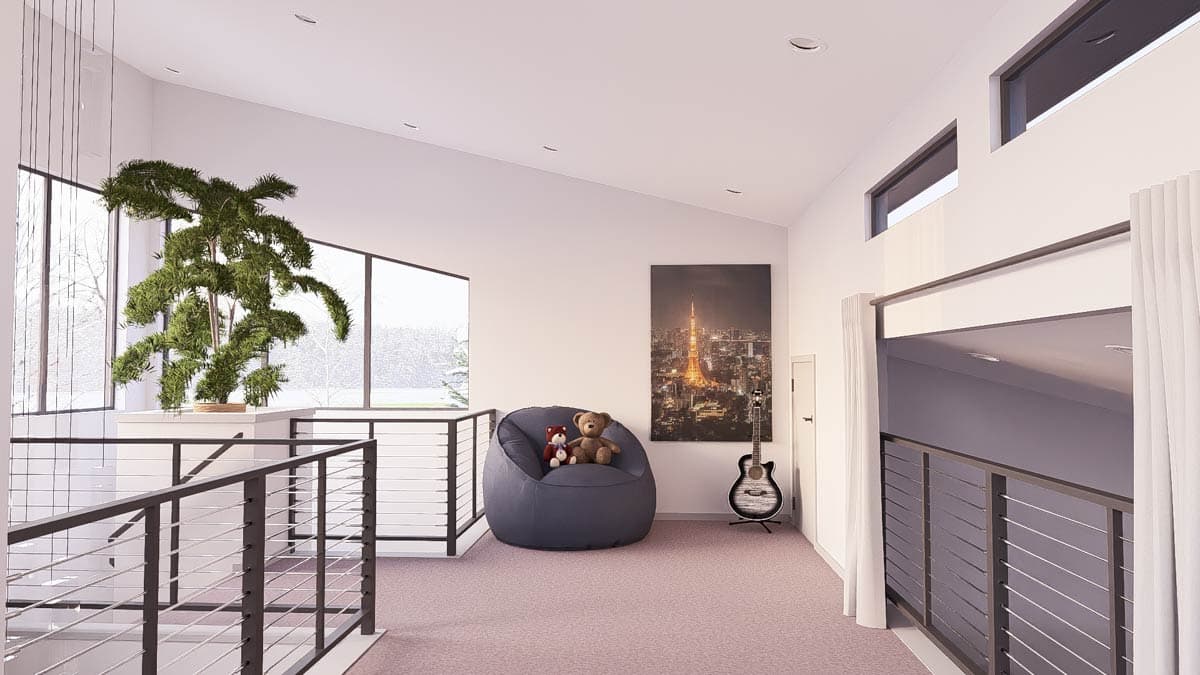

  • Ascend to the second floor where a unique Bunk/Sleeping Loft overlooks the Great Room below, providing a versatile space ideal for guests, a play area, or a cozy reading nook, complete with a charming sloped ceiling.

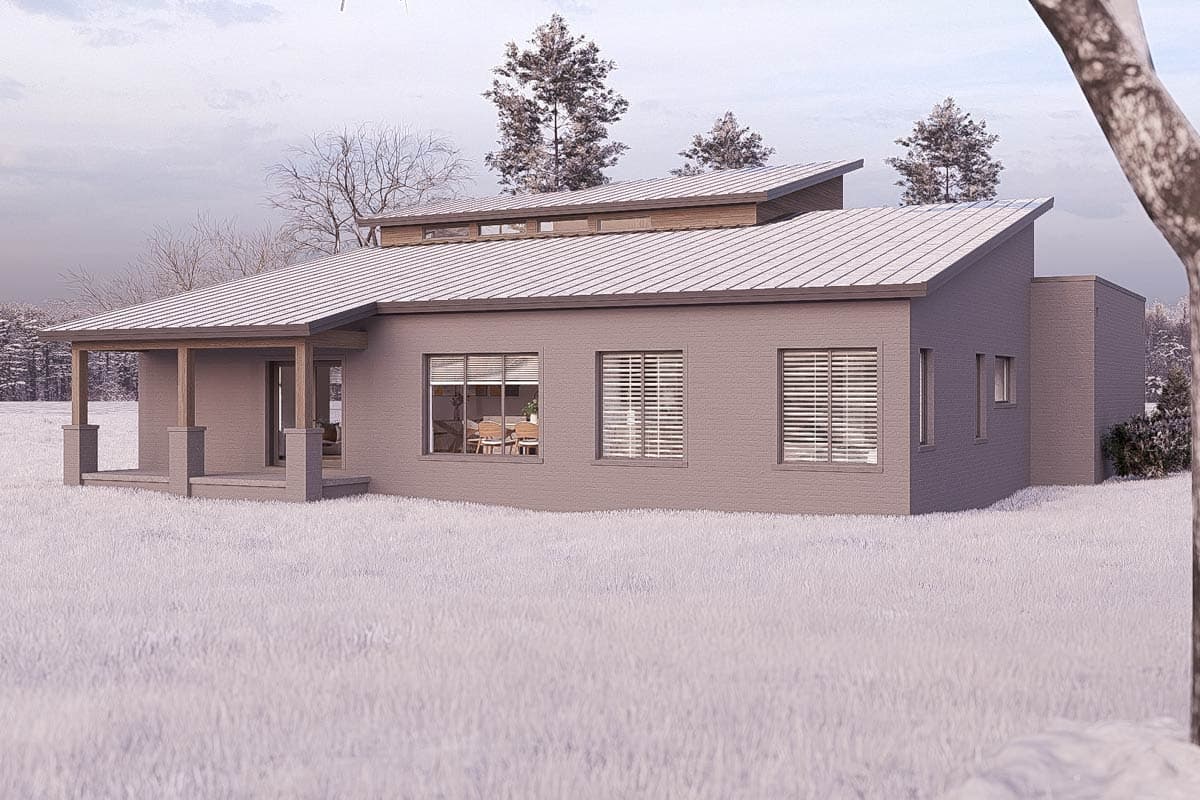

  • Enjoy morning coffee or evening gatherings on the generous covered porch, seamlessly extending the living space outdoors and providing a tranquil spot for relaxation.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,494 sq. ft.

1st Floor

2,186 sq. ft.

2nd Floor

308 sq. ft.

Porch, Combined

164 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 2"

Depth

64' 8"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

579 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

0' 0''

Foyer

Slope

0' 0''

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mediterranean

Mid Century Modern

Modern

Special Features

Bedrooms - Split

Bunk Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry
