3-Bed Mountain Craftsman Plan with Vaulted Great Room

Plan 770510JME

This plan plants 10 trees

3,569
Heated s.f.
3
Beds
3.5 - 4.5
Baths
2
Stories
3
Cars

A multitude of gabled peaks line the front elevation of this 3-bedroom Mountain Craftsman home plan that gives you 3,569 square feet of living space.
The main floor delivers the shared living spaces in a free-flowing layout comfortable for everyday living. Services areas, including the mudroom and pantry, are clustered next to the 3-car garage.
The heart of the home boasts a sizable island and the vaulted great room extends onto a covered deck with a fireplace.
Three bedroom suites can be found upstairs, along with a laundry room and loft. The master bedroom delights in a private sun deck, large dressing room, and 5-fixture bathroom.
Gain a rec / game room, play area, and theatre when you finish the lower level for an additional 1,761 square feet.
DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

This plan includes the following details:

Cover sheet
Foundation plan
Floor plans
Floor joist layout
Roof truss layout
Sections

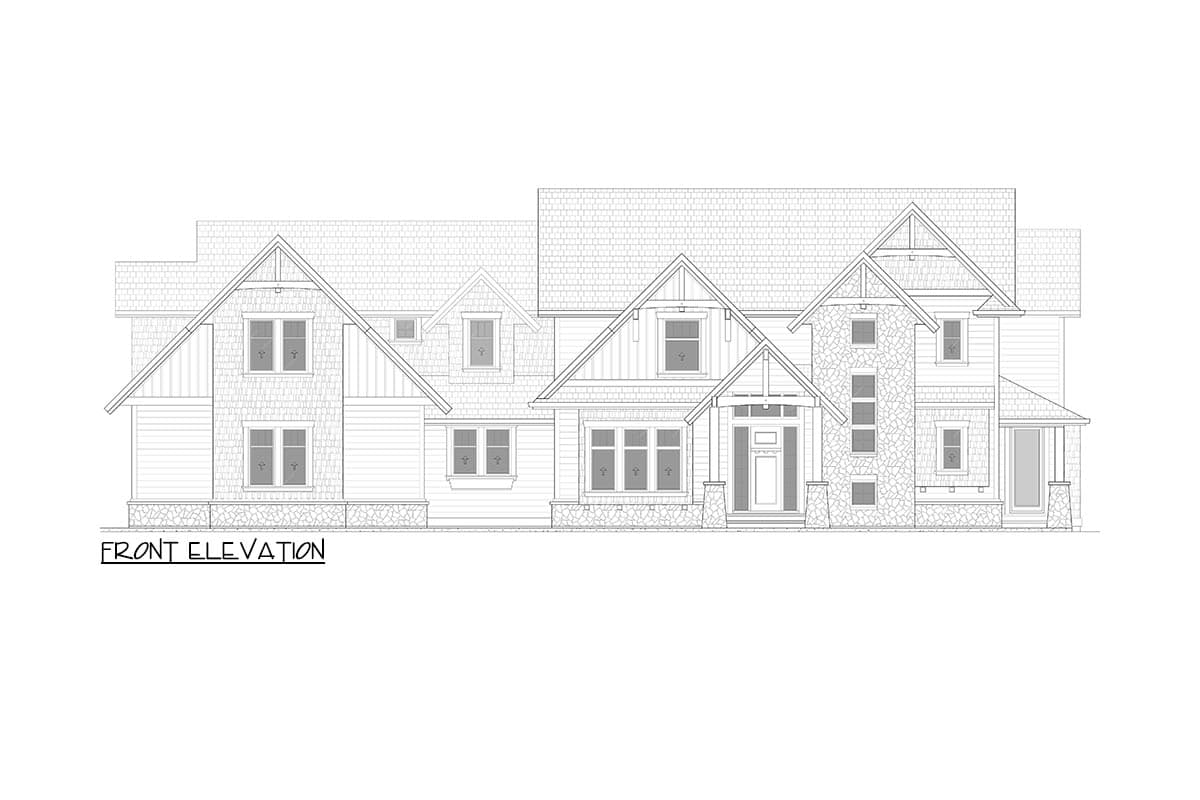

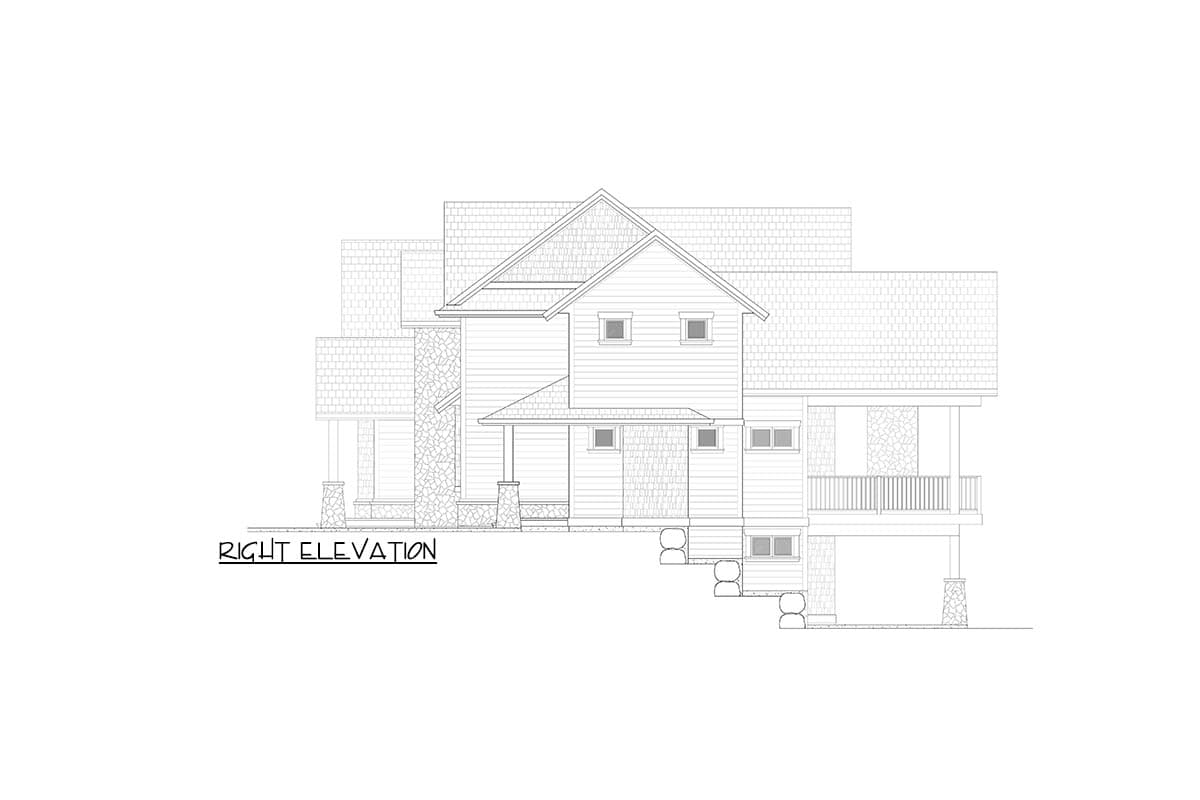

Elevations

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

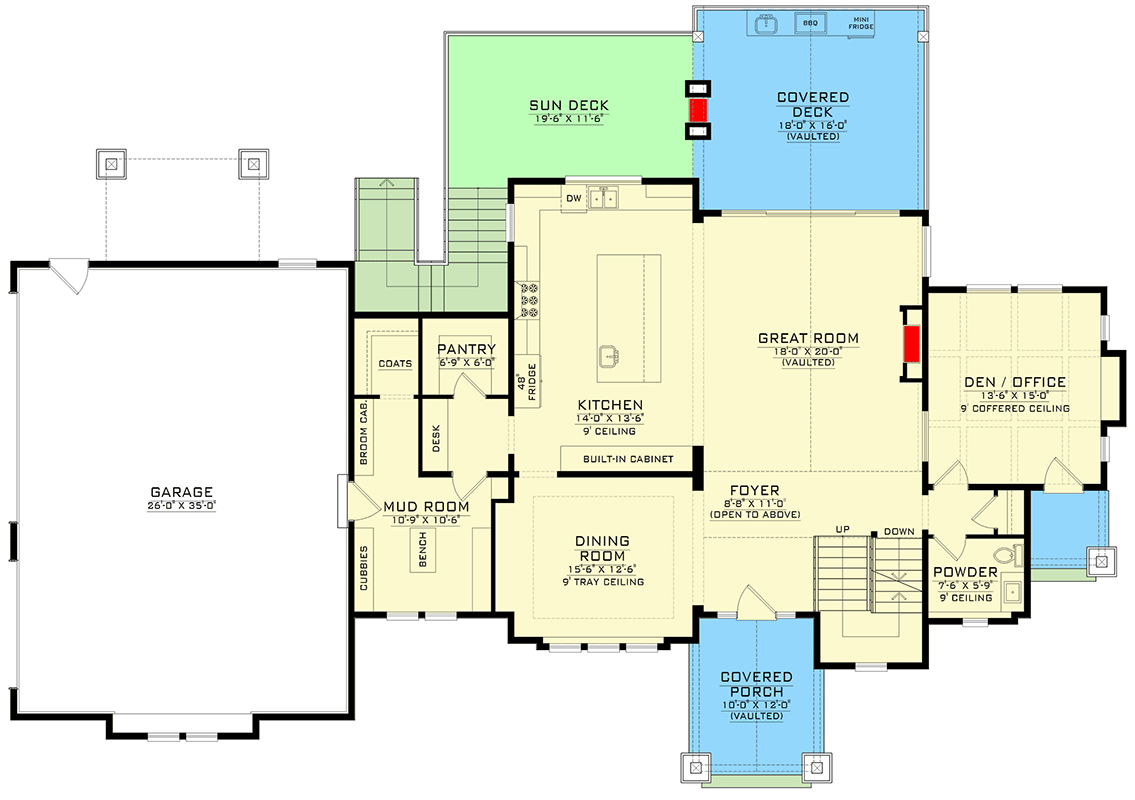

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3-Bed Mountain Craftsman Plan with Vaulted Great Room - 770510JME floor plan - Main Level

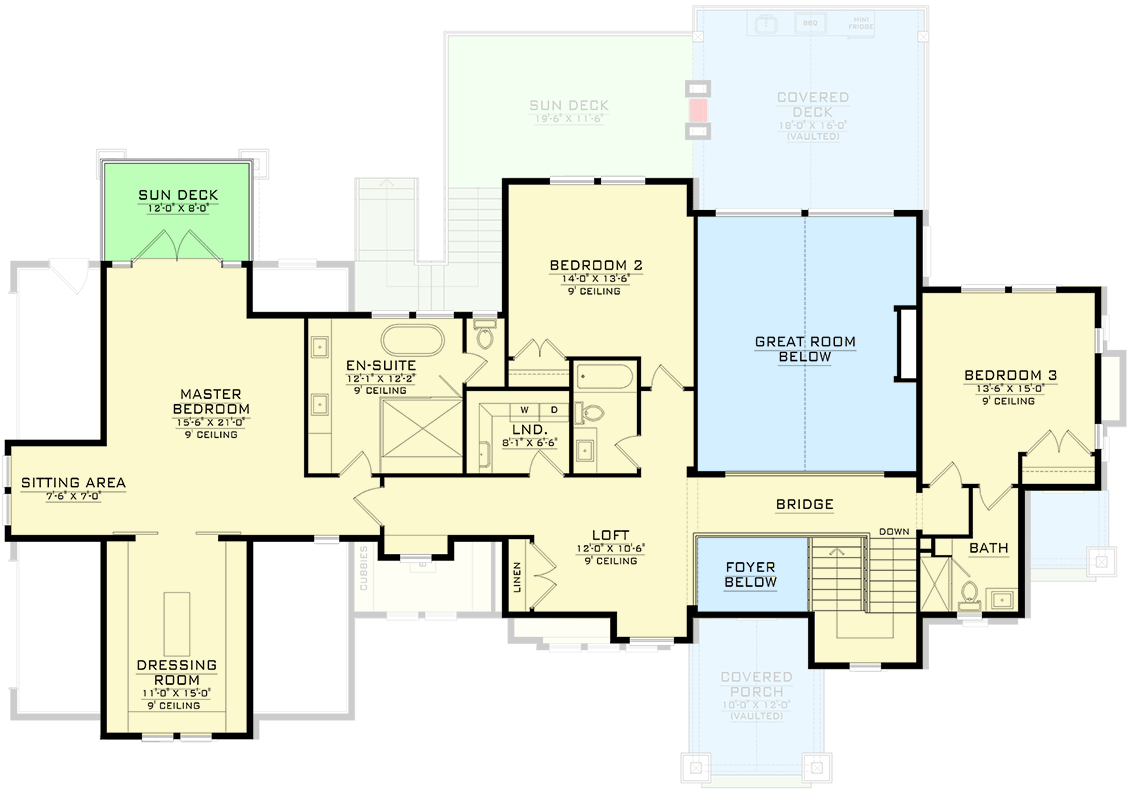

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3-Bed Mountain Craftsman Plan with Vaulted Great Room - 770510JME floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

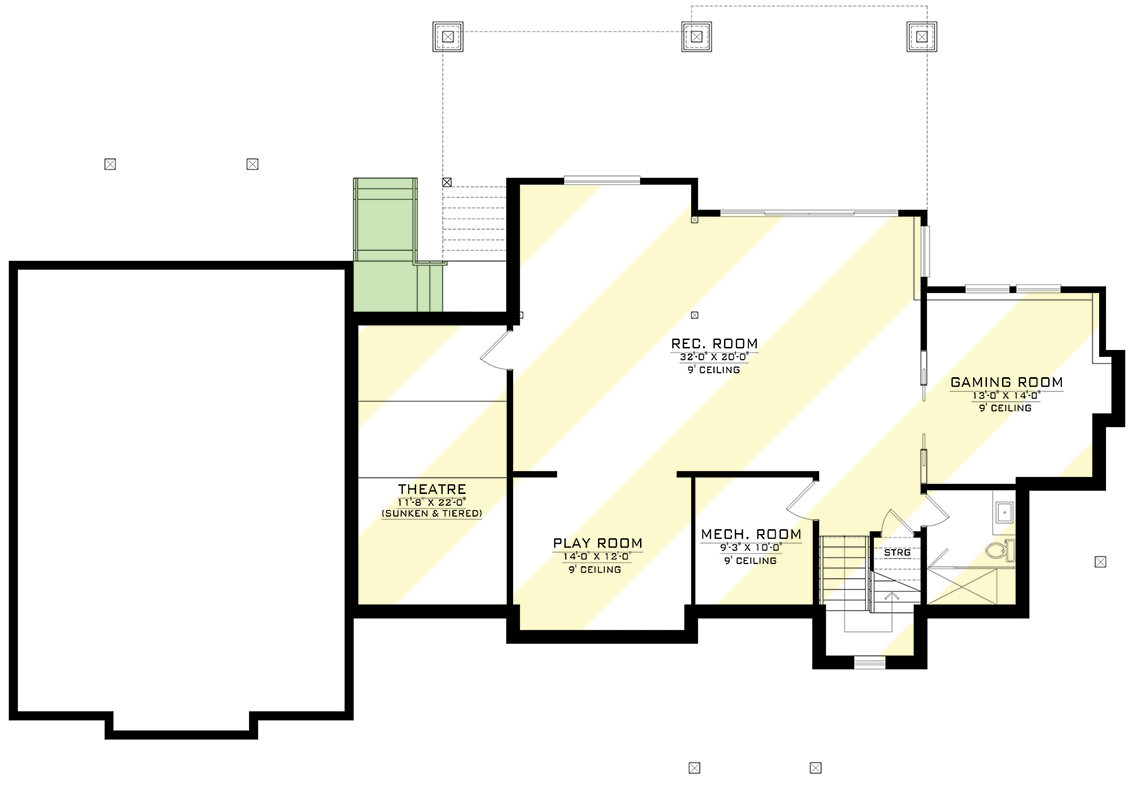

3-Bed Mountain Craftsman Plan with Vaulted Great Room - 770510JME floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,569 sq. ft.
1st Floor: 1,761 sq. ft.
2nd Floor: 1,808 sq. ft.

Deck & Porch: 645 sq. ft.
Deck: 523 sq. ft.
Porch, Front: 122 sq. ft.
Optional Lower Level: 1,761 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 3 or 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 87' 6"
Depth: 58' 0"
Max ridge height: 31' 8"

Garage

Type: Attached
Area: 989 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 9 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
