3-Bed New American House Plan with Exposed Beamed Entryway

Plan 62804DJ

  • 3,378

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • We took classic farmhouse style and blending in modern elements to create this beautiful 3-bed New American house plan. The exterior blends natural wood elements with the classic board and batten siding and a lot of glass to finish off the unique look.
  • Step inside and marvel at the entryway with exposed wood beams overhead. Just off the entryway, you'll find the living room and dining room. The living room is warmed by a fireplace and also lies under exposed wood beams.
  • Towards the rear of the main floor, the kitchen and great room share a soaring 2-story ceiling. The great room is warmed by a fireplace that is flanked by built-in bookshelves. The kitchen includes a large kitchen island and a walk-in pantry. Also on the main floor, is an amazing wine room.
  • The bedrooms all reside on the second floor. The master suite includes his/her vanities, a soaking tub, and a large walk-in closet. Bedrooms 2 and 3 share a jack and jill bath and each has its own walk-in closet.
  • Back on the main floor, the oversized 2-car garage includes a large storage area with an overhead door that leads to the rear covered patio. The garage accesses the home through a convenient mudroom that includes a bench and lockers as well as a coat closet.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

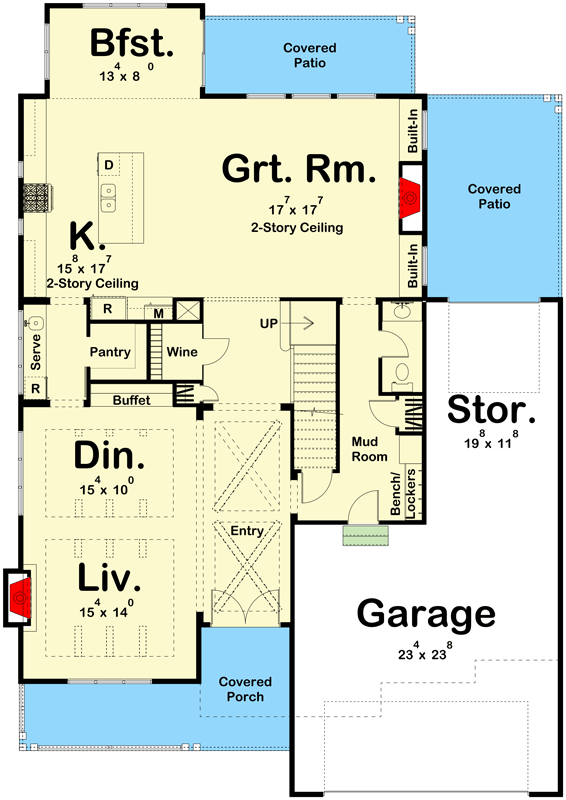

3-Bed New American House Plan with Exposed Beamed Entryway - 62804DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

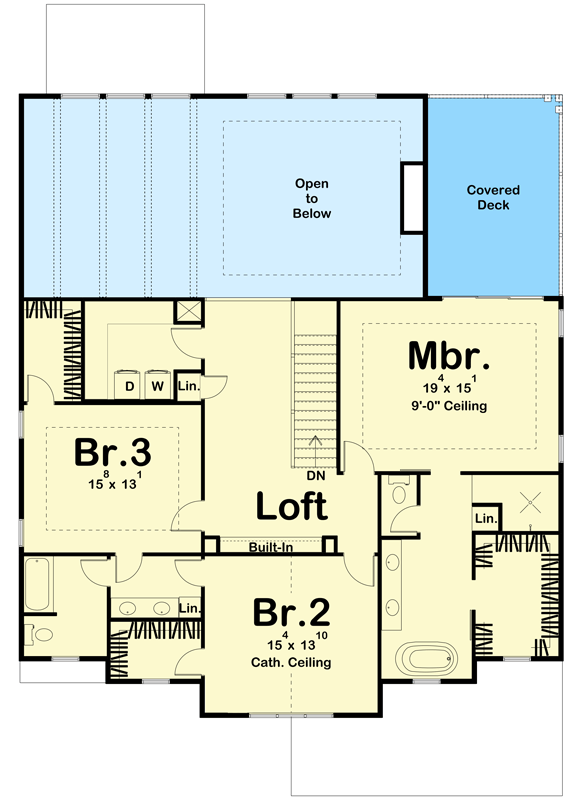

3-Bed New American House Plan with Exposed Beamed Entryway - 62804DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,378 sq. ft.
  • 1st Floor: 1,791 sq. ft.
  • 2nd Floor: 1,597 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 70' 0"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

3-Bed New American House Plan with Exposed Beamed Entryway

  • 3,378

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • We took classic farmhouse style and blending in modern elements to create this beautiful 3-bed New American house plan. The exterior blends natural wood elements with the classic board and batten siding and a lot of glass to finish off the unique look.
  • Step inside and marvel at the entryway with exposed wood beams overhead. Just off the entryway, you'll find the living room and dining room. The living room is warmed by a fireplace and also lies under exposed wood beams.
  • Towards the rear of the main floor, the kitchen and great room share a soaring 2-story ceiling. The great room is warmed by a fireplace that is flanked by built-in bookshelves. The kitchen includes a large kitchen island and a walk-in pantry. Also on the main floor, is an amazing wine room.
  • The bedrooms all reside on the second floor. The master suite includes his/her vanities, a soaking tub, and a large walk-in closet. Bedrooms 2 and 3 share a jack and jill bath and each has its own walk-in closet.
  • Back on the main floor, the oversized 2-car garage includes a large storage area with an overhead door that leads to the rear covered patio. The garage accesses the home through a convenient mudroom that includes a bench and lockers as well as a coat closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,378 sq. ft.
  • 1st Floor: 1,791 sq. ft.
  • 2nd Floor: 1,597 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 70' 0"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 4 on 12
Plan 62804DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62804DJ
|
Need Help? 800-854-7852
|
Plan 62804DJ
